1 - DEPTH STOP
MET-341511630.A22
341511630
|
£6.38
|
£7.65
|
|
|
2 - HANDLE
MET-314000550.A1
314000550
|
-
|
|
|
|
3 - HEXAGON HEAD SCREW
MET-141116160.A6
141116160
|
£3.20
|
£3.84
|
|
|
4 - CLAMPING PIECE
MET-343359780.A1
343359780
|
£7.36
|
£8.83
|
|
|
5 - SIDE SUPPORT HANDLE
MET-631052000.A14
631052000
|
-
|
|
|
|
6 - CHEESE-HEAD SCREW
MET-341701940.A20
341701940
|
£3.20
|
£3.84
|
|
|
7 - SPINDLE
MET-341603410.A3
341603410
|
£30.06
|
£36.07
|
|
|
8 - BALL BEARING 12X28X8
MET-143115640.A33
143115640
|
£3.82
|
£4.59
|
|
|
9 - RETAINING RING
MET-141180060.A125
141180060
|
£1.50
|
£1.80
|
|
|
10 - SPUR GEAR
MET-341054650.A17
341054650
|
£19.18
|
£23.02
|
|
|
11 - BALL HOLDER
MET-320050260.A17
320050260
|
£5.62
|
£6.75
|
|
|
12 - WASHER
MET-339005870.A33
339005870
|
£1.50
|
£1.80
|
|
|
13 - PRESSURE SPRING
MET-342021560.A17
342021560
|
£1.50
|
£1.80
|
|
|
14 - GEAR FLANGE CPL.
MET-316025220.A15
316025220
|
£26.35
|
£31.62
|
|
|
15 - CUP SPRING
MET-141150590.A16
141150590
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 8X22X7
MET-143115800.A176
143115800
|
£3.83
|
£4.60
|
|
|
17 - WASHER
MET-339005930.A5
339005930
|
£1.50
|
£1.80
|
|
|
18 - FAN
MET-330000850.A0
330000850
|
£3.20
|
£3.84
|
|
|
19 - ARMATURE CPL.120V
MET-310007460.A0
310007460
|
£64.30
|
£77.16
|
|
|
20 - RUBBER PLUG
MET-344091420.A63
344091420
|
£1.50
|
£1.80
|
|
|
21 - BALL BEARING 6X19X6
MET-143115660.A98
143115660
|
£3.82
|
£4.59
|
|
|
23 - SELF-TAP FILL H SCREW
MET-141116020.A1100
141116020
|
£3.20
|
£3.84
|
|
|
24 - RATING PLATE
MET-338032760.A1
338032760
|
£1.50
|
£1.80
|
|
|
25 - HOUSING PLUG
MET-316030020.A2
316030020
|
£1188.65
|
£1426.38
|
|
|
26 - RUBBER PLUG
MET-344092220.A58
344092220
|
£1.50
|
£1.80
|
|
|
28 - PART NOT NEEDED
MET-399999990.A949
399999990
|
-
|
|
|
|
29 - ELECTRONIC SWITCH
MET-343406110.A1
343406110
|
£22.40
|
£26.88
|
|
|
30 - STRAND CPL. AWG18SW
MET-344489950.A0
344489950
|
£3.20
|
£3.84
|
|
|
31 - FIELD COIL 120 V
MET-311009420.A0
311009420
|
£48.88
|
£58.66
|
|
|
32 - RUBBER PLUG
MET-344093350.A46
344093350
|
£1.50
|
£1.80
|
|
|
33 - CARBON BRUSH CPL.
MET-316033690.A6
316033690
|
£19.18
|
£23.02
|
|
|
34 - CABLE WITH UL-CSA-PLUG
MET-344492750.A72
344492750
|
£22.61
|
£27.13
|
|
|
35 - CABLE CLIP
MET-343362490.A314
343362490
|
£3.20
|
£3.84
|
|
|
36 - CABLE SLEEVE
MET-344100590.A34
344100590
|
£3.82
|
£4.59
|
|
|
37 - METABO LABEL
MET-338116920.A1
338116920
|
£1.50
|
£1.80
|
|
|
38 - WARNING LABEL
MET-338109940.A5
338109940
|
£5.62
|
£6.75
|
|
|
40 - STRAND CPL. AWG18SW
MET-344488590.A0
344488590
|
£3.20
|
£3.84
|
|
|
41 - INSERT
MET-344103000.A4
344103000
|
£1.50
|
£1.80
|
|
|
42 - INSERT SELFSTICKING
MET-344100790.A6
344100790
|
£1.50
|
£1.80
|
|
|
43 - STRAND CPL. AWG18SW
MET-344492810.A3
344492810
|
£3.20
|
£3.84
|
|
|
44 - FILLISTER HEAD SCREW
MET-141116970.A29
141116970
|
£3.20
|
£3.84
|
|
|
45 - SWITCH SLIDE
MET-343370760.A21
343370760
|
£3.20
|
£3.84
|
|
|
46 - INDICATION LABEL
MET-338113410.A0
338113410
|
£8.62
|
£10.34
|
|
|
47 - STRAND CPL. AWG18SW
MET-344489650.A3
344489650
|
£3.20
|
£3.84
|
|
|
48 - CHEESE-HEAD SCREW
MET-341701940.A26
341701940
|
£3.20
|
£3.84
|
|
|
49 - CAP SCREW
MET-341700990.A6
341700990
|
£4.76
|
£5.71
|
|
|
50 - DUMMY PLUG
MET-343361220.A0
343361220
|
£3.20
|
£3.84
|
|
|

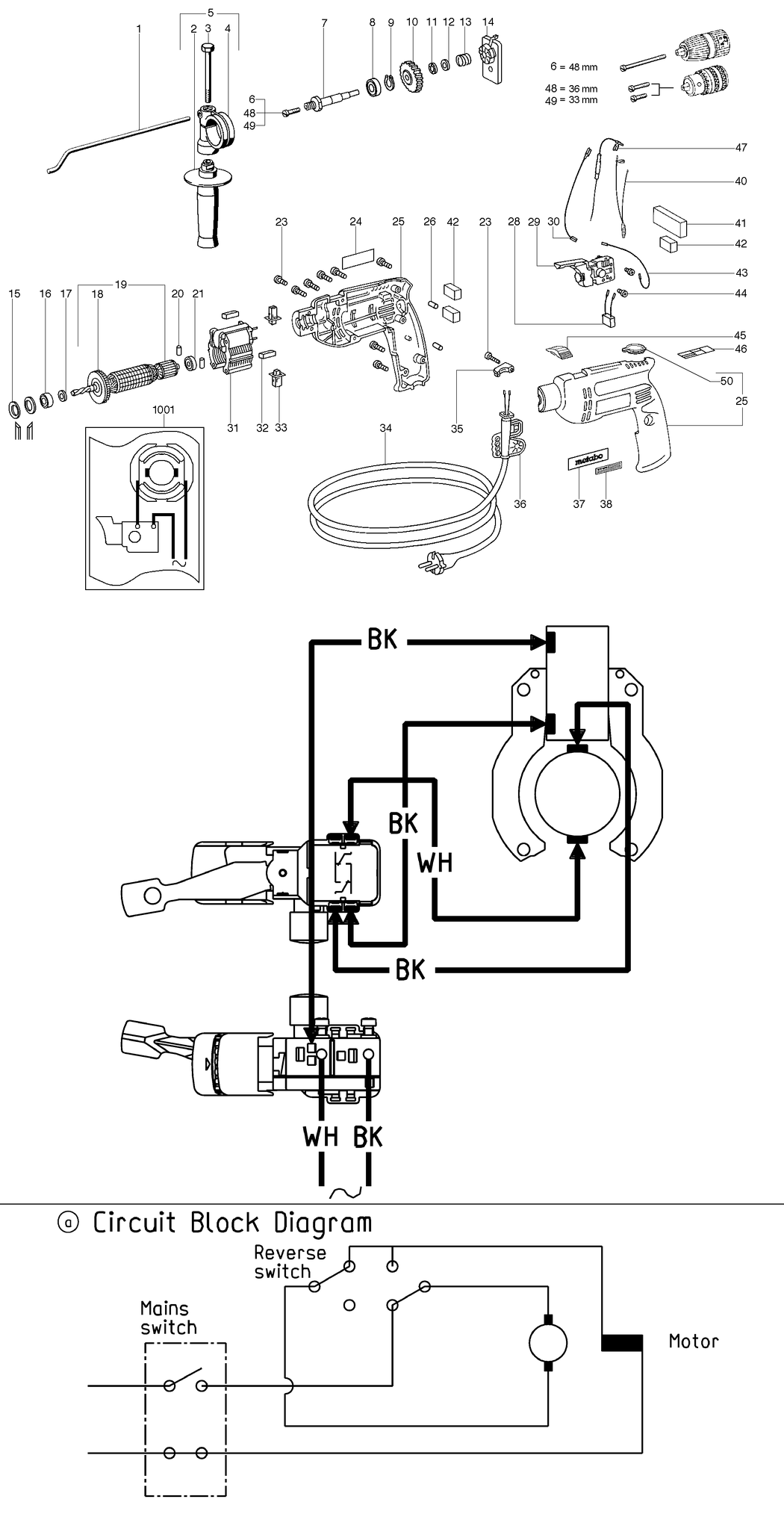

1001 - DIAGRAM
MET-338501960.A0
338501960
|
-
|
|
|
