3 - DRILL SPINDLE
MET-341603640.A10
341603640
|
£30.06
|
£36.07
|
|
|
4 - DEPTH STOP
MET-341511630.A43
341511630
|
£6.38
|
£7.65
|
|
|
5 - SELF-TAP. FILL. H. SCREW
MET-141122490.A14
141122490
|
£3.20
|
£3.84
|
|
|
6 - GEAR HOUSING CPL.
MET-316030990.A6
316030990
|
£54.94
|
£65.93
|
|
|
7 - SLIDING BLOCK
MET-340004010.A50
340004010
|
£11.78
|
£14.13
|
|
|
8 - SWITCH HOUSING COMPL.
MET-316027710.A6
316027710
|
£15.41
|
£18.49
|
|
|
9 - INTERMEDIATE GEAR
MET-316030380.A1
316030380
|
£63.36
|
£76.03
|
|
|
10 - GUIDE BOLT
MET-341540010.A12
341540010
|
£6.38
|
£7.65
|
|
|
11 - SHIFT FORK
MET-339129270.A2
339129270
|
£3.20
|
£3.84
|
|
|
12 - SEAL
MET-344095910.A17
344095910
|
£3.20
|
£3.84
|
|
|
13 - GEAR FLANGE CPL.
MET-316031000.A0
316031000
|
£61.08
|
£73.30
|
|
|
14 - SHAFT SEALING RING
MET-339210830.A8
339210830
|
£3.82
|
£4.59
|
|
|
15 - RETAINING RING
MET-141181680.A15
141181680
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 15X32X9
MET-143110220.A20
143110220
|
£22.96
|
£27.55
|
|
|
17 - SLOTTED DISC
MET-341055650.A4
341055650
|
£5.62
|
£6.75
|
|
|
18 - CONTROL KNOB CPL.
MET-316029530.A10
316029530
|
£4.76
|
£5.71
|
|
|
20 - SEALING RING
MET-343376040.A138
343376040
|
£3.20
|
£3.84
|
|
|
21 - RUBBER BUFFER
MET-344095920.A0
344095920
|
£1.50
|
£1.80
|
|
|
22 - BALL BEARING 8X22X7
MET-143115800.A179
143115800
|
£3.83
|
£4.60
|
|
|
23 - ARMATURE CPL.230V (W. TACHO GEN.)
MET-310007880.A0
310007880
|
£51.54
|
£61.85
|
|
|
24 - BALL BEARING 6X 19X 6
MET-143114750.A2
143114750
|
£13.63
|
£16.36
|
|
|
25 - INTERMEDIATE FLANGE
MET-343374270.A14
343374270
|
£8.37
|
£10.04
|
|
|
26 - TEMPERATURE SENSOR
MET-343078020.A2
343078020
|
£19.18
|
£23.02
|
|
|
27 - SUPPORT HANDLE CPL.
MET-314000790.A14
314000790
|
£26.35
|
£31.62
|
|
|
28 - RATING PLATE
MET-338045330.A0
338045330
|
£1.50
|
£1.80
|
|
|
29 - VTC ELECTRONIC SIGNAL 230V
MET-343078780.A0
343078780
|
£64.30
|
£77.16
|
|
|
31 - POTI SWITCH 230V
MET-343406880.A4
343406880
|
£30.06
|
£36.07
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141117060.A435
141117060
|
£3.20
|
£3.84
|
|
|
33 - DRILL HANDLE W/OVERMOLD GREEN
MET-343393030.A5
343393030
|
£15.41
|
£18.49
|
|
|
34 - CABLE CLIP
MET-343362490.A313
343362490
|
£3.20
|
£3.84
|
|
|
36 - O-RING
MET-143192430.A10
143192430
|
£3.20
|
£3.84
|
|
|
37 - SELF-TAP. FILL. H. SCREW
MET-141118260.A3
141118260
|
£1.50
|
£1.80
|
|
|
38 - FIELD COIL 230V
MET-311009810.A13
311009810
|
£22.96
|
£27.55
|
|
|
39 - MOTOR HOUSING
MET-315012650.A2
315012650
|
£19.18
|
£23.02
|
|
|
40 - M-LABEL 08 52X22
MET-338122160.A253
338122160
|
£1.50
|
£1.80
|
|
|
41 - INDICATION LABEL
MET-338115410.A0
338115410
|
£1.50
|
£1.80
|
|
|
42 - BRUSH CONTACT
MET-339129390.A10
339129390
|
£4.76
|
£5.71
|
|
|
43 - BRUSH HOLDER MODULE
MET-316028790.A0
316028790
|
£32.88
|
£39.45
|
|
|
44 - CABLE WITH PLUG
MET-344493180.A81
344493180
|
£26.35
|
£31.62
|
|
|
46 - CABLE SLEEVE
MET-344101160.A9
344101160
|
£3.82
|
£4.59
|
|
|
47 - CARBON BRUSH SET
MET-316034960.A2
316034960
|
£19.18
|
£23.02
|
|
|
49 - RING
MET-141155810.A72
141155810
|
£1.50
|
£1.80
|
|
|
50 - SUPPORTING PIECE
MET-343378650.A0
343378650
|
£1.50
|
£1.80
|
|
|
51 - FAN W. PROT. GRID
MET-316035740.A7
316035740
|
£15.41
|
£18.49
|
|
|
52 - STICKER
MET-338117880.A0
338117880
|
£3.20
|
£3.84
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A133
344130930
|
£36.59
|
£43.91
|
|
|
882 - GREASE 50GR 1.8oz
MET-344130970.A3
344130970
|
£15.41
|
£18.49
|
|
|

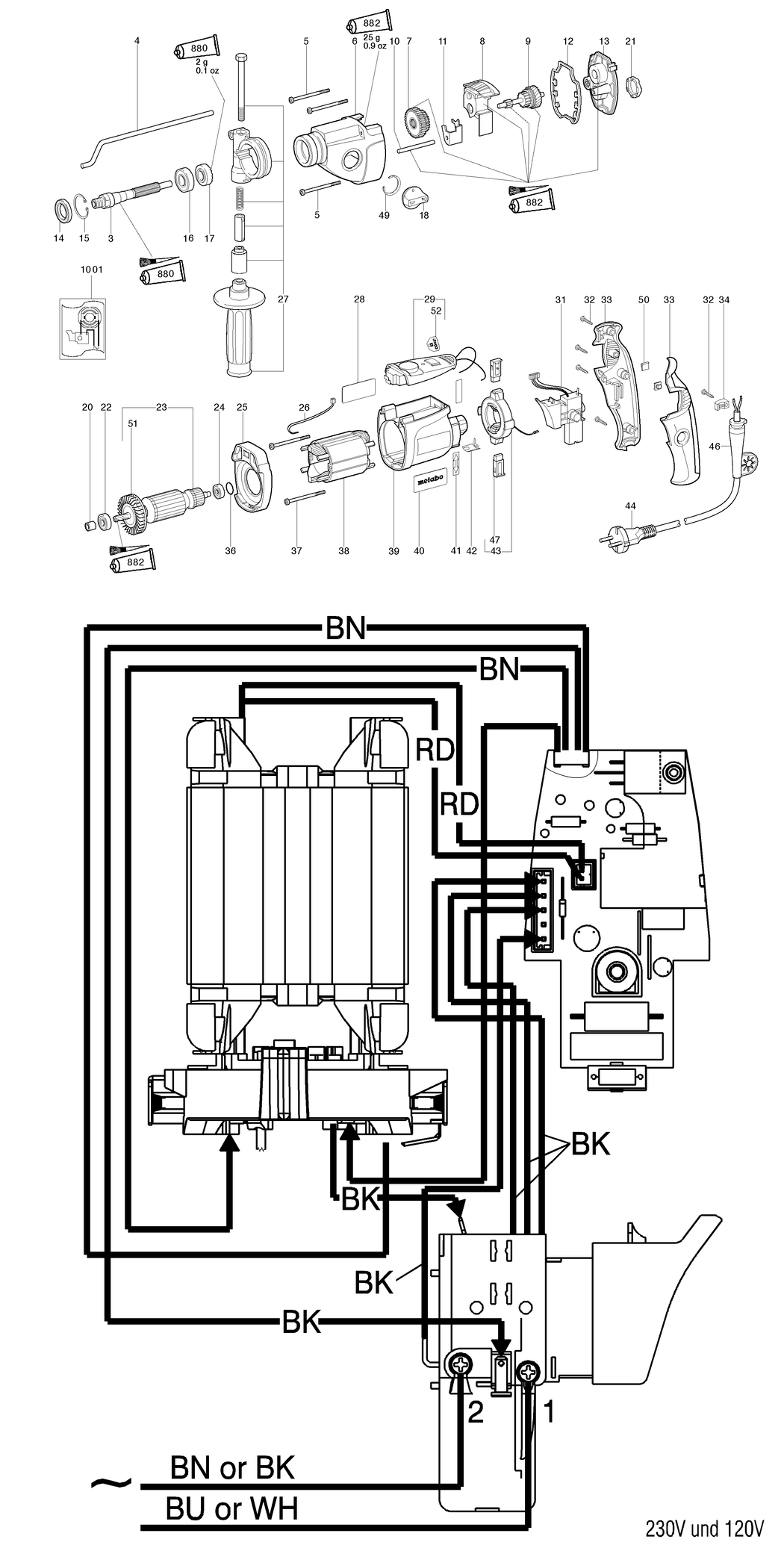

1001 - DIAGRAM
MET-338502250.A3
338502250
|
-
|
|
|
