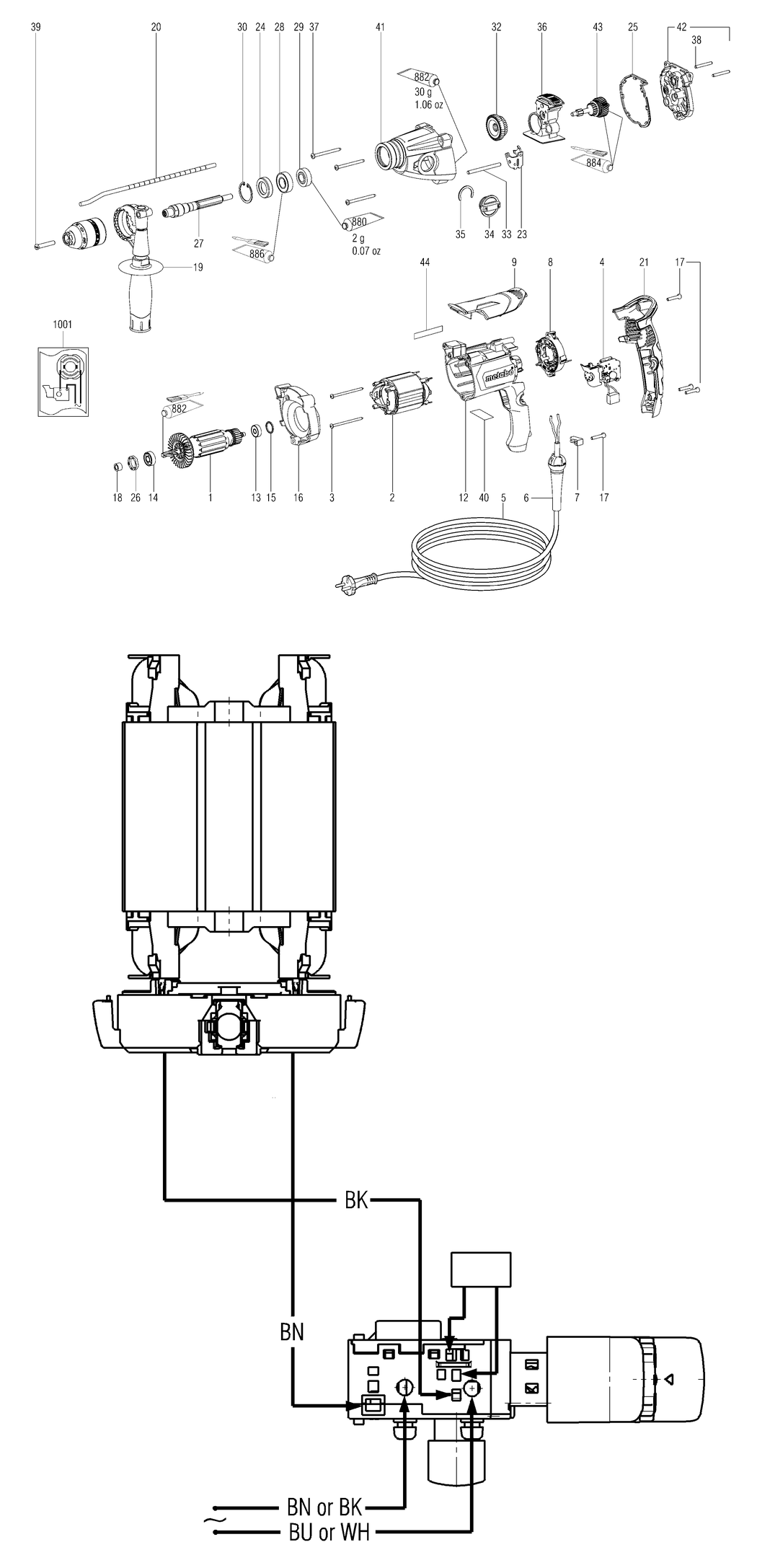

1 - ARMATURE COMPL. 230 V
MET-310011730.A0
310011730
|
£63.36
|
£76.03
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311010790.A21
311010790
|
£22.61
|
£27.13
|
|
|
3 - SELF-TAP. FILL. H. SCREW
MET-141118260.A19
141118260
|
£1.50
|
£1.80
|
|
|
4 - ELECTRONIC SWITCH WITH DIAL
MET-343410960.A10
343410960
|
£22.61
|
£27.13
|
|
|
5 - CABLE WITH PLUG
MET-344493180.A85
344493180
|
£26.35
|
£31.62
|
|
|
6 - CABLE SLEEVE
MET-343394300.A89
343394300
|
£3.20
|
£3.84
|
|
|
7 - CABLE CLIP
MET-343362490.A338
343362490
|
£3.20
|
£3.84
|
|
|
8 - BRUSH HOLDER MODULE 230V - V-EL. 850W
MET-316051990.A38
316051990
|
£17.55
|
£21.06
|
|
|
9 - COVER
MET-343438140.A23
343438140
|
-
|
|
|
|
12 - MOTOR HOUSING
MET-315013700.A46
315013700
|
£19.18
|
£23.02
|
|
|
13 - BALL BEARING 6X19X6
MET-143115690.A183
143115690
|
£3.82
|
£4.59
|
|
|
14 - BALL BEARING 8X22X7
MET-143114880.A155
143114880
|
£9.62
|
£11.54
|
|
|
15 - O-RING
MET-143192430.A22
143192430
|
£3.20
|
£3.84
|
|
|
16 - ZWISCHENFLANSCH
MET-343438860.A1
343438860
|
-
|
|
|
|
17 - SELF-TAP. FILL. H. SCREW
MET-141117060.A421
141117060
|
£3.20
|
£3.84
|
|
|
18 - SEALING RING
MET-343376040.A134
343376040
|
£3.20
|
£3.84
|
|
|
19 - SIDE SUPPORT HANDLE
MET-314001280.A16
314001280
|
£11.78
|
£14.13
|
|
|
20 - DEPTH STOP
MET-341511630.A28
341511630
|
£6.38
|
£7.65
|
|
|
21 - HANDLE COVER
MET-343438030.A0
343438030
|
£9.62
|
£11.54
|
|
|
23 - SHIFT FORK
MET-339133070.A0
339133070
|
£3.82
|
£4.59
|
|
|
24 - SHAFT SEALING RING
MET-339210920.A6
339210920
|
£2.94
|
£3.53
|
|
|
25 - SEAL
MET-344101830.A29
344101830
|
-
|
|
|
|
26 - RUBBER BUFFER
MET-344095920.A24
344095920
|
£1.50
|
£1.80
|
|
|
27 - SPINDLE
MET-341604920.A0
341604920
|
-
|
|
|
|
28 - BALL BEARING 15X32X9
MET-143115790.A90
143115790
|
£5.62
|
£6.75
|
|
|
29 - SLOTTED DISC
MET-341055650.A17
341055650
|
£5.62
|
£6.75
|
|
|
30 - RETAINING RING
MET-141181680.A2
141181680
|
£1.50
|
£1.80
|
|
|
32 - SLIDING BLOCK
MET-340004410.A0
340004410
|
-
|
|
|
|
33 - GUIDE BOLT
MET-341540230.A1
341540230
|
-
|
|
|
|
34 - CONTROL KNOB COMPL.
MET-316062600.A29
316062600
|
-
|
|
|
|
35 - RING
MET-141155810.A83
141155810
|
£1.50
|
£1.80
|
|
|
36 - SWITCH HOUSING COMPL.
MET-316063490.A23
316063490
|
£11.78
|
£14.13
|
|
|
37 - SELF-TAP. FILL. H. SCREW
MET-141118840.A51
141118840
|
£1.50
|
£1.80
|
|
|
38 - CYLINDRICAL PIN
MET-341520230.A112
341520230
|
£1.50
|
£1.80
|
|
|
39 - CHEESE-HEAD SCREW
MET-341701940.A21
341701940
|
£3.20
|
£3.84
|
|
|
40 - RATING PLATE
MET-338067900.A1
338067900
|
-
|
|
|
|
41 - GEAR HOUSING COMPL.
MET-316064620.A20
316064620
|
£54.94
|
£65.93
|
|
|
42 - GEAR FLANGE CPL.
MET-316064590.A28
316064590
|
-
|
|
|
|
43 - PINION SHAFT W. CLUTCH
MET-316064750.A0
316064750
|
£48.88
|
£58.66
|
|
|
44 - PART NOT NEEDED
MET-399999990.A919
399999990
|
-
|
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A146
344130930
|
£36.59
|
£43.91
|
|
|
882 - GREASE FG 126
MET-344130800.A216
344130800
|
£17.55
|
£21.06
|
|
|
884 - GREASE SF 011 50GR 1.8oz
MET-344130560.A491
344130560
|
£19.18
|
£23.02
|
|
|
886 - GREASE 50GR 1.8oz
MET-344131030.A13
344131030
|
£15.41
|
£18.49
|
|
|
1001 - WIRING DIAGRAM 230 V
MET-338505150.A27
338505150
|
-
|
|
|
