1 - CHEESE-HEAD SCREW
MET-341701940.A164
341701940
|
£3.20
|
£3.84
|
|
|
2 - RETAINING RING
MET-141181680.A91
141181680
|
£1.50
|
£1.80
|
|
|
3 - SHAFT SEALING RING
MET-339210920.A56
339210920
|
£2.94
|
£3.53
|
|
|
4 - DEPTH STOP
MET-341511630.A145
341511630
|
£6.38
|
£7.65
|
|
|
5 - SELF-TAP. FILL. H. SCREW
MET-141123610.A40
141123610
|
£1.50
|
£1.80
|
|
|
6 - GEAR HOUSING COMPL.
MET-316042790.A10
316042790
|
£63.36
|
£76.03
|
|
|
7 - SLIDING BLOCK
MET-340004010.A28
340004010
|
£11.78
|
£14.13
|
|
|
8 - SWITCH HOUSING COMPL.
MET-316041940.A11
316041940
|
£11.78
|
£14.13
|
|
|
9 - PINION SHAFT W.SLIP-CLUTCH
MET-316042810.A10
316042810
|
£54.94
|
£65.93
|
|
|
10 - SEAL
MET-344097930.A42
344097930
|
£2.94
|
£3.53
|
|
|
11 - GEAR FLANGE COMPL.
MET-316042800.A22
316042800
|
£36.59
|
£43.91
|
|
|
12 - DRILL SPINDLE
MET-341604020.A17
341604020
|
£26.35
|
£31.62
|
|
|
13 - BALL BEARING 15X32X9
MET-143115790.A56
143115790
|
£5.62
|
£6.75
|
|
|
14 - SLOTTED DISC
MET-341055650.A55
341055650
|
£5.62
|
£6.75
|
|
|
15 - SIDE SUPPORT HANDLE COMPL.
MET-314001030.A44
314001030
|
£17.55
|
£21.06
|
|
|
16 - RING
MET-141155810.A0
141155810
|
£1.50
|
£1.80
|
|
|
17 - CONTROL KNOB COMPL.
MET-316041960.A10
316041960
|
£3.82
|
£4.59
|
|
|
18 - GUIDE BOLT
MET-341540010.A45
341540010
|
£6.38
|
£7.65
|
|
|
19 - SHIFT FORK
MET-339133070.A26
339133070
|
£3.82
|
£4.59
|
|
|
20 - SELF-TAP. FILL. H. SCREW
MET-141116990.A183
141116990
|
£3.20
|
£3.84
|
|
|
21 - SEALING RING
MET-343376040.A32
343376040
|
£3.20
|
£3.84
|
|
|
22 - BALL BEARING 8X22X7
MET-143115800.A47
143115800
|
£3.82
|
£4.59
|
|
|
23 - FAN
MET-330001820.A24
330001820
|
£3.82
|
£4.59
|
|
|
24 - ARMATURE COMPL. 120 V
MET-310009420.A0
310009420
|
£55.90
|
£67.08
|
|
|
25 - BALL BEARING 6X 19X 6
MET-143115810.A39
143115810
|
£7.04
|
£8.45
|
|
|
26 - INTERMEDIATE FLANGE
MET-343393930.A21
343393930
|
£3.82
|
£4.59
|
|
|
27 - SELF-TAP. FILL. H. SCREW
MET-141118260.A104
141118260
|
£1.50
|
£1.80
|
|
|
28 - FIELD COIL 120V
MET-311009840.A5
311009840
|
£48.88
|
£58.66
|
|
|
29 - RATING PLATE
MET-338052980.A0
338052980
|
-
|
|
|
|
30 - ELECTRONIC UNIT 120V 50/60HZ
MET-343084190.A0
343084190
|
£45.80
|
£54.96
|
|
|
31 - RUBBER BUFFER
MET-344095920.A180
344095920
|
£1.50
|
£1.80
|
|
|
32 - O-RING
MET-143192430.A162
143192430
|
£3.20
|
£3.84
|
|
|
33 - CYLINDRICAL PIN
MET-341520230.A59
341520230
|
£1.50
|
£1.80
|
|
|
34 - MOTOR HOUSING
MET-315013250.A79
315013250
|
£17.55
|
£21.06
|
|
|
35 - WARNING LABEL 50 X 16
MET-338121950.A10
338121950
|
-
|
|
|
|
36 - CARBON BRUSH SET 120 V
MET-316046960.A0
316046960
|
£17.55
|
£21.06
|
|
|
37 - BRUSH HOLDER MODULE 120V
MET-316051960.A55
316051960
|
£17.55
|
£21.06
|
|
|
38 - POTI SWITCH
MET-343409250.A31
343409250
|
£19.18
|
£23.02
|
|
|
39 - SELF-TAP FILL H SCREW
MET-141116020.A420
141116020
|
£3.20
|
£3.84
|
|
|
40 - PISTOL GRIP 2-PART GUMMED
MET-343398530.A54
343398530
|
£13.63
|
£16.36
|
|
|
41 - RUBBER PLUG
MET-344097580.A60
344097580
|
£1.50
|
£1.80
|
|
|
42 - SELF-TAP. FILL. H. SCREW
MET-141117060.A21
141117060
|
£3.20
|
£3.84
|
|
|
43 - CABLE CLIP
MET-343362490.A1043
343362490
|
£3.20
|
£3.84
|
|
|
44 - CABLE SLEEVE
MET-343394300.A33
343394300
|
£3.20
|
£3.84
|
|
|
45 - CABLE WITH UL-CSA-PLUG
MET-344494030.A7
344494030
|
£26.35
|
£31.62
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A15
344130930
|
£36.59
|
£43.91
|
|
|
882 - GREASE FG 126
MET-344130800.A31
344130800
|
£17.55
|
£21.06
|
|
|
884 - GREASE SF 011 50GR 1.8oz
MET-344130560.A37
344130560
|
£19.18
|
£23.02
|
|
|
886 - GREASE 50GR 1.8oz
MET-344131030.A89
344131030
|
£15.41
|
£18.49
|
|
|

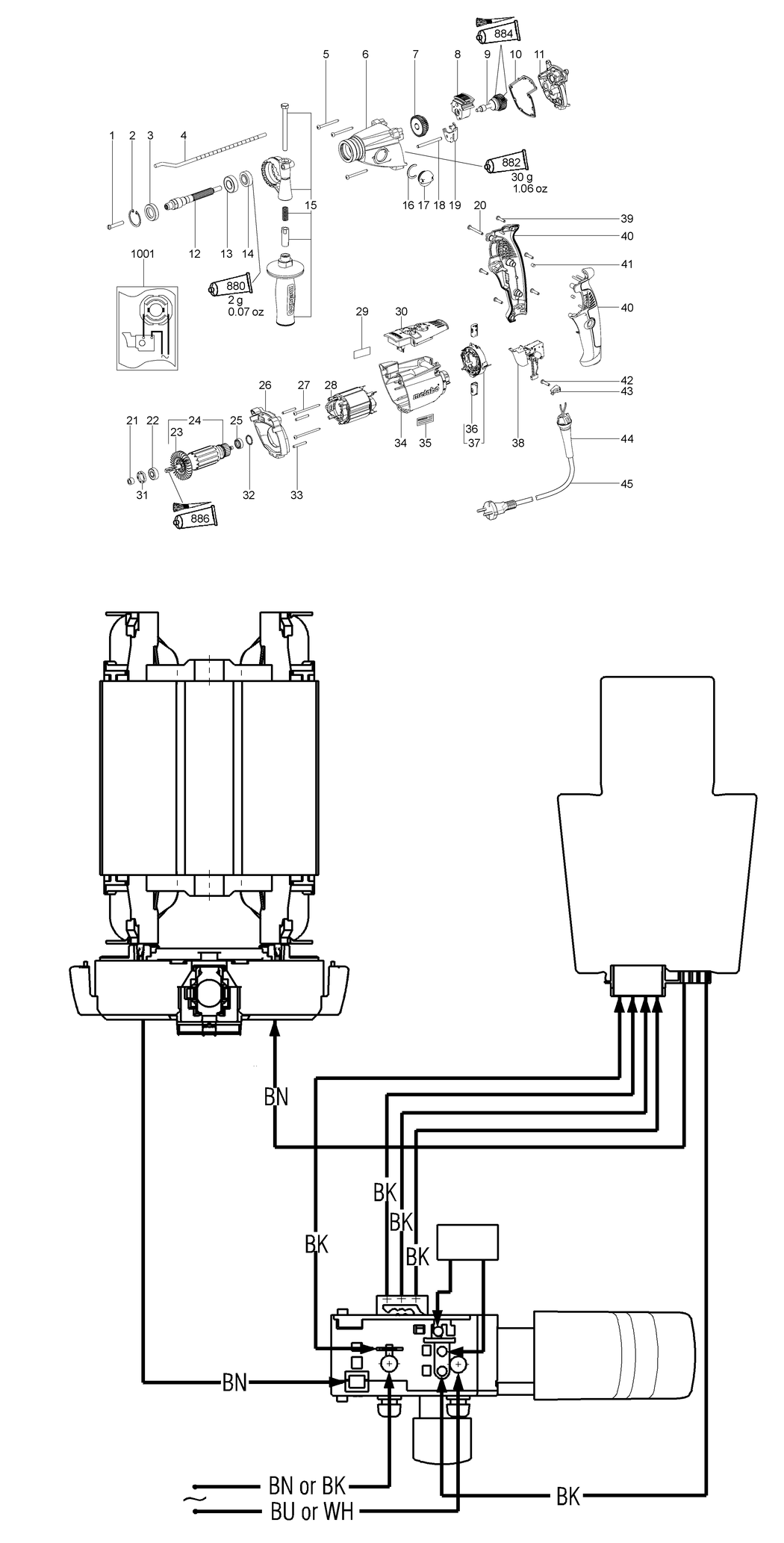

1001 - WIRING DIAGRAM 230 V
MET-338505140.A3
338505140
|
-
|
|
|
