1 - ARMATURE COMPL. 230 V (W. TACHO GEN.)
MET-310011650.A10
310011650
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311011630.A9
311011630
|
£30.06
|
£36.07
|
|
|
3 - SELF-TAP. FILL. H. SCREW
MET-141118260.A96
141118260
|
£1.50
|
£1.80
|
|
|
4 - POTI SWITCH
MET-343410950.A3
343410950
|
£17.55
|
£21.06
|
|
|
5 - CABLE WITH PLUG
MET-344493180.A4
344493180
|
£26.35
|
£31.62
|
|
|
6 - CABLE SLEEVE
MET-343394300.A44
343394300
|
£3.20
|
£3.84
|
|
|
7 - CABLE CLIP
MET-343362490.A1052
343362490
|
£3.20
|
£3.84
|
|
|
8 - BRUSH HOLDER MODULE 230V
MET-316051960.A30
316051960
|
£17.55
|
£21.06
|
|
|
9 - ELECTRONIC UNIT 230V 50/60HZ
MET-343084840.A6
343084840
|
£42.65
|
£51.18
|
|
|
10 - BRUSH CONTACT
MET-339129390.A37
339129390
|
£4.76
|
£5.71
|
|
|
11 - TEMPERATURE SENSOR
MET-343081600.A11
343081600
|
-
|
|
|
|
12 - MOTOR HOUSING
MET-315013700.A25
315013700
|
£19.18
|
£23.02
|
|
|
13 - BALL BEARING 6X19X6
MET-143115690.A201
143115690
|
£3.82
|
£4.59
|
|
|
14 - BALL BEARING 8X22X7
MET-143114880.A110
143114880
|
£9.62
|
£11.54
|
|
|
15 - O-RING
MET-143192430.A168
143192430
|
£3.20
|
£3.84
|
|
|
16 - INTERMEDIATE FLANGE
MET-343438150.A8
343438150
|
£3.82
|
£4.59
|
|
|
17 - SELF-TAP. FILL. H. SCREW
MET-141117060.A38
141117060
|
£3.20
|
£3.84
|
|
|
18 - SEALING RING
MET-343376040.A22
343376040
|
£3.20
|
£3.84
|
|
|
19 - SIDE SUPPORT HANDLE COMPL.
MET-314001020.A4
314001020
|
£17.55
|
£21.06
|
|
|
20 - DEPTH STOP
MET-341511630.A153
341511630
|
£6.38
|
£7.65
|
|
|
21 - HANDLE COVER
MET-343438030.A42
343438030
|
£9.62
|
£11.54
|
|
|
23 - SHIFT FORK
MET-339133070.A29
339133070
|
£3.82
|
£4.59
|
|
|
24 - SHAFT SEALING RING
MET-339210920.A54
339210920
|
£2.94
|
£3.53
|
|
|
25 - SEAL
MET-344101830.A15
344101830
|
-
|
|
|
|
26 - RUBBER BUFFER
MET-344095920.A183
344095920
|
£1.50
|
£1.80
|
|
|
27 - SPINDLE
MET-341604920.A14
341604920
|
-
|
|
|
|
28 - BALL BEARING 15X32X9
MET-143115790.A64
143115790
|
£5.62
|
£6.75
|
|
|
29 - SLOTTED DISC
MET-341055650.A60
341055650
|
£5.62
|
£6.75
|
|
|
30 - RETAINING RING
MET-141181680.A84
141181680
|
£1.50
|
£1.80
|
|
|
32 - SLIDING BLOCK
MET-340004410.A8
340004410
|
-
|
|
|
|
33 - GUIDE BOLT
MET-341540230.A15
341540230
|
-
|
|
|
|
34 - CONTROL KNOB COMPL.
MET-316062600.A15
316062600
|
-
|
|
|
|
35 - RING
MET-141155810.A5
141155810
|
£1.50
|
£1.80
|
|
|
36 - SWITCH HOUSING COMPL.
MET-316063490.A6
316063490
|
£11.78
|
£14.13
|
|
|
37 - SELF-TAP. FILL. H. SCREW
MET-141118840.A19
141118840
|
£1.50
|
£1.80
|
|
|
38 - CYLINDRICAL PIN
MET-341520230.A51
341520230
|
£1.50
|
£1.80
|
|
|
39 - CHEESE-HEAD SCREW
MET-341701940.A153
341701940
|
£3.20
|
£3.84
|
|
|
40 - RATING PLATE
MET-338067770.A0
338067770
|
-
|
|
|
|
41 - GEAR HOUSING COMPL.
MET-316064620.A2
316064620
|
£54.94
|
£65.93
|
|
|
42 - GEAR FLANGE CPL.
MET-316064590.A6
316064590
|
-
|
|
|
|
43 - PINION SHAFT W. CLUTCH
MET-316064560.A9
316064560
|
£48.88
|
£58.66
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130930.A30
344130930
|
£36.59
|
£43.91
|
|
|
882 - GREASE FG 126
MET-344130800.A23
344130800
|
£17.55
|
£21.06
|
|
|
884 - GREASE SF 011 50GR 1.8oz
MET-344130560.A28
344130560
|
£19.18
|
£23.02
|
|
|
886 - GREASE 50GR 1.8oz
MET-344131030.A82
344131030
|
£15.41
|
£18.49
|
|
|

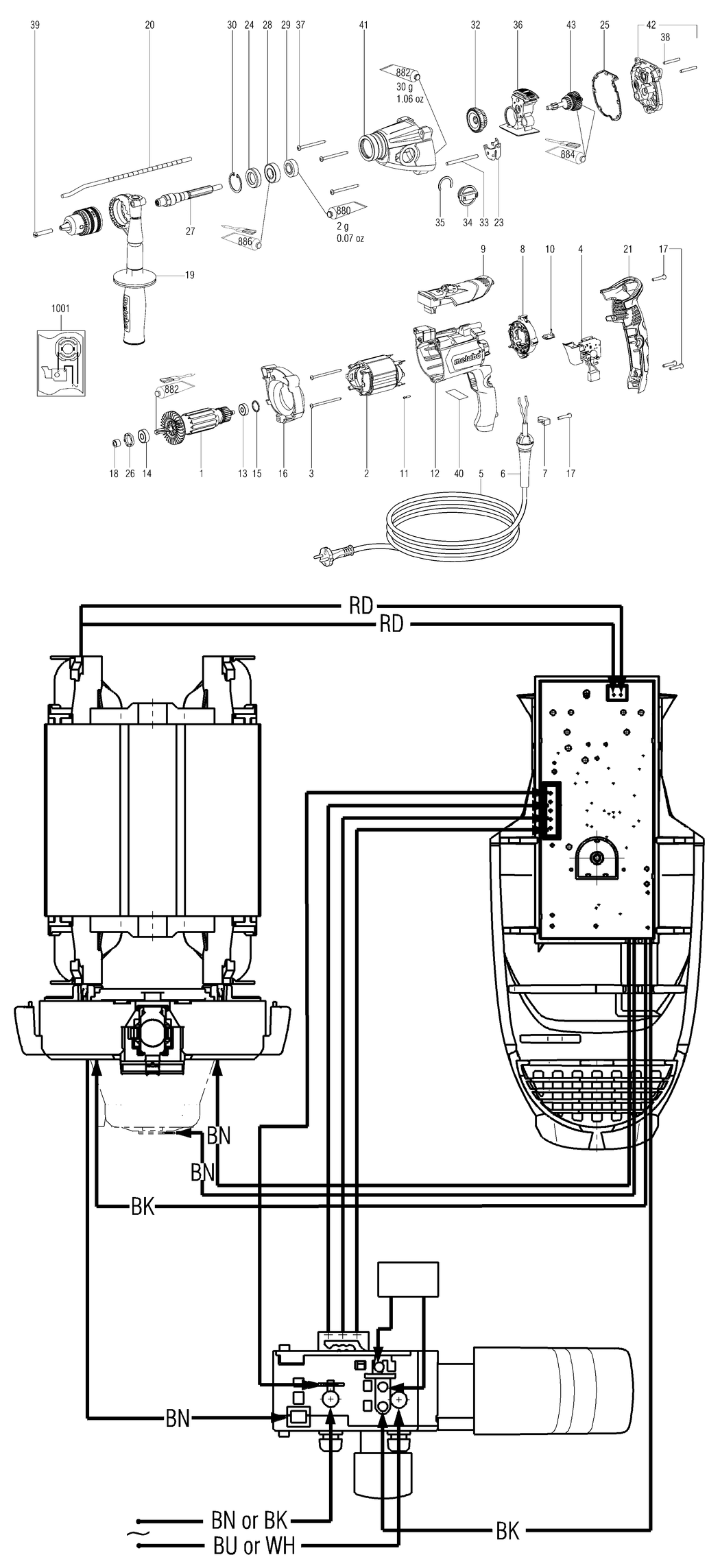

1001 - WIRING DIAGRAM 230V / 120V
MET-338506120.A8
338506120
|
-
|
|
|
