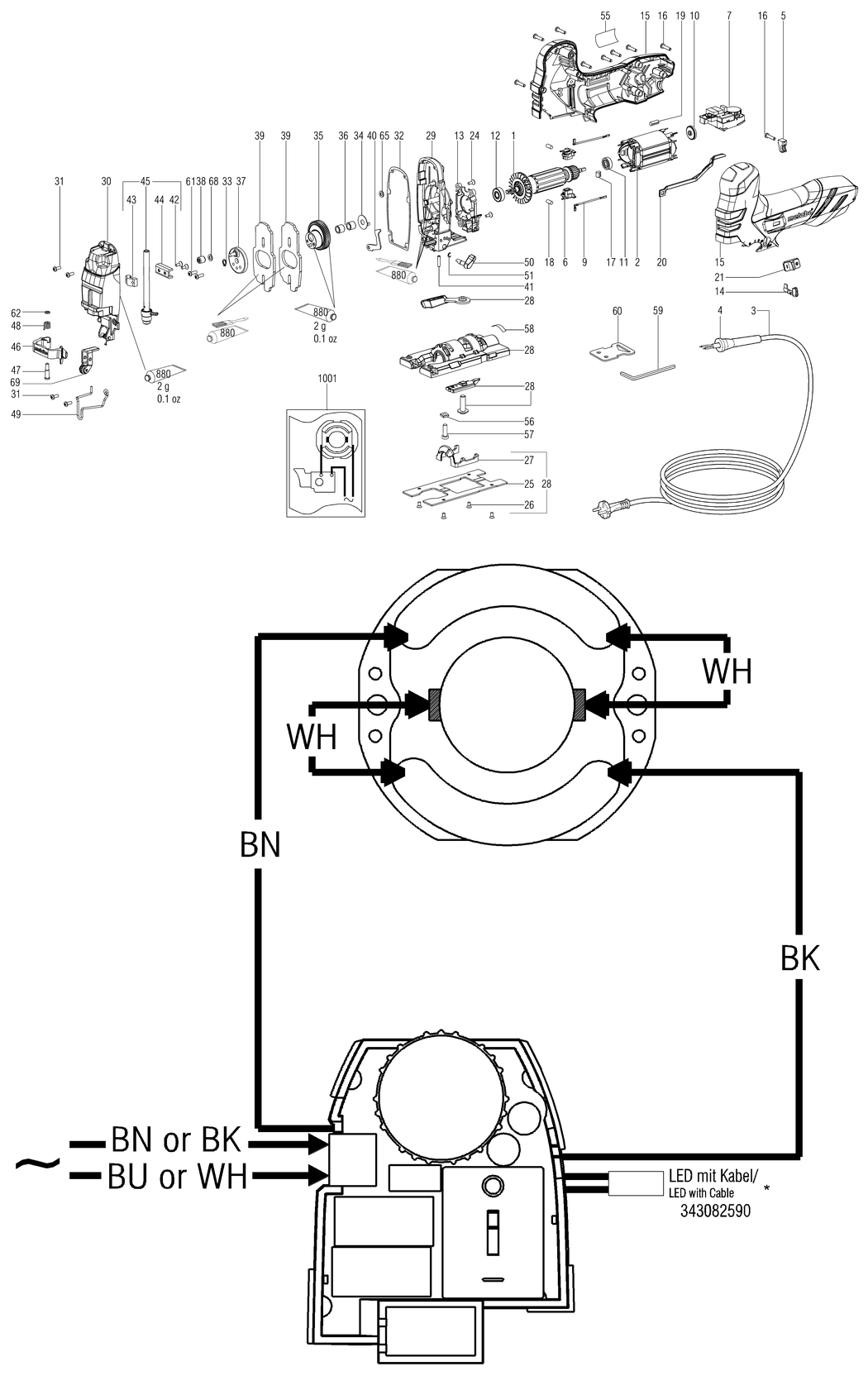

1 - ARMATURE COMPL.
MET-310011930.A11
310011930
|
£73.52
|
£88.23
|
|
|
2 - FIELD COIL COMPL. 230V
MET-311012510.A12
311012510
|
-
|
|
|
|
3 - CABLE WITH PLUG
MET-344488530.A12
344488530
|
£30.06
|
£36.07
|
|
|
4 - CABLE SLEEVE
MET-344101140.A61
344101140
|
£3.82
|
£4.59
|
|
|
5 - CABLE CLIP
MET-343362490.A340
343362490
|
£3.20
|
£3.84
|
|
|
6 - BRUSH HOLDER SET
MET-316049070.A16
316049070
|
£8.37
|
£10.04
|
|
|
7 - ELECTRONIC UNIT 230V 50-60HZ
MET-343082510.A4
343082510
|
-
|
|
|
|
9 - STRAND COMPL.
MET-344498890.A22
344498890
|
£1.50
|
£1.80
|
|
|
10 - TACHO DISC
MET-343399750.A7
343399750
|
£3.20
|
£3.84
|
|
|
11 - BALL BEARING 6X19X6
MET-143115660.A110
143115660
|
£3.82
|
£4.59
|
|
|
12 - BALL BEARING 8X22X7
MET-143114880.A153
143114880
|
£9.62
|
£11.54
|
|
|
13 - BAFFLE
MET-343430280.A17
343430280
|
£3.20
|
£3.84
|
|
|
14 - SHIFT LEVER
MET-343399730.A8
343399730
|
£1.50
|
£1.80
|
|
|
15 - HOUSING
MET-343399830.A2
343399830
|
-
|
|
|
|
16 - SELF-TAP FILL H SCREW
MET-141116020.A1090
141116020
|
£3.20
|
£3.84
|
|
|
17 - RUBBER PLUG
MET-344091420.A57
344091420
|
£1.50
|
£1.80
|
|
|
18 - RUBBER PLUG
MET-344092220.A68
344092220
|
£1.50
|
£1.80
|
|
|
19 - RUBBER STOPPER
MET-344092550.A22
344092550
|
£1.50
|
£1.80
|
|
|
20 - SWITCH ROD
MET-343399720.A1
343399720
|
-
|
|
|
|
21 - SWITCH SLIDE
MET-343430210.A7
343430210
|
-
|
|
|
|
24 - COUNTERSUNK SCREW
MET-141122320.A8
141122320
|
£2.94
|
£3.53
|
|
|
25 - BASE PLATE
MET-339134980.A2
339134980
|
£8.37
|
£10.04
|
|
|
26 - COUNTERSUNK SCREW
MET-141122860.A19
141122860
|
£1.50
|
£1.80
|
|
|
27 - PLUG HOUSING
MET-343430560.A24
343430560
|
£1.50
|
£1.80
|
|
|
28 - BASE PLATE W. CLAMPING
MET-316065980.A14
316065980
|
£19.18
|
£23.02
|
|
|
29 - GEAR HOUSING CPL.
MET-316050320.A24
316050320
|
£68.35
|
£82.02
|
|
|
30 - GEAR-BOX COVER COMPL.
MET-316052910.A2
316052910
|
£60.03
|
£72.04
|
|
|
31 - FILLISTER HEAD SCREW
MET-141110540.A5
141110540
|
£1.50
|
£1.80
|
|
|
32 - GASKET
MET-339011920.A25
339011920
|
£1.50
|
£1.80
|
|
|
33 - RETAINING RING
MET-141180020.A11
141180020
|
£1.50
|
£1.80
|
|
|
34 - BUTTING WASHER
MET-339129470.A40
339129470
|
£1.50
|
£1.80
|
|
|
35 - GEAR WHEEL COMPL.
MET-316055630.A8
316055630
|
£32.88
|
£39.45
|
|
|
36 - NEEDLE SLEEVE
MET-143113930.A9
143113930
|
£4.76
|
£5.71
|
|
|
37 - ECCENTER COMPL.
MET-316055640.A5
316055640
|
-
|
|
|
|
38 - NEEDLE BEARING
MET-341002610.A53
341002610
|
£17.55
|
£21.06
|
|
|
39 - BALANCING PLATE
MET-339160910.A14
339160910
|
£8.37
|
£10.04
|
|
|
40 - PRESSURE LEVER
MET-339160920.A12
339160920
|
£2.94
|
£3.53
|
|
|
41 - CYLINDRICAL PIN
MET-141162570.A36
141162570
|
£3.20
|
£3.84
|
|
|
42 - TIGHT-FIT SCREW
MET-341705590.A6
341705590
|
-
|
|
|
|
43 - COVER PLATE
MET-341070310.A34
341070310
|
£3.20
|
£3.84
|
|
|
44 - CONNECTING LINK
MET-339129450.A22
339129450
|
£3.20
|
£3.84
|
|
|
45 - RAM COMPL.
MET-316052920.A22
316052920
|
£30.06
|
£36.07
|
|
|
46 - CLAMPING LEVER QUICK
MET-315417740.A19
315417740
|
£9.62
|
£11.54
|
|
|
47 - TIGHT-FIT SCREW
MET-341704600.A11
341704600
|
£3.20
|
£3.84
|
|
|
48 - SPRING CLIP
MET-342022260.A11
342022260
|
£1.50
|
£1.80
|
|
|
49 - PROTECTIVE STRAP
MET-342200670.A2
342200670
|
£3.20
|
£3.84
|
|
|
50 - SHIFT LEVER COMPL.
MET-316048510.A22
316048510
|
£9.62
|
£11.54
|
|
|
51 - RING
MET-141156580.A2
141156580
|
£1.50
|
£1.80
|
|
|
55 - RATING PLATE
MET-338056960.A1
338056960
|
-
|
|
|
|
56 - SQUARE NUT
MET-141131880.A3
141131880
|
-
|
|
|
|
57 - CAP SCREW
MET-141114610.A0
141114610
|
£3.20
|
£3.84
|
|
|
58 - GRADUATION PLATE
MET-338123510.A16
338123510
|
£2.94
|
£3.53
|
|
|
59 - CRANKED WRENCH KEY
MET-344161520.A9
344161520
|
£3.20
|
£3.84
|
|
|
60 - HOLDER
MET-344099160.A4
344099160
|
-
|
|
|
|
61 - FILLISTER HEAD SCREW
MET-141111410.A15
141111410
|
£1.50
|
£1.80
|
|
|
62 - WASHER
MET-339134390.A10
339134390
|
£1.50
|
£1.80
|
|
|
65 - WASHER
MET-339007600.A22
339007600
|
£1.50
|
£1.80
|
|
|
68 - SHIM
MET-339007660.A15
339007660
|
£1.50
|
£1.80
|
|
|
69 - SUPPORTING LEVER COMPL.
MET-316069010.A21
316069010
|
-
|
|
|
|
880 - GREASE 50GR 1.8oz
MET-344131280.A1
344131280
|
£22.61
|
£27.13
|
|
|
1001 - WIRING DIAGRAM
MET-338505570.A1
338505570
|
-
|
|
|
