1 - ARMATURE COMPL.
MET-310011930.A4
310011930
|
£73.52
|
£88.23
|
|
|
2 - FIELD COIL COMPL. 230V
MET-311012510.A5
311012510
|
-
|
|
|
|
3 - CABLE WITH CEE PLUG
MET-344493170.A6
344493170
|
£22.61
|
£27.13
|
|
|
4 - CABLE SLEEVE
MET-344101140.A169
344101140
|
£3.82
|
£4.59
|
|
|
5 - CABLE CLIP
MET-343362490.A1061
343362490
|
£3.20
|
£3.84
|
|
|
6 - BRUSH HOLDER SET
MET-316049070.A5
316049070
|
£8.37
|
£10.04
|
|
|
7 - ELECTRONIC UNIT 230V 50-60HZ
MET-343082550.A4
343082550
|
£61.08
|
£73.30
|
|
|
8 - LED WITH CABLE
MET-343082590.A5
343082590
|
£11.78
|
£14.13
|
|
|
9 - STRAND COMPL.
MET-344498890.A8
344498890
|
£1.50
|
£1.80
|
|
|
10 - TACHO DISC
MET-343399750.A16
343399750
|
£3.20
|
£3.84
|
|
|
11 - BALL BEARING 6X19X6
MET-143115660.A88
143115660
|
£3.82
|
£4.59
|
|
|
12 - BALL BEARING 8X22X7
MET-143114880.A95
143114880
|
£9.62
|
£11.54
|
|
|
13 - BAFFLE
MET-343430280.A1
343430280
|
£3.20
|
£3.84
|
|
|
14 - SHIFT LEVER
MET-343399730.A19
343399730
|
£1.50
|
£1.80
|
|
|
15 - HOUSING W.COVER
MET-343430320.A12
343430320
|
£42.65
|
£51.18
|
|
|
16 - SELF-TAP FILL H SCREW
MET-141116020.A397
141116020
|
£3.20
|
£3.84
|
|
|
17 - RUBBER PLUG
MET-344091420.A2
344091420
|
£1.50
|
£1.80
|
|
|
18 - RUBBER PLUG
MET-344092220.A177
344092220
|
£1.50
|
£1.80
|
|
|
19 - RUBBER STOPPER
MET-344092550.A1
344092550
|
£1.50
|
£1.80
|
|
|
23 - PROTECTIVE PLATE COMPL.
MET-343430760.A10
343430760
|
£8.37
|
£10.04
|
|
|
24 - COUNTERSUNK SCREW
MET-141122320.A25
141122320
|
£2.94
|
£3.53
|
|
|
25 - BASE PLATE
MET-339134980.A23
339134980
|
£8.37
|
£10.04
|
|
|
26 - COUNTERSUNK SCREW
MET-141122860.A5
141122860
|
£1.50
|
£1.80
|
|
|
27 - PLUG HOUSING
MET-343430560.A6
343430560
|
£1.50
|
£1.80
|
|
|
28 - BASE PLATE W. CLAMPING
MET-316065980.A7
316065980
|
£19.18
|
£23.02
|
|
|
29 - GEAR HOUSING CPL.
MET-316050320.A13
316050320
|
£68.35
|
£82.02
|
|
|
30 - GEAR-BOX COVER COMPL.
MET-316052910.A15
316052910
|
£60.03
|
£72.04
|
|
|
31 - FILLISTER HEAD SCREW
MET-141110540.A55
141110540
|
£1.50
|
£1.80
|
|
|
32 - GASKET
MET-339011920.A3
339011920
|
£1.50
|
£1.80
|
|
|
33 - RETAINING RING
MET-141180020.A32
141180020
|
£1.50
|
£1.80
|
|
|
34 - BUTTING WASHER
MET-339129470.A16
339129470
|
£1.50
|
£1.80
|
|
|
35 - GEAR-BOX COMPL.
MET-316055650.A3
316055650
|
£54.94
|
£65.93
|
|
|
36 - NEEDLE SLEEVE
MET-143113930.A25
143113930
|
£4.76
|
£5.71
|
|
|
38 - NEEDLE BEARING
MET-341002610.A3
341002610
|
£17.55
|
£21.06
|
|
|
39 - BALANCING PLATE
MET-339160910.A6
339160910
|
£8.37
|
£10.04
|
|
|
40 - PRESSURE LEVER
MET-339160920.A20
339160920
|
£2.94
|
£3.53
|
|
|
41 - CYLINDRICAL PIN
MET-141162570.A11
141162570
|
£3.20
|
£3.84
|
|
|
42 - TIGHT-FIT SCREW
MET-341705590.A37
341705590
|
-
|
|
|
|
43 - COVER PLATE
MET-341070310.A15
341070310
|
£3.20
|
£3.84
|
|
|
44 - CONNECTING LINK
MET-339129450.A13
339129450
|
£3.20
|
£3.84
|
|
|
45 - RAM COMPL.
MET-316052920.A8
316052920
|
£30.06
|
£36.07
|
|
|
46 - CLAMPING LEVER QUICK
MET-315417740.A3
315417740
|
£9.62
|
£11.54
|
|
|
47 - TIGHT-FIT SCREW
MET-341704600.A21
341704600
|
£3.20
|
£3.84
|
|
|
48 - SPRING CLIP
MET-342022260.A22
342022260
|
£1.50
|
£1.80
|
|
|
49 - PROTECTIVE STRAP
MET-342200670.A14
342200670
|
£3.20
|
£3.84
|
|
|
50 - SHIFT LEVER COMPL.
MET-316048510.A13
316048510
|
£9.62
|
£11.54
|
|
|
51 - RING
MET-141156580.A20
141156580
|
£1.50
|
£1.80
|
|
|
52 - EYE SHIELD
MET-344350470.A2
344350470
|
£3.82
|
£4.59
|
|
|
53 - NOZZLE
MET-343399740.A0
343399740
|
£8.37
|
£10.04
|
|
|
54 - ANTI-SPLINTERING INSERT
MET-343395480.A33
343395480
|
£2.94
|
£3.53
|
|
|
55 - RATING PLATE
MET-338056990.A0
338056990
|
-
|
|
|
|
56 - SCREW
MET-341704830.A12
341704830
|
£1.50
|
£1.80
|
|
|
58 - GRADUATION PLATE
MET-338123510.A9
338123510
|
£2.94
|
£3.53
|
|
|
62 - WASHER
MET-339134390.A15
339134390
|
£1.50
|
£1.80
|
|
|
65 - WASHER
MET-339007600.A4
339007600
|
£1.50
|
£1.80
|
|
|
66 - POTI SWITCH
MET-343409540.A9
343409540
|
£19.18
|
£23.02
|
|
|
68 - SHIM
MET-339007660.A4
339007660
|
£1.50
|
£1.80
|
|
|
69 - SUPPORTING LEVER COMPL.
MET-316069010.A2
316069010
|
-
|
|
|
|
880 - GREASE 50GR 1.8oz
MET-344131280.A24
344131280
|
£22.61
|
£27.13
|
|
|

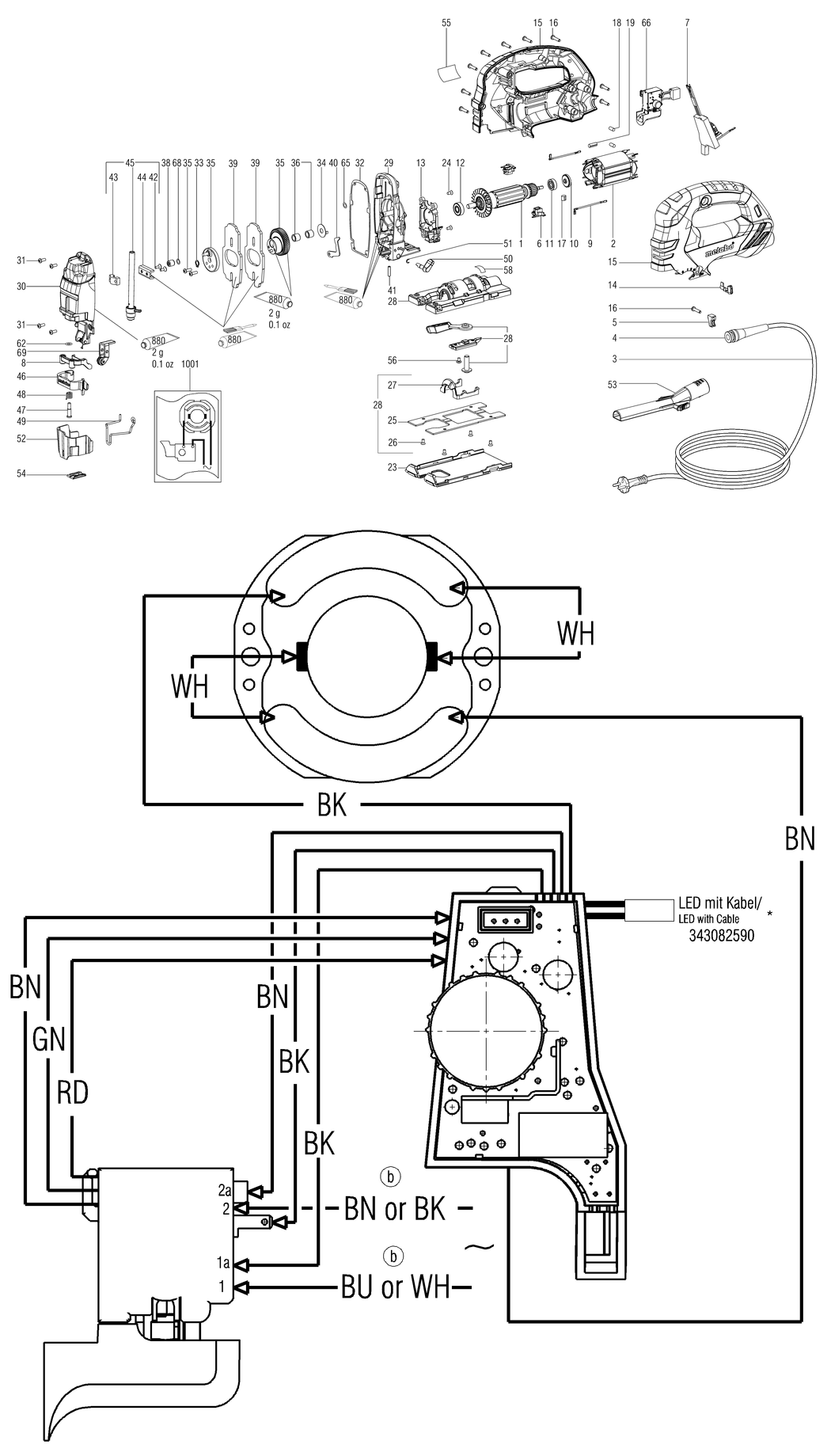

1001 - WIRING DIAGRAM
MET-338505700.A8
338505700
|
-
|
|
|
