Metabo WX 22180 / 18111310 / CN 220V Spare Parts

Metabo WX 22180 / 18111310 / CN 220V Spare Parts

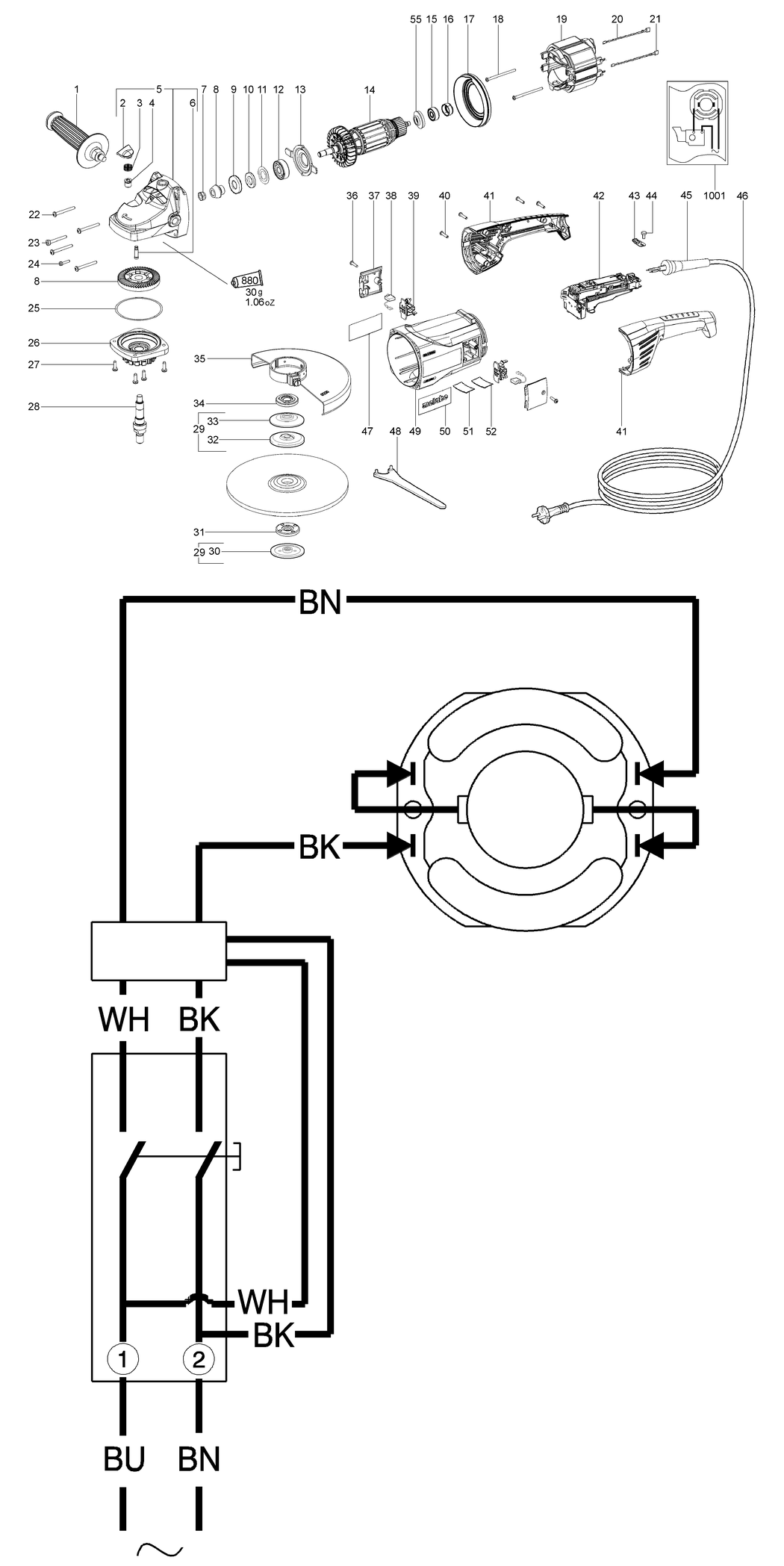

An exploded diagram and spare parts listing for the Metabo WX 22180 / 18111310 / CN 220V
Ex VAT Inc VAT
1 - HANDLE CPL. MET-314000960.A208 314000960 £30.06 £36.07
2 - PUSH BUTTON MET-343376440.A27 343376440 £3.82 £4.59
3 - PRESSURE SPRING MET-342001730.A34 342001730 £1.50 £1.80
4 - GUIDE BUSH MET-341003970.A13 341003970 £5.62 £6.75
5 - GEAR HOUSING CPL. MET-316031720.A38 316031720 £61.08 £73.30
6 - THRUST BOLT MET-341513810.A0 341513810 £3.20 £3.84
7 - SELF LOCKING NUT MET-341100660.A126 341100660 £4.76 £5.71
8 - BEVEL GEAR MET-316025280.A6 316025280 £68.35 £82.02
9 - SPACER RING MET-341011510.A27 341011510 £7.36 £8.83
10 - ELT RING MET-143192440.A14 143192440 £4.76 £5.71
11 - COVER WASHER MET-339070080.A13 339070080 £3.20 £3.84
12 - BALL BEARING 12X37X12 MET-143115230.A1 143115230 £9.62 £11.54
13 - FIXED BEARING COVER MET-339007280.A15 339007280 £4.76 £5.71
14 - ARMATURE COMPL. MET-316094250.A12 316094250 £60.03 £72.04
15 - BALL BEARING 8X22X7 MET-143115800.A379 143115800 £3.83 £4.60
16 - RUBBER BEARING MET-344094080.A12 344094080 £2.60 £3.12
17 - BAFFLE MET-339150950.A15 339150950 £4.76 £5.71
18 - SELF-TAP. FILL. H. SCREW MET-141121680.A27 141121680 £1.50 £1.80
19 - FIELD COIL COMPL. MET-311012600.A14 311012600 £68.35 £82.02
20 - PART NOT NEEDED MET-399999990.A1381 399999990 -
21 - PART NOT NEEDED MET-399999990.A1382 399999990 -
22 - SELF-TAP. FILL. H. SCREW MET-141119370.A27 141119370 £1.50 £1.80
23 - FILLISTER HEAD SCREW MET-141122020.A168 141122020 £1.50 £1.80
24 - FILLISTER HEAD SCREW MET-141124800.A14 141124800 -
25 - SEALING RING MET-339060140.A0 339060140 £3.20 £3.84
26 - GEAR FLANGE COMPL. D 180 MET-316047460.A4 316047460 -
27 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A568 141121640 £1.50 £1.80
28 - SPINDLE MET-341604160.A16 341604160 -
29 - PART NOT NEEDED MET-399999990.A1379 399999990 -
30 - PART NOT NEEDED MET-399999990.A1380 399999990 -
31 - FLANGE NUT MET-341106900.A297 341106900 £11.78 £14.13
32 - PART NOT NEEDED MET-399999990.A1377 399999990 -
33 - PART NOT NEEDED MET-399999990.A1378 399999990 -
34 - CLAMPING FLANGE MET-341031160.A232 341031160 £15.41 £18.49
35 - WHEEL GUARD COMPL. D 180 MET-316045010.A4 316045010 £22.96 £27.55
36 - SCREW MET-341702050.A88 341702050 £1.50 £1.80
37 - COVER MET-343376430.A11 343376430 £3.20 £3.84
38 - CARBON BRUSH SET MET-316047480.A10 316047480 £15.41 £18.49
39 - BRUSH GUIDE MET-343000770.A12 343000770 £8.37 £10.04
40 - SELF-TAP FILL H SCREW MET-141116020.A248 141116020 £3.20 £3.84
41 - HANDLE (UPPER+UNDER PART) MET-343398260.A32 343398260 £15.41 £18.49
42 - SWITCH COMPL. 230V MET-316045410.A5 316045410 £61.08 £73.30
43 - CABLE CLIP MET-339127730.A112 339127730 £1.50 £1.80
44 - SELF-TAP. FILL. H. SCREW MET-141116800.A26 141116800 £1.50 £1.80
45 - CABLE SLEEVE MET-344094550.A140 344094550 £3.82 £4.59
46 - CABLE CHINESE MET-344493630.A4 344493630 £36.59 £43.91
47 - INDICATION LABEL MET-338117330.A3 338117330 -
48 - PIN SPANNER MET-344160840.A84 344160840 £7.36 £8.83
49 - MOTOR HOUSING MET-315012760.A39 315012760 £26.35 £31.62
50 - METABO LABEL MET-338122080.A2 338122080 -
51 - RATING PLATE MET-338055880.A0 338055880 -
52 - PART NOT NEEDED MET-399999990.A1383 399999990 -
55 - SEALING WASHER MET-343435570.A9 343435570 £2.94 £3.53
880 - GREASE 100G MET-344130910.A148 344130910 £19.18 £23.02
1001 - WIRING DIAGRAM 230 V MET-338505320.A8 338505320 -
