1 - COVER
MET-343390160.A3
343390160
|
£8.37
|
£10.04
|
|
|
2 - LABEL TO READ INSTRUCTIONS
MET-338117240.A9
338117240
|
£1.50
|
£1.80
|
|
|
3 - SEALING SET
MET-316053430.A13
316053430
|
£13.63
|
£16.36
|
|
|
5 - BALL BEARING 10X30X9
MET-143115650.A34
143115650
|
£4.76
|
£5.71
|
|
|
7 - SPURWHEEL
MET-340012440.A0
340012440
|
£19.18
|
£23.02
|
|
|
12 - GEAR FLANGE CPL.
MET-316037480.A0
316037480
|
£60.03
|
£72.04
|
|
|
13 - BALL BEARING 8X 22X 7
MET-143115060.A24
143115060
|
£8.37
|
£10.04
|
|
|
14 - FAN W. PROT. GRID
MET-316031210.A27
316031210
|
£13.63
|
£16.36
|
|
|
15 - TACHO DISC
MET-343391120.A22
343391120
|
£5.62
|
£6.75
|
|
|
16 - ARMATURE 230 V
MET-310008630.A2
310008630
|
£63.44
|
£76.13
|
|
|
17 - BALL BEARING 6X 19X 6
MET-143115810.A132
143115810
|
£7.04
|
£8.45
|
|
|
18 - WASHER
MET-141153340.A23
141153340
|
£1.50
|
£1.80
|
|
|
19 - RUBBER BUSHING
MET-344095260.A127
344095260
|
£3.20
|
£3.84
|
|
|
20 - BAFFLE
MET-339150890.A5
339150890
|
£3.20
|
£3.84
|
|
|
21 - PUSH BUTTON BLACK
MET-343390140.A0
343390140
|
-
|
|
|
|
23 - PRESSURE SPRING
MET-342001550.A53
342001550
|
£1.50
|
£1.80
|
|
|
26 - SEALING WASHER
MET-339006520.A0
339006520
|
£1.50
|
£1.80
|
|
|
27 - BOLT
MET-341513790.A50
341513790
|
£5.62
|
£6.75
|
|
|
28 - GEAR HOUSING CPL.
MET-316037470.A3
316037470
|
£55.90
|
£67.08
|
|
|
29 - INSERT
MET-343390900.A0
343390900
|
£2.94
|
£3.53
|
|
|
30 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A40
141119570
|
£1.50
|
£1.80
|
|
|
31 - SEALING RING
MET-343378120.A3
343378120
|
£8.37
|
£10.04
|
|
|
32 - FLAT PLUG
MET-339080310.A13
339080310
|
£1.50
|
£1.80
|
|
|
33 - FILLISTER HEAD SCREW
MET-141115780.A28
141115780
|
£1.50
|
£1.80
|
|
|
34 - SWITCH SLIDE
MET-343394180.A33
343394180
|
£2.94
|
£3.53
|
|
|
35 - SWITCH ROD
MET-343391880.A9
343391880
|
£2.94
|
£3.53
|
|
|
36 - SELF-TAP FILL H SCREW
MET-141116020.A223
141116020
|
£3.20
|
£3.84
|
|
|
37 - CABLE CLIP
MET-343362490.A723
343362490
|
£3.20
|
£3.84
|
|
|
38 - SWITCH
MET-343406740.A5
343406740
|
£22.96
|
£27.55
|
|
|
39 - SELF-TAP. FILL. H. SCREW
MET-141116990.A139
141116990
|
£3.20
|
£3.84
|
|
|
40 - 2 PART MOTOR CAP
MET-343375710.A16
343375710
|
£8.37
|
£10.04
|
|
|
41 - LIGHT TRANSMISSION
MET-343077280.A5
343077280
|
£1.50
|
£1.80
|
|
|
42 - CABLE SLEEVE
MET-344100970.A196
344100970
|
£3.20
|
£3.84
|
|
|
43 - CABLE WITH PLUG
MET-344493180.A39
344493180
|
£26.35
|
£31.62
|
|
|
44 - SELF-TAP. FILL. H. SCREW
MET-341701470.A7
341701470
|
£1.50
|
£1.80
|
|
|
45 - COMPENSATING WASHER
MET-339060160.A139
339060160
|
£3.20
|
£3.84
|
|
|
46 - FILLISTER HEAD SCREW
MET-141119860.A51
141119860
|
£3.20
|
£3.84
|
|
|
47 - SELF-TAP. FILL. H. SCREW
MET-141116980.A210
141116980
|
£1.50
|
£1.80
|
|
|
48 - FLANGE COMPLETE
MET-343377210.A6
343377210
|
£15.41
|
£18.49
|
|
|
49 - SPINDLE SHAFT
MET-341603850.A2
341603850
|
£30.06
|
£36.07
|
|
|
50 - INTERMEDIATE FLANGE M14 CPL.
MET-316037500.A2
316037500
|
£79.10
|
£94.92
|
|
|
51 - HAND GUARD
MET-339039540.A3
339039540
|
£11.78
|
£14.13
|
|
|
52 - HANDLE CPL.
MET-314000540.A0
314000540
|
£15.41
|
£18.49
|
|
|
53 - RATING PLATE
MET-338045090.A0
338045090
|
-
|
|
|
|
54 - FIELD COIL 230 V EL
MET-311009890.A0
311009890
|
£68.35
|
£82.02
|
|
|
55 - CABLE STRAND
MET-344493960.A34
344493960
|
£3.20
|
£3.84
|
|
|
56 - TEMPERATURE SENSOR
MET-343077490.A24
343077490
|
£13.63
|
£16.36
|
|
|
57 - MOTOR HOUSING
MET-316052200.A3
316052200
|
£22.96
|
£27.55
|
|
|
58 - PART NOT NEEDED
MET-399999990.A1398
399999990
|
-
|
|
|
|
59 - M-LABEL 08 52X22
MET-338122160.A54
338122160
|
£1.50
|
£1.80
|
|
|
60 - CARBON BRUSH
MET-316035510.A10
316035510
|
£17.55
|
£21.06
|
|
|
61 - BRUSH HOLDER CPL.
MET-316035480.A2
316035480
|
£15.41
|
£18.49
|
|
|
62 - ELECTRONIC UNIT
MET-343079230.A1
343079230
|
£63.36
|
£76.03
|
|
|
64 - PART NOT NEEDED
MET-399999990.A1397
399999990
|
-
|
|
|
|
880 - SPECIAL GREASE 100GR 3.6oz
MET-344130840.A38
344130840
|
£19.18
|
£23.02
|
|
|

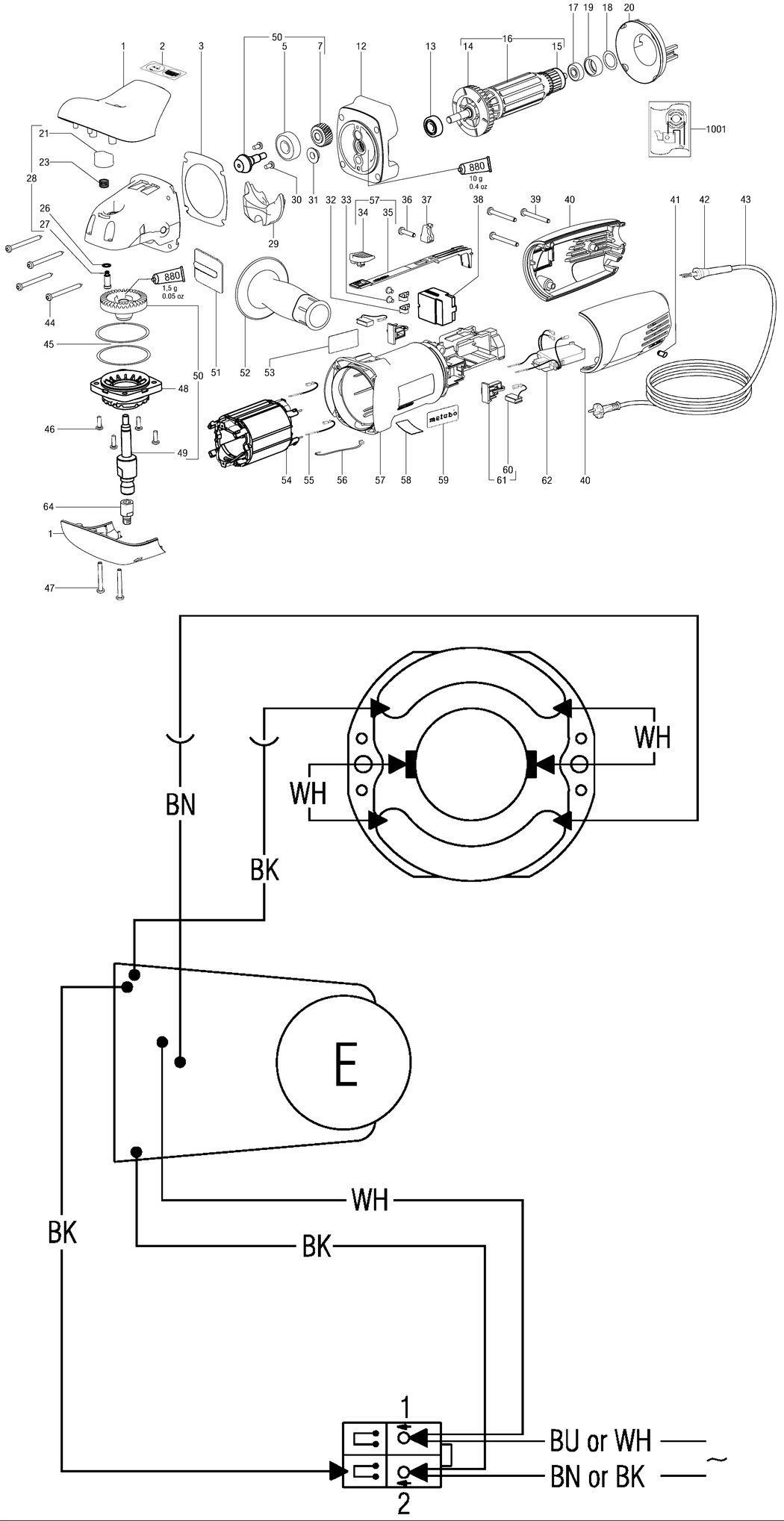

1001 - DIAGRAM
MET-338504140.A4
338504140
|
-
|
|
|
