Metabo PK 255/3 40 DNB / 0102582802 12 / 3 / 400V/50Hz Spare Parts

Home Details Reviews Delivery

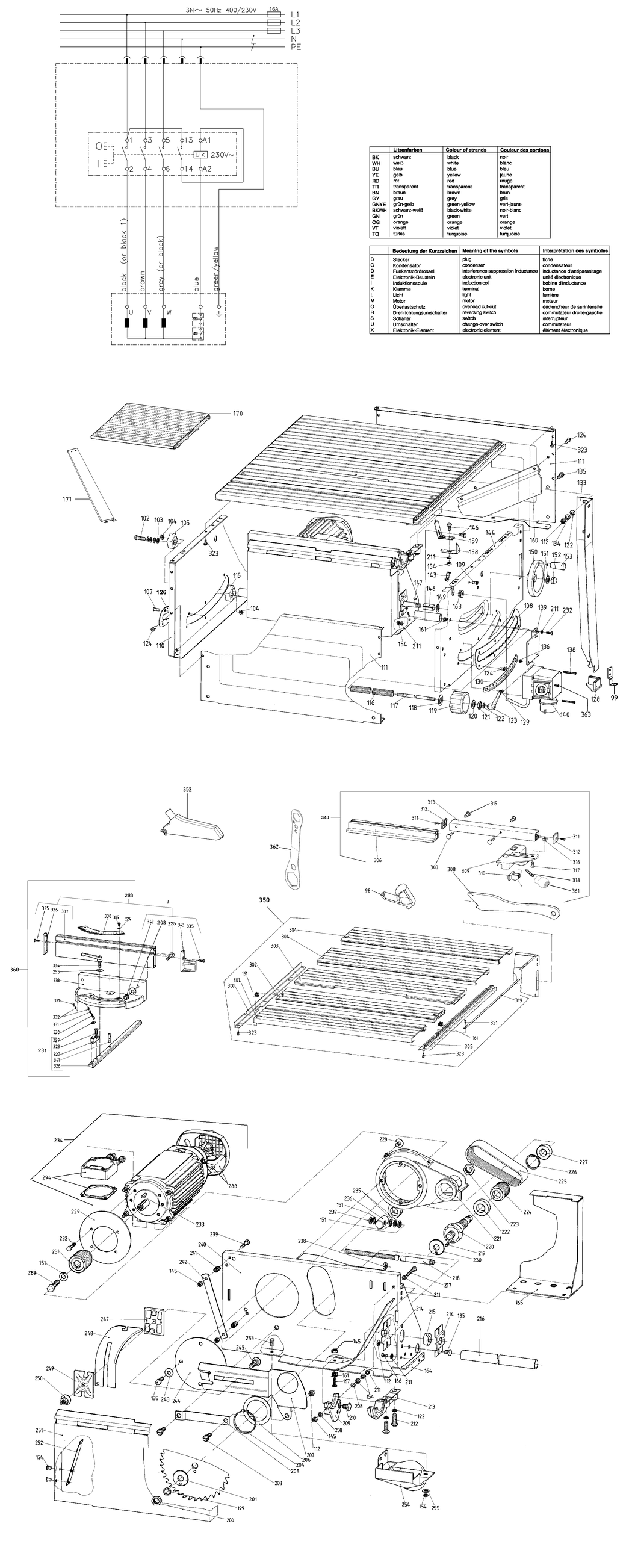

An exploded diagram and spare parts listing for the Metabo PK 255/3 40 DNB / 0102582802 12 / 3 / 400V/50Hz

	Ex VAT	Inc VAT
98 - SLIDING HANDLE RED MET-1388680470.A19 1388680470	£42.65	£51.18
99 - FASTENING ANGLE PK MET-1382723739.A3 1382723739	£17.55	£21.06
102 - CAP SCREW MET-141114030.A9 141114030	-
103 - CUP SPRING MET-7053016795.A12 7053016795	£1.50	£1.80
104 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A1 6202002305	£1.50	£1.80
105 - LOCKING ELEMENT A MET-1380207482.A2 1380207482	£6.19	£7.43
108 - TOOTHED PLATE MET-1492200723.A4 1492200723	-
109 - BLIND RIVET MUSHROOM HEAD MET-6621010407.A2 6621010407	£1.50	£1.80
110 - REAR PANEL MET-1392200246.A2 1392200246	-
111 - SIDE PANEL MET-1392200211.A2 1392200211	-
112 - HEXAGONAL NUT MET-141131010.A0 141131010	£1.50	£1.80
115 - LOCKING ELEMENT B MET-1380207474.A3 1380207474	£6.19	£7.43
116 - RACK MET-1393200746.A4 1393200746	£17.95	£21.54
117 - FEED ROD MET-1495207516.A0 1495207516	£8.62	£10.34
118 - MEDIUM WASHER MET-6300087696.A4 6300087696	£1.50	£1.80
119 - SELECTOR WHEEL MET-1391200390.A4 1391200390	£8.37	£10.04
120 - WASHER MET-141156740.A7 141156740	£2.94	£3.53
121 - HEXAGON THIN NUT MET-6205032396.A7 6205032396	£1.50	£1.80
122 - WASHER MET-141151340.A43 141151340	£1.50	£1.80
123 - RATCHET LOCK LEVER FEMALE MET-7006028653.A6 7006028653	£9.62	£11.54
124 - BLIND RIVET MUSHROOM HEAD MET-6621010407.A1 6621010407	£1.50	£1.80
126 - TOOTHED PLATE MET-1482685826.A1 1482685826	-
128 - RUBBER FOOT MET-7057019365.A1 7057019365	£4.64	£5.57
129 - FILLISTER HEAD SCREW MET-6172016683.A1 6172016683	£1.50	£1.80
130 - ARBOR TILT SCALE 1 00 45-0 GRAD MET-1141200468.A2 1141200468	£7.44	£8.93
133 - LEG MET-1392200254.A3 1392200254	£17.07	£20.48
134 - SERRATED LOCK WASHER MET-6304001745.A16 6304001745	£1.50	£1.80
135 - HEX HEAD SCREW MET-6103001178.A43 6103001178	£1.50	£1.80
136 - FLANGE NUT MET-6209620098.A8 6209620098	-
138 - RAISED CHEESE HEAD SCREW M 4X45 VERZ. MET-6123002030.A3 6123002030	-
139 - SWITCH PLATE BL 2 99X84X140 MET-1382217345.A5 1382217345	-
140 - SWITCH SSK MET-8132719609.A1 8132719609	£60.03	£72.04
143 - CABLE CLIP MET-7052078118.A49 7052078118	£1.50	£1.80
144 - FRONT PANEL MET-1392200238.A3 1392200238	-
145 - HEXAGONAL LOCK NUT MET-141130650.A79 141130650	£3.20	£3.84
146 - CUP SQUARE NECK SCREW MET-6110000608.A4 6110000608	£1.50	£1.80
147 - WOODRUFF KEY MET-6720008538.A4 6720008538	£1.50	£1.80
148 - SPACER SLEEVE MET-6442200309.A5 6442200309	£3.11	£3.73
149 - WASHER MET-6300019984.A4 6300019984	£1.50	£1.80
150 - HANDWHEEL MET-7003087322.A0 7003087322	£22.40	£26.88
151 - WASHER MET-6300016705.A44 6300016705	£1.50	£1.80
152 - CAP NU MET-6201074264.A2 6201074264	£3.11	£3.73
153 - TURNING TANG MET-7004017433.A16 7004017433	£4.76	£5.71
154 - HEXAGONAL NUT MET-141130100.A128 141130100	£1.50	£1.80
158 - BEVEL TILT INDICATOR MET-1482214718.A0 1482214718	-
159 - BEVEL TILT INDICATOR BRACKET MET-1482214700.A5 1482214700	£2.60	£3.12
160 - PUSH STICK SHEATH MET-1382214699.A5 1382214699	-
161 - CAGE NUT MET-6264166657.A3 6264166657	-
163 - GROMMET MET-8241103510.A0 8241103510	-
164 - BRACKET MET-1382214737.A0 1382214737	£9.82	£11.79
165 - GEAR GUARD 1 50X389X253 MET-1492739800.A1 1492739800	-
166 - HEX HEAD SCREW MET-6103001127.A36 6103001127	£1.50	£1.80
167 - HEXAGON HEAD SCREW MET-141110280.A11 141110280	£1.50	£1.80
170 - TABLE ZUSATZTISCH-PK255 MET-1010723490.A0 1010723490	£70.49	£84.59
171 - SUPPORT TVL MET-1382723313.A0 1382723313	£32.61	£39.13
199 - SHIM RING MET-6306028055.A5 6306028055	£1.50	£1.80
200 - HEXAGON THIN NUT MET-6205008460.A5 6205008460	£3.89	£4.67
201 - TWO-WAY FLANGE MET-1485727120.A3 1485727120	-
203 - BEARING BOLT MET-1395200611.A23 1395200611	£4.76	£5.71
204 - RETAINING RING FOR SHAFTS MET-6400087588.A2 6400087588	£3.11	£3.73
205 - PILOT LINK PLATE MET-1392200343.A0 1392200343	£2.60	£3.12
206 - BALL BEARING SHIM RING MET-7140006941.A0 7140006941	£3.89	£4.67
207 - RIVING KNIFE CARRIER PLATE MET-1392207151.A0 1392207151	£11.20	£13.44
208 - WASHER MET-141151940.A58 141151940	£1.50	£1.80
209 - SWIVEL SEGMENT PAIR MET-2390200199.A5 2390200199	£22.96	£27.55
210 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A31 6103005270	-
211 - SERRATED LOCK WASHER MET-141150410.A100 141150410	£3.20	£3.84
212 - CAP SCREW MET-141114030.A11 141114030	-
213 - TABLE SECTION MET-2390200202.A0 2390200202	£22.96	£27.55
214 - BEARING PLATE MET-1392200289.A5 1392200289	£2.60	£3.12
215 - DEEP GROOVE BALL BEARING MET-7100136915.A6 7100136915	£9.62	£11.54
216 - SETTING TUBE MET-1393207503.A3 1393207503	£17.07	£20.48
217 - HEXAGON HEAD SCREW MET-141116250.A13 141116250	£1.50	£1.80
218 - FEED SPINDLE RD 16X565 MET-1495024381.A0 1495024381	-
219 - SPRING PIN MET-141162580.A5 141162580	£1.50	£1.80
220 - SAW BLADE SPINDLE MET-1385213669.A2 1385213669	£73.52	£88.23
221 - GEAR HOUSING MET-1390200753.A3 1390200753	-
222 - DEEP GROOVE BALL BEARING MET-7100016812.A0 7100016812	£11.20	£13.44
223 - HEXAGON THIN NUT MET-6205052753.A3 6205052753	£2.60	£3.12
224 - POLY-RIB PULLEY MET-1395200050.A5 1395200050	£17.95	£21.54
225 - POLY-RIB BELT MET-7233087313.A0 7233087313	£22.40	£26.88
226 - RETAINING RING SHAFT MET-6401121364.A4 6401121364	-
227 - DEEP GROOVE BALL BEARING MET-7100016995.A3 7100016995	£15.41	£18.49
228 - SCREW COMPL. MET-316051570.A2 316051570	-
229 - CAM PLATE MET-1392200360.A5 1392200360	£7.36	£8.83
230 - BLADE COLLAR MET-1485727112.A0 1485727112	-
231 - POLY-RIB PULLEY MET-1395200980.A2 1395200980	£36.59	£43.91
232 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A23 6127059193	£1.50	£1.80
234 - ELECTRIC MOTOR MET-8013684791.A1 8013684791	£205.18	£246.22
235 - HEXAGON NUT MET-6200017992.A5 6200017992	£1.50	£1.80
236 - PULL BOLT MET-1395200271.A0 1395200271	-
237 - HEXAGON NUT PREV. TORQUE TYPE MET-6202024139.A43 6202024139	£1.50	£1.80
238 - HEX NUT MET-141132030.A49 141132030	£2.94	£3.53
239 - TRUSS HEAD SCREW MET-6110029436.A3 6110029436	£1.50	£1.80
240 - CHIP CASE MET-1010214773.A2 1010214773	£53.37	£64.04
241 - PRESSURE SPRING MET-7051207240.A40 7051207240	£1.50	£1.80
242 - GUIDE BRACKET MET-1482213754.A1 1482213754	-
243 - CUP SPRING MET-7053075104.A23 7053075104	£1.50	£1.80
244 - COVER PLATE MET-1392200084.A0 1392200084	£6.19	£7.43
245 - CUP SQUARE NECK SCREW MET-6110000691.A1 6110000691	£3.20	£3.84
247 - RIVING KNIFE CARRIER MET-2380075353.A22 2380075353	£13.63	£16.36
248 - RIVING KNIFE MET-1392738947.A4 1392738947	£61.08	£73.30
249 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A52 1382213749	£3.20	£3.84
250 - FLANGE NUT MET-6209002432.A26 6209002432	£3.82	£4.59
251 - CHIP CASE COVER BL 1 5X318X637 MET-1382213803.A1 1382213803	-
252 - HOOK MET-1392200386.A0 1392200386	-
253 - HEXAGON HEAD SCREW MET-141113290.A125 141113290	£1.50	£1.80
254 - DUST EXTRACTION PORT MET-1391200501.A0 1391200501	£9.82	£11.79
280 - FENCE EXTRUSION 300 MM MET-1010017811.A3 1010017811	£26.35	£31.62
281 - GUIDE RAIL MET-2010011364.A3 2010011364	£20.12	£24.14
288 - FAN WING+FAN COVER TKHS 315 D&D ET MET-1010722000.A12 1010722000	£11.78	£14.13
289 - HEX HEAD SCREW MET-6103001267.A11 6103001267	£3.20	£3.84
294 - TERMINAL BOX ASSEMBLY TKHS 315M MET-1010726510.A1 1010726510	-
300 - TABLE END EXTRUSION 661 MM MET-1383217233.A0 1383217233	-
301 - TABLE EXTRUSION GROOVED TISCH-PK MET-1383723422.A3 1383723422	-
302 - TABLE INSERT EXTRUSION TISCH-PK255 MET-1383723414.A0 1383723414	-
303 - TABLE EXTRUSION TISCH-PK255 MET-1383723449.A3 1383723449	-
304 - TABLE EXTRUSION TISCH-PK255/PKF MET-1383723430.A0 1383723430	£54.44	£65.33
305 - TABLE GUIDE EXTRUSION 661 MM MET-1383217217.A5 1383217217	-
306 - AUXILIARY FENCE EXTRUSION 700 MM MET-1383214447.A0 1383214447	£48.88	£58.66
307 - TRUSS HEAD SCREW MET-6110019490.A3 6110019490	£2.94	£3.53
308 - PUSH STICK MET-1394201630.A34 1394201630	£9.62	£11.54
309 - CLAMPING PAD MET-1380220845.A4 1380220845	£63.36	£76.03
310 - LOCK PLATE MET-1380222031.A0 1380222031	£8.70	£10.44
311 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A31 6174155800	£1.50	£1.80
312 - EXTRUSION END CAP MET-1381220822.A4 1381220822	£3.82	£4.59
313 - FENCE CARRIER EXTRUSION MET-1383220862.A10 1383220862	£26.85	£32.22
314 - SPACER SLEEVE RD 15/6X18 MET-6442025779.A12 6442025779	£1.50	£1.80
315 - KNURLED NUT MET-6241125058.A41 6241125058	£3.20	£3.84
316 - SQUARE NUT MET-141131020.A38 141131020	£3.20	£3.84
317 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A34 6131009460	-
318 - KNOB RED MET-1388698264.A15 1388698264	£7.36	£8.83
319 - SCALE 0 50X9 MET-1142217330.A5 1142217330	£7.44	£8.93
320 - COUNTERSUNK HEAD TAPPING SCREW MET-6174093740.A4 6174093740	£1.50	£1.80
321 - FILLISTER HEAD SCREW MET-6172091014.A23 6172091014	£1.50	£1.80
322 - TIN NUT MET-6265167657.A16 6265167657	£2.60	£3.12
323 - HEX.HEAD COLLAR DRILLING SCREW MET-6144063978.A5 6144063978	£1.50	£1.80
324 - WASHER MET-141150010.A41 141150010	£1.50	£1.80
325 - TRUSS HEAD SCREW MET-141124490.A23 141124490	£2.94	£3.53
326 - GUIDE RAIL MET-1492027223.A5 1492027223	£22.96	£27.55
327 - ANGLE STOP MET-1391200439.A3 1391200439	£3.82	£4.59
328 - CROSS RECESSED FLAT HEAD SCREW MET-6131059530.A3 6131059530	£1.50	£1.80
329 - ADHESIVE LABEL 1 00X12X9 0 MET-1141200450.A0 1141200450	£3.20	£3.84
330 - HEXAGON SOCKET HEAD CAP SCREW MET-6121102640.A5 6121102640	£1.50	£1.80
331 - HEXAGONAL NUT MET-141130070.A10 141130070	£1.50	£1.80
332 - SERRATED LOCK WASHER MET-141150430.A19 141150430	£1.50	£1.80
333 - MITRE FENCE BODY MET-1390200419.A0 1390200419	-
334 - RATCHET LOCK LEVER MET-7006003847.A3 7006003847	£9.62	£11.54
335 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A66 141123420	£1.50	£1.80
336 - END PIECE MET-2391091725.A5 2391091725	£3.20	£3.84
337 - FENCE EXTRUSION 300 MM MET-1393005315.A12 1393005315	£22.61	£27.13
338 - ADHESIVE LABEL 1 00 48-0-48 GRAD MET-1141200441.A3 1141200441	£8.37	£10.04
339 - FILLISTER HEAD SCREW MET-6172028215.A114 6172028215	£1.50	£1.80
340 - RIP FENCE ASSEMBLY ET MET-1010639413.A4 1010639413	£76.70	£92.04
341 - SLOTTED HEADLESS SCREW MET-6160000340.A3 6160000340	£1.50	£1.80
342 - KNURLED NUT MET-6241125058.A42 6241125058	£3.20	£3.84
343 - PLUG QUERANSCHLAG MET-1391200145.A3 1391200145	£4.76	£5.71
350 - TABLE COMPLETE PK 255 MET-1010723473.A3 1010723473	£219.85	£263.82
352 - WHEEL GUARD COMPL. MET-316052430.A24 316052430	£17.55	£21.06
360 - MITRE FENCE PK+BAS MIT WERKSTÜCKANLAGE MET-0910008048.A3 0910008048	-
362 - KEY MET-1492102829.A18 1492102829	£11.78	£14.13
363 - RAISED CHEESE HEAD SCREW MET-141124560.A8 141124560	£2.94	£3.53

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo PK 255/3 40 DNB / 0102582802 12 / 3 / 400V/50Hz Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Metabo PK 255/3 40 DNB / 0102582802 12 / 3 / 400V/50Hz Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Metabo PK 255/3 40 DNB / 0102582802 12 / 3 / 400V/50Hz Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
