Metabo TKHS 315M 4 20 DNB / 0103153300 10 / 3 / 400V/50Hz Spare Parts

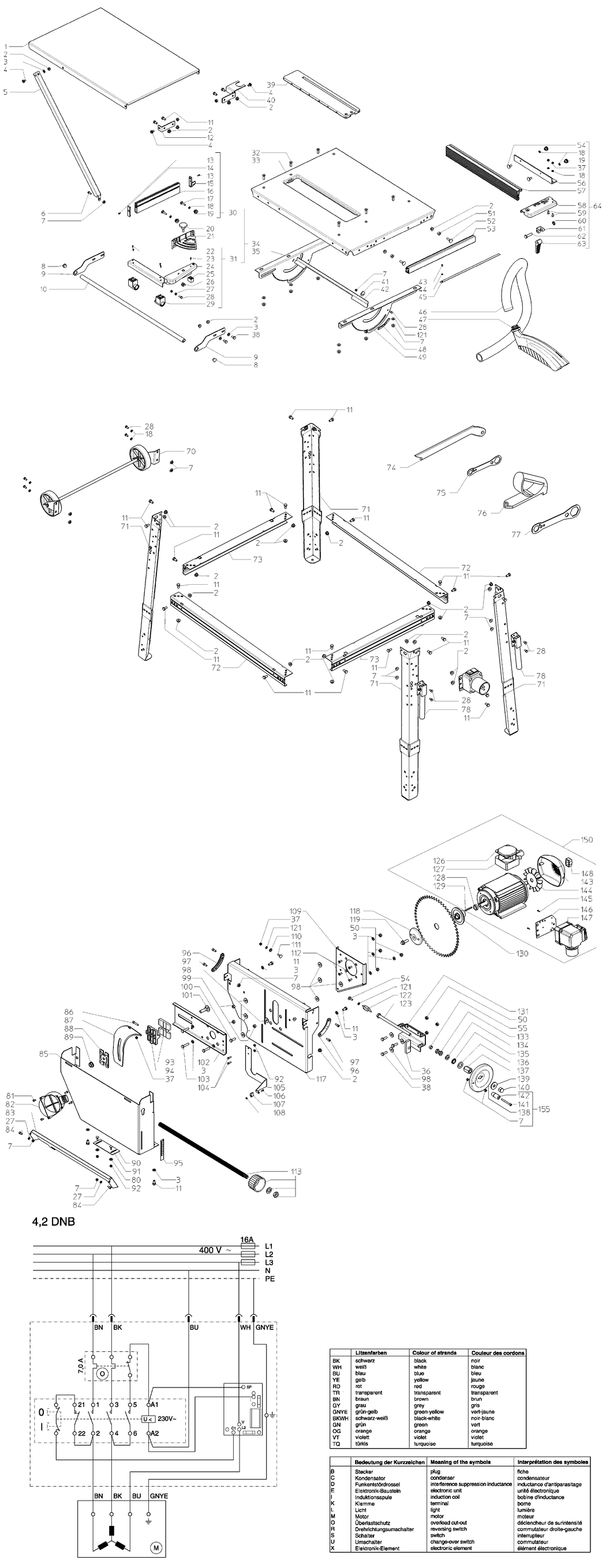

An exploded diagram and spare parts listing for the Metabo TKHS 315M 4 20 DNB / 0103153300 10 / 3 / 400V/50Hz

	Ex VAT	Inc VAT
1 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A50 1382693309	£60.03	£72.04
2 - FLANGE NUT MET-6209110995.A100 6209110995	£1.50	£1.80
3 - WASHER MET-141151340.A189 141151340	£1.50	£1.80
4 - BEARING BOLT MET-1395200611.A5 1395200611	£4.76	£5.71
5 - SUPPORT BL 1 00X70X764 MET-1382678121.A9 1382678121	£22.96	£27.55
6 - HEX.SOCKET COUNTERS.HEAD SCREW M 6X10 VE MET-6132685086.A22 6132685086	£1.50	£1.80
7 - FLANGE NUT MET-6209114230.A152 6209114230	£1.50	£1.80
8 - PLUG RD20/15-17X11 MET-1381693917.A24 1381693917	£2.94	£3.53
9 - BRACKET PRESSURE ROLLER BD 2 MET-1382693828.A23 1382693828	£13.63	£16.36
10 - CROSSCUT FENCE GUIDE ROD RD 20X2X820 TKH MET-1485693889.A4 1485693889	£26.35	£31.62
11 - HEX HEAD SCREW MET-6103001178.A124 6103001178	£1.50	£1.80
12 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A3 1382693856	£17.55	£21.06
13 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A21 141123420	£1.50	£1.80
14 - END PIECE MET-2391091725.A24 2391091725	£3.20	£3.84
15 - PLUG QUERANSCHLAG MET-1391200145.A25 1391200145	£4.76	£5.71
16 - FENCE EXTRUSION 300 MM MET-1393005315.A4 1393005315	£22.61	£27.13
17 - TRUSS HEAD SCREW MET-141124490.A41 141124490	£2.94	£3.53
18 - WASHER MET-141151940.A281 141151940	£1.50	£1.80
19 - KNURLED NUT MET-6241125058.A66 6241125058	£3.20	£3.84
20 - STARKNOB SCREW M 8X23 (DIN 933) VERZINKT MET-7001144191.A20 7001144191	£3.82	£4.59
21 - STOP RULE MET-1390018033.A21 1390018033	£22.61	£27.13
22 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X16 MET-6172032905.A24 6172032905	£1.50	£1.80
23 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A11 6174155800	£1.50	£1.80
24 - STOP RULE LOWER BL 2 MET-1382409775.A8 1382409775	£26.35	£31.62
25 - GLIDE PIECE MET-1381410559.A9 1381410559	£3.20	£3.84
26 - CAGE NUT M 8 BLECHSTÄRKE 1 MET-6264139374.A9 6264139374	£3.20	£3.84
27 - HEXAGONAL NUT MET-141130100.A216 141130100	£1.50	£1.80
28 - HEXAGON HEAD SCREW MET-141113290.A54 141113290	£1.50	£1.80
29 - GUIDE PIECE QUERANSCHLAG MET-1381409879.A17 1381409879	£4.76	£5.71
30 - FENCE EXTRUSION 300 MM MET-1010017811.A24 1010017811	£26.35	£31.62
31 - MITRE FENCE UNTERTEIL MET-1010170008.A3 1010170008	£54.94	£65.93
32 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A97 6130019585	£1.50	£1.80
33 - TABLE PANEL BL 2 00X668X868 TKHS315M MET-1382693287.A10 1382693287	£55.90	£67.08
34 - MITRE FENCE ASSEMBLY ET MET-1010186710.A14 1010186710	£63.44	£76.13
35 - CHIP CASE GUIDE PANEL BL 2 00X163X440 HI MET-1482693691.A0 1482693691	£36.59	£43.91
36 - BRACKET FL 25X10X65 TKHS315M MET-1482693179.A0 1482693179	£22.61	£27.13
37 - HEXAGONAL LOCK NUT MET-141130650.A156 141130650	£3.20	£3.84
38 - HEXAGON HEAD SCREW MET-141114860.A51 141114860	£3.20	£3.84
39 - REMOVABLE TABLE SECTION MET-1381406667.A9 1381406667	£19.18	£23.02
40 - HOSE CARRIER BL 2 50X109X161 TKHS315M MET-1382693872.A5 1382693872	£14.71	£17.65
41 - CAM PLATE BL 2 99XRD25/RDI 6 MET-1482408962.A2 1482408962	£1.50	£1.80
42 - GUARD PLATE BL 2 00X30X570 TKHS315M MET-1382694607.A6 1382694607	£13.63	£16.36
43 - FILLISTER HEAD SCREW MET-6172028215.A8 6172028215	£1.50	£1.80
44 - WASHER MET-141150110.A18 141150110	£1.50	£1.80
45 - SCALE 0 30X13X413 0 MET-1142694260.A26 1142694260	£8.37	£10.04
46 - CORRUGATED HOSE RDI 36 2X1500 PROFIL D MET-7854158010.A20 7854158010	£26.35	£31.62
47 - SAW BLADE GUARD W/SUCTION PORT TKHS315M MET-1010692594.A8 1010692594	-
48 - ARBOR TILT SCALE 0 25X13 47-0 GRAD MET-1142694464.A0 1142694464	£6.38	£7.65
49 - CHIP CASE GUIDE PANEL BL 2 00X163X440 VO MET-1482693683.A25 1482693683	£36.59	£43.91
50 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A160 6202002305	£1.50	£1.80
51 - SPACER SLEEVE MET-1485412910.A15 1485412910	£3.20	£3.84
52 - TRUSS HEAD SCREW MET-6110000659.A5 6110000659	£1.50	£1.80
53 - FENCE GUIDE EXTRUSION 463 MM TKHS315M MET-1383694279.A12 1383694279	£30.06	£36.07
54 - TRUSS HEAD SCREW MET-6110031325.A0 6110031325	£1.50	£1.80
55 - NUT MET-1485693161.A19 1485693161	£3.20	£3.84
56 - ANGLE KGT 501 MET-1383680260.A3 1383680260	£36.59	£43.91
57 - RIP FENCE EXTRUSION 570 MM MET-1383158458.A15 1383158458	£42.65	£51.18
58 - LOCKING ELEMENT MET-1382680053.A19 1382680053	£54.94	£65.93
59 - COUNTERSUNK SCREW MET-6132087995.A30 6132087995	£1.50	£1.80
60 - STARLOCK MET-7016050711.A41 7016050711	£1.50	£1.80
61 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A88 1392205620	£3.20	£3.84
62 - BOLT WITH HEAD MET-6632111175.A93 6632111175	£3.82	£4.59
63 - CAM LOCK LEVER MET-2390205484.A23 2390205484	£9.62	£11.54
64 - PARALLEL GUIDE KGT501/TKHS MET-1010680243.A10 1010680243	£71.39	£85.67
70 - WHEEL SET TKHS315M GUMMIBEREIFT MET-1010692586.A6 1010692586	£32.88	£39.45
71 - LEG BL 1 5X142X842 TKHS315M MET-1382693597.A4 1382693597	£32.88	£39.45
72 - STANCHION BL 1 5X118X844 LANG MET-1382407080.A8 1382407080	£17.55	£21.06
73 - STANCHION BL 1 5X118X644 KURZ / TKHS315M MET-1382693813.A3 1382693813	£17.55	£21.06
74 - PUSH STICK MET-343433180.A67 343433180	-
75 - OPEN END SPANNER BL 3X43/15X145 SW 19X14 MET-1392038481.A17 1392038481	£5.62	£6.75
76 - SLIDING HANDLE RED MET-1388680470.A98 1388680470	£42.65	£51.18
77 - KEY MET-1492102829.A98 1492102829	£11.78	£14.13
78 - HANDLE BAR (PAIR) TKHS315C/M MET-1010689330.A49 1010689330	£11.78	£14.13
80 - WASHER MET-141150120.A27 141150120	£1.50	£1.80
81 - FILLISTER HEAD SCREW MET-6172001830.A41 6172001830	£1.50	£1.80
82 - DUST EXTRACTION PORT TKHS315C/M MET-1381689227.A27 1381689227	£9.62	£11.54
83 - COVER BL 1 50X116X613 MET-1382694160.A0 1382694160	£26.35	£31.62
84 - CAP SCREW MET-141113840.A89 141113840	£3.20	£3.84
85 - CHIPCASE BL 2 00X350X600 TKHS315M MET-1382694119.A4 1382694119	£63.44	£76.13
86 - CAP SCREW MET-6127059207.A48 6127059207	£1.50	£1.80
87 - SPLITTING BLADE TKHS315M MET-1382693643.A11 1382693643	-
88 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A74 1382213749	£3.20	£3.84
89 - FLANGE NUT MET-6209002432.A64 6209002432	£3.82	£4.59
90 - SLIDE PLATE BL 1 5X48X137 MET-1382407110.A18 1382407110	£3.20	£3.84
91 - CUP SQUARE NECK SCREW M 5X16 VERZ. MET-6110125036.A5 6110125036	£1.50	£1.80
92 - NUT AND WASHER ASSEMBLY MET-6209018460.A7 6209018460	£1.50	£1.80
93 - RIVING KNIFE CARRIER HINTEN TKHS315M MET-1380693263.A6 1380693263	£15.41	£18.49
94 - RIVING KNIFE CARRIER VORNE TKHS315M MET-1380693255.A1 1380693255	£15.41	£18.49
95 - SCALE 0 25X20X114 0-85 MM MET-1142694472.A25 1142694472	£5.62	£6.75
96 - SWIVEL SEGMENT MET-1380221442.A1 1380221442	£5.62	£6.75
97 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A17 6127059193	£1.50	£1.80
98 - WASHER MET-6305002486.A32 6305002486	-
99 - HEXAGON NUT SW13 M8X7 6 TKHS315M MET-1385694012.A6 1385694012	£4.76	£5.71
100 - HEXAGON HEAD SCREW MET-141110320.A8 141110320	£3.20	£3.84
101 - CUP SQUARE NECK SCREW M 12X50 VERZ. MET-6110019007.A19 6110019007	£3.20	£3.84
102 - RIVING KNIFE CARRIER PLATE BL 2 99X150X3 MET-1382693970.A0 1382693970	£32.88	£39.45
103 - HEXAGON HEAD SCREW MET-141113330.A58 141113330	£3.20	£3.84
104 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A16 6121121296	£1.50	£1.80
105 - POINTER BLADE TILT BL 2 MET-1382694003.A0 1382694003	£19.18	£23.02
106 - RAISED CHEESE HEAD SCREW MET-141124560.A29 141124560	£2.94	£3.53
107 - POINTER RAL 3000-3003 MET-2391203523.A22 2391203523	£1.50	£1.80
108 - HEXAGONAL LOCK NUT MET-141130930.A35 141130930	£1.50	£1.80
109 - MOTOR PLATE BL 2 99X250X300 TKHS315M MET-1382694143.A6 1382694143	£36.59	£43.91
110 - CUP SPRING MET-141155660.A42 141155660	£1.50	£1.80
111 - CUP SQUARE NECK SCREW MET-6110000608.A49 6110000608	£1.50	£1.80
112 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132661454.A7 6132661454	£1.50	£1.80
113 - RACK COMPL. MET-316097060.A6 316097060	£22.96	£27.55
114 - SELECTOR WHEEL MET-1391200390.A2 1391200390	£8.37	£10.04
115 - WASHER MET-141156740.A24 141156740	£2.94	£3.53
116 - HEXAGON THIN NUT MET-6205032396.A1 6205032396	£1.50	£1.80
117 - CHIP CASE BL 2 99X900X480 TKHS315M MET-1382693996.A6 1382693996	£63.44	£76.13
118 - BLADE COLLAR OUTER D 276 MET-1330025316.A11 1330025316	£13.63	£16.36
119 - HEXAGON HEAD SCREW MET-141122670.A1 141122670	£6.38	£7.65
121 - WASHER MET-141150130.A65 141150130	£1.50	£1.80
122 - WING NUT M 6 MET-7005155791.A11 7005155791	£3.82	£4.59
123 - HEXAGON HEAD SCREW M 12X220 VERZ. MET-6103694050.A4 6103694050	£11.78	£14.13
126 - LID MOTOR TERMINAL BOX MET-1331409665.A6 1331409665	£3.82	£4.59
127 - LOWER CASING MOTOR TERM. BOX MET-1331409657.A0 1331409657	£8.37	£10.04
128 - SPACER SLEEVE RD 26 MET-6442694557.A4 6442694557	£6.38	£7.65
129 - FEATHER KE A 6X4X50 MET-6721041830.A27 6721041830	£1.50	£1.80
130 - BLADE COLLAR INNER MET-1330025308.A0 1330025308	£26.35	£31.62
131 - HEIGHT-ADJUSTMENT BL 2 99 TKHS315M MET-1382694038.A22 1382694038	£32.88	£39.45
133 - HEXAGON THIN NUT M 12 VERZ. FORM B MET-6205055744.A0 6205055744	£1.50	£1.80
134 - WASHER MET-6300016705.A13 6300016705	£1.50	£1.80
135 - FRICTION BEARING S GFM-1820-04 MET-7151694106.A4 7151694106	£5.62	£6.75
136 - CHECK WASHE GTM-1832-015 TKHS315M MET-7104694092.A3 7104694092	£6.38	£7.65
137 - COLLAR NUT 6KT SW24X37/M12 TKHS315M MET-1485694087.A5 1485694087	£8.37	£10.04
138 - HANDWHEEL BL 2X RD 165 MET-1010702140.A38 1010702140	£19.18	£23.02
139 - WASHER B 13 VERZ. MET-6305002508.A78 6305002508	£1.50	£1.80
140 - CAP NUT M 12 VERZ. MET-6201002158.A18 6201002158	£3.20	£3.84
141 - HEXAGON SOCKET HEAD CAP SCREW MET-6121112564.A6 6121112564	£1.50	£1.80
142 - TURNING TANG MET-7004017433.A1 7004017433	£4.76	£5.71
143 - FAN COVER 120/13 MET-1331408847.A15 1331408847	£4.76	£5.71
144 - FAN WING 120/13 WELLEND. 16 MET-1331408839.A0 1331408839	£3.82	£4.59
145 - HEXAGONAL NUT MET-141130070.A30 141130070	£1.50	£1.80
146 - SWITCH PLATE BD 2 00X85X125 MET-1382407063.A11 1382407063	£3.82	£4.59
147 - SWITCH SSK DN UC230V M=7A K900VB/ST3/KA3 MET-8132605565.A0 8132605565	£128.14	£153.77
148 - CAP MOTORWELLE MET-1381083779.A4 1381083779	£1.50	£1.80
150 - MOTOR CIRCULAR SAW BENCH TK 4 MET-1010694660.A0 1010694660	-
155 - HANDWHEEL KPL. TKHS315M MET-1010702140.A0 1010702140	£19.18	£23.02
