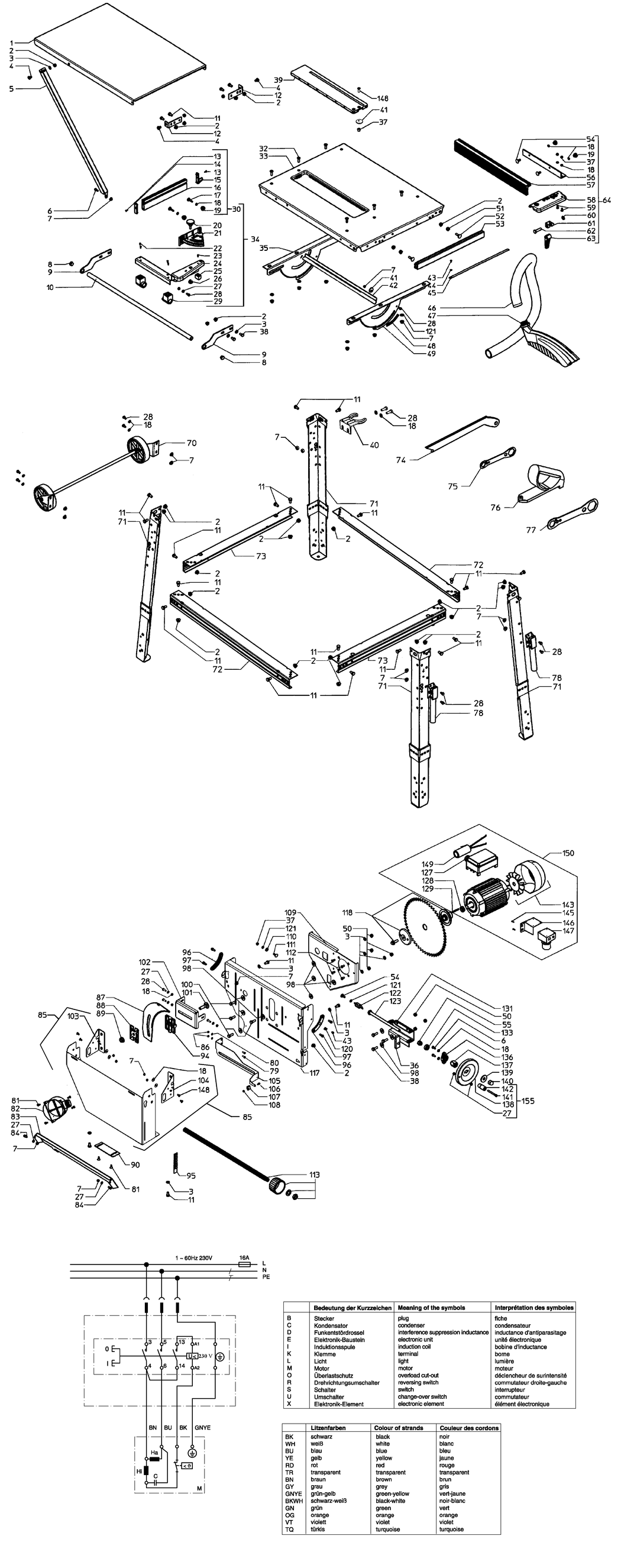

An exploded diagram and spare parts listing for the Metabo TKHS 315M/2 50 WNB / 0103153021 11 / SA 220V / 60Hz
Ex VAT Inc VAT
1 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A4 1382693309 £60.03 £72.04
2 - FLANGE NUT MET-6209110995.A43 6209110995 £1.50 £1.80
3 - WASHER MET-141151340.A53 141151340 £1.50 £1.80
4 - BEARING BOLT MET-1395200611.A28 1395200611 £4.76 £5.71
5 - SUPPORT BL 1 00X70X764 MET-1382678121.A12 1382678121 £22.96 £27.55
6 - HEX.SOCKET COUNTERS.HEAD SCREW M 6X10 VE MET-6132685086.A1 6132685086 £1.50 £1.80
7 - FLANGE NUT MET-6209114230.A86 6209114230 £1.50 £1.80
8 - PLUG RD20/15-17X11 MET-1381693917.A13 1381693917 £2.94 £3.53
9 - BRACKET PRESSURE ROLLER BD 2 MET-1382693828.A4 1382693828 £13.63 £16.36
10 - CROSSCUT FENCE GUIDE ROD RD 20X2X820 TKH MET-1485693889.A15 1485693889 £26.35 £31.62
11 - HEX HEAD SCREW MET-6103001178.A38 6103001178 £1.50 £1.80
12 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A64 1382693856 £17.55 £21.06
13 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A63 141123420 £1.50 £1.80
14 - END PIECE MET-2391091725.A2 2391091725 £3.20 £3.84
15 - PLUG QUERANSCHLAG MET-1391200145.A5 1391200145 £4.76 £5.71
16 - FENCE EXTRUSION 300 MM MET-1393005315.A16 1393005315 £22.61 £27.13
17 - TRUSS HEAD SCREW MET-141124490.A26 141124490 £2.94 £3.53
18 - WASHER MET-141151940.A54 141151940 £1.50 £1.80
19 - KNURLED NUT MET-6241125058.A37 6241125058 £3.20 £3.84
20 - STARKNOB SCREW M 8X23 (DIN 933) VERZINKT MET-7001144191.A12 7001144191 £3.82 £4.59
21 - STOP RULE MET-1390018033.A3 1390018033 £22.61 £27.13
22 - CROSS RECD PAN HEAD TAP.SCREW ST 3 5X16 MET-6172032905.A3 6172032905 £1.50 £1.80
23 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A33 6174155800 £1.50 £1.80
24 - STOP RULE LOWER BL 2 MET-1382409775.A25 1382409775 £26.35 £31.62
25 - GLIDE PIECE MET-1381410559.A16 1381410559 £3.20 £3.84
26 - CAGE NUT M 8 BLECHSTÄRKE 1 MET-6264139374.A36 6264139374 £3.20 £3.84
27 - HEXAGONAL NUT MET-141130100.A133 141130100 £1.50 £1.80
28 - HEXAGON HEAD SCREW MET-141113290.A120 141113290 £1.50 £1.80
29 - GUIDE PIECE QUERANSCHLAG MET-1381409879.A9 1381409879 £4.76 £5.71
30 - FENCE EXTRUSION 300 MM MET-1010017811.A7 1010017811 £26.35 £31.62
32 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A0 6130019585 £1.50 £1.80
33 - TABLE PANEL BL 2 00X668X868 TKHS315M MET-1382693287.A25 1382693287 £55.90 £67.08
34 - MITRE FENCE ASSEMBLY ET MET-1010186710.A4 1010186710 £63.44 £76.13
35 - CHIP CASE GUIDE PANEL BL 2 00X163X440 HI MET-1482693691.A16 1482693691 £36.59 £43.91
36 - BRACKET FL 25X10X65 TKHS315M MET-1482693179.A17 1482693179 £22.61 £27.13
37 - HEXAGONAL LOCK NUT MET-141130650.A65 141130650 £3.20 £3.84
38 - HEXAGON HEAD SCREW MET-141114860.A77 141114860 £3.20 £3.84
39 - REMOVABLE TABLE SECTION MET-1381406667.A16 1381406667 £19.18 £23.02
40 - HOSE CARRIER TKHS 315 D&D ET MET-1382721906.A7 1382721906 £4.76 £5.71
41 - CAM PLATE BL 2 99XRD25/RDI 6 MET-1482408962.A30 1482408962 £1.50 £1.80
42 - GUARD PLATE TKHS 315 D&D ET MET-1382721892.A12 1382721892 £8.37 £10.04
43 - FILLISTER HEAD SCREW MET-6172028215.A110 6172028215 £1.50 £1.80
44 - WASHER MET-141150110.A44 141150110 £1.50 £1.80
45 - SCALE 0 30X13X413 0 MET-1142694260.A13 1142694260 £8.37 £10.04
46 - CORRUGATED HOSE RDI 36 2X1500 PROFIL D MET-7854158010.A13 7854158010 £26.35 £31.62
47 - SAW BLADE GUARD W/SUCTION PORT TKHS315M MET-1010692594.A1 1010692594 -
48 - ARBOR TILT SCALE 0 25X13 47-0 GRAD MET-1142694464.A13 1142694464 £6.38 £7.65
49 - CHIP CASE GUIDE PANEL BL 2 00X163X440 VO MET-1482693683.A9 1482693683 £36.59 £43.91
50 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A17 6202002305 £1.50 £1.80
51 - SPACER SLEEVE MET-1485412910.A30 1485412910 £3.20 £3.84
52 - TRUSS HEAD SCREW MET-6110000659.A17 6110000659 £1.50 £1.80
53 - FENCE GUIDE EXTRUSION 463 MM TKHS315M MET-1383694279.A22 1383694279 £30.06 £36.07
54 - TRUSS HEAD SCREW MET-6110031325.A29 6110031325 £1.50 £1.80
55 - NUT MET-1485693161.A12 1485693161 £3.20 £3.84
56 - ANGLE KGT 501 MET-1383680260.A30 1383680260 £36.59 £43.91
57 - RIP FENCE EXTRUSION 570 MM MET-1383158458.A29 1383158458 £42.65 £51.18
58 - LOCKING ELEMENT MET-1382680053.A10 1382680053 £54.94 £65.93
59 - COUNTERSUNK SCREW MET-6132087995.A7 6132087995 £1.50 £1.80
60 - STARLOCK MET-7016050711.A115 7016050711 £1.50 £1.80
61 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A60 1392205620 £3.20 £3.84
62 - BOLT WITH HEAD MET-6632111175.A59 6632111175 £3.82 £4.59
63 - CAM LOCK LEVER MET-2390205484.A39 2390205484 £9.62 £11.54
64 - PARALLEL GUIDE KGT501/TKHS MET-1010680243.A29 1010680243 £71.39 £85.67
70 - WHEEL SET TKHS315M GUMMIBEREIFT MET-1010692586.A23 1010692586 £32.88 £39.45
71 - LEG BL 1 5X142X842 TKHS315M MET-1382693597.A25 1382693597 £32.88 £39.45
72 - STANCHION BL 1 5X118X844 LANG MET-1382407080.A26 1382407080 £17.55 £21.06
73 - STANCHION BL 1 5X118X644 KURZ / TKHS315M MET-1382693813.A25 1382693813 £17.55 £21.06
74 - PUSH STICK MET-343433180.A7 343433180 -
75 - OPEN END SPANNER BL 3X43/15X145 SW 19X14 MET-1392038481.A25 1392038481 £5.62 £6.75
76 - SLIDING HANDLE RED MET-1388680470.A17 1388680470 £42.65 £51.18
77 - KEY MET-1492102829.A22 1492102829 £11.78 £14.13
78 - HANDLE BAR (PAIR) TKHS315C/M MET-1010689330.A18 1010689330 £11.78 £14.13
79 - RAISED CHEESE HEAD SCREW MET-6123612815.A39 6123612815 £1.50 £1.80
80 - WASHER MET-141150120.A21 141150120 £1.50 £1.80
81 - FILLISTER HEAD SCREW MET-6172001830.A78 6172001830 £1.50 £1.80
82 - DUST EXTRACTION PORT TKHS315C/M MET-1381689227.A46 1381689227 £9.62 £11.54
83 - COVER BL 1 50X116X613 MET-1382694160.A25 1382694160 £26.35 £31.62
84 - CAP SCREW MET-141113840.A30 141113840 £3.20 £3.84
85 - CHIPCASE BL 2 00X350X600 TKHS315M MET-1382694119.A23 1382694119 £63.44 £76.13
86 - CAP SCREW MET-6127059207.A35 6127059207 £1.50 £1.80
87 - SPLITTING BLADE TKHS315M MET-1382693643.A0 1382693643 -
88 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A47 1382213749 £3.20 £3.84
89 - FLANGE NUT MET-6209002432.A29 6209002432 £3.82 £4.59
90 - SLIDE PLATE BL 1 5X48X137 MET-1382407110.A0 1382407110 £3.20 £3.84
94 - RIVING KNIFE CARRIER VORNE TKHS315M MET-1380693255.A25 1380693255 £15.41 £18.49
95 - SCALE 0 25X20X114 0-85 MM MET-1142694472.A12 1142694472 £5.62 £6.75
96 - SWIVEL SEGMENT TKHS-M MET-1380729756.A1 1380729756 £6.38 £7.65
97 - HEXAGON HEAD SCREW MET-6103121416.A86 6103121416 £1.54 £1.85
98 - WASHER MET-6305002486.A87 6305002486 -
100 - HEXAGON HEAD SCREW MET-141110320.A63 141110320 £3.20 £3.84
101 - CUP SQUARE NECK SCREW M 12X50 VERZ. MET-6110019007.A12 6110019007 £3.20 £3.84
102 - RIVING KNIFE CARRIER PLATE TKHS 315 D&D MET-1382721876.A3 1382721876 £19.18 £23.02
103 - ANGLE BRACKET TKHS 315 D&D ET MET-1482721857.A18 1482721857 -
104 - ANGLE BRACKET TKHS 315 D&D ET MET-1482721849.A1 1482721849 £11.78 £14.13
105 - POINTER BLADE TILT TKHS 315 D&D E MET-1382721868.A7 1382721868 -
106 - RAISED CHEESE HEAD SCREW MET-141124560.A10 141124560 £2.94 £3.53
107 - POINTER RAL 3000-3003 MET-2391203523.A3 2391203523 £1.50 £1.80
108 - HEXAGONAL LOCK NUT MET-141130930.A5 141130930 £1.50 £1.80
109 - MOTOR PLATE TKHS 315 D&D ET MET-1382721884.A6 1382721884 £19.18 £23.02
110 - CUP SPRING MET-141155660.A16 141155660 £1.50 £1.80
111 - CUP SQUARE NECK SCREW MET-6110000608.A6 6110000608 £1.50 £1.80
112 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132661454.A31 6132661454 £1.50 £1.80
113 - RACK COMPL. MET-316097060.A22 316097060 £22.96 £27.55
117 - CHIP CASE TKHS315 D&D MET-1382722031.A13 1382722031 £73.52 £88.23
118 - BLADE COLLAR ASSEMBLY ET MET-1010689240.A23 1010689240 £22.96 £27.55
120 - ANGLE POINTER BL 1 50X10X21 MET-1482681987.A26 1482681987 £3.20 £3.84
121 - WASHER MET-141150130.A104 141150130 £1.50 £1.80
122 - WING NUT M 6 MET-7005155791.A20 7005155791 £3.82 £4.59
123 - HEXAGON HEAD SCREW M 12-10 207LANG VER MET-6103722010.A9 6103722010 £7.36 £8.83
127 - TERMINAL BOX ASSEMBLY 2 MET-1010726545.A15 1010726545 £19.18 £23.02
128 - SPACER SLEEVE RD 26 MET-6442694557.A10 6442694557 £6.38 £7.65
129 - FEATHER KE A 6X4X50 MET-6721041830.A5 6721041830 £1.50 £1.80
131 - HEIGHT-ADJUSTMENT BL 2 99 TKHS315M MET-1382694038.A4 1382694038 £32.88 £39.45
133 - DEEP GROOVE BALL BEARING MET-143115740.A39 143115740 £6.38 £7.65
136 - BEARING SEA TKHS 315 D&D ET MET-1388721916.A9 1388721916 £4.76 £5.71
137 - TENSION NU TKHS 315 D&D ET MET-6260721923.A6 6260721923 £3.82 £4.59
138 - HANDWHEEL BL 2X RD 165 MET-1010702140.A27 1010702140 £19.18 £23.02
139 - WASHER B 13 VERZ. MET-6305002508.A33 6305002508 £1.50 £1.80
141 - HEXAGON SOCKET HEAD CAP SCREW MET-6121112564.A17 6121112564 £1.50 £1.80
142 - TURNING TANG MET-7004017433.A19 7004017433 £4.76 £5.71
143 - FAN WING+FAN COVER ET MET-1010689259.A19 1010689259 £15.41 £18.49
145 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A79 6103001356 £1.50 £1.80
146 - SWITCH PLATE BL 2 00X108X135 TKHS315M MET-1382694690.A18 1382694690 £22.61 £27.13
147 - SWITCH SSK 230V 50HZ 10A ET MET-8131689277.A12 8131689277 £51.54 £61.85
148 - COUNTERSUNK SCREW MET-6132087995.A6 6132087995 £1.50 £1.80
149 - CONDENSER MET-8050011810.A2 8050011810 £26.35 £31.62
150 - MOTOR CIRCULAR SAW BENCH TK 2 MET-1010707702.A2 1010707702 -
155 - HANDWHEEL KPL. TKHS315M MET-1010702140.A17 1010702140 £19.18 £23.02
