Black & Decker CD961 Type H1 Cordless Drill Spare Parts

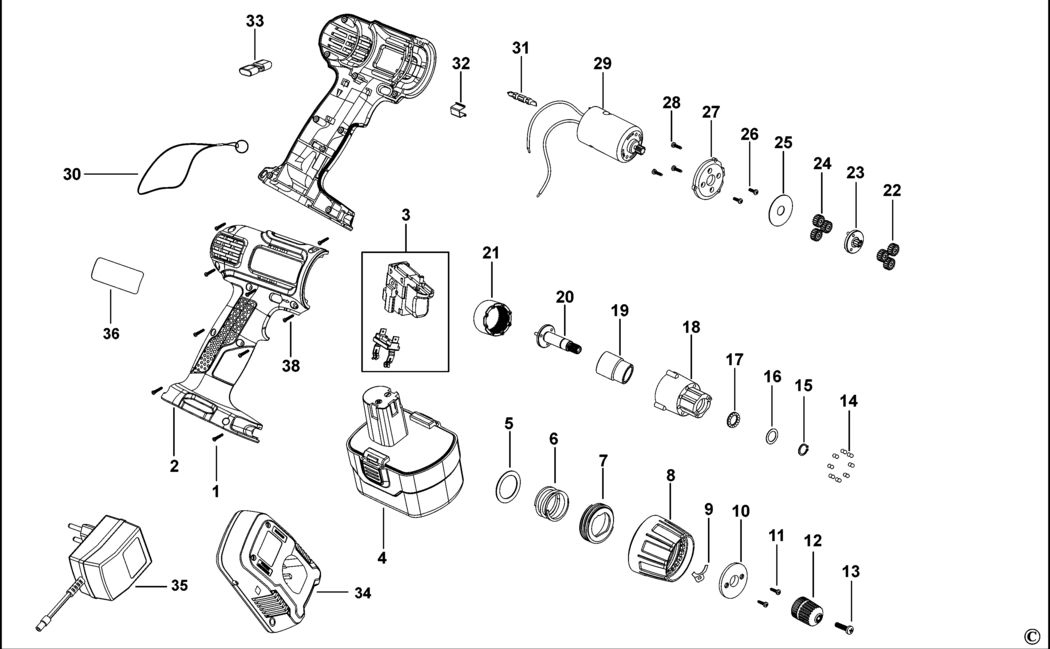

An exploded drawing and spare parts listing for the Black & Decker CD961 Type H1 Cordless Drill

	Ex VAT	Inc VAT
1 - SCREW BDE-5140056-39.A0 5140056-39	£1.50	£1.80
2 - HOUSING SA >=Week13 2015 BDE-5140174-55 5140174-55	-
2 - HOUSING SA BDE-5140111-93.A0 5140111-93	£7.85	£9.42
2 - HOUSING SA BDE-5140111-93.A1 5140111-93	£7.85	£9.42
3 - SWITCH SA BDE-5140111-94 5140111-94	£14.57	£17.48
4 - BATTERY PACK 9.6V >=Week13 2015 BDE-5140174-56 5140174-56	-
4 - BATTERY 9.6V - 1.3AH - 12.48WH BDE-5140111-95 5140111-95	£41.24	£49.49
5 - RING BDE-5140024-83.A1 5140024-83	£1.50	£1.80
6 - SPRING BDE-5140024-84.A0 5140024-84	£1.50	£1.80
7 - RING BDE-5140111-96.A0 5140111-96	£1.50	£1.80
8 - COLLAR BDE-5140111-97.A0 5140111-97	£2.26	£2.71
8 - COLLAR BDE-5140111-97.A1 5140111-97	£2.26	£2.71
8 - COLLAR >Week13 2015 BDE-5140174-57.A0 5140174-57	-
9 - SPRING BDE-5140024-87.A1 5140024-87	£1.50	£1.80
10 - HOLDER BDE-5140024-88.A0 5140024-88	£1.50	£1.80
11 - SCREW BDE-5140024-89.A1 5140024-89	£1.50	£1.80
12 - CHUCK BDE-5140024-90.A0 5140024-90	£12.17	£14.60
13 - SCREW BDE-5140024-91.A1 5140024-91	£1.50	£1.80
14 - BALL BDE-5140024-92.A0 5140024-92	£1.50	£1.80
15 - RING BDE-5140024-93.A1 5140024-93	£1.50	£1.80
16 - RING BDE-5140024-94.A0 5140024-94	£1.50	£1.80
17 - BALL BDE-5140024-95.A1 5140024-95	£1.50	£1.80
18 - GOVERNOR SA BDE-5140024-96.A0 5140024-96	£1.82	£2.19
19 - SLEEVE BDE-5140024-97.A1 5140024-97	£1.50	£1.80
20 - SHAFT BDE-5140024-98.A0 5140024-98	£4.69	£5.63
21 - RING BDE-5140024-99.A1 5140024-99	£3.30	£3.96
22 - GEAR BDE-5140025-73.A0 5140025-73	£1.50	£1.80
23 - BRACKET BDE-5140025-74.A1 5140025-74	£1.50	£1.80
24 - GEAR BDE-5140025-75.A0 5140025-75	£1.50	£1.80
25 - WASHER BDE-5140025-76.A1 5140025-76	£1.50	£1.80
26 - SCREW BDE-5140025-77.A0 5140025-77	£1.50	£1.80
27 - FLANGE BDE-5140025-78.A1 5140025-78	£1.50	£1.80
28 - SCREW BDE-5140025-79.A0 5140025-79	£1.50	£1.80
29 - MOTOR SA 9.6V BDE-5140025-93 5140025-93	£16.03	£19.24
30 - STRAP BDE-5140111-98.A0 5140111-98	£3.80	£4.56
31 - BIT SCREWDRIVER BDE-5140025-82.A1 5140025-82	£1.50	£1.80
32 - CLIP BDE-5140025-83.A0 5140025-83	£1.50	£1.80
33 - BUTTON BDE-5140111-99 5140111-99	£1.50	£1.80
34 - BATTERY CHARGER BDE-5140112-00.A0 5140112-00	£10.85	£13.02
34 - BATTERY CHARGER BDE-5140112-00.A1 5140112-00	£10.85	£13.02
34 - BATTERY CHARGER >=Week13 2015 BDE-5140174-58 5140174-58	-
38 - SCREW BDE-5140058-80.A1 5140058-80	£1.50	£1.80
