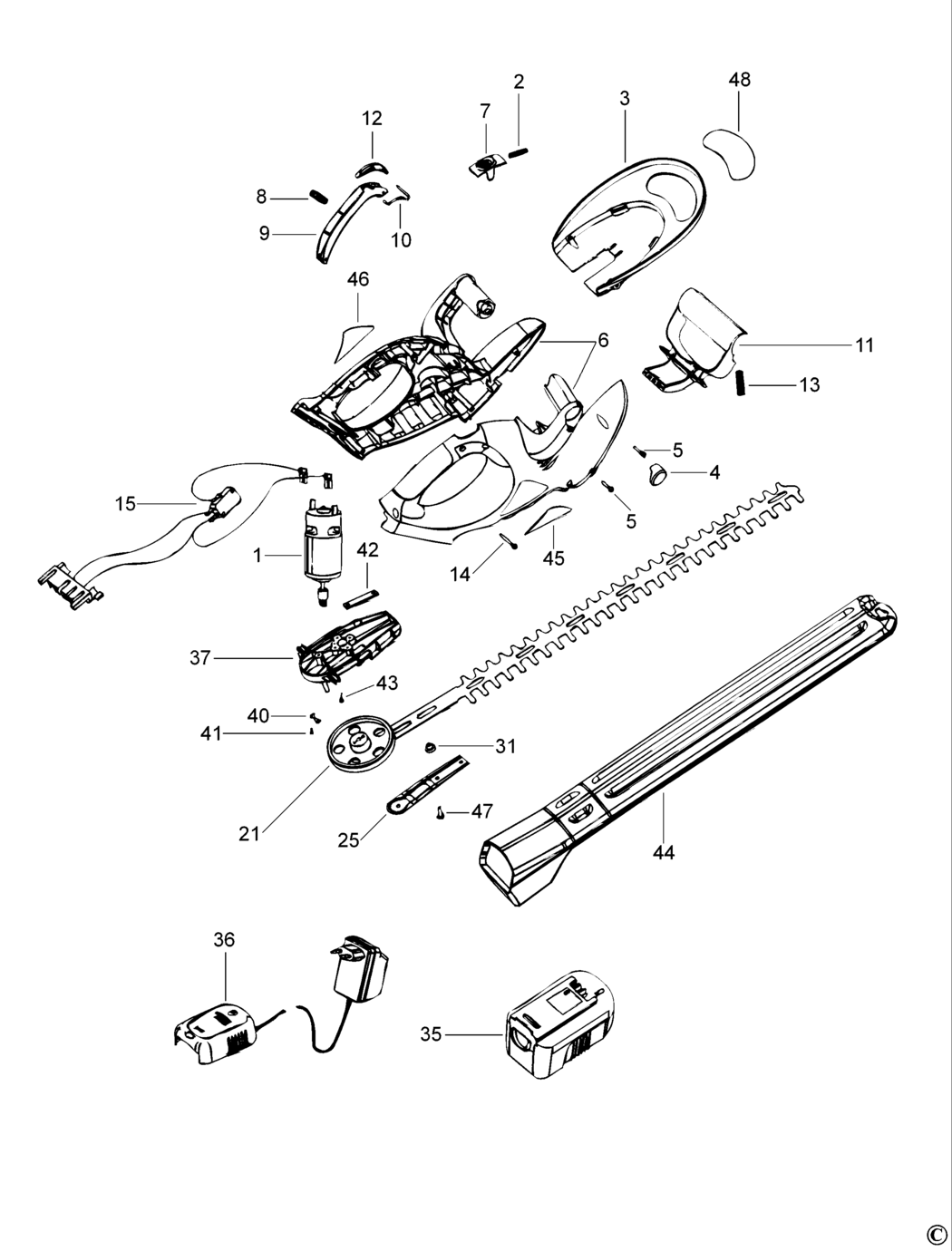

An exploded drawing and spare parts listing for the Black & Decker GTC2451 Type H1 C'less Hedgetrimmer
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A60025 000000-00 -
2 - SPRING BDE-5103502-00.A3 5103502-00 £1.42 £1.70
3 - NO LONGER AVAILABLE BDE-000000-00.A60026 000000-00 -
4 - NO LONGER AVAILABLE BDE-000000-00.A60027 000000-00 -
5 - SCREW BDE-5103541-00.A5 5103541-00 £1.42 £1.70
6 - NO LONGER AVAILABLE BDE-000000-00.A60028 000000-00 -
7 - NO LONGER AVAILABLE BDE-000000-00.A60029 000000-00 -
8 - SPRING BDE-5103503-00.A2 5103503-00 £1.42 £1.70
9 - NO LONGER AVAILABLE BDE-000000-00.A60030 000000-00 -
10 - NO LONGER AVAILABLE BDE-000000-00.A60031 000000-00 -
11 - NO LONGER AVAILABLE BDE-000000-00.A60032 000000-00 -
12 - NO LONGER AVAILABLE BDE-000000-00.A60033 000000-00 -
13 - NO LONGER AVAILABLE BDE-000000-00.A60034 000000-00 -
14 - SCREW BDE-5103555-00.A2 5103555-00 £1.42 £1.70
15 - NO LONGER AVAILABLE BDE-000000-00.A60035 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A60036 000000-00 -
25 - GEARCASE COVER BDE-571828-01.A5 571828-01 £1.42 £1.70
31 - SPACER BDE-573217-01.A0 573217-01 £1.42 £1.70
35 - NO LONGER AVAILABLE BDE-000000-00.A60037 000000-00 -
36 - NO LONGER AVAILABLE GB BDE-000000-00.A60038 000000-00 -
37 - GEARCASE SA BDE-571821-00.A0 571821-00 £5.88 £7.06
40 - INSERT BDE-574164-00.A0 574164-00 £1.50 £1.80
41 - SCREW BDE-5103543-00.A0 5103543-00 £1.50 £1.80
42 - COVERPLATE BDE-370927-01.A3 370927-01 £1.42 £1.70
43 - SCREW BDE-311940-03.A3 311940-03 £1.50 £1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A60039 000000-00 -
45 - NO LONGER AVAILABLE BDE-000000-00.A60040 000000-00 -
46 - NO LONGER AVAILABLE BDE-000000-00.A60041 000000-00 -
47 - BOLT BDE-5103514-00.A7 5103514-00 £1.42 £1.70
48 - NO LONGER AVAILABLE BDE-000000-00.A60044 000000-00 -
