Black & Decker HP188F2 Type 1 Cordless Drill Spare Parts

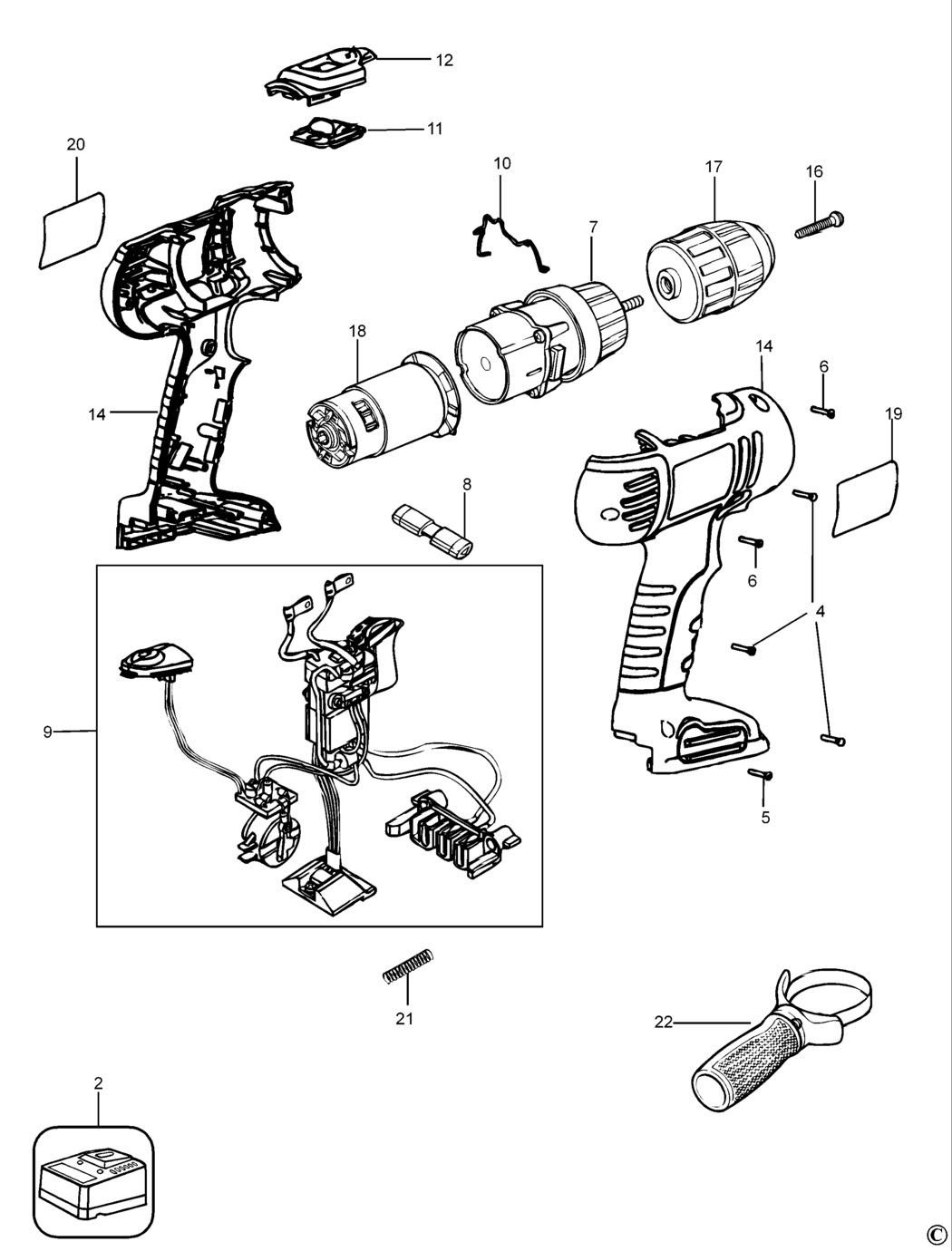

An exploded drawing and spare parts listing for the Black & Decker HP188F2 Type 1 Cordless Drill

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE GB BDE-000000-00.A24272 000000-00	-
4 - SCREW BDE-311993-00.A134 311993-00	£1.42	£1.70
5 - SCREW BDE-486562-00.A15 486562-00	£1.42	£1.70
6 - SCREW BDE-498099-00.A12 498099-00	£1.50	£1.80
7 - NO LONGER AVAILABLE From DC 06-2003 BDE-000000-00.A24279 000000-00	-
7 - NO LONGER AVAILABLE UpTo DC 05-2003 BDE-000000-00.A24280 000000-00	-
8 - ACTUATOR BDE-5100111-00.A9 5100111-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A24273 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A24274 000000-00	-
11 - NO LONGER AVAILABLE From DC 06-2003 BDE-000000-00.A24275 000000-00	-
11 - NO LONGER AVAILABLE UpTo DC 05-2003 BDE-000000-00.A24276 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A24277 000000-00	-
14 - NO LONGER AVAILABLE UpTo DC 05-2003 BDE-000000-00.A24278 000000-00	-
14 - CLAMSHELL SET From DC 06-2003 BDE-5101937-01.A0 5101937-01	£18.42	£22.10
16 - SCREW BDE-149518-01.A194 149518-01	£1.50	£1.80
17 - NO LONGER AVAILABLE UpTo DC 05-2003 BDE-000000-00.A24281 000000-00	-
17 - CHUCK KEYLESS From DC 06-2003 BDE-419233-09.A8 419233-09	£17.03	£20.44
18 - MOTOR & PINION BDE-90506759.A2 90506759	-
19 - NO LONGER AVAILABLE BDE-000000-00.A24282 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A24283 000000-00	-
21 - SPRING BDE-5100035-01.A19 5100035-01	£1.42	£1.70
22 - HANDLE SA BDE-5101990-00.A5 5101990-00	-
