Black & Decker KD250 Type 1 Drill Spare Parts

Home Details Reviews Delivery

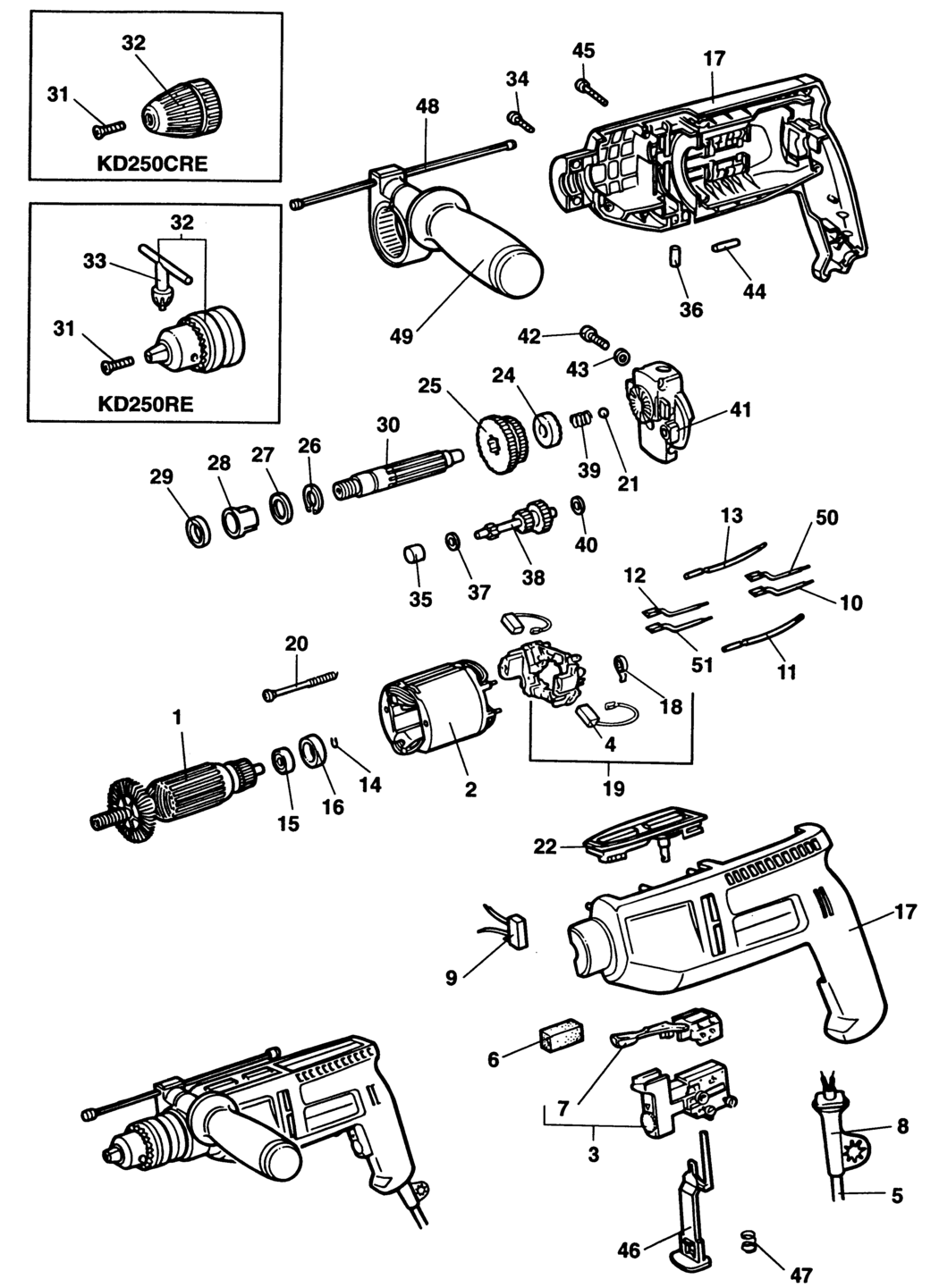

An exploded drawing and spare parts listing for the Black & Decker KD250 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A2749 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A2750 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A2751 000000-00	-
4 - BRUSH BDE-949830-02.A1 949830-02	£4.69	£5.63
5 - NO LONGER AVAILABLE GB BDE-000000-00.A2752 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A2753 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A2754 000000-00	-
8 - CORD PROTECTOR KD250CRE BDE-916968.A18 916968	-
8 - PROTECTOR KD250RE BDE-770236.A79 770236	£1.50	£1.80
9 - CAPACITOR BDE-949877-01.A104 949877-01	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A2755 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A2756 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A2757 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A2758 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A2759 000000-00	-
15 - BEARING BDE-330003-02.A235 330003-02	-
16 - SLEEVE BDE-930275-00.A117 930275-00	£2.26	£2.71
17 - NO LONGER AVAILABLE GB BDE-000000-00.A2760 000000-00	-
18 - BRUSH SPRING BDE-930090-00.A219 930090-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A2761 000000-00	-
20 - SCREW BDE-930752-00.A58 930752-00	£1.78	£2.13
21 - BALL BDE-930012.A21 930012	£1.42	£1.70
22 - NO LONGER AVAILABLE BDE-000000-00.A2762 000000-00	-
24 - RATCHET BDE-945706-00.A25 945706-00	£1.50	£1.80
25 - NO LONGER AVAILABLE BDE-000000-00.A2763 000000-00	-
26 - RETAINER BDE-930098-00.A4 930098-00	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A2764 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A2765 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A2766 000000-00	-
31 - SCREW BDE-945013-00.A42 945013-00	£1.50	£1.80
32 - CHUCK SA KD250CRE BDE-583096-02.A11 583096-02	£69.63	£83.56
32 - CHUCK 13MM KD250RE BDE-5140071-68.A121 5140071-68	£14.57	£17.48
33 - CHUCK KEY KD250RE BDE-330034-07.A454 330034-07	£1.50	£1.80
34 - SCREW BDE-930284-01.A73 930284-01	£1.50	£1.80
35 - BEARING BDE-330004-19.A23 330004-19	£7.01	£8.41
36 - NO LONGER AVAILABLE BDE-000000-00.A2767 000000-00	-
37 - WASHER BDE-930102-00.A25 930102-00	£1.50	£1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A2768 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A2769 000000-00	-
40 - WASHER BDE-931407-00.A38 931407-00	£5.88	£7.06
42 - NO LONGER AVAILABLE BDE-000000-00.A2770 000000-00	-
43 - WASHER BDE-932839-00.A10 932839-00	£1.50	£1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A2771 000000-00	-
45 - SCREW BDE-930079-01.A64 930079-01	£1.42	£1.70
46 - NO LONGER AVAILABLE BDE-000000-00.A2787 000000-00	-
47 - SPRING BDE-748158.A60 748158	-
48 - NO LONGER AVAILABLE BDE-000000-00.A2772 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A2773 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A2774 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A2775 000000-00	-

Attribute Name	Value
Brand	Black & Decker
