Black & Decker KS600G Type 1 Jigsaw Spare Parts

Home Details Reviews Delivery

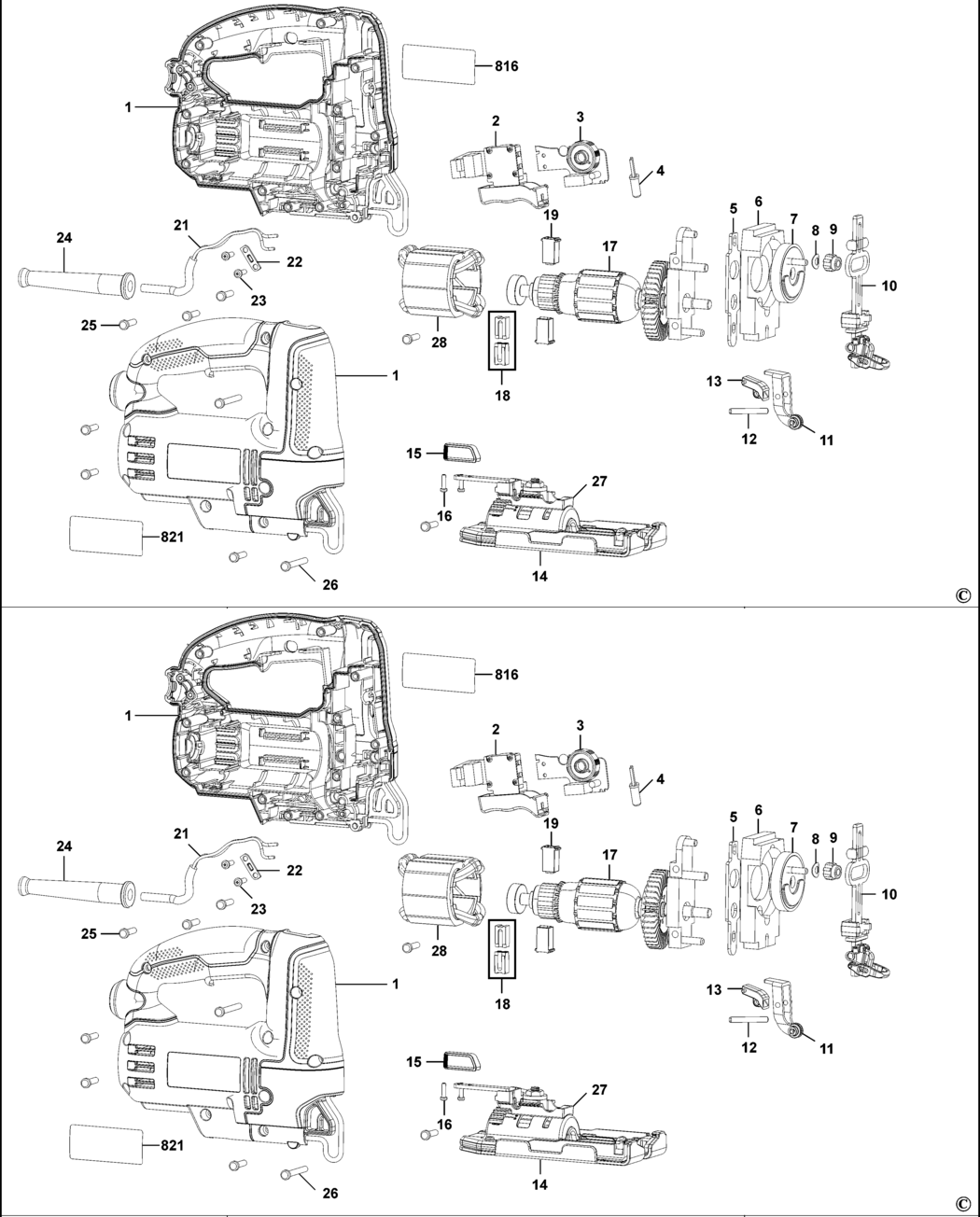

An exploded drawing and spare parts listing for the Black & Decker KS600G Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-90542587 90542587	-
2 - SWITCH SA BDE-90582495.A1 90582495	-
2 - SWITCH BDE-90542625.A1 90542625	-
3 - PCB SA BDE-90579409 90579409	-
4 - COVER BDE-90531500.A7 90531500	£1.50	£1.80
4 - COVER BDE-90531500.A8 90531500	£1.50	£1.80
5 - FORK BDE-90542634.A0 90542634	£1.50	£1.80
5 - FORK BDE-90542634.A1 90542634	£1.50	£1.80
6 - BALANCE WEIGHT BDE-90516114.A12 90516114	£12.17	£14.60
6 - BALANCE WEIGHT BDE-90516114.A13 90516114	£12.17	£14.60
7 - GEAR SA BDE-90583669.A4 90583669	£10.85	£13.02
7 - GEAR SA BDE-90583669.A5 90583669	£10.85	£13.02
8 - WASHER BDE-823954.A62 823954	£1.50	£1.80
8 - WASHER BDE-823954.A63 823954	£1.50	£1.80
9 - DRIVE ROLLER BDE-90542604.A0 90542604	£1.50	£1.80
9 - DRIVE ROLLER BDE-90542604.A1 90542604	£1.50	£1.80
10 - SHAFT SA BDE-90544016.A1 90544016	-
10 - SHAFT SA BDE-90640915 90640915	-
11 - BLADE SUPPORT SA BDE-90544019.A0 90544019	£3.80	£4.56
11 - BLADE SUPPORT SA BDE-90578033.A4 90578033	£3.80	£4.56
12 - PIN BDE-90542862.A7 90542862	£1.50	£1.80
12 - PIN BDE-90542862.A8 90542862	£1.50	£1.80
13 - DUST PORT BDE-90542580.A8 90542580	£1.50	£1.80
13 - DUST PORT BDE-90542580.A9 90542580	£1.50	£1.80
14 - SOLE PLATE BDE-90542992.A8 90542992	£2.78	£3.34
14 - SOLE PLATE BDE-90542992.A9 90542992	£2.78	£3.34
15 - HANDLE BDE-90542573.A4 90542573	£1.50	£1.80
15 - HANDLE BDE-90542573.A5 90542573	£1.50	£1.80
16 - SCREW BDE-330019-28.A9 330019-28	£1.50	£1.80
16 - SCREW BDE-330019-28.A10 330019-28	£1.50	£1.80
17 - ARMATURE SA BDE-90553187.A0 90553187	£33.13	£39.76
17 - ARMATURE SA BDE-90555894 90555894	-
18 - BRUSH PAIR BDE-90566204 90566204	-
18 - BRUSH & SPRING BDE-90521673.A8 90521673	£2.78	£3.34
21 - CORDSET BDE-90563029 90563029	-
22 - CORD CLAMP BDE-329301-00.A192 329301-00	£1.50	£1.80
22 - CORD CLAMP BDE-329301-00.A193 329301-00	£1.50	£1.80
23 - SCREW BDE-370748.A104 370748	£1.50	£1.80
23 - SCREW BDE-370748.A105 370748	£1.50	£1.80
24 - CORD PROTECTOR BDE-N542553.A515 N542553	£3.80	£4.56
24 - CORD PROTECTOR BDE-90539961.A1 90539961	-
25 - SCREW BDE-330019-13.A300 330019-13	£1.50	£1.80
25 - SCREW BDE-330019-13.A301 330019-13	£1.50	£1.80
26 - SCREW.TEMP BDE-330019-16.A61 330019-16	£1.50	£1.80
26 - SCREW.TEMP BDE-330019-16.A62 330019-16	£1.50	£1.80
27 - SHOE SA BDE-90544022.A7 90544022	£18.91	£22.69
27 - SHOE SA BDE-90544022.A8 90544022	£18.91	£22.69
28 - FIELD SA BDE-90553186.A3 90553186	£16.03	£19.24
28 - FIELD SA BDE-90579575 90579575	-
816 - BRAND LABEL BDE-90579120 90579120	-
816 - NO LONGER AVAILABLE BDE-000000-00.A96654 000000-00	-

Attribute Name	Value
Brand	Black & Decker
