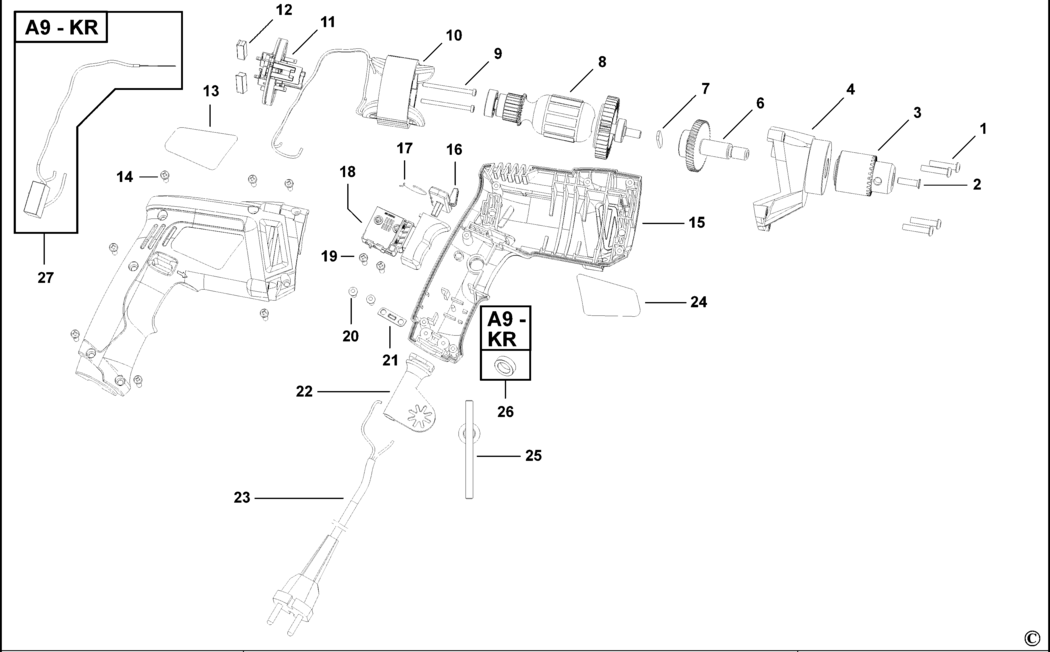

An exploded drawing and spare parts listing for the Black & Decker KTR10RE Type 1 Drill

	Ex VAT	Inc VAT
1 - SCREW BDE-330019-32.A23 330019-32	£1.50	£1.80
2 - SCREW.SPECIAL BDE-805434.A112 805434	£1.50	£1.80
3 - CHUCK 10MM BDE-90522971.A2 90522971	-
4 - GEARCASE SA BDE-90528050.A0 90528050	-
6 - OUTPUT SHAFT SA BDE-90527858.A0 90527858	-
7 - PLATE THRUST BDE-148338-00.A0 148338-00	-
8 - ARMATURE SA BDE-90535722.A1 90535722	-
9 - SCREW BDE-330019-63.A30 330019-63	£1.50	£1.80
10 - FIELD SA BDE-90522969.A1 90522969	-
11 - BRUSH HOLDER SA BDE-90525184.A0 90525184	£5.88	£7.06
12 - BRUSH PAIR 230V BDE-90587238.A14 90587238	£2.78	£3.34
14 - SCREW BDE-90611830.A124 90611830	£1.50	£1.80
15 - HOUSING SA BDE-90520295.A0 90520295	-
16 - LEVER BDE-629168-00.A9 629168-00	-
17 - SPRING BDE-629167-00.A17 629167-00	£1.50	£1.80
18 - SWITCH SA BDE-492291-00.A7 492291-00	-
19 - SCREW BDE-911026.A140 911026	£1.50	£1.80
20 - SCREW.TEMP BDE-330019-01.A97 330019-01	£1.50	£1.80
21 - CORD CLAMP BDE-329301-00.A17 329301-00	£1.50	£1.80
22 - PROTECTOR BDE-770236.A171 770236	£1.50	£1.80
24 - BRAND LABEL BDE-90524968 90524968	-
25 - CHUCK KEY BDE-90522972.A3 90522972	-

Attribute Name	Value
Brand	Black & Decker
