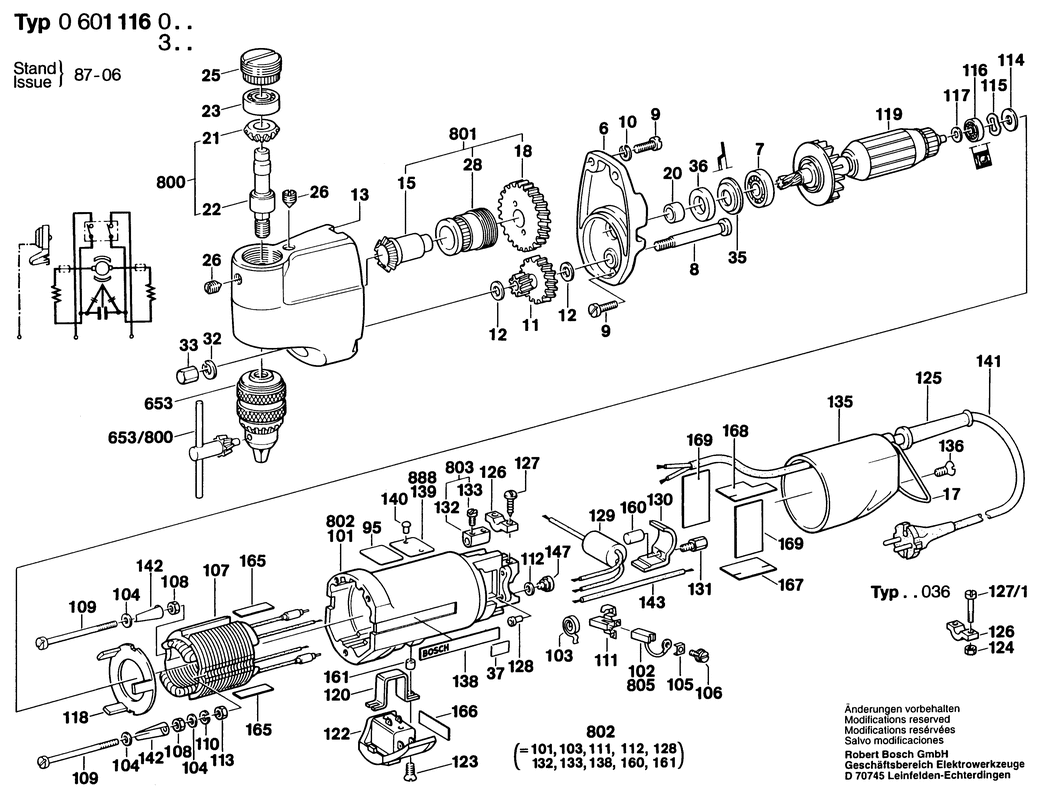

6 - BEARING FLANGE
BSD-2605700077.A12
2605700077
|
-
|
|
|
|
7 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A18
1900905007
|
-
|
|
|
|
8 - BEARING BOLT
BSD-2603520001.A38
2603520001
|
-
|
|
|
|
9 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A599
2910021122
|
£2.16
|
£2.59
|
|
|
10 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A101
2916690003
|
£1.75
|
£2.10
|
|
|
11 - CYLINDRICAL GEAR Z=13/43
BSD-2606328033.A6
2606328033
|
-
|
|
|
|
12 - PLAIN WASHER 0.2 MM
BSD-2600100590.A13
2600100590
|
-
|
|
|
|
12 - PLAIN WASHER 0.5 MM
BSD-2600100592.A2
2600100592
|
-
|
|
|
|
13 - GEAR HOUSING
BSD-2605806256.A9
2605806256
|
-
|
|
|
|
13/20 - SINTERED-METAL BUSHING DIN 1850-J12x18x12
BSD-1900301018.A1
1900301018
|
-
|
|
|
|
15 - BEVEL GEAR Z=19
BSD-2606333009.A15
2606333009
|
-
|
|
|
|
17 - SUSPENSION LOOP
BSD-1604682003.A36
1604682003
|
-
|
|
|
|
18 - CYLINDRICAL GEAR Z=57
BSD-2605319041.A9
2605319041
|
-
|
|
|
|
20 - SEAL BUSHING
BSD-2600300047.A66
2600300047
|
£2.61
|
£3.13
|
|
|
23 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A39
1900905127
|
£27.23
|
£32.68
|
|
|
25 - THREADED RING
BSD-2603344010.A0
2603344010
|
-
|
|
|
|
26 - SET SCREW M 5x5 DIN 553-5.8
BSD-2912001147.A7
2912001147
|
-
|
|
|
|
28 - THREADED BUSHING
BSD-2600364000.A7
2600364000
|
-
|
|
|
|
32 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A217
2916690004
|
£1.75
|
£2.10
|
|
|
33 - UNION NUT
BSD-2603312002.A9
2603312002
|
-
|
|
|
|
35 - CUPPED WASHER
BSD-2600500017.A41
2600500017
|
£1.75
|
£2.10
|
|
|
36 - FELT WASHER
BSD-2600108026.A14
2600108026
|
£1.75
|
£2.10
|
|
|
103 - SPIRAL SPRING
BSD-2604652000.A68
2604652000
|
-
|
|
|
|
104 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A565
2916011005
|
£1.75
|
£2.10
|
|
|
105 - CLAMPING SADDLE
BSD-2601321005.A28
2601321005
|
-
|
|
|
|
106 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A220
2914501011
|
£1.75
|
£2.10
|
|
|
107 - FIELD 110V
BSD-2604220268.A11
2604220268
|
-
|
|
|
|
108 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A16
2915011003
|
£1.75
|
£2.10
|
|
|
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8
BSD-2910011074.A25
2910011074
|
£1.75
|
£2.10
|
|
|
110 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A56
2916690001
|
-
|
|
|
|
111 - BRUSH HOLDER
BSD-2601323016.A7
2601323016
|
£2.80
|
£3.36
|
|
|
112 - PLAIN WASHER dia 2.6 MM-ST
BSD-2916021007.A30
2916021007
|
-
|
|
|
|
113 - HEX NUT DIN 439-BM 3
BSD-2915051103.A76
2915051103
|
£1.75
|
£2.10
|
|
|
114 - SHIM
BSD-2600100699.A1
2600100699
|
£1.75
|
£2.10
|
|
|
115 - SHIM
BSD-2600150002.A8
2600150002
|
-
|
|
|
|
116 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A222
1900905015
|
£30.42
|
£36.51
|
|
|
117 - SHIM 0.3 MM
BSD-2600100612.A52
2600100612
|
£2.61
|
£3.13
|
|
|
118 - SEAL RING
BSD-2600113019.A96
2600113019
|
£2.80
|
£3.36
|
|
|
119 - ARMATURE 100-115V
BSD-2604010332.A3
2604010332
|
-
|
|
|
|
120 - INSULATING PART
BSD-2601322002.A28
2601322002
|
£1.75
|
£2.10
|
|
|
122 - SWITCH
BSD-2607200045.A53
2607200045
|
-
|
|
|
|
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 963-5.8
BSD-2910771048.A13
2910771048
|
£1.75
|
£2.10
|
|
|
124 - HEX NUT M 2.6 DIN 934-M-6
BSD-2915011002.A108
2915011002
|
-
|
|
|
|
125 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A367
2600703011
|
£2.80
|
£3.36
|
|
|
125 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1071
2600703012
|
£2.80
|
£3.36
|
|
|
126 - CABLE CLIP
BSD-2601035005.A72
2601035005
|
£1.75
|
£2.10
|
|
|
127 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A327
2910211011
|
£1.75
|
£2.10
|
|
|
128 - TUBULAR RIVET A2.5x0.3x4DIN7340-MS
BSD-2917170554.A14
2917170554
|
£1.75
|
£2.10
|
|
|
129 - SUPPRESSION FILTER
BSD-2607329048.A30
2607329048
|
-
|
|
|
|
130 - FASTENING CLAMP
BSD-2601301002.A35
2601301002
|
£2.16
|
£2.59
|
|
|
131 - HEX SCREW
BSD-2603527004.A4
2603527004
|
£1.75
|
£2.10
|
|
|
135 - HOUSING COVER
BSD-3600508023.A15
3600508023
|
£13.41
|
£16.09
|
|
|
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8
BSD-2910501084.A19
2910501084
|
-
|
|
|
|
138 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A73
2601007003
|
-
|
|
|
|
140 - GROOVED NAIL
BSD-3603133000.A341
3603133000
|
£2.61
|
£3.13
|
|
|
141 - POWER SUPPLY CORD
BSD-3604460141.A4
3604460141
|
-
|
|
|
|
142 - CABLE CLIP
BSD-2601099015.A81
2601099015
|
£1.75
|
£2.10
|
|
|
143 - CABLE
BSD-2604411061.A63
2604411061
|
-
|
|
|
|
160 - PRESS-IN NUT
BSD-2603349039.A23
2603349039
|
£1.75
|
£2.10
|
|
|
161 - PRESS-IN NUT
BSD-2603349038.A4
2603349038
|
-
|
|
|
|
653 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A30
1608571053
|
£20.99
|
£25.19
|
|
|
653/800 - CHUCK WRENCH SG2
BSD-2607950007.A1359
2607950007
|
£6.52
|
£7.83
|
|
|
800 - STUD BOLT Z=19
BSD-2603524900.A5
2603524900
|
-
|
|
|
|
801 - BEVEL GEAR Z=19/57
BSD-2606333010.A3
2606333010
|
-
|
|
|
|
802 - MOTOR HOUSING
BSD-2605108032.A10
2605108032
|
-
|
|
|
|
803 - CONNECTING TERMINAL
BSD-2604490003.A81
2604490003
|
-
|
|
|
|
805 - CARBON-BRUSH SET
BSD-2604320905.A27
2604320905
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A472
160111A3H3
|
£2.61
|
£3.13
|
|
