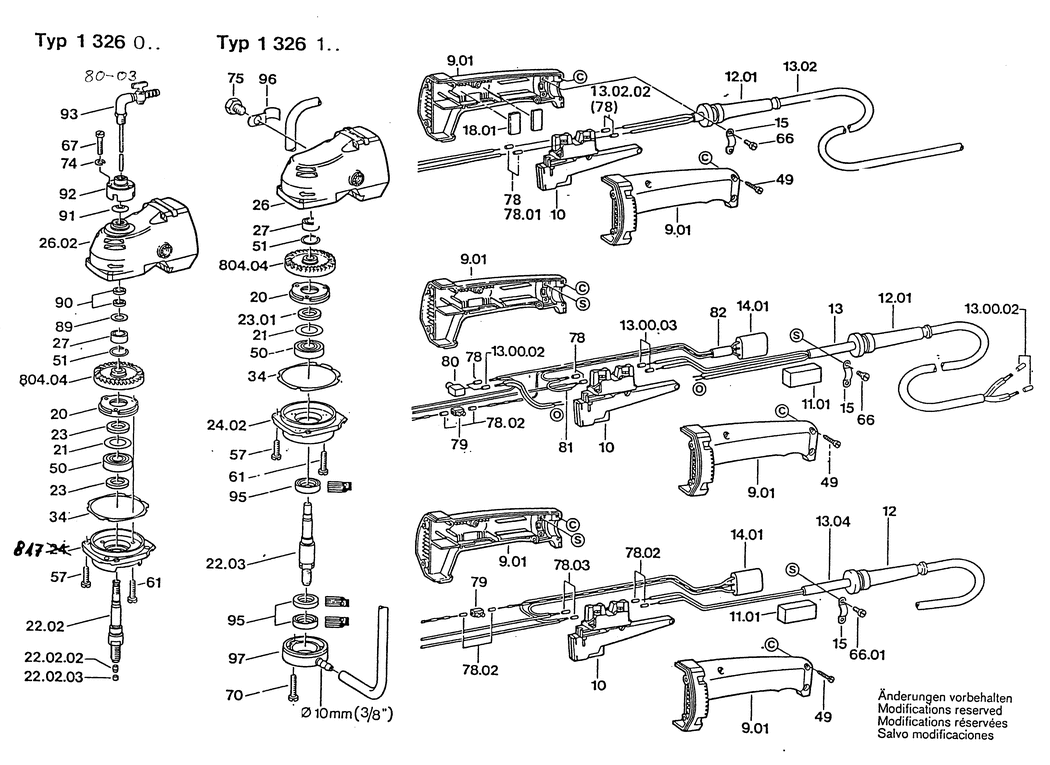

An exploded drawing and listing for the Bosch ---- / 0601326247 / F 110 Volt
Ex VAT Inc VAT
2 - BRUSH HOLDER BSD-1604336008.A93 1604336008 £21.52 £25.83
3 - POLE SHOE 100V BSD-1604220157.A0 1604220157 -
6 - SPIRAL SPRING BSD-1604652015.A218 1604652015 £2.80 £3.36
8 - SEALING CAP BSD-1605500089.A242 1605500089 -
9 - HANDLE BSD-1605132079.A115 1605132079 -
11 - SEAL BSD-1600113002.A335 1600113002 £1.75 £2.10
13 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F BSD-1604460203.A0 1604460203 £33.74 £40.49
17 - COVER PLATE BSD-1601037006.A110 1601037006 -
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A186 1601014005 -
19 - CONTROL LEVER BSD-1602026041.A76 1602026041 -
19/80 - FELT WASHER BSD-1600205019.A240 1600205019 £1.75 £2.10
20 - BEARING COVER BSD-1605808054.A88 1605808054 -
21 - COVER DISC BSD-1600102012.A52 1600102012 -
22 - GRINDING SPINDLE M14 BSD-1603523085.A0 1603523085 -
23 - SEALING DISK BSD-1600108055.A206 1600108055 £1.75 £2.10
24 - FLANGED BEARING BSD-1605805051.A17 1605805051 -
25 - GROMMET BSD-1600306001.A353 1600306001 £2.61 £3.13
26 - GEAR HOUSING BSD-1605806362.A33 1605806362 -
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A102 1600910010 £45.67 £54.80
28 - RUBBER RING 10 MM BSD-1600206014.A63 1600206014 £1.75 £2.10
29 - AIR-DEFLECTOR RING BSD-1600502007.A44 1600502007 -
30 - RETAINING RING BSD-1600116002.A1 1600116002 -
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A195 1600290008 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190004.A179 1600190004 -
34 - SHIM 0.2 MM BSD-1600190005.A104 1600190005 £1.32 £1.58
35 - TAB WASHER BSD-1601030022.A166 1601030022 £1.75 £2.10
36 - RUBBER BUSHING BSD-1600502006.A102 1600502006 £1.75 £2.10
38 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A58 1601110003 -
44 - THREADED RING BSD-1603344050.A7 1603344050 -
45 - RETAINING RING BSD-1600116004.A44 1600116004 -
50 - GROOVE BALL BEARING 17x40x12 BSD-1900905281.A10 1900905281 £31.64 £37.97
51 - RETAINING RING dia22 MM BSD-2916620011.A310 2916620011 £1.75 £2.10
52 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A92 1900905234 £31.64 £37.97
53 - GROOVE BALL BEARING BSD-1600900029.A142 1600900029 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1048 2910021118 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A651 2910211006 £1.75 £2.10
55 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A282 2910021050 £1.75 £2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A513 2916011005 £1.75 £2.10
56 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A367 2916060003 £1.32 £1.58
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-8.8 BSD-2910021157.A66 2910021157 £1.32 £1.58
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A539 2915011005 £1.75 £2.10
59 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A351 1613435009 £1.75 £2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A204 2910211036 £1.75 £2.10
60 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8 BSD-2910021158.A4 2910021158 £1.32 £1.58
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-8.8 BSD-2910021162.A65 2910021162 -
63 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A55 1603435006 -
63 - SOCKET HEAD CAP SCREW DIN 84-BM5x82 BSD-1603410001.A83 1603410001 -
64 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A351 2916680006 -
65 - SPRING WASHER DIN 137-A4 BSD-1600150006.A267 1600150006 -
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A648 2910021122 £2.16 £2.59
69 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A172 2910211011 £1.75 £2.10
70 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-8.8 BSD-2910021164.A5 2910021164 -
71 - SHIM 0.05 MM BSD-1600101635.A88 1600101635 -
72 - SHIM 0.05 MM BSD-1600101636.A20 1600101636 -
73 - SHIM 0.05 MM BSD-1600101637.A88 1600101637 -
75 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A180 2603450007 £5.58 £6.70
75 - HEX SCREW DIN 933-M 14x16-5.8 BSD-2911051382.A0 2911051382 -
95 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM BSD-1600283004.A0 1600283004 £7.36 £8.83
96 - CLAMP BSD-1601300004.A20 1601300004 £2.16 £2.59
97 - CONNECTING FLANGE BSD-1605703061.A3 1605703061 -
650 - AUXILIARY HANDLE M14 BSD-1602025022.A182 1602025022 £13.41 £16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A513 1602025030 £18.96 £22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A783 2607950511 £4.26 £5.11
652/1/2 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1010 2915011007 -
652/1/3 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A303 2910022197 -
652/2/2 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A1 2910141242 £1.75 £2.10
652/3/2 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1011 2915011007 -
652/3/3 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A304 2910022197 -
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A0 2910141242 £1.75 £2.10
702 - TENSIONER PARTS SET BSD-1607000030.A40 1607000030 -
800 - CARBON-BRUSH SET BSD-1607014103.A174 1607014103 £14.91 £17.89
801 - ASSEMBLY OF SERVICE PARTS BSD-1605108902.A67 1605108902 -
803 - CONNECTING CABLE BSD-1604440004.A179 1604440004 -
803/010 - TERMINAL LUG BSD-1601353003.A119 1601353003 -
804 - BEVEL GEAR Z=59 BSD-1606333155.A5 1606333155 -
808 - ARMATURE WITH FAN 100V BSD-1604011107.A0 1604011107 -
809 - SWITCH KIT BSD-1607000034.A55 1607000034 -
809/040 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A437 2910091118 £1.75 £2.10
888 - NAMEPLATE BSD-160111A3H3.A854 160111A3H3 £2.61 £3.13
