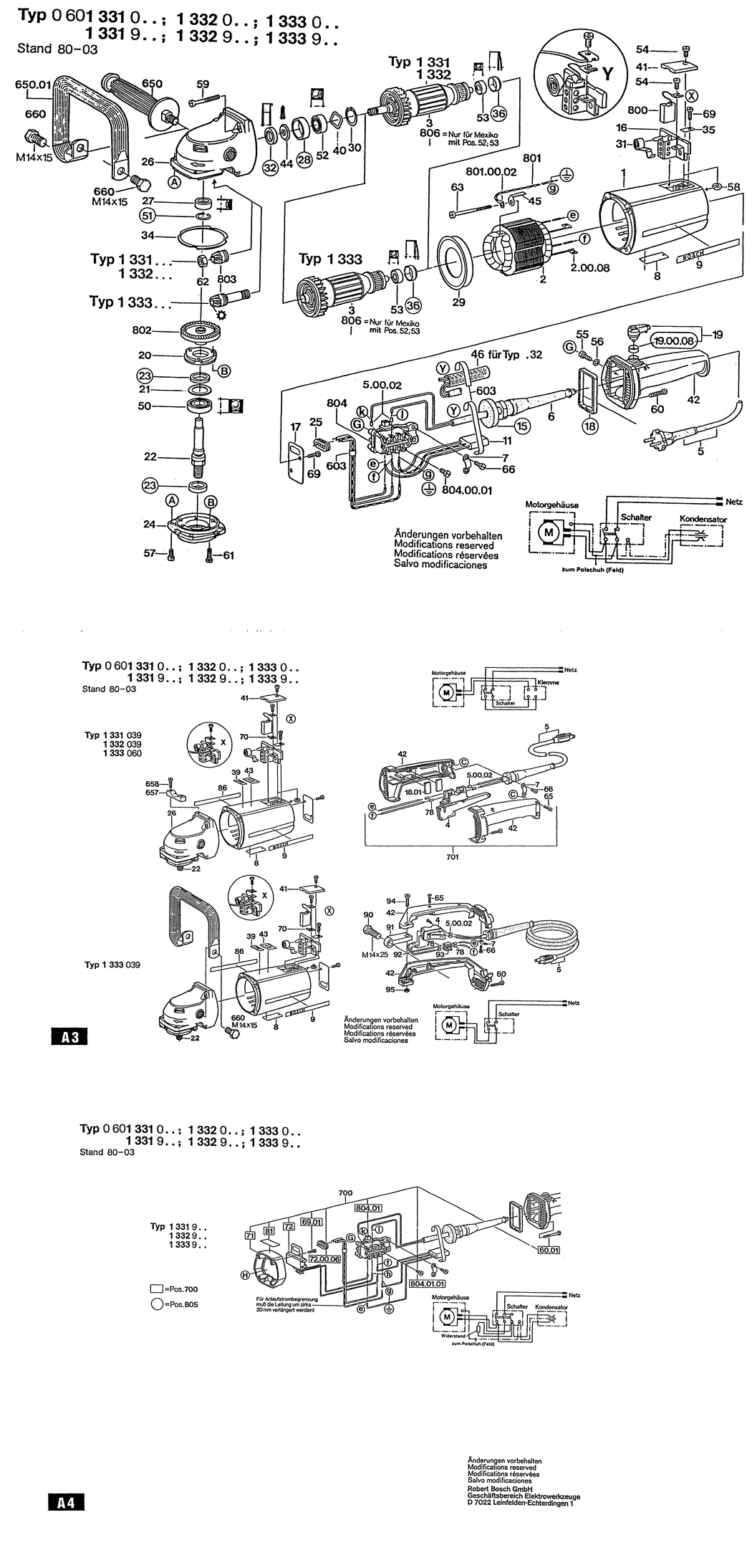

An exploded drawing and listing for the Bosch ---- / 0601332036 / NL 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108124.A20 1605108124 -
2 - FIELD 230V BSD-1604220245.A23 1604220245 -
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A83 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302013.A407 1601302013 £1.75 £2.10
15 - SEAL BSD-1600113002.A165 1600113002 £1.75 £2.10
16 - BRUSH HOLDER BSD-1604336008.A127 1604336008 £21.52 £25.83
17 - COVER PLATE BSD-1601037006.A168 1601037006 -
18 - PROFILE STRIP 3.4x7x240 MM BSD-1601014005.A63 1601014005 -
19 - CONTROL LEVER BSD-1602026041.A11 1602026041 -
19/8 - FELT WASHER BSD-1600205019.A16 1600205019 £1.75 £2.10
20 - BEARING COVER BSD-1605808054.A163 1605808054 -
21 - COVER DISC BSD-1600102012.A171 1600102012 -
23 - SEALING DISK BSD-1600108055.A23 1600108055 £1.75 £2.10
25 - GROMMET BSD-1600306001.A63 1600306001 £2.61 £3.13
26 - GEAR HOUSING BSD-1605806394.A18 1605806394 -
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A362 1600910010 £45.67 £54.80
28 - RUBBER RING BSD-1600206022.A26 1600206022 £2.16 £2.59
29 - GUIDE PULLEY BSD-1600502013.A70 1600502013 -
30 - SPRING RETAINING RING BSD-1600119004.A72 1600119004 £2.80 £3.36
31 - SPIRAL SPRING BSD-1604652015.A598 1604652015 £2.80 £3.36
32 - ROTARY SHAFT LIP SEAL BSD-1600290008.A33 1600290008 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190004.A37 1600190004 -
34 - SHIM 0.2 MM BSD-1600190005.A247 1600190005 £1.32 £1.58
35 - TAB WASHER BSD-1601030022.A609 1601030022 £1.75 £2.10
36 - RUBBER BUSHING BSD-1600502006.A159 1600502006 £1.75 £2.10
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM BSD-1600150009.A14 1600150009 £2.80 £3.36
41 - SEALING CAP BSD-1605500089.A138 1605500089 -
42 - HANDLE BSD-1605132079.A31 1605132079 -
44 - FACEPLATE BSD-1600120070.A27 1600120070 -
45 - HOLDING BRACKET BSD-1601331032.A104 1601331032 -
50 - GROOVE BALL BEARING 6203-2 Z DIN 625 BSD-1900905227.A89 1900905227 -
51 - RETAINING RING dia22 MM BSD-2916620011.A91 2916620011 £1.75 £2.10
52 - GROOVE BALL BEARING 6203-TH/C3 DIN 625 BSD-1900900413.A67 1900900413 -
53 - GROOVE BALL BEARING BSD-1600900029.A109 1600900029 -
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A954 2910021118 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A328 2910211006 £1.75 £2.10
56 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A306 2916011005 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A505 2910011157 -
58 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A242 2915011005 £1.75 £2.10
59 - SCREW B 4.8x45 MM BSD-3603415560.A243 3603415560 £1.75 £2.10
60 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A103 2910211036 £1.75 £2.10
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A253 2910011162 £1.75 £2.10
62 - HEX NUT M12x1.5 MM BSD-1603300009.A54 1603300009 £1.75 £2.10
63 - TAPPING SCREW B4.8x85 MM BSD-1603429001.A9 1603429001 -
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A448 2910021122 £2.16 £2.59
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1172 1602025022 £13.41 £16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1144 1602025030 £18.96 £22.75
651 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A19 2607950511 £4.26 £5.11
652 - PROTECTIVE COVER dia 230 MM BSD-2605510082.A15 2605510082 -
653 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A376 2607950004 £1.75 £2.10
654 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A87 2600501006 £16.43 £19.72
655 - ROUND NUT M14 BSD-2603345004.A61 2603345004 £6.52 £7.83
656 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A36 1907950007 £5.30 £6.36
660 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A56 2910281244 -
700 - PARTS SET BSD-1607000151.A23 1607000151 -
702 - TENSIONER PARTS SET BSD-1607000030.A6 1607000030 -
703 - PARTS SET BSD-1607000140.A54 1607000140 -
704 - PROTECTIVE COVER dia230 MM BSD-1605510180.A118 1605510180 £71.74 £86.09
712 - PARTS SET dia 230 MM BSD-1607000175.A13 1607000175 -
800 - CARBON-BRUSH SET BSD-1607014103.A22 1607014103 £14.91 £17.89
801 - CONNECTING CABLE BSD-1604440004.A31 1604440004 -
802 - CROWN GEAR Z=55 BSD-1606333208.A17 1606333208 -
803 - BEVEL GEAR Z=15 BSD-1606333207.A16 1606333207 -
804 - SWITCH KIT BSD-1607000034.A338 1607000034 -
805 - SEAL KIT BSD-1607000060.A36 1607000060 -
806 - ARMATURE 220V BSD-1604012044.A30 1604012044 -
817 - BEARING FLANGE BSD-1607000229.A204 1607000229 -
817/029 - O-RING 79.0x1.78 MM BSD-1600210033.A747 1600210033 £1.75 £2.10
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A52 1607000228 £23.86 £28.63
835/020 - END SPLICE BSD-3604477009.A159 3604477009 £2.61 £3.13
888 - NAMEPLATE BSD-160111A3H3.A5277 160111A3H3 £2.61 £3.13
