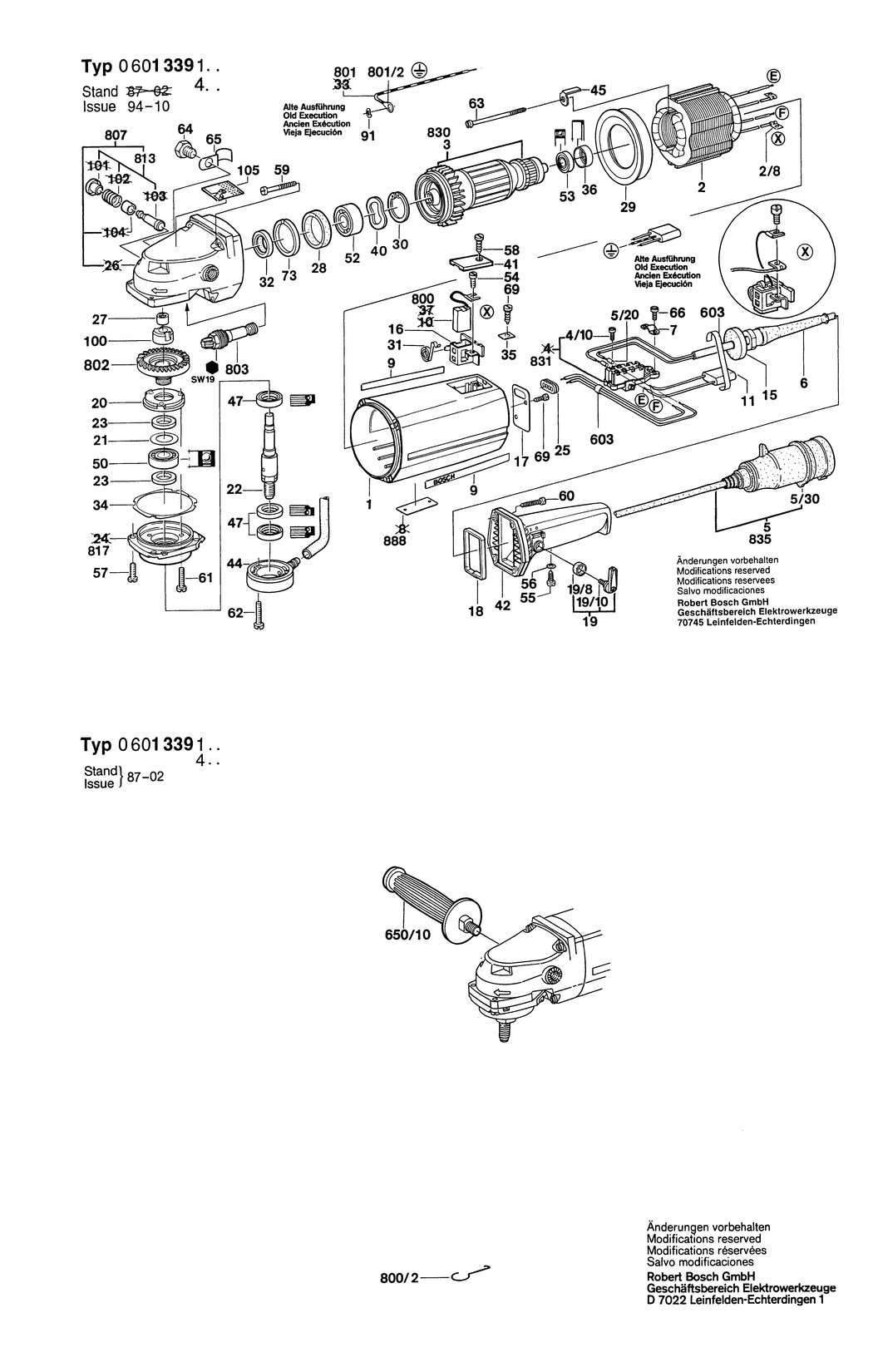

1 - MOTOR HOUSING
BSD-1605108124.A76
1605108124
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220251.A6
1604220251
|
-
|
|
|
|
2/8 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A178
1901350003
|
£1.75
|
£2.10
|
|
|
3 - ARMATURE 220V
BSD-1604012049.A1
1604012049
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1607000391.A23
1607000391
|
£18.96
|
£22.75
|
|
|
5/20 - END SPLICE DIN 46 228-A 1.5-10
BSD-1900452015.A2
1900452015
|
-
|
|
|
|
5/30 - APPLIANCE INLET
BSD-1604482067.A4
1604482067
|
-
|
|
|
|
5/30 - APPLIANCE INLET
BSD-1604482066.A4
1604482066
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A912
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A128
1601302013
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A62
1601110003
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A389
1607328034
|
£4.26
|
£5.11
|
|
|
15 - SEAL
BSD-1600113002.A341
1600113002
|
£1.75
|
£2.10
|
|
|
16 - BRUSH HOLDER
BSD-1604336014.A4
1604336014
|
-
|
|
|
|
17 - COVER PLATE
BSD-1601037006.A106
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A182
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026058.A14
1602026058
|
-
|
|
|
|
19/8 - FELT WASHER
BSD-1600205019.A247
1600205019
|
£1.75
|
£2.10
|
|
|
20 - BEARING COVER
BSD-1605808054.A96
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A58
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14
BSD-1603523096.A3
1603523096
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600108055.A200
1600108055
|
£1.75
|
£2.10
|
|
|
24 - FLANGED BEARING
BSD-1605805051.A9
1605805051
|
-
|
|
|
|
25 - GROMMET
BSD-1600306001.A362
1600306001
|
£2.61
|
£3.13
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A846
2600910001
|
£4.26
|
£5.11
|
|
|
28 - RUBBER RING dia41xdia37x11 MM
BSD-1600206028.A19
1600206028
|
-
|
|
|
|
29 - GUIDE PULLEY
BSD-1600502013.A27
1600502013
|
-
|
|
|
|
30 - SPRING RETAINING RING
BSD-1600119004.A1
1600119004
|
£2.80
|
£3.36
|
|
|
31 - SPIRAL SPRING
BSD-1604652010.A5
1604652010
|
-
|
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A188
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A186
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A97
1600190005
|
£1.32
|
£1.58
|
|
|
35 - TAB WASHER
BSD-1601030022.A170
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER RING
BSD-1600206015.A26
1600206015
|
£2.16
|
£2.59
|
|
|
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM
BSD-1600150009.A68
1600150009
|
£2.80
|
£3.36
|
|
|
41 - SEALING CAP
BSD-1605500089.A235
1605500089
|
-
|
|
|
|
42 - HANDLE
BSD-1605132093.A16
1605132093
|
-
|
|
|
|
44 - CONNECTING FLANGE
BSD-1605703061.A13
1605703061
|
-
|
|
|
|
45 - HOLDING BRACKET
BSD-1601331032.A59
1601331032
|
-
|
|
|
|
47 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM
BSD-1600283004.A8
1600283004
|
£7.36
|
£8.83
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A126
1900905227
|
-
|
|
|
|
52 - GROOVE BALL BEARING 37x12x12
BSD-1600900028.A27
1600900028
|
-
|
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A137
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1053
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A649
2910211006
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A508
2916011005
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A5
2910011157
|
-
|
|
|
|
58 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A292
2910211020
|
£2.16
|
£2.59
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A79
3603415560
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A211
2910211036
|
£1.75
|
£2.10
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A209
2910011162
|
£1.75
|
£2.10
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-8.8
BSD-2910021164.A8
2910021164
|
-
|
|
|
|
63 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A118
1603429001
|
-
|
|
|
|
64 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A187
2603450007
|
£5.58
|
£6.70
|
|
|
65 - CLAMP
BSD-1601300004.A12
1601300004
|
£2.16
|
£2.59
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A644
2910021122
|
£2.16
|
£2.59
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A169
2910211011
|
£1.75
|
£2.10
|
|
|
91 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A31
2916060006
|
£1.32
|
£1.58
|
|
|
100 - GROOVED RING
BSD-1600390011.A79
1600390011
|
-
|
|
|
|
105 - STICKER
BSD-1601110240.A47
1601110240
|
-
|
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A199
1602025022
|
£13.41
|
£16.09
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A184
1607014103
|
£14.91
|
£17.89
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A168
1604440004
|
-
|
|
|
|
802 - CROWN GEAR Z=49
BSD-1606333211.A7
1606333211
|
-
|
|
|
|
803 - BEVEL GEAR Z=5
BSD-1606333225.A2
1606333225
|
-
|
|
|
|
807 - PARTS SET
BSD-1607000917.A23
1607000917
|
-
|
|
|
|
813 - PARTS SET
BSD-1607000161.A1
1607000161
|
-
|
|
|
|
831 - ON-OFF SWITCH
BSD-1607200097.A44
1607200097
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A863
160111A3H3
|
£2.61
|
£3.13
|
|
