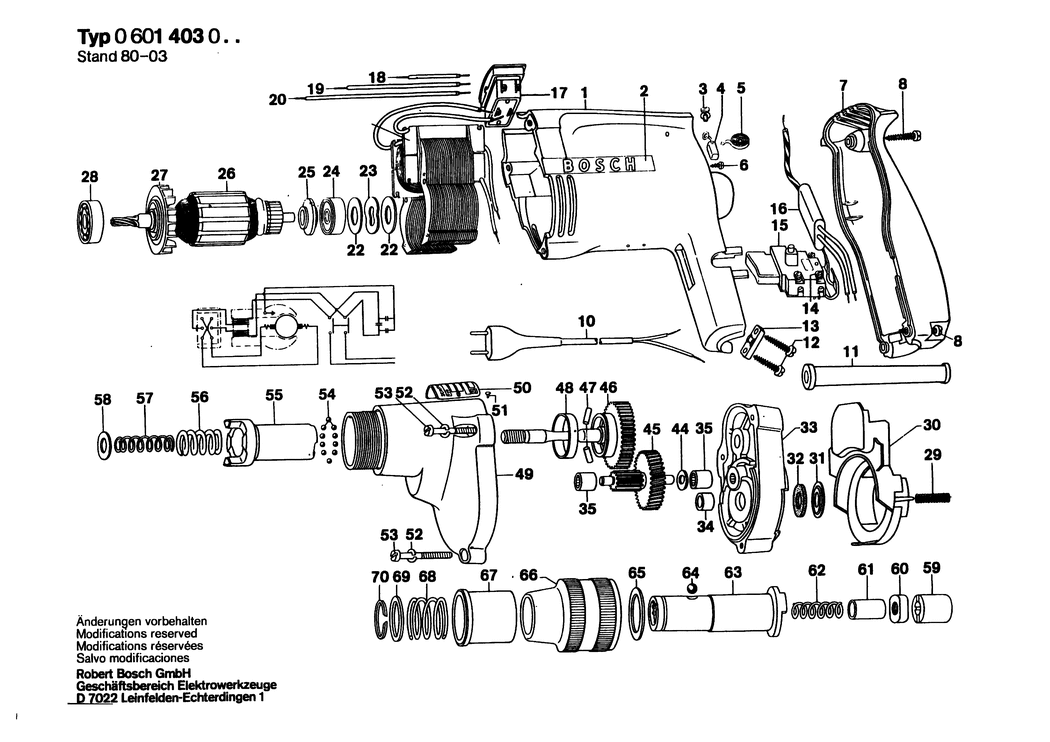

1 - MOTOR HOUSING
BSD-2605104912.A0
2605104912
|
-
|
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A223
2601007003
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A257
2603410010
|
-
|
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320906.A0
2604320906
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A99
2604652002
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A45
2910211004
|
-
|
|
|
|
7 - HOUSING COVER
BSD-2605132007.A110
2605132007
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A82
2910211021
|
£1.75
|
£2.10
|
|
|
10 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A471
1607000227
|
£23.86
|
£28.63
|
|
|
11 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A545
2600703011
|
£2.80
|
£3.36
|
|
|
11 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A676
2600703012
|
£2.80
|
£3.36
|
|
|
11 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A550
2600703013
|
£2.61
|
£3.13
|
|
|
12 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A228
2910211019
|
£1.75
|
£2.10
|
|
|
13 - CABLE CLIP
BSD-2601035001.A2374
2601035001
|
£1.75
|
£2.10
|
|
|
14 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A52
2603410023
|
-
|
|
|
|
15 - ON-OFF SWITCH
BSD-2607200043.A31
2607200043
|
-
|
|
|
|
16 - SUPPRESSION FILTER
BSD-2607329051.A24
2607329051
|
-
|
|
|
|
17 - ON-OFF SWITCH
BSD-2607200052.A23
2607200052
|
-
|
|
|
|
18 - CONNECTING CABLE
BSD-2604411505.A18
2604411505
|
-
|
|
|
|
19 - SUPPRESSOR BOX
BSD-2604465026.A63
2604465026
|
-
|
|
|
|
20 - SUPPRESSOR BOX
BSD-2604465027.A2
2604465027
|
-
|
|
|
|
21 - POLE SHOE 230-240V
BSD-2604222260.A4
2604222260
|
-
|
|
|
|
22 - SHIM 0.2 MM
BSD-2600101022.A196
2600101022
|
£1.75
|
£2.10
|
|
|
22 - SHIM 0.3 MM
BSD-2600101023.A367
2600101023
|
£1.75
|
£2.10
|
|
|
22 - SHIM 0.5 MM
BSD-2600101020.A435
2600101020
|
£1.75
|
£2.10
|
|
|
23 - SHIM
BSD-2600150004.A537
2600150004
|
£2.16
|
£2.59
|
|
|
24 - BALL BEARING 7x22x7
BSD-1900905018.A566
1900905018
|
£18.96
|
£22.75
|
|
|
25 - ARMATURE PLATE
BSD-2600121002.A111
2600121002
|
-
|
|
|
|
26 - ARMATURE WITH FAN 110V
BSD-2604010382.A0
2604010382
|
-
|
|
|
|
27 - FAN
BSD-2606610032.A4
2606610032
|
-
|
|
|
|
28 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A129
2600905007
|
-
|
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A157
2604611026
|
-
|
|
|
|
30 - COVER DISC
BSD-2601328022.A11
2601328022
|
-
|
|
|
|
31 - CUPPED WASHER
BSD-2600500008.A38
2600500008
|
-
|
|
|
|
32 - FELT DISC
BSD-2600108020.A16
2600108020
|
-
|
|
|
|
33 - FLANGED BEARING
BSD-2605700908.A0
2605700908
|
-
|
|
|
|
34 - RECEPTACLE
BSD-2600400020.A90
2600400020
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600914004.A107
2600914004
|
£4.26
|
£5.11
|
|
|
44 - SHIM 0.3 MM
BSD-2600100570.A175
2600100570
|
£1.75
|
£2.10
|
|
|
45 - TOOTHED SHAFT Z= 13/37
BSD-2606308900.A5
2606308900
|
-
|
|
|
|
46 - SPINDLE WITH GEAR Z= 44
BSD-2606100057.A0
2606100057
|
-
|
|
|
|
47 - ROLLER
BSD-1603100013.A4
1603100013
|
-
|
|
|
|
48 - RETAINING SNAP RING
BSD-2600209018.A37
2600209018
|
-
|
|
|
|
49 - GEAR HOUSING
BSD-2605806916.A0
2605806916
|
-
|
|
|
|
50 - NAMEPLATE
BSD-160111A3H3.A3739
160111A3H3
|
£2.61
|
£3.13
|
|
|
51 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A22
2917724031
|
-
|
|
|
|
52 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A684
2916690003
|
£1.75
|
£2.10
|
|
|
53 - SOCKET HEAD CAP SCREW
BSD-2603410024.A3
2603410024
|
-
|
|
|
|
54 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A256
1903230004
|
£2.16
|
£2.59
|
|
|
55 - COUPLING HALF
BSD-2606445000.A24
2606445000
|
-
|
|
|
|
56 - COMPRESSION SPRING
BSD-1604619005.A33
1604619005
|
-
|
|
|
|
57 - COMPRESSION SPRING
BSD-1604616010.A5
1604616010
|
-
|
|
|
|
58 - SHIM
BSD-2600100608.A7
2600100608
|
-
|
|
|
|
59 - BUSHING
BSD-1600309004.A77
1600309004
|
-
|
|
|
|
60 - ROUND NUT
BSD-1603341000.A33
1603341000
|
-
|
|
|
|
61 - GUIDE SLEEVE
BSD-1600506003.A1
1600506003
|
-
|
|
|
|
62 - COMPRESSION SPRING
BSD-1604612002.A5
1604612002
|
-
|
|
|
|
63 - COUPLING HALF
BSD-2606455004.A1
2606455004
|
-
|
|
|
|
64 - BALL DIN 5401-6 G28
BSD-1903230011.A305
1903230011
|
£2.61
|
£3.13
|
|
|
65 - SEALING DISK
BSD-1600110002.A5
1600110002
|
-
|
|
|
|
66 - GUIDE SLEEVE
BSD-2600460002.A1
2600460002
|
-
|
|
|
|
67 - PROTECTION SLEEVE
BSD-1600328013.A8
1600328013
|
-
|
|
|
|
68 - COMPRESSION SPRING
BSD-1604616006.A8
1604616006
|
£7.36
|
£8.83
|
|
|
69 - PLAIN WASHER 1.0 MM
BSD-1600102623.A13
1600102623
|
£1.32
|
£1.58
|
|
|
70 - RETAINING RING
BSD-1600116001.A0
1600116001
|
-
|
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A41
2603101035
|
£2.80
|
£3.36
|
|
|
654 - SUSPENSION LOOP
BSD-2604682007.A9
2604682007
|
-
|
|
|
