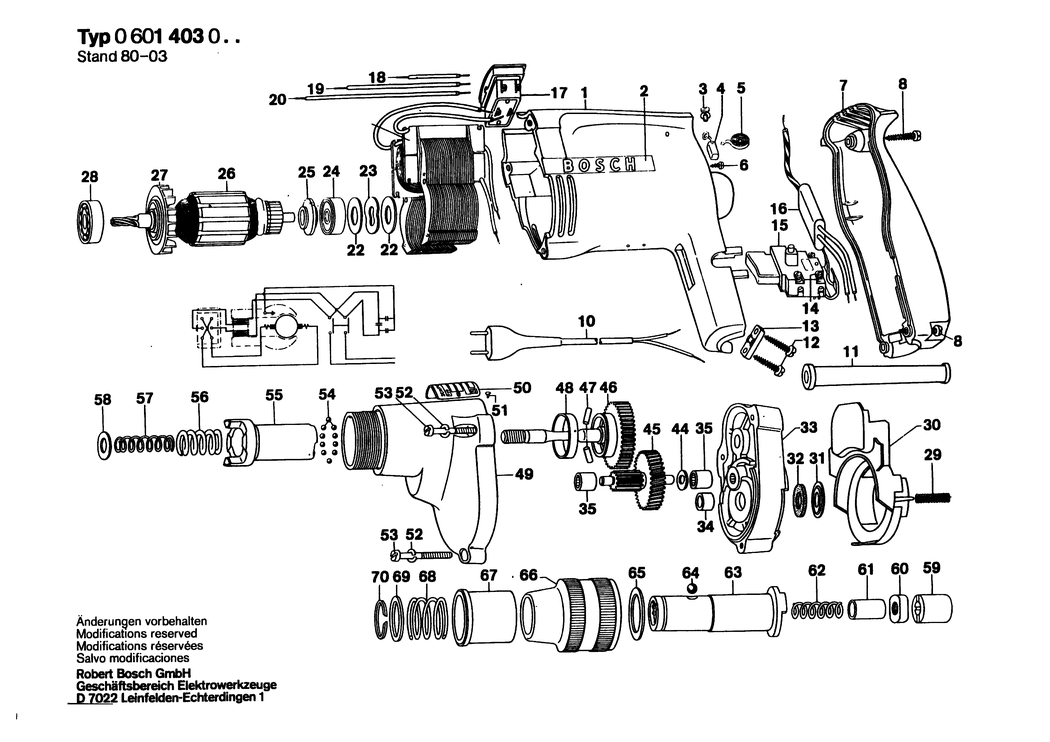

1 - MOTOR HOUSING
BSD-2605104912.A1
2605104912
|
-
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A224
2601007003
|
-
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A259
2603410010
|
-
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320906.A2
2604320906
|
-
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A100
2604652002
|
-
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A46
2910211004
|
-
|
|
|
7 - HOUSING COVER
BSD-2605132007.A112
2605132007
|
-
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A84
2910211021
|
£1.75
|
£2.10
|
|
10 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A472
1607000227
|
£23.86
|
£28.63
|
|
11 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A548
2600703011
|
£2.80
|
£3.36
|
|
11 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A673
2600703012
|
£2.80
|
£3.36
|
|
11 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A553
2600703013
|
£2.61
|
£3.13
|
|
12 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A227
2910211019
|
£1.75
|
£2.10
|
|
13 - CABLE CLIP
BSD-2601035001.A2372
2601035001
|
£1.75
|
£2.10
|
|
14 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A50
2603410023
|
-
|
|
|
15 - ON-OFF SWITCH
BSD-2607200043.A30
2607200043
|
-
|
|
|
16 - SUPPRESSION FILTER
BSD-2607329051.A23
2607329051
|
-
|
|
|
17 - ON-OFF SWITCH
BSD-2607200052.A24
2607200052
|
-
|
|
|
18 - CONNECTING CABLE
BSD-2604411505.A16
2604411505
|
-
|
|
|
19 - SUPPRESSOR BOX
BSD-2604465026.A61
2604465026
|
-
|
|
|
20 - SUPPRESSOR BOX
BSD-2604465027.A4
2604465027
|
-
|
|
|
21 - POLE SHOE 220V
BSD-2604222262.A2
2604222262
|
-
|
|
|
22 - SHIM 0.2 MM
BSD-2600101022.A197
2600101022
|
£1.75
|
£2.10
|
|
22 - SHIM 0.3 MM
BSD-2600101023.A366
2600101023
|
£1.75
|
£2.10
|
|
22 - SHIM 0.5 MM
BSD-2600101020.A434
2600101020
|
£1.75
|
£2.10
|
|
23 - SHIM
BSD-2600150004.A538
2600150004
|
£2.16
|
£2.59
|
|
24 - BALL BEARING 7x22x7
BSD-1900905018.A567
1900905018
|
£18.96
|
£22.75
|
|
25 - ARMATURE PLATE
BSD-2600121002.A110
2600121002
|
-
|
|
|
26 - ARMATURE 220V
BSD-2604010384.A3
2604010384
|
-
|
|
|
27 - FAN
BSD-2606610032.A5
2606610032
|
-
|
|
|
28 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A127
2600905007
|
-
|
|
|
29 - COMPRESSION SPRING
BSD-2604611026.A155
2604611026
|
-
|
|
|
30 - COVER DISC
BSD-2601328022.A12
2601328022
|
-
|
|
|
31 - CUPPED WASHER
BSD-2600500008.A36
2600500008
|
-
|
|
|
32 - FELT DISC
BSD-2600108020.A17
2600108020
|
-
|
|
|
33 - FLANGED BEARING
BSD-2605700908.A1
2605700908
|
-
|
|
|
34 - RECEPTACLE
BSD-2600400020.A91
2600400020
|
-
|
|
|
35 - NEEDLE BEARING
BSD-2600914004.A109
2600914004
|
£4.26
|
£5.11
|
|
44 - SHIM 0.3 MM
BSD-2600100570.A174
2600100570
|
£1.75
|
£2.10
|
|
45 - TOOTHED SHAFT Z= 13/37
BSD-2606308900.A4
2606308900
|
-
|
|
|
46 - SPINDLE WITH GEAR Z= 44
BSD-2606100057.A1
2606100057
|
-
|
|
|
47 - ROLLER
BSD-1603100013.A6
1603100013
|
-
|
|
|
48 - RETAINING SNAP RING
BSD-2600209018.A36
2600209018
|
-
|
|
|
49 - GEAR HOUSING
BSD-2605806916.A2
2605806916
|
-
|
|
|
50 - NAMEPLATE
BSD-160111A3H3.A3735
160111A3H3
|
£2.61
|
£3.13
|
|
51 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A25
2917724031
|
-
|
|
|
52 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A681
2916690003
|
£1.75
|
£2.10
|
|
53 - SOCKET HEAD CAP SCREW
BSD-2603410024.A4
2603410024
|
-
|
|
|
54 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A255
1903230004
|
£2.16
|
£2.59
|
|
55 - COUPLING HALF
BSD-2606445000.A23
2606445000
|
-
|
|
|
56 - COMPRESSION SPRING
BSD-1604619005.A34
1604619005
|
-
|
|
|
57 - COMPRESSION SPRING
BSD-1604616010.A3
1604616010
|
-
|
|
|
58 - SHIM
BSD-2600100608.A9
2600100608
|
-
|
|
|
59 - BUSHING
BSD-1600309004.A76
1600309004
|
-
|
|
|
60 - ROUND NUT
BSD-1603341000.A34
1603341000
|
-
|
|
|
61 - GUIDE SLEEVE
BSD-1600506003.A0
1600506003
|
-
|
|
|
62 - COMPRESSION SPRING
BSD-1604612002.A4
1604612002
|
-
|
|
|
63 - COUPLING HALF
BSD-2606455004.A0
2606455004
|
-
|
|
|
64 - BALL DIN 5401-6 G28
BSD-1903230011.A306
1903230011
|
£2.61
|
£3.13
|
|
65 - SEALING DISK
BSD-1600110002.A4
1600110002
|
-
|
|
|
66 - GUIDE SLEEVE
BSD-2600460002.A0
2600460002
|
-
|
|
|
67 - PROTECTION SLEEVE
BSD-1600328013.A9
1600328013
|
-
|
|
|
68 - COMPRESSION SPRING
BSD-1604616006.A9
1604616006
|
£7.36
|
£8.83
|
|
69 - PLAIN WASHER 1.0 MM
BSD-1600102623.A14
1600102623
|
£1.32
|
£1.58
|
|
70 - RETAINING RING
BSD-1600116001.A1
1600116001
|
-
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A40
2603101035
|
£2.80
|
£3.36
|
|
654 - SUSPENSION LOOP
BSD-2604682007.A8
2604682007
|
-
|
|
|
