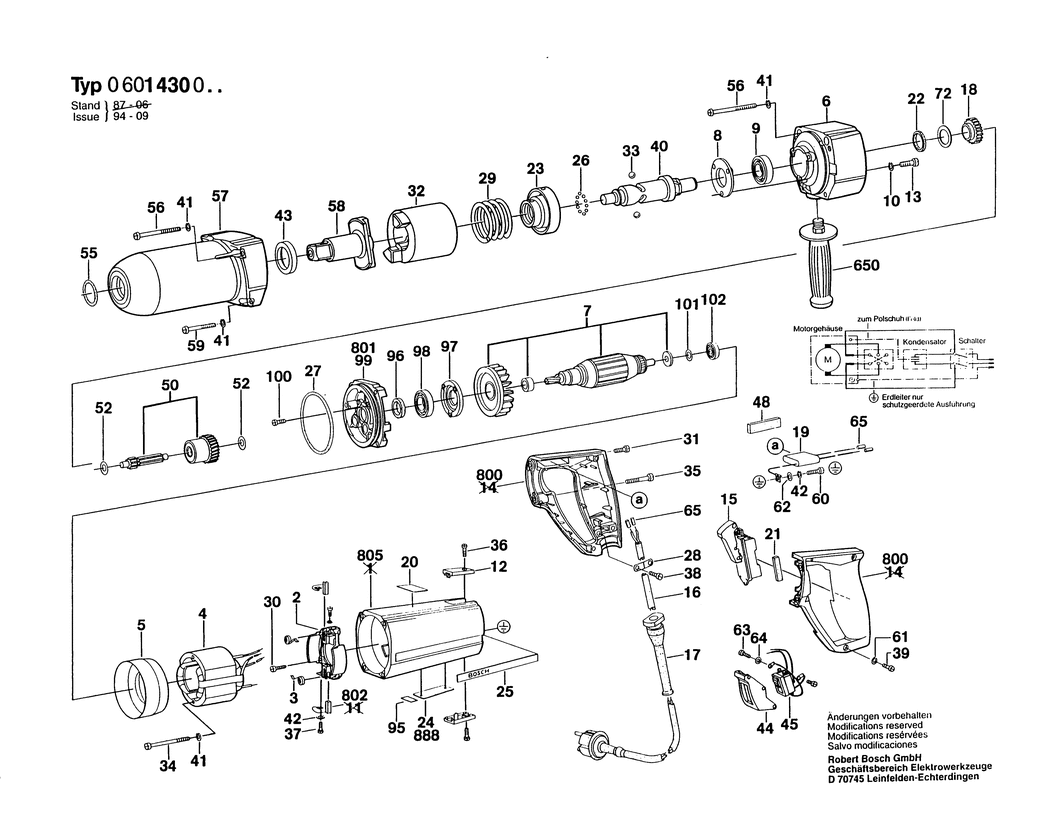

An exploded drawing and listing for the Bosch ---- / 0601430050 / I 220 Volt
Ex VAT Inc VAT
2 - BRUSH HOLDER BSD-1604336005.A80 1604336005 -
3 - SPIRAL SPRING BSD-1604652011.A1 1604652011 -
4 - FIELD 220V BSD-1604220035.A6 1604220035 -
5 - AIR-DEFLECTOR RING BSD-1600209002.A320 1600209002 £5.30 £6.36
6 - BEARING HOUSING BSD-3605805017.A10 3605805017 -
7 - ARMATURE 220V BSD-1604010044.A6 1604010044 -
8 - BEARING COVER BSD-1600501062.A19 1600501062 -
9 - GROOVE BALL BEARING 15x35x11 BSD-1900900303.A128 1900900303 -
10 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916681005.A55 2916681005 £1.75 £2.10
12 - SEALING CAP BSD-3605500057.A46 3605500057 -
13 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A522 2910021125 £1.75 £2.10
15 - SWITCH BSD-1607200025.A3 1607200025 -
17 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A103 3600703011 £2.80 £3.36
17 - GROMMET BSD-1600703008.A13 1600703008 -
18 - CYLINDRICAL GEAR Z=34 BSD-1606317048.A0 1606317048 -
21 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A39 1602381001 -
22 - SEALING DISK BSD-1600108029.A18 1600108029 £1.32 £1.58
23 - BACKUP RING BSD-1600220015.A7 1600220015 £102.57 £123.08
25 - MANUFACTURER'S NAMEPLATE BSD-1601110004.A22 1601110004 -
26 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A697 1903230007 £1.75 £2.10
27 - O-RING 74.0x3.0 MM BSD-1600210006.A175 1600210006 £1.75 £2.10
28 - FASTENING CLAMP BSD-1601302014.A615 1601302014 £2.61 £3.13
29 - COMPRESSION SPRING BSD-1604624004.A0 1604624004 -
30 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A983 2910211019 £1.75 £2.10
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A195 2910021154 £1.75 £2.10
32 - STRIKER BSD-1608710018.A16 1608710018 £251.67 £302.00
33 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A33 1903230014 £1.75 £2.10
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8 BSD-2910021176.A0 2910021176 -
35 - HEX SOCKET HEAD CAP SCREW BSD-3603414028.A90 3603414028 £1.75 £2.10
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A514 2910021125 £1.75 £2.10
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A909 2910021118 £1.75 £2.10
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A469 2910021116 £2.16 £2.59
39 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A511 2910211021 £1.75 £2.10
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A188 2910011128 £1.75 £2.10
40 - DRIVE SHAFT BSD-1603124077.A6 1603124077 £156.22 £187.46
41 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A184 2916680006 -
42 - SPRING WASHER DIN 137-A4 BSD-1600150006.A545 1600150006 -
43 - SHIM WASHER BSD-3600114013.A13 3600114013 £21.68 £26.01
44 - SWITCH HOUSING BSD-3605130029.A0 3605130029 -
45 - CHANGE-OVER SWITCH BSD-1607200032.A8 1607200032 -
48 - INSULATING PLATE 20x20x50 MM BSD-1602381006.A172 1602381006 £1.75 £2.10
50 - MULTIPLATE CLUTCH BSD-1606401006.A9 1606401006 -
52 - SHIM 0.2 MM BSD-1600100609.A24 1600100609 -
55 - O-RING 28x3 MM BSD-1900210129.A67 1900210129 £2.61 £3.13
56 - SOCKET HEAD CAP SCREW DIN 84-BM5x40-5.8 BSD-2910011170.A45 2910011170 £1.75 £2.10
56 - TAPPING SCREW B4.8x50 MM BSD-1603435012.A67 1603435012 £1.75 £2.10
57 - SPINDLE BEARING BSD-3605806115.A12 3605806115 -
58 - COUPLING HALF 3/4 BSD-1606455031.A16 1606455031 £156.22 £187.46
59 - SOCKET HEAD CAP SCREW DIN 84-BM5x82 BSD-1603410001.A197 1603410001 -
59 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A181 1603435006 -
60 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A373 2910110116 £1.75 £2.10
61 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1131 2916690003 £1.75 £2.10
62 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A254 2916010410 -
63 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8 BSD-2910011046.A26 2910011046 -
64 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A168 2916060003 £1.32 £1.58
65 - END SPLICE BSD-3604477009.A178 3604477009 £2.61 £3.13
72 - SHIM 0.5 MM BSD-1600100631.A121 1600100631 £1.75 £2.10
96 - FELT DISC BSD-1600108003.A264 1600108003 £1.32 £1.58
97 - BEARING COVER BSD-1600501019.A156 1600501019 £23.86 £28.63
98 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A59 1600900001 -
99 - BEARING FLANGE BSD-1605820163.A27 1605820163 -
100 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A515 2910021125 £1.75 £2.10
101 - SHIM 0.10 MM BSD-1420100023.A281 1420100023 -
101 - SHIM 0.2 MM BSD-1600100632.A207 1600100632 £1.75 £2.10
102 - BALL BEARING 7x22x7 BSD-1900905018.A127 1900905018 £18.96 £22.75
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1239 1602025022 £13.41 £16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1079 1602025030 £18.96 £22.75
700 - THREADED FITTING M14. L=70 MM BSD-1603527017.A14 1603527017 -
800 - HANDLE BSD-3605133009.A8 3605133009 £30.28 £36.33
801 - BEARING FLANGE BSD-1605820038.A18 1605820038 -
802 - CARBON-BRUSH SET BSD-1607014101.A7 1607014101 £11.30 £13.56
805 - MOTOR HOUSING BSD-1607000139.A5 1607000139 -
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A697 1607000227 £23.86 £28.63
888 - NAMEPLATE BSD-160111A3H3.A5448 160111A3H3 £2.61 £3.13
