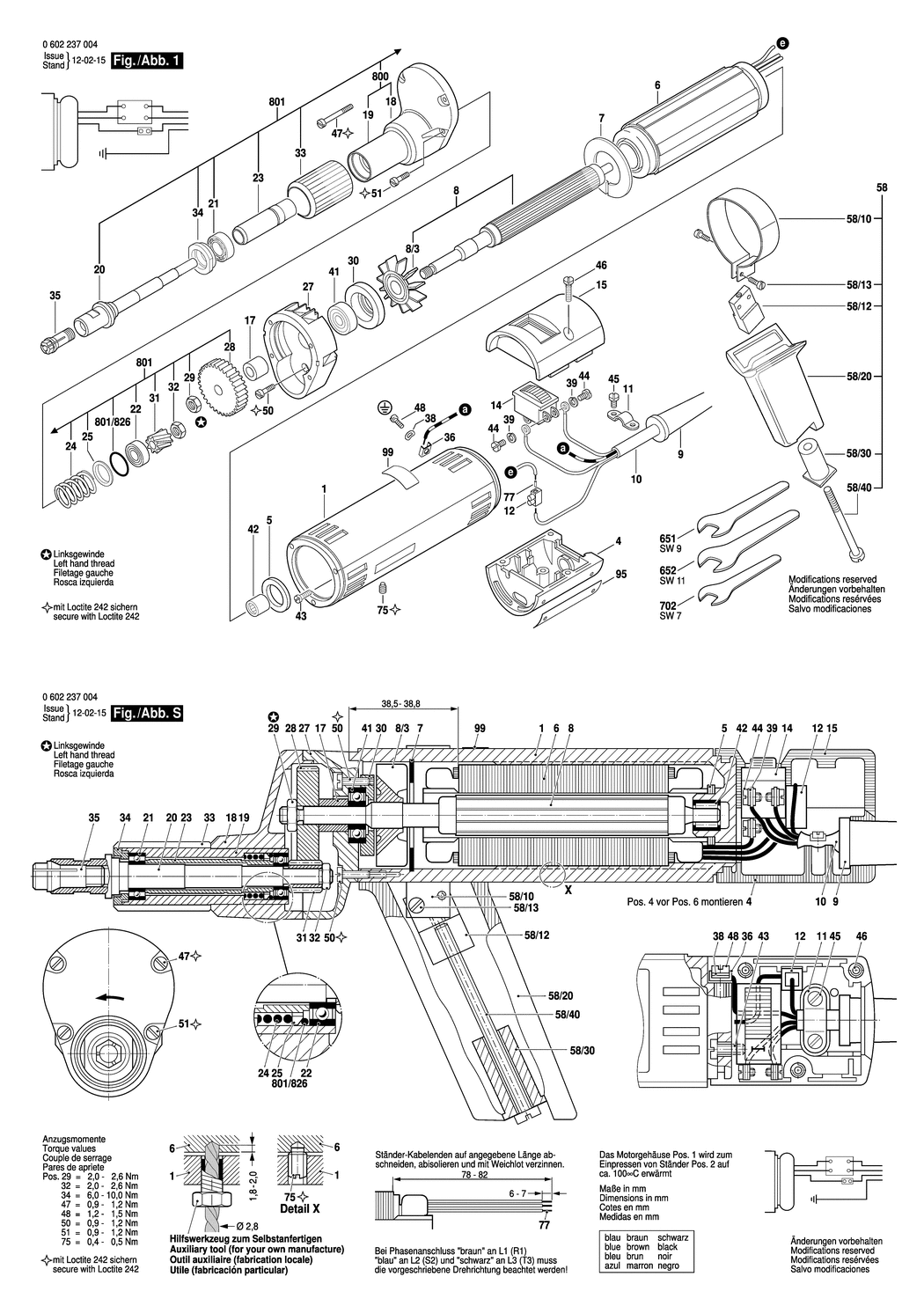

An exploded drawing and listing for the Bosch ---- / 0602237017 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102063.A1 3605102063 -
4 - SWITCH HOUSING BSD-3605130031.A26 3605130031 £13.41 £16.09
5 - FELT WASHER BSD-1600205026.A50 1600205026 £2.61 £3.13
6 - STATOR 42V/300HZ BSD-3604229004.A0 3604229004 -
7 - AIR-DEFLECTOR RING BSD-1600117001.A119 1600117001 £2.16 £2.59
8 - ROTOR WITHOUT WINDING BSD-3604080011.A5 3604080011 -
8/3 - FAN BSD-1606610108.A7 1606610108 £13.12 £15.75
9 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A49 1600703012 £2.52 £3.02
10 - CABLE BSD-1604421025.A13 1604421025 -
11 - FASTENING CLAMP BSD-1601302001.A22 1601302001 £1.75 £2.10
12 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A248 1901091012 £5.30 £6.36
14 - SWITCH BSD-1607200036.A21 1607200036 -
15 - HOUSING COVER BSD-3605130032.A5 3605130032 £21.52 £25.83
17 - SPACER BUSHING BSD-3600300012.A5 3600300012 £5.30 £6.36
18 - GEAR HOUSING BSD-3605806107.A12 3605806107 £72.18 £86.62
20 - GRINDING SPINDLE BSD-3603054001.A0 3603054001 £195.26 £234.31
21 - GROOVE BALL BEARING BSD-3600900007.A11 3600900007 £37.27 £44.72
22 - GROOVE BALL BEARING BSD-3600900008.A9 3600900008 £40.80 £48.96
23 - SPACER SLEEVE BSD-3600328031.A12 3600328031 £72.18 £86.62
24 - COMPRESSION SPRING BSD-3604617003.A15 3604617003 £2.61 £3.13
25 - ADAPTOR PLATE BSD-3600120003.A1 3600120003 £2.80 £3.36
27 - BEARING HOUSING BSD-3605820052.A15 3605820052 £179.37 £215.24
28 - CYLINDRICAL GEAR Z=29 BSD-3606330000.A0 3606330000 £81.81 £98.17
29 - HEX NUT BSD-3603300002.A9 3603300002 £12.04 £14.45
30 - BEARING COVER BSD-3600114009.A5 3600114009 £51.22 £61.47
31 - PINION Z=11 BSD-3606320002.A0 3606320002 £93.88 £112.65
32 - HEX NUT BSD-3603300001.A11 3603300001 £10.10 £12.12
33 - PROTECTION SLEEVE BSD-3600409002.A7 3600409002 £13.12 £15.75
34 - THREADED RING BSD-3603344017.A14 3603344017 £48.38 £58.06
35 - COLLET dia3.0 MM BSD-2608570019.A6 2608570019 £48.38 £58.06
35 - COLLET dia 3.0 MM BSD-3603520003.A9 3603520003 £72.18 £86.62
35 - COLLET dia 6.0 MM BSD-1608570037.A19 1608570037 £37.27 £44.72
36 - CLAMPING SADDLE BSD-3601321002.A2 3601321002 £2.52 £3.02
38 - SPRING WASHER BSD-3600150009.A120 3600150009 £2.80 £3.36
39 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A225 2916060003 £1.32 £1.58
41 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A32 3600905148 £8.49 £10.19
42 - NEEDLE-ROLLER BEARING BSD-3600910002.A16 3600910002 £27.23 £32.68
43 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A167 2910211025 £1.75 £2.10
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A156 2910091046 £1.75 £2.10
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A218 2910011048 £1.75 £2.10
46 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8 BSD-2910021054.A61 2910021054 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84 BM3x35-5.8 BSD-2910011068.A9 2910011068 £2.16 £2.59
48 - PAN HEAD SCREW DIN 85-AM3x8-MS BSD-2910110050.A1 2910110050 £1.75 £2.10
50 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A5 2910001052 £2.16 £2.59
51 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-5.8 BSD-2910011054.A2 2910011054 £2.33 £2.80
58 - AUXILIARY HANDLE BSD-3602025008.A1 3602025008 £81.81 £98.17
58/10 - CLAMPING BAND BSD-3601038003.A16 3601038003 £54.42 £65.30
58/12 - CLAMPING PLATE BSD-3602305009.A19 3602305009 -
58/13 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A370 2910021050 £1.75 £2.10
58/20 - HANDLE BSD-3602025001.A15 3602025001 £63.50 £76.20
58/30 - SUPPORT CLAMP BSD-3600390012.A14 3600390012 -
58/40 - SOCKET HEAD CAP SCREW DIN 84-BM5x70-4.8 BSD-2910000180.A15 2910000180 £1.75 £2.10
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A5 2912081116 £2.61 £3.13
95 - NAMEPLATE BSD-3601106054.A87 3601106054 £5.30 £6.36
99 - REFERENCE PLATE BSD-3601119236.A1710 3601119236 £3.72 £4.47
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 9 BSD-1907950503.A22 1907950503 £5.30 £6.36
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW11 BSD-1907950505.A20 1907950505 £12.04 £14.45
700 - COLLET JAWS BSD-3600720001.A4 3600720001 -
800 - SPINDLE BEARING BSD-3605806051.A4 3605806051 £135.25 £162.30
801 - GRINDING SPINDLE BSD-3607031181.A4 3607031181 £702.95 £843.54
