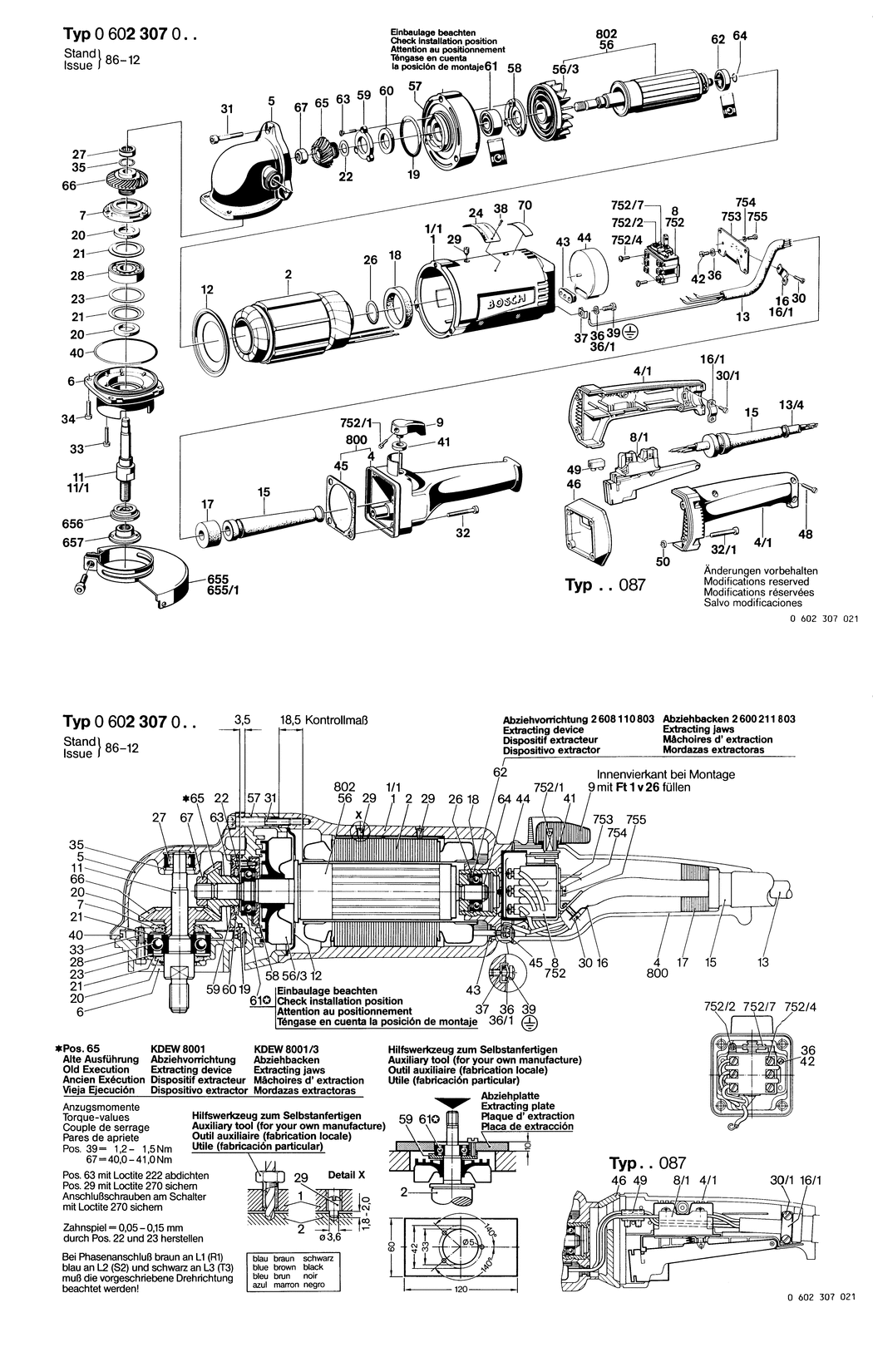

An exploded drawing and listing for the Bosch ---- / 0602307021 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605102106.A46 1605102106 -
2 - STATOR 265V/200HZ BSD-1604229160.A10 1604229160 -
4 - SEAL BSD-1601015011.A61 1601015011 £3.80 £4.56
5 - GEAR HOUSING BSD-1605806159.A10 1605806159 -
6 - BEARING FLANGE BSD-1605805022.A38 1605805022 -
7 - CONICAL SPRING WASHER BSD-1600521013.A52 1600521013 -
8 - ON-OFF SWITCH BSD-1607200017.A10 1607200017 £102.57 £123.08
9 - CONTROL LEVER BSD-1602026038.A76 1602026038 £5.30 £6.36
11 - GRINDING SPINDLE M14 BSD-1603523029.A10 1603523029 -
12 - GUIDE PULLEY BSD-1600500014.A65 1600500014 -
13 - ELEC. CABLE W/CONNECTION BSD-3604462043.A40 3604462043 £54.42 £65.30
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A434 1600703009 £5.58 £6.70
16 - FASTENING CLAMP BSD-1601303003.A219 1601303003 £2.16 £2.59
17 - SEALING PLATE BSD-1600113003.A85 1600113003 £2.80 £3.36
18 - SEAL RING BSD-1600209009.A123 1600209009 £6.52 £7.83
19 - O-RING 45x3MM BSD-1900210146.A64 1900210146 £4.26 £5.11
20 - SEALING DISK BSD-1600108048.A0 1600108048 £1.75 £2.10
21 - PLAIN WASHER BSD-2100551000.A52 2100551000 -
22 - SHIM 0.1 MM BSD-1600101616.A138 1600101616 £2.61 £3.13
22 - SHIM 0.2 MM BSD-1600101617.A58 1600101617 £1.75 £2.10
22 - SHIM 0.3 MM BSD-1600101618.A194 1600101618 £2.61 £3.13
22 - SHIM 0.05 MM BSD-1600101619.A58 1600101619 £2.16 £2.59
23 - SHIM 0.05 MM BSD-1600102638.A108 1600102638 £3.34 £4.01
23 - SHIM 0.1 MM BSD-1600102639.A126 1600102639 -
23 - SHIM 0.15 MM BSD-1600102640.A108 1600102640 -
24 - NAMEPLATE BSD-3601106053.A262 3601106053 £5.30 £6.36
26 - O-RING BSD-1120210000.A36 1120210000 -
27 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A86 1600910010 £45.67 £54.80
28 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A287 1900900352 £27.23 £32.68
29 - SET SCREW BSD-1603402004.A79 1603402004 £2.61 £3.13
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1886 2910021118 £1.75 £2.10
31 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x50-8.8 BSD-2910141213.A4 2910141213 £2.61 £3.13
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8 BSD-2910141209.A57 2910141209 £2.61 £3.13
33 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A91 2910141164 £2.16 £2.59
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A63 2910141158 £1.75 £2.10
35 - RETAINING RING dia22 MM BSD-2916620011.A197 2916620011 £1.75 £2.10
36 - SPRING WASHER DIN 137-A4 BSD-1600150006.A66 1600150006 -
37 - CLAMPING SADDLE BSD-3601321001.A586 3601321001 £3.72 £4.47
38 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A604 3603133001 £2.61 £3.13
39 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A135 2910110122 £1.75 £2.10
40 - O-RING 74.0x3.0 MM BSD-1600210006.A99 1600210006 £1.75 £2.10
41 - FELT WASHER BSD-1600205027.A54 1600205027 £1.75 £2.10
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1887 2910021118 £1.75 £2.10
43 - GROMMET BSD-1600306000.A28 1600306000 £1.95 £2.34
44 - PROTECTIVE COVER BSD-1600502004.A10 1600502004 £4.26 £5.11
45 - SEAL BSD-1601015011.A62 1601015011 £3.80 £4.56
57 - BEARING HOUSING BSD-1605820145.A0 1605820145 -
58 - BEARING COVER BSD-1600501019.A425 1600501019 £23.86 £28.63
59 - COVER DISC BSD-1600501024.A69 1600501024 £16.41 £19.69
60 - FELT DISC BSD-1600108018.A78 1600108018 £2.61 £3.13
61 - GROOVE BALL BEARING BSD-3600900022.A41 3600900022 £21.68 £26.01
62 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A315 1900905121 £18.96 £22.75
63 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A71 3603435051 £1.75 £2.10
64 - RETAINING RING 12 DIN 9045 BSD-2916600007.A94 2916600007 £2.80 £3.36
65 - BEVEL GEAR Z=27 BSD-1606333048.A20 1606333048 -
66 - BEVEL GEAR Z=38 BSD-1606333049.A0 1606333049 -
67 - HEX NUT M12x1.5 MM BSD-1603300009.A110 1603300009 £1.75 £2.10
70 - REFERENCE PLATE BSD-3601119236.A1580 3601119236 £3.72 £4.47
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A515 1907950007 £5.30 £6.36
652 - PIN-TYPE FACE-WRENCH BSD-1607950061.A435 1607950061 £5.42 £6.50
653 - AUXILIARY HANDLE M14 BSD-1602025022.A723 1602025022 £13.41 £16.09
653 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A259 1602025030 £18.96 £22.75
654 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A451 2607950511 £4.26 £5.11
655 - PROTECTIVE COVER dia180 MM BSD-1605510199.A187 1605510199 -
656 - CLAMPING-FLANGE dia45 MM BSD-2600501006.A367 2600501006 £16.43 £19.72
657 - ROUND NUT M14 BSD-2603345004.A316 2603345004 £6.52 £7.83
752 - ON-OFF SWITCH BSD-1607200006.A128 1607200006 £81.81 £98.17
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A63 2910001052 £2.16 £2.59
752/2 - EXTENSION SPRING BSD-1604650009.A7 1604650009 £1.75 £2.10
752/3 - COMPRESSION SPRING BSD-1604617001.A8 1604617001 £2.80 £3.36
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A338 2910091118 £1.75 £2.10
752/6 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A277 2916080005 -
752/7 - DETENT ROLLER BSD-1603200007.A60 1603200007 -
753 - FIXING PLATE BSD-3601023015.A128 3601023015 £21.68 £26.01
754 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A533 2916690003 £1.75 £2.10
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1889 2910021118 £1.75 £2.10
800 - HANDLE BSD-1605132067.A125 1605132067 -
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031146.A3 3607031146 -
