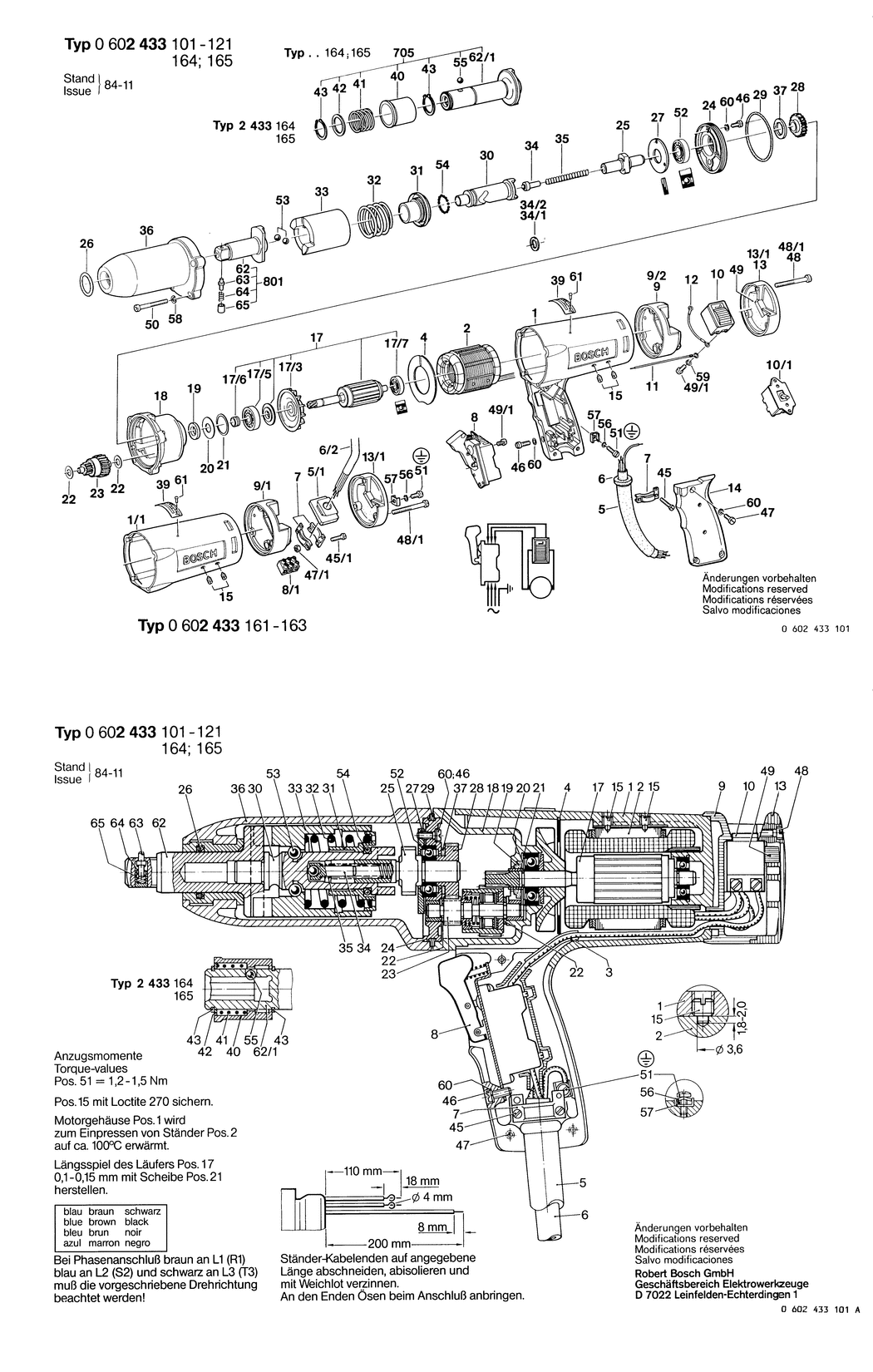

An exploded drawing and listing for the Bosch ---- / 0602433107 / --- 72 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605105001.A13 3605105001 -
2 - STATOR 72V/200HZ. 110V/300HZ BSD-3604229051.A1 3604229051 -
4 - AIR-DEFLECTOR RING BSD-1600117000.A14 1600117000 -
5 - GROMMET dia13.2-dia17.0x120 MM BSD-1600703002.A6 1600703002 £5.01 £6.01
6 - ELEC. CABLE W/CONNECTION BSD-3604462033.A7 3604462033 -
7 - CLAMP BSD-1601315011.A13 1601315011 -
8 - SWITCH BSD-3607200041.A4 3607200041 -
9 - SWITCH HOUSING BSD-3605130030.A10 3605130030 -
10 - SWITCH BSD-3607200000.A18 3607200000 £21.52 £25.83
11 - CABLE BSD-1604440000.A13 1604440000 -
12 - PVC-INSULATED CABLE BSD-1604441000.A4 1604441000 -
13 - SWITCH COVER BSD-3605500070.A11 3605500070 -
14 - SEALING CAP BSD-3605500075.A7 3605500075 -
15 - SET SCREW BSD-1603402004.A190 1603402004 £2.61 £3.13
17 - ROTOR WITHOUT WINDING BSD-1604080028.A13 1604080028 -
17/5 - MAGNETO BALL BEARING E 10 DIN 615 BSD-1900900008.A3 1900900008 -
17/6 - OIL RETURN RING BSD-1600313008.A12 1600313008 -
17/7 - MAGNETO BALL BEARING E 7 DIN 615 BSD-1900900005.A36 1900900005 £36.63 £43.96
18 - BEARING HOUSING BSD-3605820049.A10 3605820049 -
19 - SEALING DISK BSD-1600108006.A11 1600108006 -
20 - SHIM 0.5 MM BSD-1600101633.A7 1600101633 £1.75 £2.10
21 - SHIM 0.05 MM BSD-1600102654.A13 1600102654 £1.95 £2.34
22 - SHIM 0.2 MM BSD-1600100609.A21 1600100609 -
23 - MULTIPLATE CLUTCH BSD-1606401003.A3 1606401003 -
24 - BEARING FLANGE BSD-1605820115.A9 1605820115 -
25 - COUPLING HALF BSD-1606455043.A9 1606455043 -
26 - O-RING 22x3 MM BSD-1900210123.A4 1900210123 £4.26 £5.11
27 - CONICAL SPRING WASHER BSD-1600501016.A9 1600501016 -
28 - CYLINDRICAL GEAR Z=30 BSD-1606317051.A9 1606317051 -
29 - O-RING 54.0x3.0 MM BSD-1600210004.A121 1600210004 £2.80 £3.36
30 - DRIVE SHAFT BSD-1603123023.A5 1603123023 -
31 - BUSHING BSD-1605801018.A29 1605801018 £45.67 £54.80
32 - COMPRESSION SPRING BSD-1604619010.A37 1604619010 £6.52 £7.83
33 - STRIKER BSD-1608710024.A7 1608710024 -
34 - PRESSURE SPINDLE BSD-1603121007.A23 1603121007 -
35 - COMPRESSION SPRING BSD-1604610006.A9 1604610006 -
36 - SPINDLE BEARING BSD-3605806114.A4 3605806114 -
37 - SEALING DISK BSD-1600108051.A9 1600108051 -
39 - NAMEPLATE BSD-3601106054.A6 3601106054 £5.30 £6.36
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8 BSD-2910021062.A4 2910021062 £1.75 £2.10
46 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8 BSD-2910011120.A13 2910011120 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A310 2910021122 £2.16 £2.59
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8 BSD-2910141136.A136 2910141136 £2.80 £3.36
49 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A26 1602381001 -
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8 BSD-2910141170.A13 2910141170 £2.61 £3.13
51 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A540 2910110120 £1.75 £2.10
52 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A194 1900900287 £21.68 £26.01
53 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A334 1903230013 £2.16 £2.59
54 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A769 1903230007 £1.75 £2.10
56 - SPRING WASHER dia4.2 MM BSD-3600150006.A3 3600150006 £2.61 £3.13
57 - CLAMPING SADDLE BSD-3601321001.A70 3601321001 £3.72 £4.47
58 - END SPLICE BSD-3604477008.A317 3604477008 £1.75 £2.10
60 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1204 2916690003 £1.75 £2.10
61 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A221 3603133001 £2.61 £3.13
62 - COUPLING HALF 1/2 BSD-3606455033.A13 3606455033 -
63 - DETENT PIN BSD-1603124078.A4 1603124078 -
64 - COMPRESSION SPRING BSD-1604611015.A10 1604611015 -
65 - GUIDE SLEEVE BSD-1600506008.A11 1600506008 -
99 - REFERENCE PLATE BSD-3601119236.A131 3601119236 £3.72 £4.47
705 - COUPLING HALF 7/16 BSD-1606455012.A6 1606455012 -
801 - COUPLING HALF 5/8 BSD-1606455045.A1 1606455045 -
801 - COUPLING HALF 1/2 BSD-3606455033.A12 3606455033 -
