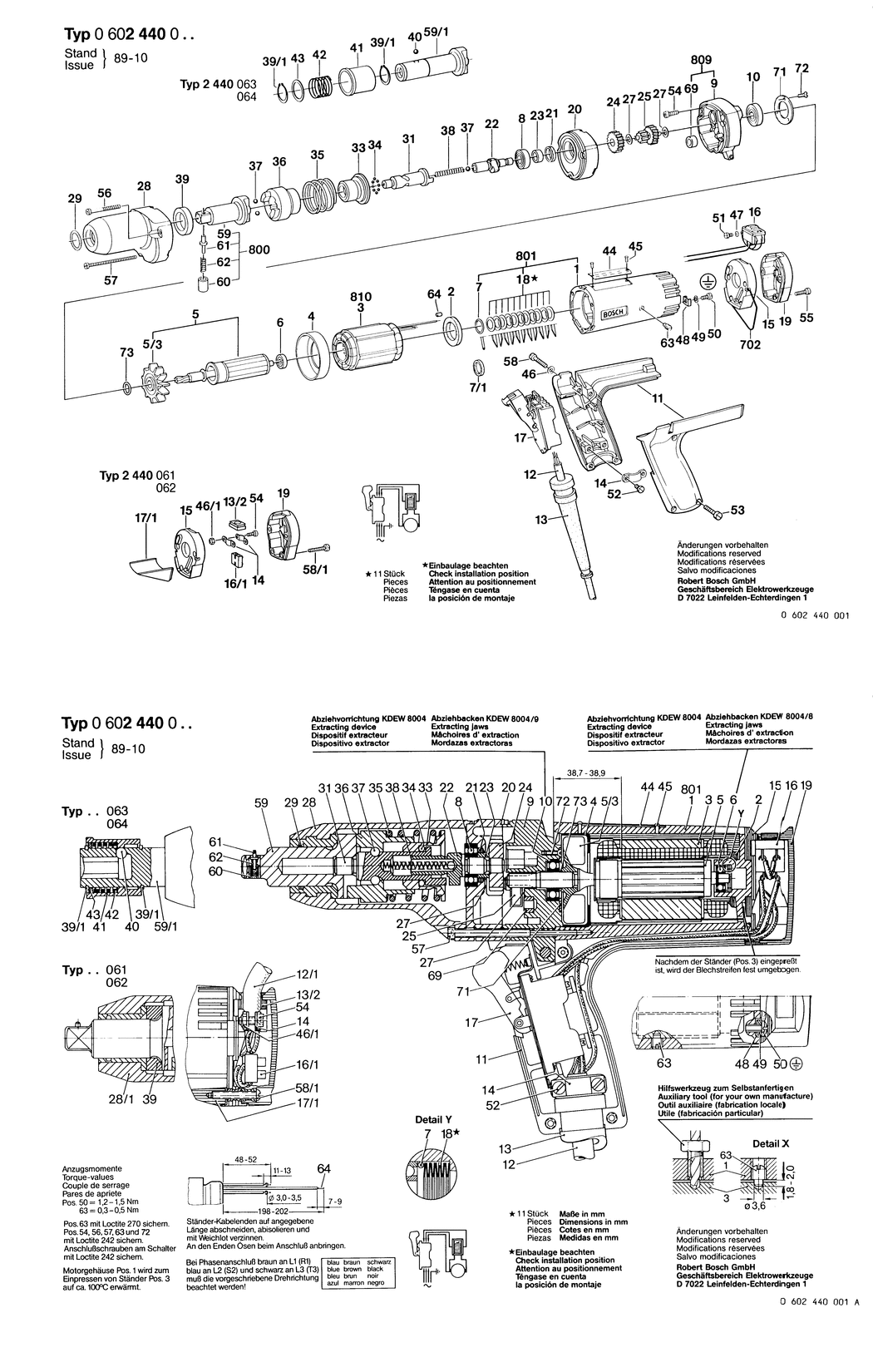

An exploded drawing and listing for the Bosch ---- / 0602440001 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A62 3605102058 £120.11 £144.13
2 - SEAL RING BSD-1600209011.A285 1600209011 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A146 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A117 3604080020 -
5/3 - FAN BSD-1606610105.A148 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A148 1900905015 £30.42 £36.51
7 - O-RING 12.0x2.25 MM BSD-3600210039.A6 3600210039 £7.36 £8.83
8 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A182 1900905017 £23.86 £28.63
9 - BEARING HOUSING BSD-3605820046.A61 3605820046 -
10 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A56 1610905011 £14.91 £17.89
11 - HANDLE BSD-3605132044.A31 3605132044 -
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A6 3604462049 -
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A393 3600703011 £2.80 £3.36
14 - FASTENING CLAMP BSD-1601302014.A143 1601302014 £2.61 £3.13
15 - CONNECTION HOUSING BSD-3600099005.A38 3600099005 £16.41 £19.69
16 - REVERSING SWITCH BSD-1607200043.A13 1607200043 -
17 - SWITCH BSD-3607200041.A20 3607200041 -
18 - DISC SPRING BSD-3600150013.A178 3600150013 £3.72 £4.47
19 - SEALING CAP BSD-3605500071.A21 3605500071 £16.41 £19.69
20 - INTERMEDIATE BEARING BSD-3605820061.A7 3605820061 -
21 - SEALING DISK BSD-1600108033.A0 1600108033 £2.16 £2.59
22 - COUPLING HALF BSD-1606455050.A7 1606455050 -
23 - SPACER RING BSD-1600201010.A7 1600201010 -
24 - CYLINDRICAL GEAR Z=23 BSD-1606317066.A2 1606317066 -
25 - SPINDLE WITH GEAR Z=13/34 BSD-1606328090.A9 1606328090 -
27 - SHIM 0.50 MM BSD-2600100613.A143 2600100613 £1.75 £2.10
28 - SPINDLE BEARING BSD-3605806118.A6 3605806118 -
29 - O-RING 22x2 MM BSD-1900210321.A14 1900210321 £5.30 £6.36
31 - DRIVE SHAFT BSD-1603123024.A14 1603123024 -
33 - BUSHING BSD-1600521005.A16 1600521005 -
34 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A175 1903230004 £2.16 £2.59
35 - COMPRESSION SPRING BSD-1604619011.A37 1604619011 -
36 - STRIKER BSD-1608710025.A14 1608710025 -
37 - BALL DIN 5401-5 G28 BSD-1903230009.A433 1903230009 £1.75 £2.10
38 - COMPRESSION SPRING BSD-1604611018.A7 1604611018 -
44 - NAMEPLATE BSD-3601106053.A908 3601106053 £5.30 £6.36
45 - GROOVED NAIL BSD-3603133000.A665 3603133000 £2.61 £3.13
46 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A199 2916060006 £1.32 £1.58
47 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A109 2916060003 £1.32 £1.58
48 - CLAMPING SADDLE BSD-3601321001.A201 3601321001 £3.72 £4.47
49 - SPRING WASHER dia4.2 MM BSD-3600150006.A390 3600150006 £2.61 £3.13
50 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A92 2910110118 £1.75 £2.10
51 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A50 2910091046 £1.75 £2.10
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A705 2910021116 £2.16 £2.59
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A296 2910021122 £2.16 £2.59
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A222 2910141122 £2.16 £2.59
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A56 2910141131 £2.16 £2.59
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A65 2910141140 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW BSD-1603410005.A7 1603410005 -
58 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A404 2910011162 £1.75 £2.10
59 - COUPLING HALF BSD-1606455051.A7 1606455051 -
60 - GUIDE SLEEVE BSD-1600506009.A7 1600506009 £7.36 £8.83
61 - DETENT PIN BSD-1603124085.A7 1603124085 £3.72 £4.47
62 - COMPRESSION SPRING BSD-1604611019.A6 1604611019 £2.80 £3.36
63 - SET SCREW BSD-3603402000.A324 3603402000 £1.75 £2.10
64 - END SPLICE BSD-3604477008.A357 3604477008 £1.75 £2.10
69 - BUSHING BSD-2600300058.A43 2600300058 -
71 - RETAINING WASHER BSD-3600190012.A115 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A71 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A105 1600210045 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A799 3601119236 £3.72 £4.47
700 - COMPRESSION SPRING BSD-1604619011.A35 1604619011 -
702 - SUSPENSION LOOP BSD-3604682000.A32 3604682000 £14.72 £17.67
703 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A21 2910131193 £1.75 £2.10
800 - COUPLING HALF BSD-1606455052.A5 1606455052 -
801 - MOTOR HOUSING BSD-3605102028.A99 3605102028 £156.22 £187.46
809 - BEARING HOUSING BSD-1605820162.A25 1605820162 -
810 - STATOR 265V/200HZ. 200V/150HZ BSD-1604229200.A42 1604229200 £458.51 £550.21
