Bosch ---- / 0602441011 / --- Spare Parts

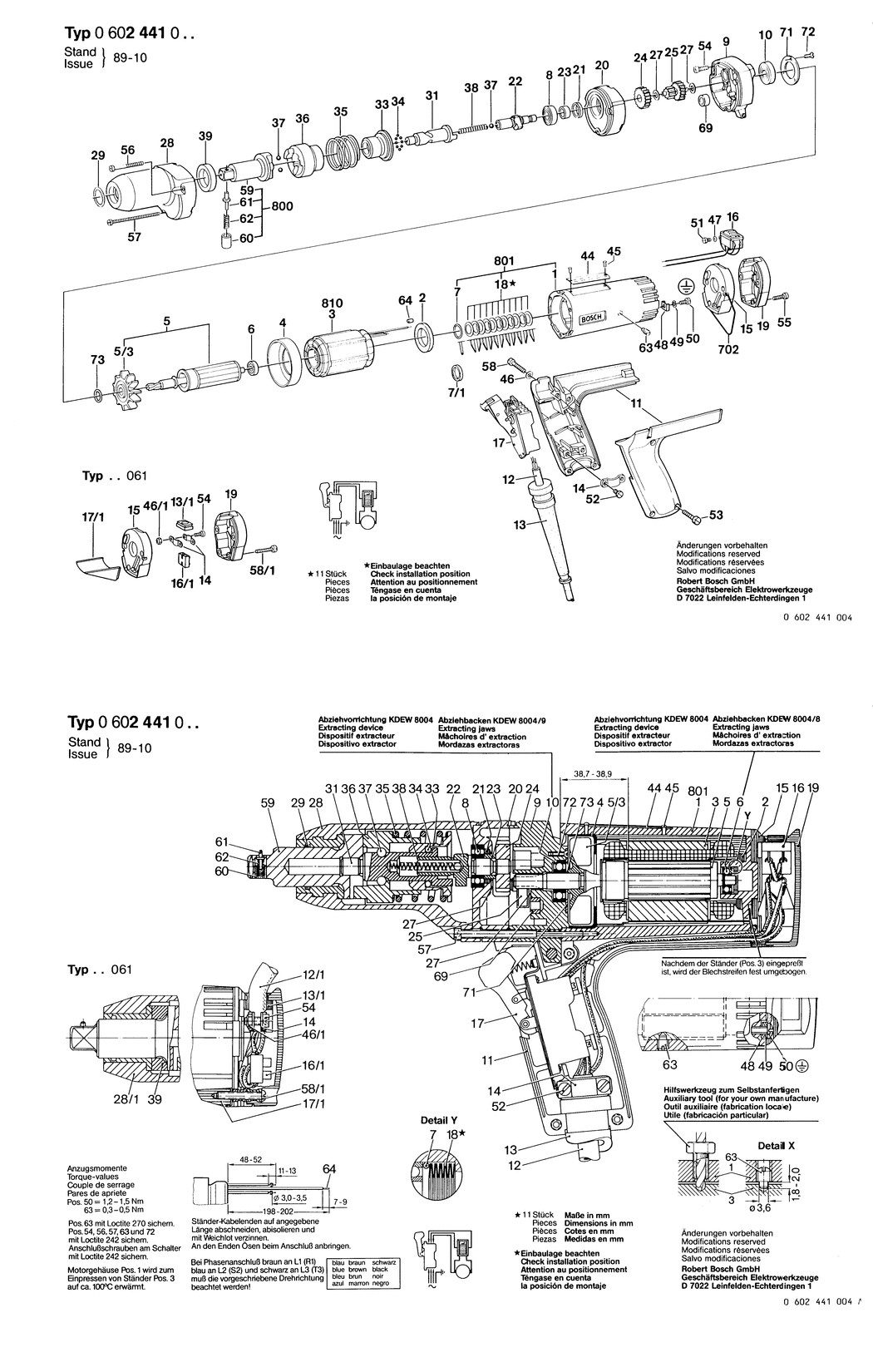

An exploded drawing and listing for the Bosch ---- / 0602441011 / ---

	Ex VAT	Inc VAT
2 - SEAL RING BSD-1600209011.A297 1600209011	£2.80	£3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A145 1600502005	£2.61	£3.13
5 - ROTOR BSD-3604080020.A115 3604080020	-
5/3 - FAN BSD-1606610105.A152 1606610105	£14.91	£17.89
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A145 1900905015	£30.42	£36.51
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A157 3600206002	-
8 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A185 1900905017	£23.86	£28.63
9 - BEARING HOUSING BSD-1605820162.A20 1605820162	-
10 - BALL BEARING 7x22x7 BSD-1900905018.A379 1900905018	£18.96	£22.75
11 - HANDLE BSD-3605132044.A43 3605132044	-
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A1 3604462049	-
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A392 3600703011	£2.80	£3.36
14 - FASTENING CLAMP BSD-1601302014.A141 1601302014	£2.61	£3.13
15 - CONNECTION HOUSING BSD-3600099005.A52 3600099005	£16.41	£19.69
16 - REVERSING SWITCH BSD-1607200043.A11 1607200043	-
17 - SWITCH BSD-3607200041.A16 3607200041	-
19 - SEALING CAP BSD-3605500071.A9 3605500071	£16.41	£19.69
20 - INTERMEDIATE BEARING BSD-3605820061.A5 3605820061	-
21 - SEALING DISK BSD-1600108033.A12 1600108033	£2.16	£2.59
22 - COUPLING HALF BSD-1606455050.A4 1606455050	-
23 - SPACER RING BSD-1600201010.A4 1600201010	-
24 - CYLINDRICAL GEAR Z=27 BSD-1606317065.A4 1606317065	-
25 - SPINDLE WITH GEAR Z=10/34 BSD-1606328089.A2 1606328089	-
27 - SHIM 0.50 MM BSD-2600100613.A138 2600100613	£1.75	£2.10
28 - SPINDLE BEARING BSD-3605806118.A5 3605806118	-
29 - O-RING 22x2 MM BSD-1900210321.A2 1900210321	£5.30	£6.36
31 - DRIVE SHAFT BSD-1603123024.A6 1603123024	-
33 - BUSHING BSD-1600521005.A12 1600521005	-
34 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A189 1903230004	£2.16	£2.59
35 - COMPRESSION SPRING BSD-1604619011.A16 1604619011	-
36 - STRIKER BSD-1608710025.A3 1608710025	-
37 - BALL DIN 5401-5 G28 BSD-1903230009.A422 1903230009	£1.75	£2.10
38 - COMPRESSION SPRING BSD-1604611018.A11 1604611018	-
44 - NAMEPLATE BSD-3601106053.A896 3601106053	£5.30	£6.36
45 - GROOVED NAIL BSD-3603133000.A663 3603133000	£2.61	£3.13
46 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A202 2916060006	£1.32	£1.58
47 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A104 2916060003	£1.32	£1.58
48 - CLAMPING SADDLE BSD-3601321001.A189 3601321001	£3.72	£4.47
49 - SPRING WASHER dia4.2 MM BSD-3600150006.A378 3600150006	£2.61	£3.13
50 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A350 2910110120	£1.75	£2.10
51 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A63 2910091046	£1.75	£2.10
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A693 2910021116	£2.16	£2.59
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A289 2910021122	£2.16	£2.59
54 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A228 2910141122	£2.16	£2.59
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A50 2910141131	£2.16	£2.59
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A71 2910141140	£1.75	£2.10
57 - SOCKET HEAD CAP SCREW BSD-1603410005.A13 1603410005	-
58 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A397 2910011162	£1.75	£2.10
58/1 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A101 2910211022	£1.75	£2.10
60 - GUIDE SLEEVE BSD-1600506009.A11 1600506009	£7.36	£8.83
61 - DETENT PIN BSD-1603124085.A1 1603124085	£3.72	£4.47
62 - COMPRESSION SPRING BSD-1604611019.A2 1604611019	£2.80	£3.36
63 - SET SCREW BSD-3603402000.A329 3603402000	£1.75	£2.10
64 - END SPLICE BSD-3604477008.A369 3604477008	£1.75	£2.10
69 - BUSHING BSD-2600300058.A44 2600300058	-
71 - RETAINING WASHER BSD-3600190012.A123 3600190012	-
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A61 2910780050	-
73 - O-RING 8.0x1.0 MM BSD-1600210045.A91 1600210045	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A813 3601119236	£3.72	£4.47
700 - COMPRESSION SPRING BSD-1604619011.A19 1604619011	-
702 - SUSPENSION LOOP BSD-3604682000.A20 3604682000	£14.72	£17.67
703 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A14 2910131193	£1.75	£2.10
800 - COUPLING HALF BSD-1606455052.A3 1606455052	-
801 - MOTOR HOUSING BSD-3605102028.A93 3605102028	£156.22	£187.46
810 - STATOR 72V/300HZ BSD-1604229203.A4 1604229203	-
