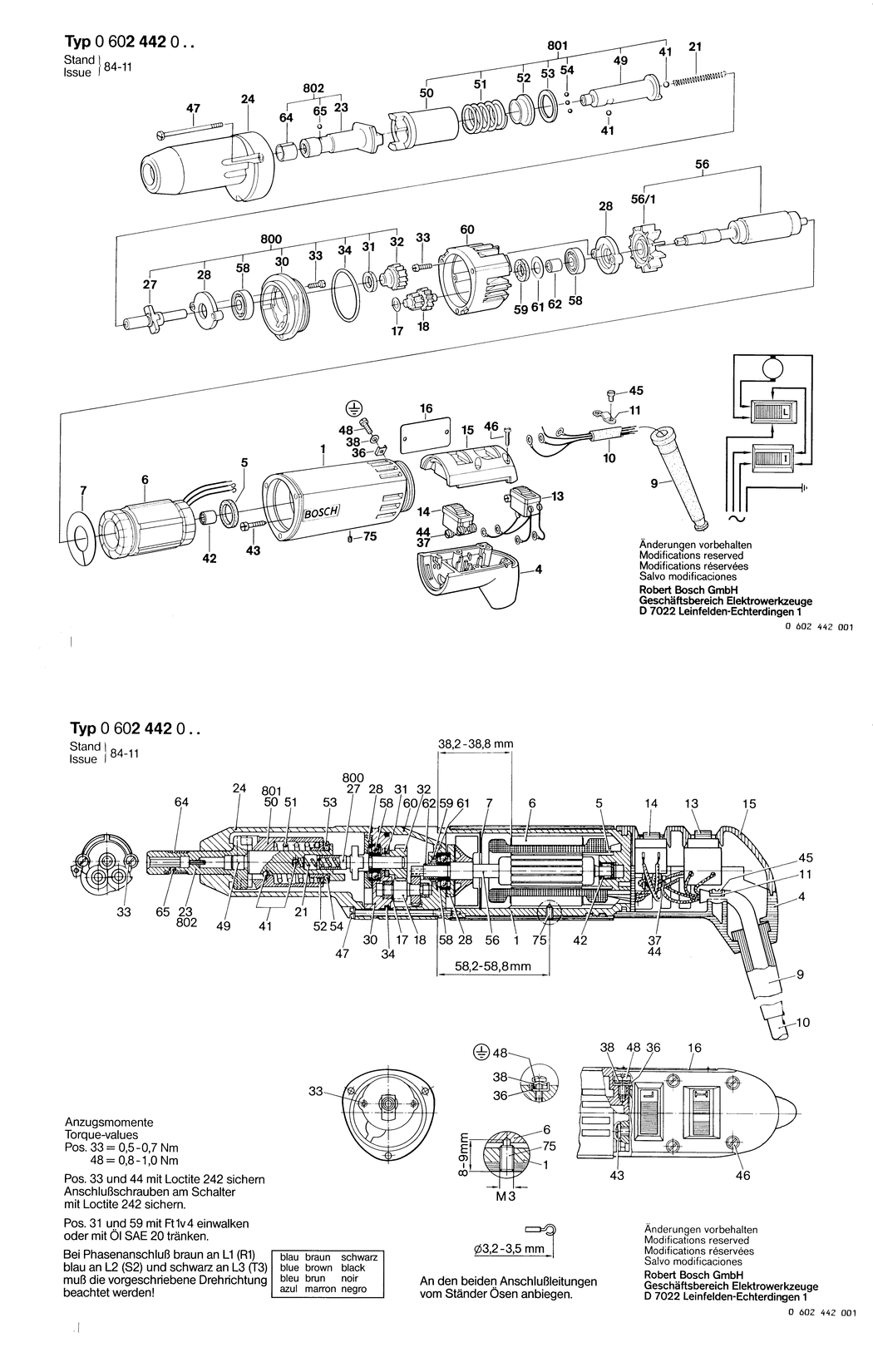

An exploded drawing and listing for the Bosch ---- / 0602442001 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102051.A2 3605102051 £135.25 £162.30
4 - HANDLE BSD-3605132046.A37 3605132046 -
5 - FELT WASHER BSD-1600205026.A114 1600205026 £2.61 £3.13
6 - STATOR 265V/200HZ BSD-3604229000.A7 3604229000 £357.27 £428.72
7 - AIR-DEFLECTOR RING BSD-1600117001.A107 1600117001 £2.16 £2.59
9 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A106 1600703012 £2.52 £3.02
10 - ELEC. CABLE W/CONNECTION BSD-3604462048.A68 3604462048 -
11 - FASTENING CLAMP BSD-1601302001.A110 1601302001 £1.75 £2.10
13 - SWITCH BSD-1607200067.A76 1607200067 -
14 - REVERSING SWITCH BSD-1607200066.A27 1607200066 £63.50 £76.20
15 - HOUSING COVER BSD-3605500067.A45 3605500067 -
16 - NAMEPLATE BSD-3601106053.A892 3601106053 £5.30 £6.36
17 - SHIM 0.3 MM BSD-1420100666.A52 1420100666 -
18 - SPINDLE WITH GEAR Z=13/25 BSD-1606328061.A2 1606328061 -
21 - COMPRESSION SPRING BSD-1604626001.A29 1604626001 -
24 - SPINDLE BEARING BSD-3605806122.A1 3605806122 -
27 - DRIVE SHAFT BSD-1603124059.A31 1603124059 -
28 - CONICAL SPRING WASHER BSD-1600501030.A36 1600501030 -
30 - BEARING FLANGE BSD-3605820057.A8 3605820057 -
31 - FELT WASHER BSD-1600205025.A72 1600205025 -
32 - CYLINDRICAL GEAR Z=21 BSD-1606300000.A1 1606300000 £57.02 £68.42
33 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A160 2910001052 £2.16 £2.59
34 - O-RING 35.0x1.5 MM BSD-1600210010.A43 1600210010 £2.80 £3.36
36 - CLAMPING SADDLE BSD-3601321004.A16 3601321004 £2.16 £2.59
36 - CLAMPING SADDLE BSD-3601321002.A73 3601321002 £2.52 £3.02
38 - SPRING WASHER BSD-3600150009.A28 3600150009 £2.80 £3.36
38 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A99 2916060003 £1.32 £1.58
41 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A406 1903230007 £1.75 £2.10
42 - NEEDLE-ROLLER BEARING BSD-3600910002.A54 3600910002 £27.23 £32.68
43 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A1 2910211025 £1.75 £2.10
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A66 2910091046 £1.75 £2.10
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A70 2910011048 £1.75 £2.10
46 - TAPPING SCREW DIN 7971-BZ3.5x19 BSD-2910211013.A4 2910211013 -
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8 BSD-2910021076.A40 2910021076 -
48 - PAN HEAD SCREW DIN 85-AM3x8-MS BSD-2910110050.A75 2910110050 £1.75 £2.10
49 - DRIVE SHAFT BSD-1603123013.A7 1603123013 -
50 - STRIKER BSD-3608710000.A5 3608710000 -
51 - COMPRESSION SPRING BSD-3604619009.A0 3604619009 -
52 - BACKUP RING BSD-3600222000.A4 3600222000 -
53 - RETAINING SNAP RING BSD-1600200011.A3 1600200011 -
54 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A186 1903230004 £2.16 £2.59
56 - ROTOR WITHOUT WINDING BSD-3604080000.A10 3604080000 -
56/1 - FAN BSD-1606610108.A22 1606610108 £13.12 £15.75
58 - GROOVE BALL BEARING 6x19x6 BSD-1900900428.A157 1900900428 £16.74 £20.09
59 - FELT WASHER BSD-1600205025.A71 1600205025 -
60 - GEAR HOUSING BSD-3605806105.A64 3605806105 £103.14 £123.77
61 - SHIM 0.60 MM BSD-3600101016.A0 3600101016 -
62 - INTERMEDIATE RING BSD-1600300044.A46 1600300044 -
64 - HOLDING SPRING BSD-3604682003.A21 3604682003 -
65 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A223 1903230006 £2.16 £2.59
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A267 2912081116 £2.61 £3.13
77 - END SPLICE A 0.5-6 DIN 46 228 BSD-1900452000.A106 1900452000 -
99 - REFERENCE PLATE BSD-3601119236.A815 3601119236 £3.72 £4.47
703 - QUICK-CHANGE COLLET CHUCK 11 MM BSD-3608120004.A4 3608120004 -
710 - MAGNETIC STAND BSD-2608518004.A4 2608518004 -
711 - COUPLING HALF 3/8 BSD-3606455004.A0 3606455004 -
713 - SUSPENSION LOOP BSD-3604682001.A0 3604682001 -
714 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A386 2910021118 £1.75 £2.10
800 - INTERMEDIATE BEARING BSD-1605820125.A22 1605820125 -
802 - COUPLING HALF BSD-3606455021.A9 3606455021 -
