Bosch ---- / 1618598124 / --- Spare Parts

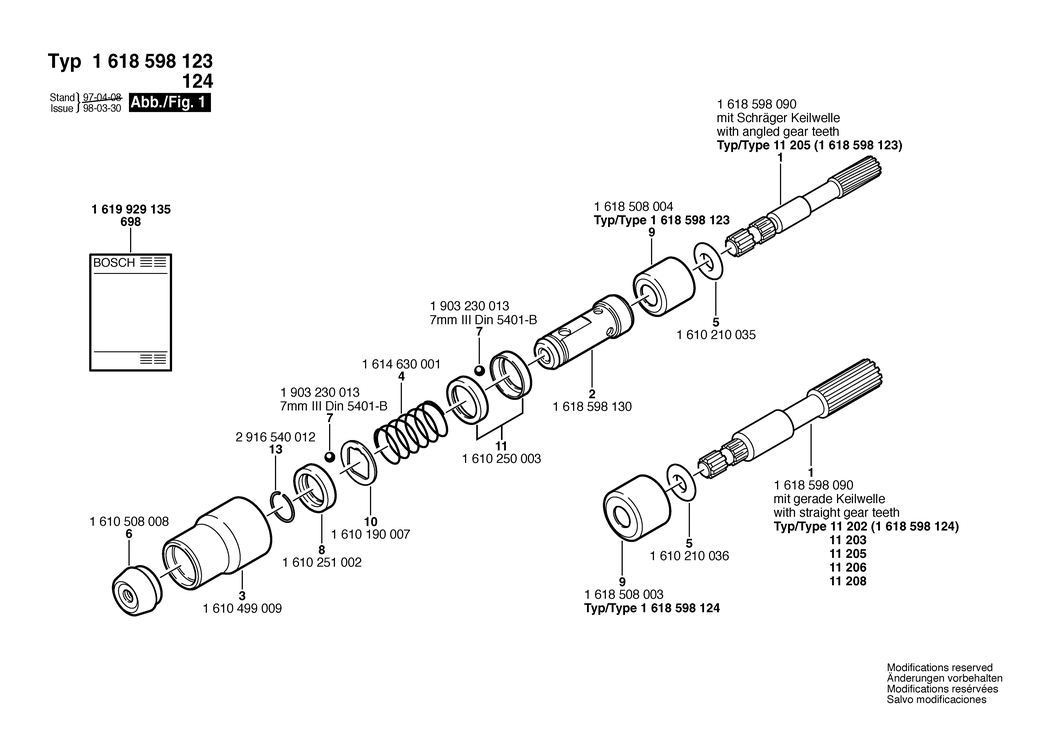

An exploded drawing and listing for the Bosch ---- / 1618598124 / ---

	Ex VAT	Inc VAT
1 - BIT HOLDER BSD-1618598124.A2 1618598124	£69.15	£82.98
2 - BIT HOLDER BSD-1618598131.A0 1618598131	-
3 - PROTECTION SLEEVE BSD-1610499009.A2 1610499009	-
4 - COMPRESSION SPRING BSD-1614632000.A45 1614632000	-
5 - O-RING 15.0x6.0 MM BSD-1610210036.A0 1610210036	£7.36	£8.83
6 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A279 1610508008	£2.16	£2.59
7 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A811 1903230013	£2.16	£2.59
8 - THRUST RING BSD-1610251002.A1 1610251002	-
9 - BACKUP RING BSD-1610508003.A0 1610508003	-
10 - HOLDING PLATE BSD-1610190007.A3 1610190007	-
11 - RETAINING SNAP RING BSD-1610250003.A14 1610250003	£5.58	£6.70
13 - RETAINING RING DIN 7993-A22 BSD-2916540012.A120 2916540012	-

Attribute Name	Value
Brand	Bosch
