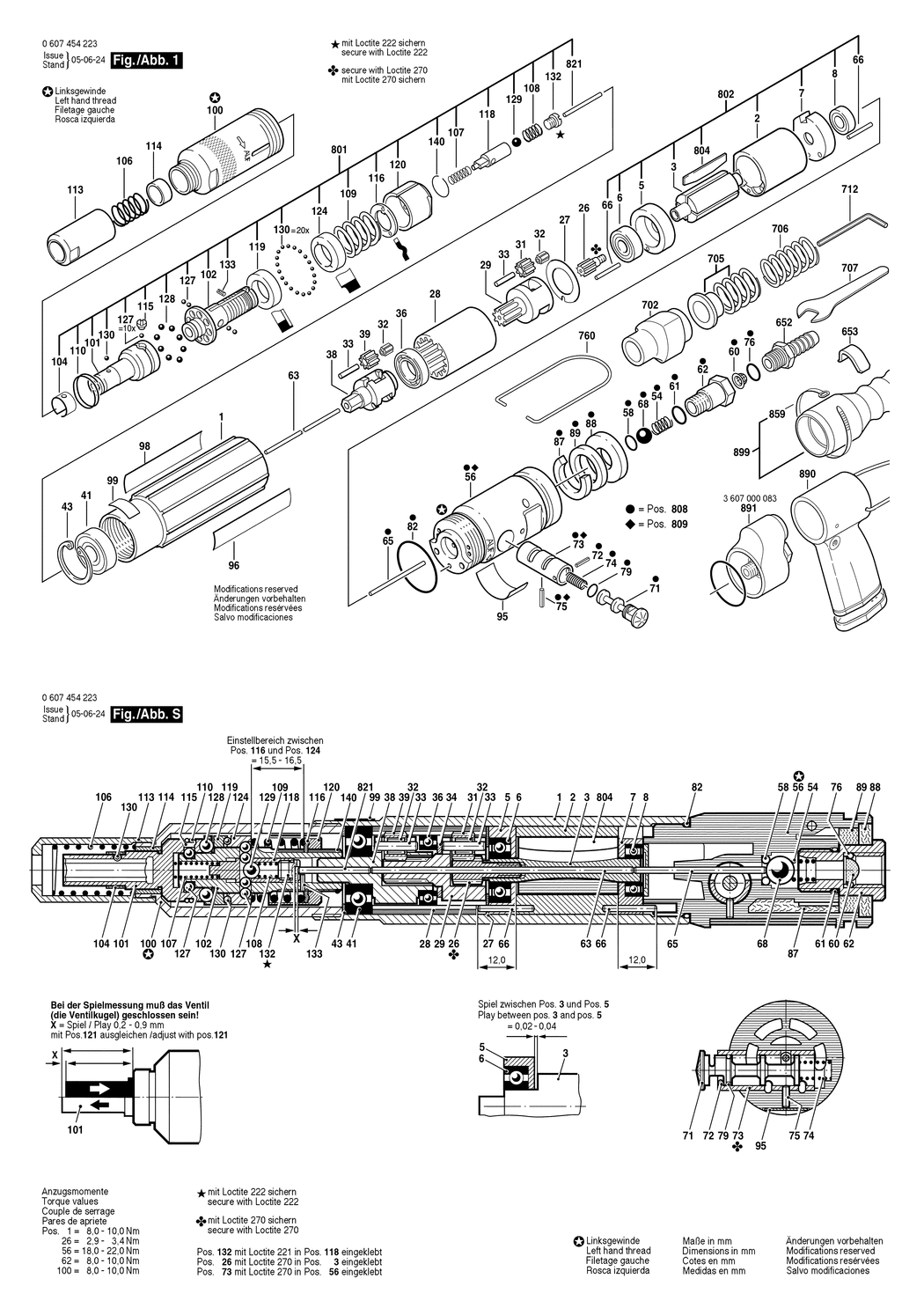

An exploded drawing and listing for the Bosch 120 WATT-SERIE / 0607454223 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3600760097.A7 3600760097 £70.24 £84.29
2 - STATOR 120W BSD-3604090058.A11 3604090058 £135.25 £162.30
3 - ROTOR BSD-3604220087.A21 3604220087 £102.57 £123.08
5 - BEARING FLANGE BSD-3605700111.A22 3605700111 £40.80 £48.96
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A137 1900905044 £7.36 £8.83
7 - BEARING FLANGE BSD-3605700112.A4 3605700112 £48.38 £58.06
8 - GROOVE BALL BEARING 7x14x5 BSD-1900905030.A86 1900905030 £33.74 £40.49
26 - PINION Z=12 BSD-3606300014.A13 3606300014 £14.75 £17.70
27 - STOP DISC BSD-3600101008.A15 3600101008 £1.75 £2.10
28 - RING GEAR Z=42/54 BSD-3606334083.A7 3606334083 £21.52 £25.83
29 - PLANETARY-GEAR CARRIER BSD-3606337056.A16 3606337056 £48.38 £58.06
31 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A109 3606316093 £2.61 £3.13
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A173 3600913000 £4.26 £5.11
33 - NEEDLE ROLLER BSD-3603201000.A273 3603201000 £1.75 £2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A54 3600905002 £16.41 £19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337178.A2 3606337178 £135.25 £162.30
39 - CYLINDRICAL GEAR Z=14 BSD-3606316011.A30 3606316011 £7.78 £9.33
41 - GROOVE BALL BEARING BSD-3600905023.A32 3600905023 £21.52 £25.83
43 - SPRING RETAINING RING BSD-3600118006.A32 3600118006 £2.61 £3.13
54 - COMPRESSION SPRING BSD-3604611017.A75 3604611017 £2.61 £3.13
58 - O-RING 4.3x2.4 MM BSD-3600210084.A41 3600210084 £2.61 £3.13
60 - STRAINER BSD-3600002000.A8 3600002000 £3.72 £4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A106 2600210021 £1.75 £2.10
62 - FITTING BSD-3603458016.A15 3603458016 £11.30 £13.56
63 - STRAIGHT PIN 75 MM BSD-3603201006.A16 3603201006 £3.72 £4.47
65 - STRAIGHT PIN BSD-3603201026.A31 3603201026 £7.36 £8.83
66 - STRAIGHT PIN BSD-3604710044.A18 3604710044 £8.67 £10.41
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A41 1903230014 £1.75 £2.10
71 - CONTROL PISTON BSD-3608750038.A7 3608750038 £23.86 £28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A65 2917800016 £1.75 £2.10
74 - COMPRESSION SPRING BSD-3604611007.A14 3604611007 £2.16 £2.59
76 - O-RING BSD-3600210094.A50 3600210094 £2.80 £3.36
79 - O-RING BSD-3600210093.A21 3600210093 £1.75 £2.10
82 - O-RING 26.0x1.0 MM BSD-3600210056.A27 3600210056 £1.75 £2.10
87 - SILENCER BSD-3601010010.A70 3601010010 £2.16 £2.59
88 - SILENCER BSD-3601010037.A59 3601010037 £11.30 £13.56
89 - SILENCER BSD-3601010044.A17 3601010044 £7.36 £8.83
95 - NAMEPLATE BSD-160111A3HF.A658 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A118 3601119055 £3.72 £4.47
98 - STICKER BSD-3601110204.A66 3601110204 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A472 3601119236 £3.72 £4.47
100 - HOUSING BSD-3605125053.A0 3605125053 -
101 - CLUTCH ELEMENT BSD-3606445034.A12 3606445034 £102.57 £123.08
102 - DRIVE SHAFT BSD-3606122012.A19 3606122012 £93.88 £112.65
104 - LEAF SPRING BSD-3601250002.A5 3601250002 £4.26 £5.11
106 - COMPRESSION SPRING BSD-3604615004.A40 3604615004 £1.75 £2.10
107 - COMPRESSION SPRING BSD-3604610008.A32 3604610008 £1.75 £2.10
108 - COMPRESSION SPRING BSD-3604610007.A4 3604610007 £1.75 £2.10
109 - COMPRESSION SPRING BSD-3604619007.A10 3604619007 £2.80 £3.36
110 - RETAINING RING BSD-3604603000.A24 3604603000 -
113 - UNION NUT BSD-3603343000.A15 3603343000 £11.30 £13.56
114 - BUSHING BSD-3600300001.A3 3600300001 -
115 - SEALING PLATE BSD-3600001003.A10 3600001003 -
116 - ADJUSTING DISC BSD-3600134002.A23 3600134002 £1.75 £2.10
118 - LOCKING BOLT BSD-3603150201.A14 3603150201 £21.68 £26.01
119 - SUPPORT DISC BSD-3600114007.A25 3600114007 £10.10 £12.12
120 - ROUND NUT BSD-3603340003.A4 3603340003 £23.86 £28.63
124 - COUPLING PLATE BSD-3600114005.A5 3600114005 £7.36 £8.83
127 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A420 1903230004 £2.16 £2.59
128 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A780 1903230007 £1.75 £2.10
129 - BALL DIN 5401-5 G28 BSD-1903230009.A894 1903230009 £1.75 £2.10
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A66 1903230003 £2.61 £3.13
132 - SCREW PLUG BSD-3603463001.A18 3603463001 £2.16 £2.59
133 - COILED SPRING PIN DIN 7343-1.5x4 BSD-2917800012.A11 2917800012 -
140 - RETAINING RING 10 DIN 9045 BSD-2916600006.A96 2916600006 £1.75 £2.10
652 - HOSE FITTING BSD-3603386066.A50 3603386066 £14.91 £17.89
653 - ANGLE PIECE BSD-3601329007.A167 3601329007 £4.26 £5.11
702 - HANDLE BSD-3600499002.A22 3600499002 £21.68 £26.01
705 - CLUTCH ELEMENT BSD-3607031085.A10 3607031085 -
706 - COMPRESSION SPRING BSD-3604618007.A0 3604618007 £4.75 £5.70
707 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A197 2607950511 £4.26 £5.11
712 - HEXAGON-SOCKET KEY BSD-3607950001.A76 3607950001 £2.80 £3.36
760 - SUSPENSION LOOP BSD-2604720004.A72 2604720004 £4.26 £5.11
801 - CUTOFF COUPLING SP SET BSD-3607031120.A6 3607031120 £306.65 £367.98
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031303.A8 3607031303 £410.78 £492.94
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031305.A10 3607031305 £23.86 £28.63
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031425.A2 3607031425 £251.67 £302.00
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031422.A0 3607031422 £156.22 £187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031086.A20 3607031086 £8.67 £10.41
859 - HOLDING BELT BSD-3604710062.A108 3604710062 £1.75 £2.10
890 - AUXILIARY HANDLE BSD-3607031352.A13 3607031352 £93.88 £112.65
891 - AIR HOSE BSD-3607000083.A22 3607000083 £59.53 £71.44
899 - AIR HOSE BSD-3607000064.A50 3607000064 £27.23 £32.68
