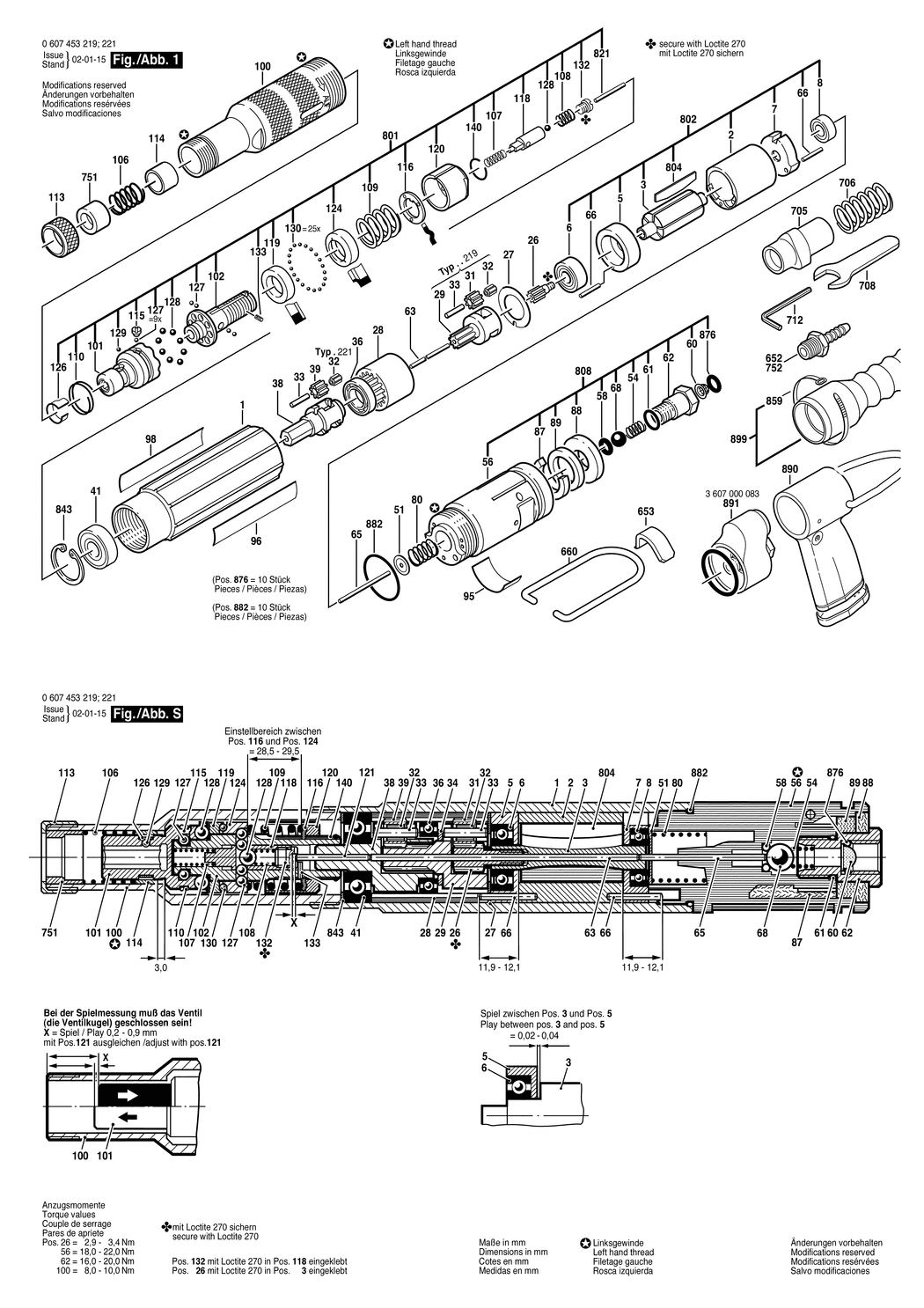

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453219 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-16051082JD.A16 16051082JD -
2 - STATOR 180W BSD-3604090050.A77 3604090050 £93.88 £112.65
3 - ROTOR BSD-3604220081.A21 3604220081 £102.57 £123.08
5 - BEARING FLANGE BSD-3605700107.A48 3605700107 £37.27 £44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A35 1900905044 £7.36 £8.83
7 - BEARING FLANGE BSD-3605700109.A2 3605700109 £45.67 £54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A110 1900905028 £33.74 £40.49
26 - PINION Z=15 BSD-3606300015.A7 3606300015 -
27 - STOP DISC BSD-3600101047.A68 3600101047 £2.16 £2.59
28 - RING GEAR dia19.5 MM BSD-3606334085.A15 3606334085 £8.67 £10.41
29 - PLANETARY-GEAR CARRIER BSD-3606337181.A22 3606337181 £48.38 £58.06
31 - CYLINDRICAL GEAR Z=13 BSD-3606316010.A34 3606316010 -
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A472 3600913000 £4.26 £5.11
33 - NEEDLE ROLLER BSD-3603201000.A115 3603201000 £1.75 £2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A188 3600905002 £16.41 £19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337015.A19 3606337015 £93.88 £112.65
39 - CYLINDRICAL GEAR BSD-3606316114.A24 3606316114 £13.12 £15.75
41 - GROOVE BALL BEARING BSD-3600905015.A179 3600905015 £16.41 £19.69
51 - COVER DISC BSD-3600100065.A3 3600100065 £7.78 £9.33
54 - COMPRESSION SPRING BSD-3604611017.A5 3604611017 £2.61 £3.13
56 - VALVE HOUSING BSD-3605190177.A1 3605190177 -
58 - O-RING 4.3x2.4 MM BSD-3600210084.A29 3600210084 £2.61 £3.13
60 - STRAINER BSD-3600002000.A321 3600002000 £3.72 £4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A59 2600210021 £1.75 £2.10
62 - FITTING BSD-3603458016.A74 3603458016 £11.30 £13.56
63 - STRAIGHT PIN L=9.5 MM BSD-3603201062.A0 3603201062 £6.52 £7.83
65 - STRAIGHT PIN BSD-3603201026.A16 3603201026 £7.36 £8.83
66 - STRAIGHT PIN BSD-3603201077.A35 3603201077 £11.30 £13.56
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A117 1903230014 £1.75 £2.10
80 - COMPRESSION SPRING BSD-3604615009.A26 3604615009 £2.16 £2.59
87 - SILENCER BSD-3601010010.A123 3601010010 £2.16 £2.59
88 - SILENCER BSD-3601010037.A2 3601010037 £11.30 £13.56
89 - SILENCER BSD-3601010044.A74 3601010044 £7.36 £8.83
95 - NAMEPLATE BSD-160111A3HF.A257 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A24 3601119055 £3.72 £4.47
98 - STICKER BSD-3601110204.A22 3601110204 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A1923 3601119236 £3.72 £4.47
100 - HOUSING BSD-3605125011.A23 3605125011 £48.38 £58.06
101 - CLUTCH ELEMENT BSD-3606432006.A9 3606432006 £81.81 £98.17
102 - DRIVE SHAFT BSD-3606122011.A23 3606122011 £120.11 £144.13
106 - COMPRESSION SPRING BSD-3604615000.A11 3604615000 £1.75 £2.10
107 - COMPRESSION SPRING BSD-3604610006.A3 3604610006 £2.16 £2.59
108 - COMPRESSION SPRING BSD-3604610002.A88 3604610002 £3.72 £4.47
109 - COMPRESSION SPRING BSD-3604619003.A39 3604619003 £5.58 £6.70
110 - RETAINING RING BSD-3604601002.A11 3604601002 £1.75 £2.10
113 - UNION NUT BSD-3603340000.A19 3603340000 £4.26 £5.11
114 - BUSHING BSD-3600202000.A11 3600202000 £5.58 £6.70
115 - SEALING PLATE BSD-3600001002.A59 3600001002 £3.72 £4.47
116 - ADJUSTING DISC BSD-3600134003.A20 3600134003 £2.61 £3.13
118 - LOCKING BOLT BSD-3603150203.A88 3603150203 £45.67 £54.80
119 - SUPPORT DISC BSD-3600114002.A62 3600114002 £12.04 £14.45
120 - ROUND NUT BSD-3603344009.A58 3603344009 £27.23 £32.68
124 - COUPLING PLATE BSD-3600220001.A28 3600220001 £11.30 £13.56
126 - LEAF SPRING BSD-2601250001.A77 2601250001 £3.72 £4.47
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A151 1903230007 £1.75 £2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A175 1903230009 £1.75 £2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A449 1903230003 £2.61 £3.13
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A450 1903230003 £2.61 £3.13
132 - SCREW PLUG BSD-3603463000.A30 3603463000 £2.61 £3.13
133 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A33 2917800033 £1.75 £2.10
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A86 2916600008 £2.80 £3.36
653 - ANGLE PIECE BSD-3601329007.A51 3601329007 £4.26 £5.11
660 - SUSPENSION LOOP BSD-2604720004.A107 2604720004 £4.26 £5.11
705 - HANDLE BSD-3600499001.A27 3600499001 £31.64 £37.97
706 - COMPRESSION SPRING BSD-3604618003.A58 3604618003 £7.36 £8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A121 1607950505 £16.41 £19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A176 3607950001 £2.80 £3.36
751 - GUIDE SLEEVE BSD-3600329000.A80 3600329000 £7.36 £8.83
752 - HOSE FITTING BSD-3603386002.A3 3603386002 £3.34 £4.01
801 - CUTOFF COUPLING SP SET BSD-3607031117.A2 3607031117 £251.67 £302.00
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031219.A3 3607031219 -
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A15 3607031304 £27.23 £32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031363.A0 3607031363 -
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A123 3607031087 £12.04 £14.45
843 - PARTS SET BSD-3607010010.A77 3607010010 £7.36 £8.83
859 - HOLDING BELT BSD-3604710062.A11 3604710062 £1.75 £2.10
876 - PARTS SET BSD-3607010020.A52 3607010020 £8.67 £10.41
882 - O-RING BSD-3607010006.A136 3607010006 £31.64 £37.97
890 - AUXILIARY HANDLE BSD-3607031351.A25 3607031351 £72.18 £86.62
891 - AIR HOSE BSD-3607000083.A52 3607000083 £59.53 £71.44
899 - AIR HOSE BSD-3607000064.A24 3607000064 £27.23 £32.68
