Bosch 180 WATT-SERIE / 0607453224 / --- Spare Parts

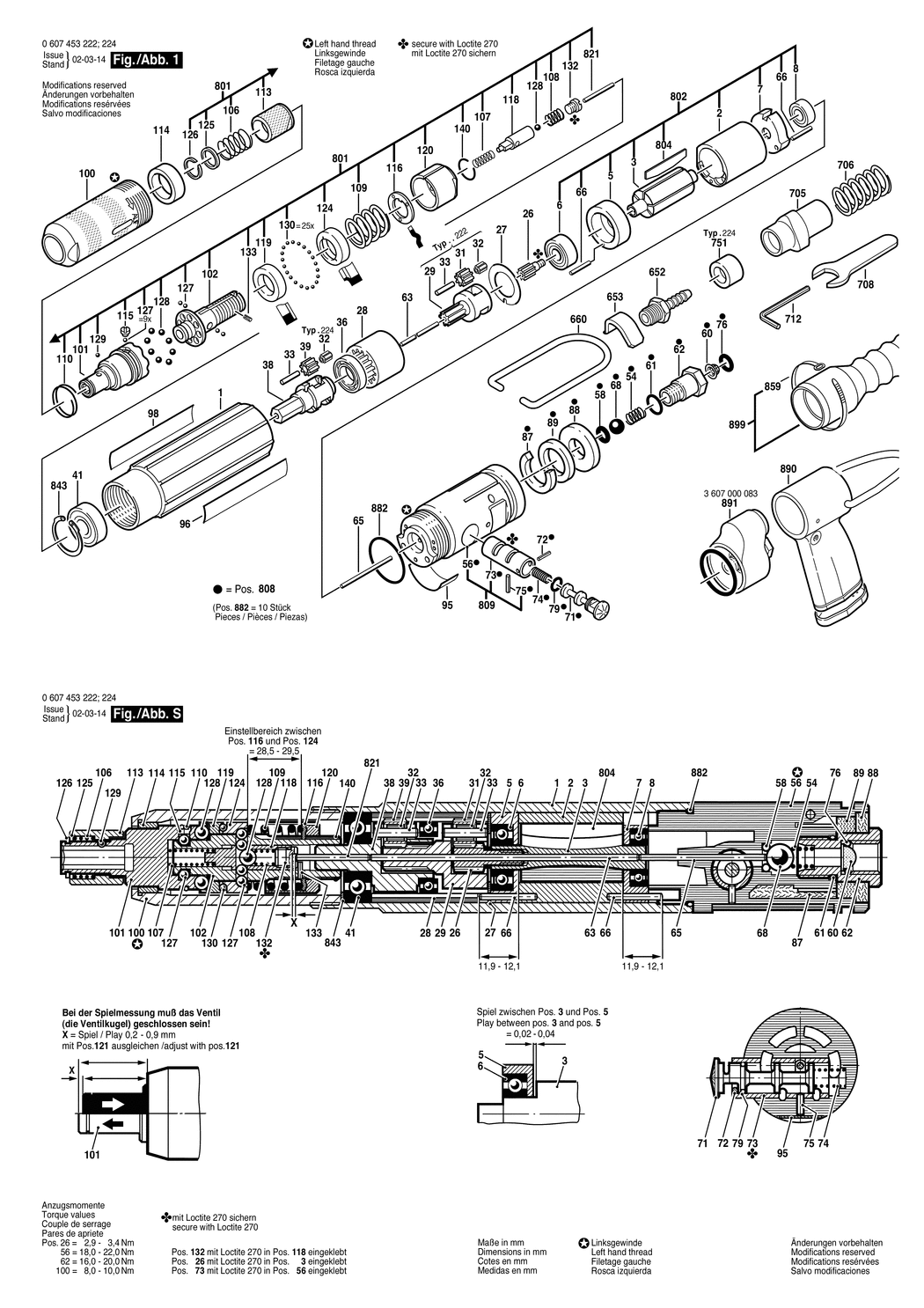

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453224 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760084.A6 3600760084	£80.61	£96.73
2 - STATOR 180W BSD-3604090050.A65 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A15 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A44 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A18 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700108.A19 3605700108	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A132 1900905028	£33.74	£40.49
26 - PINION BSD-3606300180.A17 3606300180	£31.64	£37.97
27 - STOP DISC BSD-3600101047.A92 3600101047	£2.16	£2.59
28 - RING GEAR Z=42/54 BSD-3606334080.A10 3606334080	£23.86	£28.63
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A484 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A76 3603201000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A177 3600905002	£16.41	£19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337175.A5 3606337175	£156.22	£187.46
39 - CYLINDRICAL GEAR BSD-3606316104.A17 3606316104	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905015.A198 3600905015	£16.41	£19.69
54 - COMPRESSION SPRING BSD-3604611017.A6 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190173.A11 3605190173	£45.67	£54.80
58 - O-RING 4.3x2.4 MM BSD-3600210084.A23 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A304 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A48 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A61 3603458016	£11.30	£13.56
63 - STRAIGHT PIN L=64.5 MM BSD-3603201064.A3 3603201064	£4.26	£5.11
65 - STRAIGHT PIN BSD-3603201026.A9 3603201026	£7.36	£8.83
66 - STRAIGHT PIN BSD-3603201077.A22 3603201077	£11.30	£13.56
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A106 1903230014	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A61 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A42 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A17 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A87 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A11 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A24 3600210094	£2.80	£3.36
79 - O-RING BSD-3600210093.A47 3600210093	£1.75	£2.10
87 - SILENCER BSD-3601010010.A113 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A12 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A64 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A297 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A14 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A19 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1954 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125007.A2 3605125007	£61.98	£74.38
101 - CLUTCH ELEMENT BSD-3606432007.A19 3606432007	£102.57	£123.08
102 - DRIVE SHAFT BSD-3606122011.A19 3606122011	£120.11	£144.13
106 - COMPRESSION SPRING BSD-3604617000.A46 3604617000	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610006.A8 3604610006	£2.16	£2.59
108 - COMPRESSION SPRING BSD-3604610002.A95 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619003.A57 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3604601002.A18 3604601002	£1.75	£2.10
113 - CLAMPING SLEEVE BSD-3600311016.A40 3600311016	£21.52	£25.83
114 - SINTERED-METAL BUSHING BSD-3600301004.A39 3600301004	-
115 - SEALING PLATE BSD-3600001002.A68 3600001002	£3.72	£4.47
116 - ADJUSTING DISC BSD-3600134003.A28 3600134003	£2.61	£3.13
118 - LOCKING BOLT BSD-3603150203.A108 3603150203	£45.67	£54.80
119 - SUPPORT DISC BSD-3600114002.A68 3600114002	£12.04	£14.45
120 - ROUND NUT BSD-3603344009.A51 3603344009	£27.23	£32.68
124 - COUPLING PLATE BSD-3600220001.A36 3600220001	£11.30	£13.56
125 - BACKUP RING BSD-3600202006.A17 3600202006	£2.80	£3.36
126 - RETAINING RING BSD-3600224006.A55 3600224006	£2.80	£3.36
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A145 1903230007	£1.75	£2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A148 1903230009	£1.75	£2.10
129 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A104 1903230004	£2.16	£2.59
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A444 1903230003	£2.61	£3.13
132 - SCREW PLUG BSD-3603463000.A34 3603463000	£2.61	£3.13
133 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A27 2917800033	£1.75	£2.10
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A57 2916600008	£2.80	£3.36
652 - HOSE FITTING BSD-3603386066.A20 3603386066	£14.91	£17.89
653 - ANGLE PIECE BSD-3601329007.A21 3601329007	£4.26	£5.11
660 - SUSPENSION LOOP BSD-2604720004.A112 2604720004	£4.26	£5.11
705 - HANDLE BSD-3600499001.A44 3600499001	£31.64	£37.97
706 - COMPRESSION SPRING BSD-3604618003.A35 3604618003	£7.36	£8.83
708 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A110 1607950505	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A155 3607950001	£2.80	£3.36
751 - GUIDE SLEEVE BSD-3600329000.A90 3600329000	£7.36	£8.83
801 - CUTOFF COUPLING SP SET BSD-3607031123.A18 3607031123	£357.27	£428.72
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031217.A9 3607031217	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A37 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031362.A1 3607031362	£357.27	£428.72
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031416.A11 3607031416	£156.22	£187.46
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A117 3607031087	£12.04	£14.45
843 - PARTS SET BSD-3607010010.A83 3607010010	£7.36	£8.83
859 - HOLDING BELT BSD-3604710062.A21 3604710062	£1.75	£2.10
882 - O-RING BSD-3607010006.A130 3607010006	£31.64	£37.97
890 - AUXILIARY HANDLE BSD-3607031351.A4 3607031351	£72.18	£86.62
891 - AIR HOSE BSD-3607000083.A40 3607000083	£59.53	£71.44
899 - AIR HOSE BSD-3607000064.A18 3607000064	£27.23	£32.68
