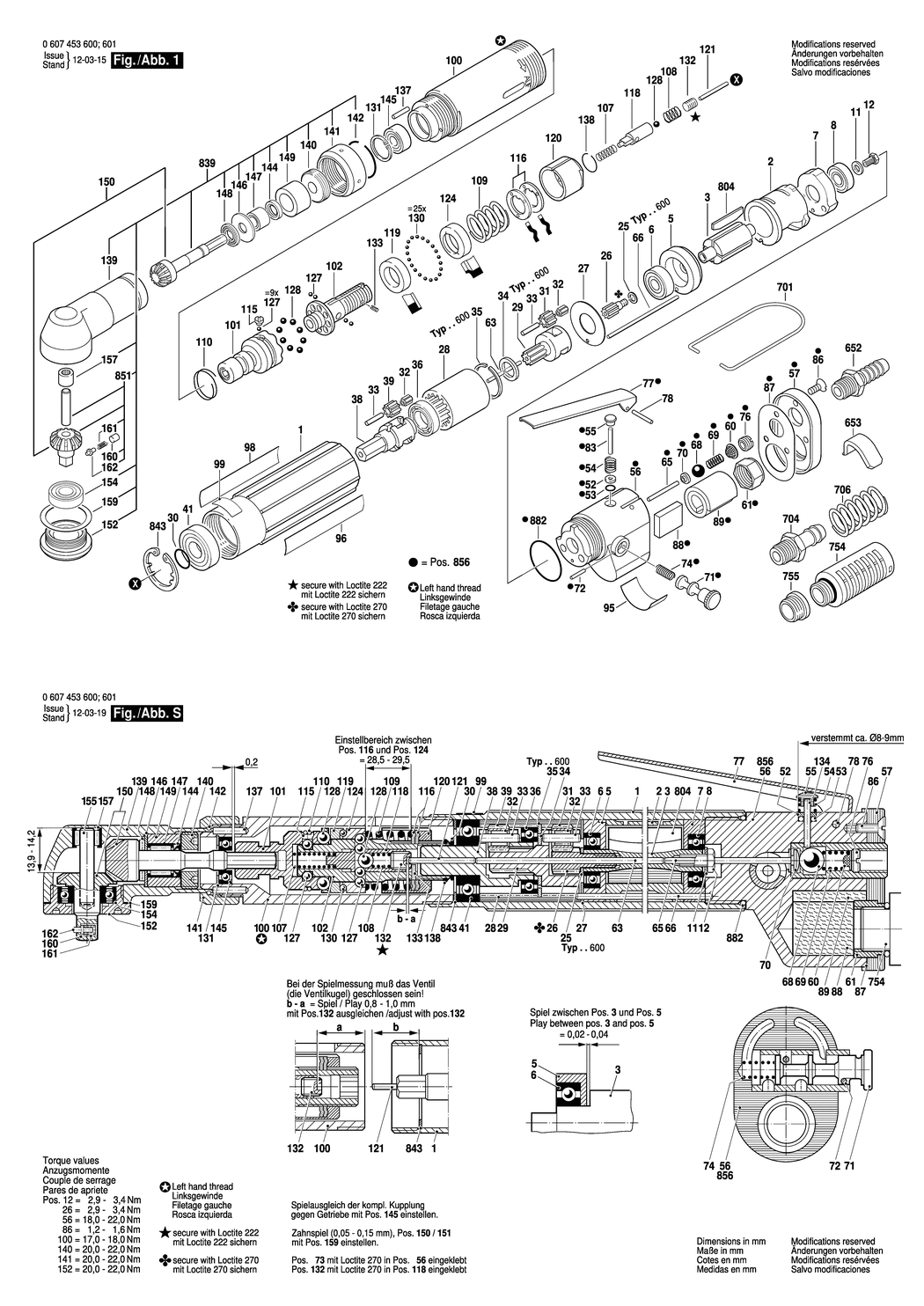

1 - MOTOR HOUSING
BSD-3600760020.A23
3600760020
|
£58.76
|
£70.51
|
|
|
2 - STATOR 180W
BSD-3604090010.A44
3604090010
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220008.A38
3604220008
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A95
3605700015
|
£45.67
|
£54.80
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A1729
2600905032
|
£5.30
|
£6.36
|
|
|
7 - BEARING FLANGE
BSD-3605700017.A42
3605700017
|
£48.38
|
£58.06
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A170
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A190
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW
BSD-3603450000.A103
3603450000
|
£7.36
|
£8.83
|
|
|
26 - PINION Z=12
BSD-3606300014.A9
3606300014
|
£14.75
|
£17.70
|
|
|
27 - STOP DISC
BSD-3600101047.A159
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42
BSD-3606334005.A40
3606334005
|
£59.53
|
£71.44
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337057.A23
3606337057
|
£48.38
|
£58.06
|
|
|
30 - O-RING 12x2.5 MM
BSD-1900210110.A22
1900210110
|
£2.61
|
£3.13
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316011.A37
3606316011
|
£7.78
|
£9.33
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A201
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A409
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A1
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337015.A7
3606337015
|
£93.88
|
£112.65
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A76
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A85
3600905015
|
£16.41
|
£19.69
|
|
|
52 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A185
2916011006
|
£1.75
|
£2.10
|
|
|
53 - O-RING 2.4x1.9 MM
BSD-2600210007.A0
2600210007
|
£2.16
|
£2.59
|
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A107
3604611017
|
£2.61
|
£3.13
|
|
|
55 - VALVE CONE
BSD-3603132000.A0
3603132000
|
£2.80
|
£3.36
|
|
|
57 - HOUSING COVER
BSD-3605500003.A2
3605500003
|
£2.61
|
£3.13
|
|
|
60 - STRAINER
BSD-3600002001.A95
3600002001
|
£2.61
|
£3.13
|
|
|
61 - HEX NUT
BSD-3603458003.A6
3603458003
|
£4.26
|
£5.11
|
|
|
63 - STRAIGHT PIN 75 MM
BSD-3603201006.A26
3603201006
|
£3.72
|
£4.47
|
|
|
65 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A59
3607031087
|
£12.04
|
£14.45
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A46
3603201009
|
£5.58
|
£6.70
|
|
|
68 - BALL dia9 MM
BSD-3603230004.A32
3603230004
|
£3.72
|
£4.47
|
|
|
69 - COMPRESSION SPRING
BSD-3604611006.A145
3604611006
|
£2.16
|
£2.59
|
|
|
70 - VALVE CONE
BSD-3600250001.A9
3600250001
|
-
|
|
|
|
71 - CONTROL PISTON
BSD-3608750001.A19
3608750001
|
-
|
|
|
|
72 - COILED SPRING PIN DIN 7343-1.5x10
BSD-2917800016.A49
2917800016
|
£1.75
|
£2.10
|
|
|
74 - COMPRESSION SPRING
BSD-3604611007.A0
3604611007
|
£2.16
|
£2.59
|
|
|
76 - THREADED RING
BSD-3603344003.A101
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A17
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A135
2917700040
|
£2.80
|
£3.36
|
|
|
83 - NEEDLE ROLLER
BSD-3603201059.A4
3603201059
|
-
|
|
|
|
86 - COUNTERSUNK-HEAD SCREW M 4x10 DIN 963-4.8
BSD-2910762120.A3
2910762120
|
£1.75
|
£2.10
|
|
|
87 - SEALING PLATE
BSD-3600054001.A33
3600054001
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010002.A49
3601010002
|
£2.80
|
£3.36
|
|
|
89 - SILENCER
BSD-3601010010.A16
3601010010
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A411
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A558
1601110481
|
£2.16
|
£2.59
|
|
|
98 - STICKER
BSD-3601110204.A80
3601110204
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A823
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125026.A0
3605125026
|
£81.81
|
£98.17
|
|
|
101 - CLUTCH ELEMENT
BSD-3606432006.A32
3606432006
|
£81.81
|
£98.17
|
|
|
102 - DRIVE SHAFT
BSD-3606122011.A55
3606122011
|
£120.11
|
£144.13
|
|
|
107 - COMPRESSION SPRING
BSD-3604610006.A21
3604610006
|
£2.16
|
£2.59
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A29
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING
BSD-3604619003.A114
3604619003
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3604601002.A70
3604601002
|
£1.75
|
£2.10
|
|
|
115 - SEALING PLATE
BSD-3600001002.A20
3600001002
|
£3.72
|
£4.47
|
|
|
116 - ADJUSTING DISC
BSD-3600134003.A57
3600134003
|
£2.61
|
£3.13
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A37
3603150203
|
£45.67
|
£54.80
|
|
|
119 - SUPPORT DISC
BSD-3600114002.A0
3600114002
|
£12.04
|
£14.45
|
|
|
120 - ROUND NUT
BSD-3603344009.A18
3603344009
|
£27.23
|
£32.68
|
|
|
121 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A60
3607031087
|
£12.04
|
£14.45
|
|
|
124 - COUPLING PLATE
BSD-3600220001.A17
3600220001
|
£11.30
|
£13.56
|
|
|
127 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A565
1903230007
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-5 G28
BSD-1903230009.A567
1903230009
|
£1.75
|
£2.10
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A216
1903230003
|
£2.61
|
£3.13
|
|
|
131 - SPRING RETAINING RING 16x1 MM. DIN 472
BSD-2916660003.A26
2916660003
|
£1.75
|
£2.10
|
|
|
132 - SET SCREW
BSD-3603400001.A3
3603400001
|
£2.80
|
£3.36
|
|
|
133 - COILED SPRING PIN DIN 7343-2x5
BSD-2917800033.A44
2917800033
|
£1.75
|
£2.10
|
|
|
137 - STRAIGHT PIN DIN 6325-5M2.5x12
BSD-2917530057.A12
2917530057
|
£1.75
|
£2.10
|
|
|
138 - RETAINING RING 14 DIN 9045
BSD-2916600008.A162
2916600008
|
£2.80
|
£3.36
|
|
|
139 - SPINDLE HOUSING
BSD-3605106008.A2
3605106008
|
£179.37
|
£215.24
|
|
|
140 - THREADED RING
BSD-3603344011.A10
3603344011
|
£10.10
|
£12.12
|
|
|
141 - UNION NUT
BSD-3603342002.A40
3603342002
|
£16.41
|
£19.69
|
|
|
142 - RETAINING RING DIN 9045-24
BSD-1614601009.A185
1614601009
|
£1.95
|
£2.34
|
|
|
144 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A42
1600283003
|
£4.26
|
£5.11
|
|
|
145 - GROOVE BALL BEARING
BSD-1280905004.A54
1280905004
|
£31.64
|
£37.97
|
|
|
146 - SUPPORT DISC
BSD-3600100096.A3
3600100096
|
£18.96
|
£22.75
|
|
|
147 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A58
1610910057
|
£2.80
|
£3.36
|
|
|
148 - ROLLER THRUST BEARING
BSD-3600929003.A3
3600929003
|
£21.52
|
£25.83
|
|
|
149 - BEARING SLEEVE
BSD-3600300006.A9
3600300006
|
-
|
|
|
|
150 - BEVEL GEAR SET
BSD-3608871841.A1
3608871841
|
-
|
|
|
|
152 - BEARING FLANGE
BSD-3603462005.A0
3603462005
|
-
|
|
|
|
154 - GROOVE BALL BEARING
BSD-3600905026.A3
3600905026
|
£21.68
|
£26.01
|
|
|
156 - COMPRESSION SPRING
BSD-2604613003.A12
2604613003
|
£2.16
|
£2.59
|
|
|
157 - NEEDLE BEARING
BSD-9001140359.A2
9001140359
|
£6.52
|
£7.83
|
|
|
158 - DETENT PIN
BSD-3603203010.A0
3603203010
|
-
|
|
|
|
159 - SHIM
BSD-3600102010.A11
3600102010
|
£2.61
|
£3.13
|
|
|
159 - SHIM
BSD-3600102012.A12
3600102012
|
£2.61
|
£3.13
|
|
|
160 - GUIDE SLEEVE
BSD-3600400014.A0
3600400014
|
£10.10
|
£12.12
|
|
|
161 - COMPRESSION SPRING
BSD-2604613003.A11
2604613003
|
£2.16
|
£2.59
|
|
|
162 - DETENT PIN
BSD-3603124015.A6
3603124015
|
£8.67
|
£10.41
|
|
|
652 - HOSE FITTING
BSD-3603386002.A96
3603386002
|
£3.34
|
£4.01
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A170
3601329007
|
£4.26
|
£5.11
|
|
|
701 - SUSPENSION LOOP
BSD-2601310002.A20
2601310002
|
£16.41
|
£19.69
|
|
|
704 - HOSE FITTING
BSD-3607010011.A8
3607010011
|
-
|
|
|
|
706 - COMPRESSION SPRING
BSD-3604618003.A83
3604618003
|
£7.36
|
£8.83
|
|
|
754 - SILENCER
BSD-3607000074.A95
3607000074
|
£23.86
|
£28.63
|
|
|
755 - PARTS SET
BSD-3607010016.A0
3607010016
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A94
3607030256
|
£30.42
|
£36.51
|
|
|
839 - ANGLE SCREWDRIVER HEAD
BSD-3607020047.A0
3607020047
|
£608.95
|
£730.74
|
|
|
843 - PARTS SET
BSD-3607010010.A24
3607010010
|
£7.36
|
£8.83
|
|
|
851 - ASSEMBLY OF SERVICE PARTS
BSD-3607031159.A4
3607031159
|
£195.26
|
£234.31
|
|
|
856 - VALVE BODY
BSD-3607031321.A2
3607031321
|
-
|
|
|
|
882 - O-RING
BSD-3607010006.A80
3607010006
|
£31.64
|
£37.97
|
|
