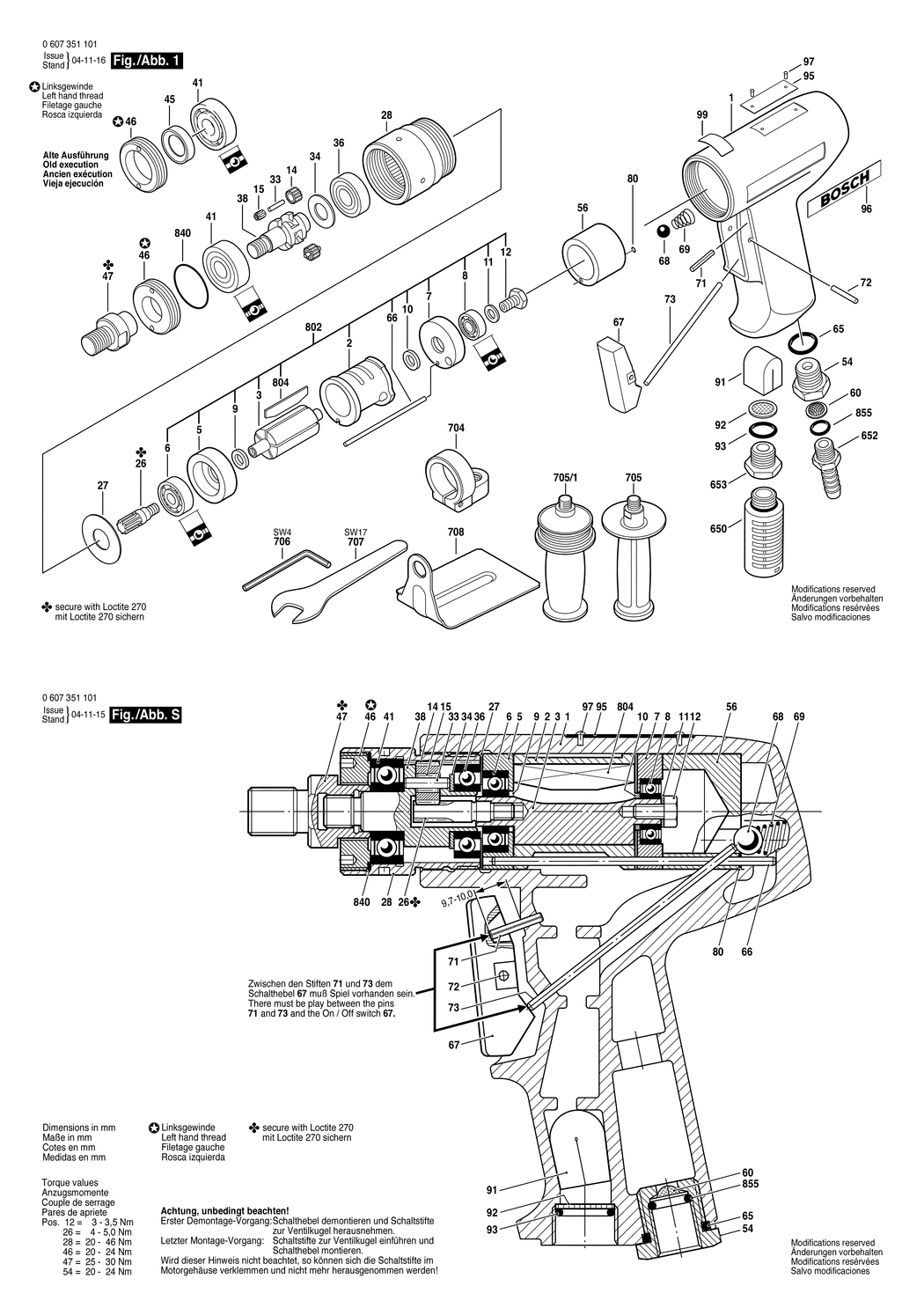

1 - MOTOR HOUSING
BSD-3605108025.A15
3605108025
|
-
|
|
|
|
2 - STATOR 370W
BSD-3604090003.A86
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220003.A38
3604220003
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A0
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A301
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700008.A37
3605700008
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A414
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A39
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A156
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A149
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A132
2911061150
|
£2.61
|
£3.13
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316100.A29
3606316100
|
£21.52
|
£25.83
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A323
3600913000
|
£4.26
|
£5.11
|
|
|
26 - PINION Z=11
BSD-3606300016.A1
3606300016
|
-
|
|
|
|
27 - STOP DISC
BSD-3600101001.A60
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334001.A11
3606334001
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A156
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A117
3600103002
|
£3.72
|
£4.47
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A79
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337027.A0
3606337027
|
-
|
|
|
|
41 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A150
1900900302
|
-
|
|
|
|
45 - RADIAL SEAL
BSD-3600283000.A12
3600283000
|
-
|
|
|
|
46 - THREADED RING
BSD-3603344000.A18
3603344000
|
£16.41
|
£19.69
|
|
|
47 - DRILLING SPINDLE
BSD-3603151400.A0
3603151400
|
-
|
|
|
|
54 - FITTING
BSD-3603458008.A59
3603458008
|
£8.67
|
£10.41
|
|
|
56 - VALVE BODY
BSD-3605190044.A0
3605190044
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A225
3600002000
|
£3.72
|
£4.47
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A72
3600210003
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A26
3604710006
|
£8.67
|
£10.41
|
|
|
67 - CONTROL LEVER
BSD-3602053001.A47
3602053001
|
£2.80
|
£3.36
|
|
|
68 - BALL dia9 MM
BSD-3603230004.A81
3603230004
|
£3.72
|
£4.47
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A16
3604616002
|
£2.16
|
£2.59
|
|
|
71 - STRAIGHT GROOVED PIN 2.5x16 DIN 1473
BSD-2917601059.A20
2917601059
|
£1.75
|
£2.10
|
|
|
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A87
2917610083
|
£1.75
|
£2.10
|
|
|
73 - STRAIGHT PIN
BSD-3604710003.A20
3604710003
|
£6.52
|
£7.83
|
|
|
80 - O-RING 1.8x1.0 MM
BSD-3600210002.A33
3600210002
|
£2.61
|
£3.13
|
|
|
91 - SILENCER
BSD-3601010001.A30
3601010001
|
£2.16
|
£2.59
|
|
|
92 - FILTER SCREEN
BSD-3600002004.A21
3600002004
|
£2.80
|
£3.36
|
|
|
93 - O-RING 14.0x3.0 MM
BSD-3600210009.A23
3600210009
|
£1.32
|
£1.58
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A55
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A248
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A239
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1438
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SILENCER
BSD-3603462000.A90
3603462000
|
£16.41
|
£19.69
|
|
|
652 - HOSE FITTING
BSD-2603386002.A255
2603386002
|
£5.30
|
£6.36
|
|
|
653 - SILENCER
BSD-3607000073.A179
3607000073
|
£18.96
|
£22.75
|
|
|
704 - SUPPORT CLAMP
BSD-3608040004.A0
3608040004
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A646
1602025022
|
£13.41
|
£16.09
|
|
|
705/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A693
1602025030
|
£18.96
|
£22.75
|
|
|
706 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A13
2607950004
|
£1.75
|
£2.10
|
|
|
707 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A876
2607950511
|
£4.26
|
£5.11
|
|
|
708 - PROTECTING COVER
BSD-1601329013.A105
1601329013
|
£11.37
|
£13.64
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031023.A1
3607031023
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A91
3607030248
|
£31.64
|
£37.97
|
|
|
840 - PARTS SET
BSD-3607010007.A17
3607010007
|
£18.96
|
£22.75
|
|
|
855 - O-RING 10x2 MM
BSD-1900210306.A154
1900210306
|
£1.75
|
£2.10
|
|
