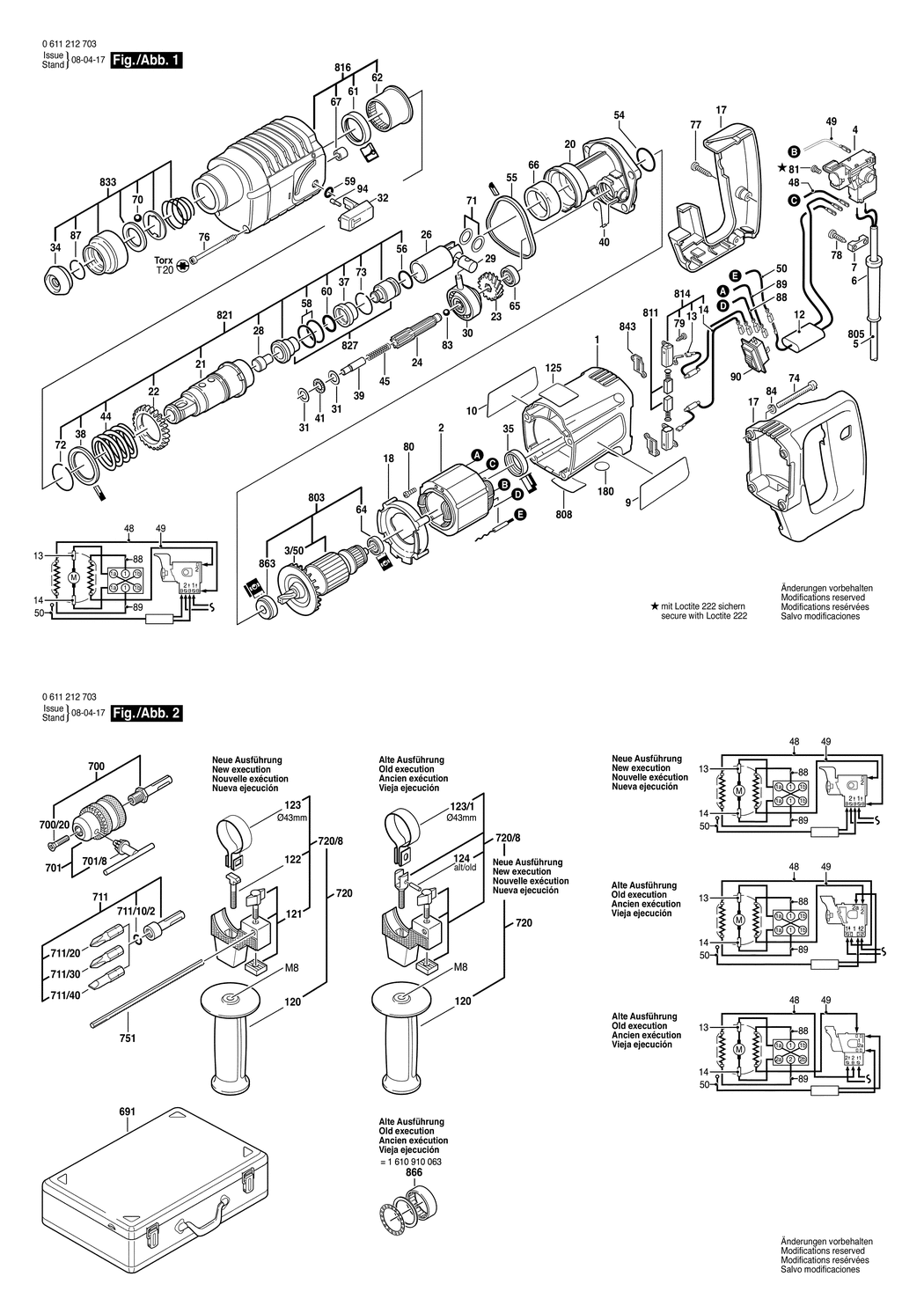

An exploded drawing and listing for the Bosch 510 / 0611212683 / I 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605108014.A2 2605108014 -
3/50 - FAN BSD-1616610072.A57 1616610072 £2.16 £2.59
5 - POWER SUPPLY CORD I 4.15m 2 x 1.0mm H07 RN-F BSD-1614460039.A11 1614460039 £16.74 £20.09
17 - HANDLE BSD-1615133022.A20 1615133022 -
18 - AIR-DEFLECTOR RING BSD-1610522008.A7 1610522008 £1.75 £2.10
18 - COVER DISC BSD-2601328033.A238 2601328033 -
20 - INTERMEDIATE FLANGE BSD-1615700037.A37 1615700037 £40.80 £48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A67 1616490058 £218.41 £262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A105 1616320007 £7.36 £8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A72 1616320002 £24.45 £29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A72 1613060010 £54.42 £65.30
26 - HAMMER PISTON BSD-1618700052.A10 1618700052 £13.12 £15.75
28 - STRIKER PIN BSD-1613124026.A6 1613124026 £2.80 £3.36
29 - PISTON PIN BSD-1613105012.A115 1613105012 £3.72 £4.47
30 - DRIVE BEARING BSD-1615819005.A108 1615819005 £31.64 £37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A142 1610100003 £1.75 £2.10
32 - CLAMP HANDLE BSD-1612026023.A76 1612026023 £2.61 £3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A64 1610508008 £2.16 £2.59
35 - RUBBER RING BSD-1610206021.A3 1610206021 £1.75 £2.10
37 - DAMPING BUSHING BSD-1610390011.A43 1610390011 £3.72 £4.47
38 - SUPPORTING DISC BSD-1610102022.A40 1610102022 £2.16 £2.59
39 - STRAIGHT PIN BSD-1613100013.A84 1613100013 £2.16 £2.59
40 - HOLDING SPRING BSD-1614690001.A81 1614690001 £1.75 £2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A109 1610920003 £4.26 £5.11
44 - COMPRESSION SPRING BSD-1614633001.A52 1614633001 £2.52 £3.02
45 - COMPRESSION SPRING BSD-1614614001.A114 1614614001 £1.75 £2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A6 1610210068 £1.75 £2.10
55 - SEAL RING BSD-1610206023.A169 1610206023 £2.80 £3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A6 1610210070 £2.61 £3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A89 1610210058 £2.61 £3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A167 1610210069 £1.75 £2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A142 1610210073 £2.16 £2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A73 1610283017 £7.36 £8.83
62 - PLAIN BEARING BSD-1610202026.A124 1610202026 £5.30 £6.36
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A81 1900900228 £6.61 £7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A72 1610301000 £3.34 £4.01
67 - NEEDLE BEARING BSD-1610910064.A290 1610910064 £2.52 £3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A418 1903230013 £2.16 £2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A87 1610101011 £1.75 £2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A47 2916540018 £3.72 £4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A108 1614601009 £1.95 £2.34
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8 BSD-2910011132.A34 2910011132 £1.32 £1.58
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A47 1613435009 £1.75 £2.10
77 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A141 1603435050 £2.33 £2.80
78 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A489 2910211019 £1.75 £2.10
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A414 2910211005 £1.75 £2.10
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A58 2910211206 £1.32 £1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A406 2603435015 £2.16 £2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2708 2603410001 £1.75 £2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A128 1903230309 £1.75 £2.10
84 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A951 2916690003 £1.75 £2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A381 2916540012 -
88 - CONNECTING CABLE L=145 MM BSD-1614431018.A3 1614431018 -
89 - CONNECTING CABLE L=80 MM BSD-1614431019.A22 1614431019 -
90 - CHANGE-OVER SWITCH BSD-2607200140.A21 2607200140 -
94 - DETENT PIN BSD-1613120017.A140 1613120017 £1.75 £2.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A353 1612025019 £6.52 £7.83
120 - AUXILIARY HANDLE BSD-160202507H.A49 160202507H £11.30 £13.56
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A49 1618040048 £8.67 £10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A508 1613490002 £4.26 £5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A239 1611316006 £2.61 £3.13
123 - CLAMPING BAND dia43 MM BSD-1611316003.A81 1611316003 £2.61 £3.13
124 - STRAIGHT PIN BSD-1613100012.A73 1613100012 £2.61 £3.13
700 - DRILL CHUCK SHANK BSD-1617000132.A67 1617000132 £16.84 £20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A204 2603421226 £1.75 £2.10
701 - CHUCK BSD-1608571088.A73 1608571088 £27.23 £32.68
701/8 - CHUCK WRENCH SG2 BSD-2607950007.A463 2607950007 £6.52 £7.83
711 - PARTS SET BSD-1617000133.A135 1617000133 -
711/10/2 - RETAINING RING BSD-2604601004.A130 2604601004 £1.75 £2.10
711/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A85 1608521004 -
711/30 - SCREWDRIVER BIT BSD-2607000248.A56 2607000248 -
711/40 - SCREWDRIVER BLADE GR.1.0x6. 1/4 BSD-1608511020.A43 1608511020 -
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A20 2602025070 £14.91 £17.89
720/8 - PARTS SET BSD-1617000925.A68 1617000925 £16.41 £19.69
808 - NAMEPLATE BSD-160111A3H3.A3153 160111A3H3 £2.61 £3.13
811 - CARBON BRUSH BSD-1617014114.A27 1617014114 £10.10 £12.12
816 - GEAR HOUSING BSD-1615806077.A32 1615806077 £45.67 £54.80
821 - RATCHET SLEEVE BSD-1617000931.A5 1617000931 £283.50 £340.20
827 - STRIKER BSD-1617000338.A101 1617000338 £27.23 £32.68
843 - BRUSH PLATE BSD-2601015047.A71 2601015047 -
863 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A345 1610905048 £8.67 £10.41
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A212 1610905025 £6.52 £7.83
