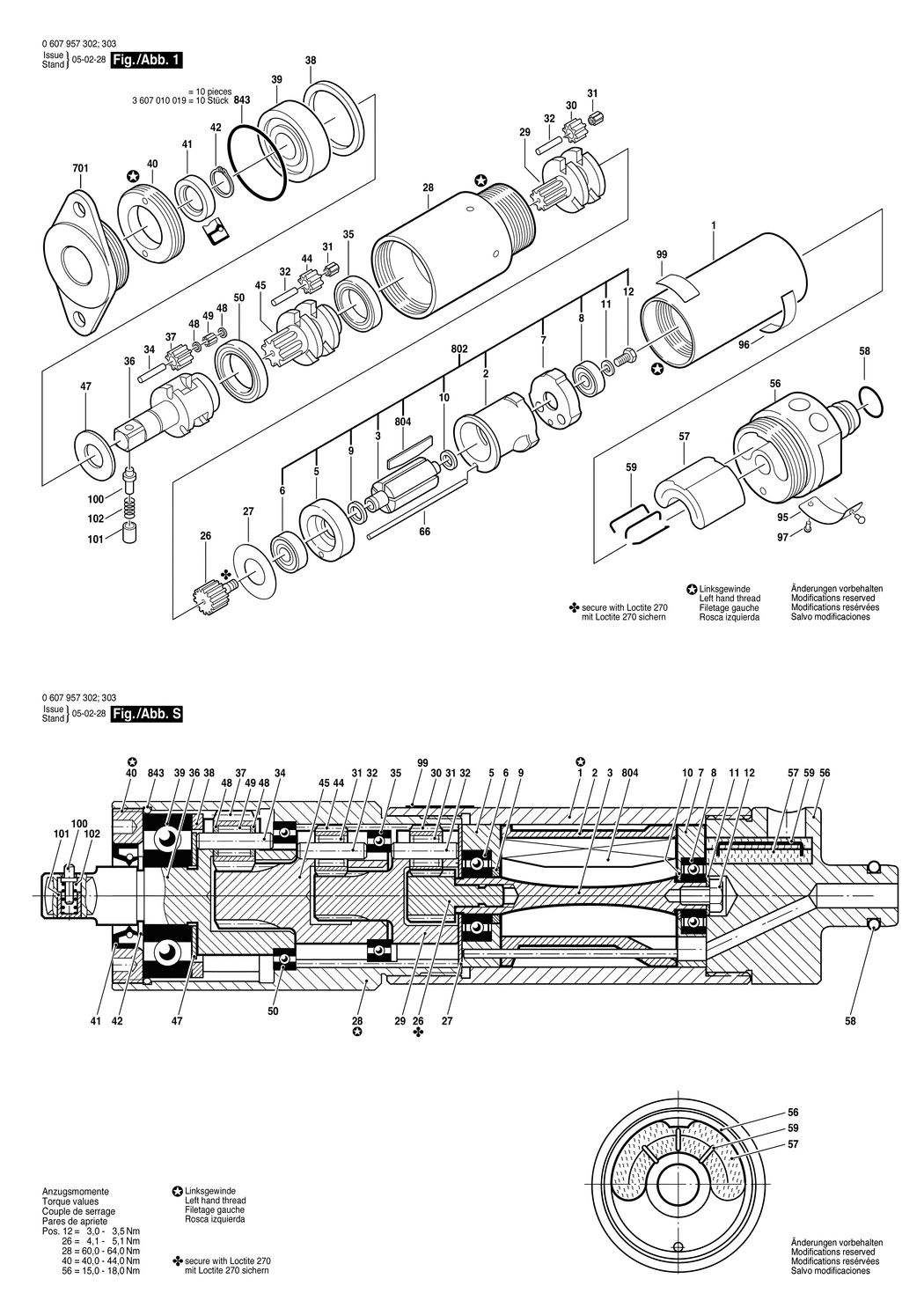

1 - MOTOR HOUSING
BSD-3600760013.A1
3600760013
|
£93.88
|
£112.65
|
|
|
2 - STATOR 740W
BSD-3604090022.A2
3604090022
|
£156.22
|
£187.46
|
|
|
3 - ROTOR
BSD-3604220021.A11
3604220021
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A53
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A2
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700010.A9
3605700010
|
£59.53
|
£71.44
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A170
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A50
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A33
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A71
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A173
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION Z=14
BSD-3606300048.A0
3606300048
|
£48.38
|
£58.06
|
|
|
27 - STOP DISC
BSD-3600101004.A79
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46/35
BSD-3606334013.A15
3606334013
|
£410.78
|
£492.94
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337048.A0
3606337048
|
£120.11
|
£144.13
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316103.A9
3606316103
|
£21.68
|
£26.01
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A52
3600910000
|
£4.26
|
£5.11
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A43
3603201005
|
£2.80
|
£3.36
|
|
|
34 - NEEDLE ROLLER
BSD-3603201031.A36
3603201031
|
£2.61
|
£3.13
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A47
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337044.A3
3606337044
|
£306.65
|
£367.98
|
|
|
37 - CYLINDRICAL GEAR
BSD-3606316105.A13
3606316105
|
£37.27
|
£44.72
|
|
|
38 - SPACER RING
BSD-3600101012.A11
3600101012
|
£18.96
|
£22.75
|
|
|
39 - GROOVE BALL BEARING 17x47x14
BSD-1900900382.A2
1900900382
|
£33.74
|
£40.49
|
|
|
40 - THREADED RING
BSD-3603344060.A1
3603344060
|
£23.86
|
£28.63
|
|
|
41 - RADIAL SEAL
BSD-3600283010.A17
3600283010
|
£18.96
|
£22.75
|
|
|
42 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A325
2916650008
|
£1.75
|
£2.10
|
|
|
44 - CYLINDRICAL GEAR
BSD-3606316103.A10
3606316103
|
£21.68
|
£26.01
|
|
|
45 - PLANETARY-GEAR CARRIER
BSD-3606337043.A2
3606337043
|
£156.22
|
£187.46
|
|
|
47 - THRUST BEARING DISC
BSD-1610101608.A66
1610101608
|
£2.16
|
£2.59
|
|
|
48 - STOP DISC
BSD-3600100006.A10
3600100006
|
£5.58
|
£6.70
|
|
|
49 - NEEDLE ROLLER
BSD-3603201030.A10
3603201030
|
£2.80
|
£3.36
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905103.A10
3600905103
|
£23.86
|
£28.63
|
|
|
56 - CONNECTION HOUSING
BSD-3605190062.A2
3605190062
|
-
|
|
|
|
57 - SILENCER
BSD-3601010007.A0
3601010007
|
-
|
|
|
|
58 - O-RING 18x2.5 MM
BSD-1900210311.A8
1900210311
|
-
|
|
|
|
59 - TRANSPORT BRACKET
BSD-3604720002.A0
3604720002
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A40
3604710006
|
£8.67
|
£10.41
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A206
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A99
2601110601
|
-
|
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A30
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1851
3601119236
|
£3.72
|
£4.47
|
|
|
100 - DETENT PIN
BSD-1603124085.A52
1603124085
|
£3.72
|
£4.47
|
|
|
101 - GUIDE SLEEVE
BSD-1600506009.A51
1600506009
|
£7.36
|
£8.83
|
|
|
102 - COMPRESSION SPRING
BSD-1604611019.A41
1604611019
|
£2.80
|
£3.36
|
|
|
701 - FASTENING FLANGE
BSD-3605700047.A0
3605700047
|
£102.57
|
£123.08
|
|
|
802 - MOTOR SPARE PARTS SET
BSD-3607031097.A0
3607031097
|
£410.78
|
£492.94
|
|
|
804 - PARTS SET
BSD-3607030254.A10
3607030254
|
£27.23
|
£32.68
|
|
|
843 - PARTS SET
BSD-3607010019.A10
3607010019
|
£14.91
|
£17.89
|
|
