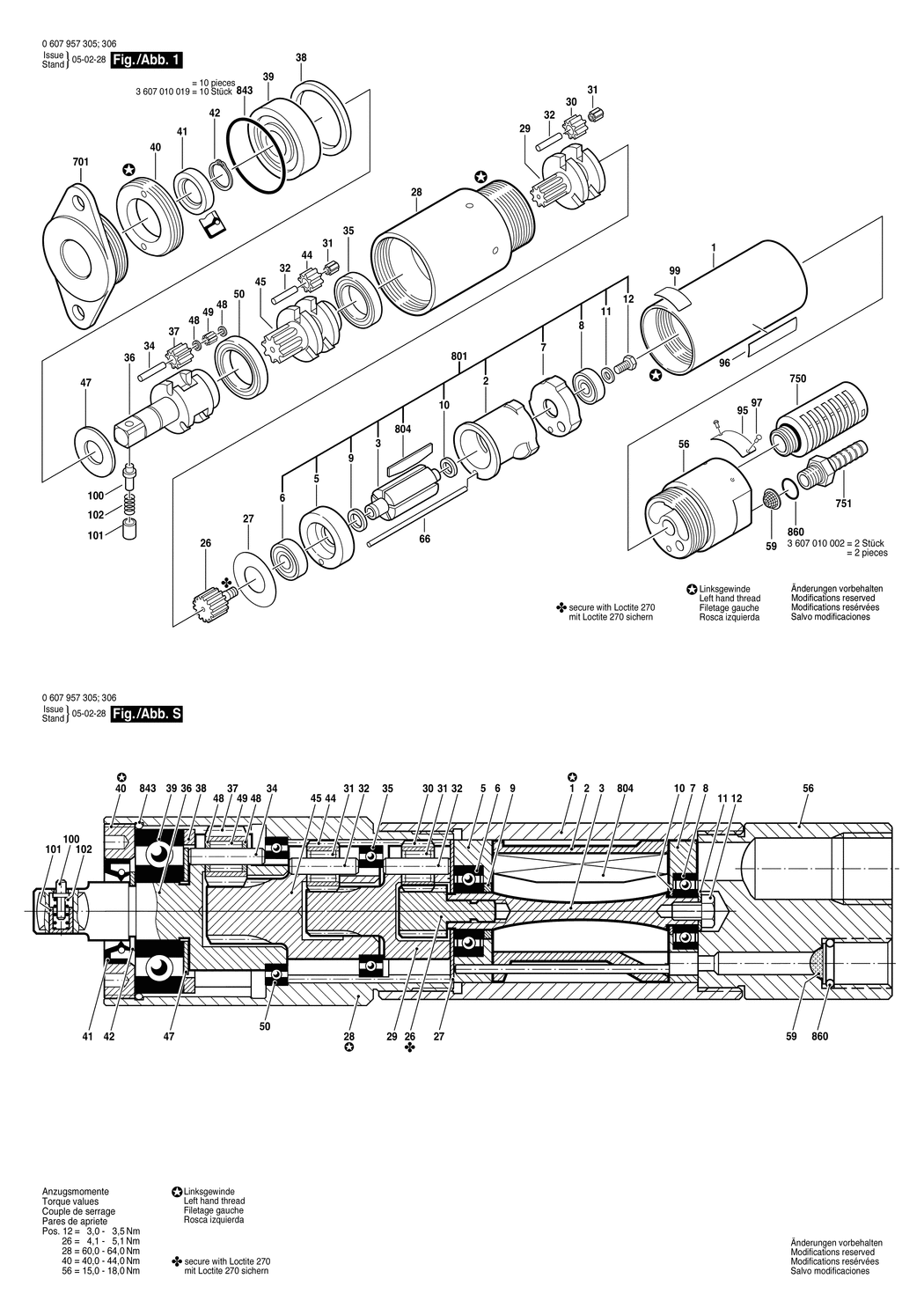

1 - MOTOR HOUSING
BSD-3600760013.A5
3600760013
|
£93.88
|
£112.65
|
|
|
2 - STATOR 740W
BSD-3604090022.A6
3604090022
|
£156.22
|
£187.46
|
|
|
3 - ROTOR
BSD-3604220021.A15
3604220021
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A57
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A9
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700010.A14
3605700010
|
£59.53
|
£71.44
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A163
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A52
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A41
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A78
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A166
2911061150
|
£2.61
|
£3.13
|
|
|
26 - PINION
BSD-3606300156.A16
3606300156
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101004.A78
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46/35
BSD-3606334012.A1
3606334012
|
£195.26
|
£234.31
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337010.A8
3606337010
|
£93.88
|
£112.65
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316102.A20
3606316102
|
£31.64
|
£37.97
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A49
3600910000
|
£4.26
|
£5.11
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A50
3603201005
|
£2.80
|
£3.36
|
|
|
33 - RETAINING RING
BSD-3600224004.A0
3600224004
|
£1.75
|
£2.10
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A53
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337042.A0
3606337042
|
£195.26
|
£234.31
|
|
|
37 - CYLINDRICAL GEAR Z=16
BSD-3606316091.A14
3606316091
|
£2.80
|
£3.36
|
|
|
39 - GROOVE BALL BEARING 17x47x14
BSD-1900900382.A8
1900900382
|
£33.74
|
£40.49
|
|
|
40 - THREADED RING
BSD-3603344060.A4
3603344060
|
£23.86
|
£28.63
|
|
|
41 - RADIAL SEAL
BSD-3600283010.A13
3600283010
|
£18.96
|
£22.75
|
|
|
42 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A326
2916650008
|
£1.75
|
£2.10
|
|
|
56 - CONNECTION HOUSING
BSD-3605190051.A1
3605190051
|
£156.22
|
£187.46
|
|
|
59 - STRAINER
BSD-3600002000.A291
3600002000
|
£3.72
|
£4.47
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A47
3604710006
|
£8.67
|
£10.41
|
|
|
95 - NAMEPLATE
BSD-3601100430.A13
3601100430
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A77
3601110331
|
£3.72
|
£4.47
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A34
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1847
3601119236
|
£3.72
|
£4.47
|
|
|
100 - DETENT PIN
BSD-1603124085.A50
1603124085
|
£3.72
|
£4.47
|
|
|
101 - GUIDE SLEEVE
BSD-1600506009.A56
1600506009
|
£7.36
|
£8.83
|
|
|
102 - COMPRESSION SPRING
BSD-1604611019.A42
1604611019
|
£2.80
|
£3.36
|
|
|
701 - FASTENING FLANGE
BSD-3605700047.A4
3605700047
|
£102.57
|
£123.08
|
|
|
750 - SILENCER
BSD-3607000073.A232
3607000073
|
£18.96
|
£22.75
|
|
|
751 - HOSE FITTING
BSD-2603386002.A155
2603386002
|
£5.30
|
£6.36
|
|
|
801 - MOTOR SPARE PARTS SET
BSD-3607031097.A3
3607031097
|
£410.78
|
£492.94
|
|
|
802 - PARTS SET
BSD-3607010019.A9
3607010019
|
£14.91
|
£17.89
|
|
|
803 - PARTS SET
BSD-3607010022.A6
3607010022
|
£16.41
|
£19.69
|
|
|
804 - PARTS SET
BSD-3607030254.A7
3607030254
|
£27.23
|
£32.68
|
|
