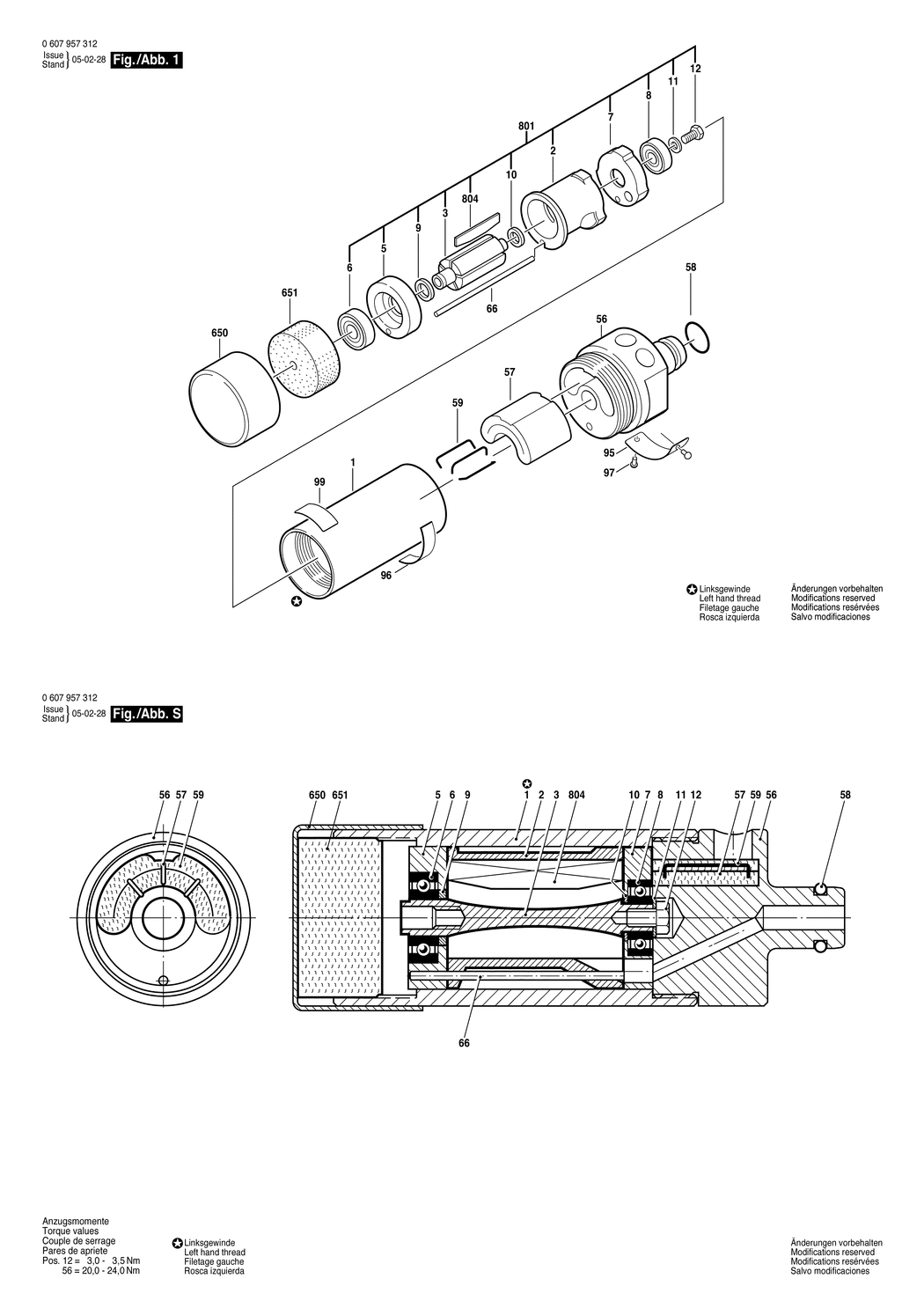

1 - MOTOR HOUSING
BSD-3600760013.A10
3600760013
|
£93.88
|
£112.65
|
|
|
2 - STATOR 740W
BSD-3604090022.A7
3604090022
|
£156.22
|
£187.46
|
|
|
3 - ROTOR
BSD-3604220021.A21
3604220021
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A64
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A11
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700010.A15
3605700010
|
£59.53
|
£71.44
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A174
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A59
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A44
3600202004
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A238
2916011011
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A165
2911061150
|
£2.61
|
£3.13
|
|
|
56 - CONNECTION HOUSING
BSD-3605190062.A3
3605190062
|
-
|
|
|
|
57 - SILENCER
BSD-3601010007.A3
3601010007
|
-
|
|
|
|
58 - O-RING 18x2.5 MM
BSD-1900210311.A9
1900210311
|
-
|
|
|
|
59 - TRANSPORT BRACKET
BSD-3604720002.A3
3604720002
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710006.A50
3604710006
|
£8.67
|
£10.41
|
|
|
95 - NAMEPLATE
BSD-3601106047.A0
3601106047
|
-
|
|
|
|
96 - NAMEPLATE
BSD-1601110331.A0
1601110331
|
-
|
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A609
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A880
3601119236
|
£3.72
|
£4.47
|
|
|
650 - PROTECTIVE CAP
BSD-3600510000.A2
3600510000
|
-
|
|
|
|
651 - SEAL
BSD-1600113002.A1
1600113002
|
£1.75
|
£2.10
|
|
|
801 - MOTOR SPARE PARTS SET
BSD-3607031097.A9
3607031097
|
£410.78
|
£492.94
|
|
|
802 - PARTS SET
BSD-3607010019.A4
3607010019
|
£14.91
|
£17.89
|
|
|
804 - PARTS SET
BSD-3607030254.A17
3607030254
|
£27.23
|
£32.68
|
|
