Bosch ART 23 G / 0600827042 / GB 230 Volt Spare Parts

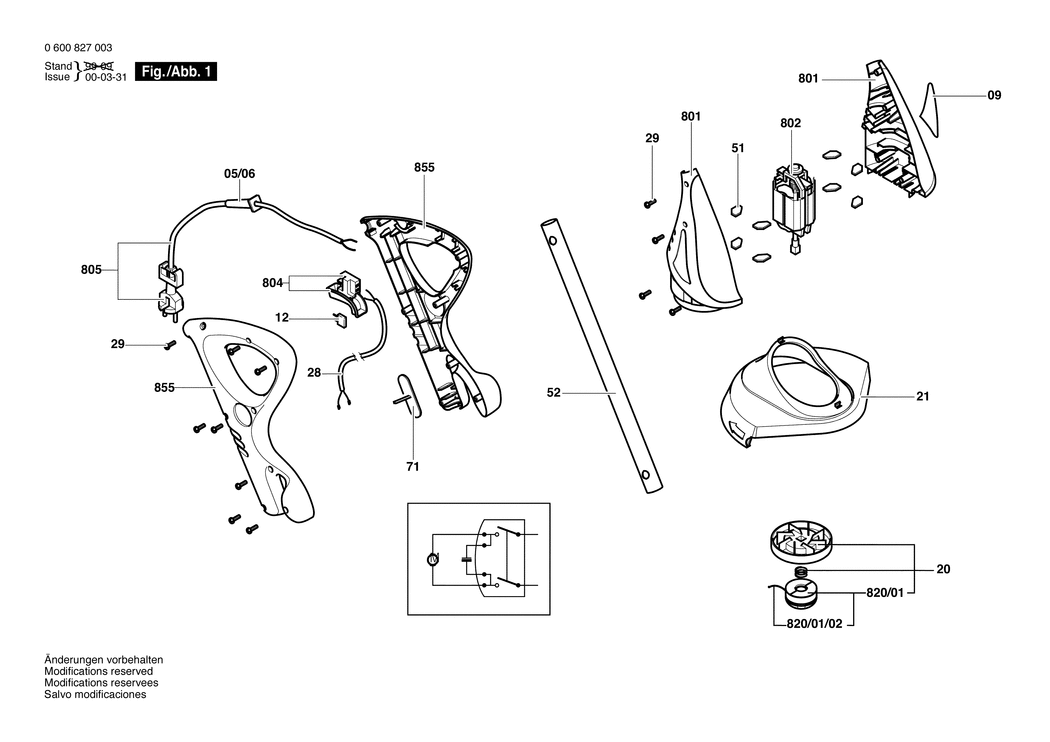

An exploded drawing and listing for the Bosch ART 23 G / 0600827042 / GB 230 Volt

	Ex VAT	Inc VAT
05/06 - GROMMET BSD-F016T44500.A35 F016T44500	£1.75	£2.10
09 - NAMEPLATE BSD-F016L62539.A7 F016L62539	-
12 - CONDENSER BSD-F016L36952.A9 F016L36952	£1.95	£2.34
20 - CUTTING LINE CARTRIDGE BSD-1606610138.A9 1606610138	-
21 - PROTECTIVE COVER BSD-F016102660.A44 F016102660	£5.87	£7.04
28 - CONNECTING CABLE BSD-F016L62877.A10 F016L62877	-
29 - SELF-CUTTING SCREW 4x19 MM BSD-F016L62029.A25 F016L62029	£1.75	£2.10
51 - RUBBER-INTER CALATION BSD-F016L62571.A13 F016L62571	£1.75	£2.10
52 - SLEEVE BSD-F016L62506.A6 F016L62506	-
71 - FILLER PIECE BSD-F016L62572.A4 F016L62572	£1.32	£1.58
801 - HOUSING SET BSD-F016103127.A39 F016103127	£7.78	£9.33
802 - ALTERNATING-CURRENT MOTOR BSD-1607220045.A37 1607220045	£24.45	£29.34
804 - SWITCH BSD-F016102352.A27 F016102352	£6.61	£7.93
805 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug BSD-F016104085.A63 F016104085	£31.64	£37.97
820/01 - CUTTING LINE CARTRIDGE BSD-F016102388.A0 F016102388	-
820/01/02 - STRING BSD-F016102387.A44 F016102387	£12.04	£14.45
855 - SWITCH HOUSING BSD-F016102746.A6 F016102746	-
