Bosch BBH 2/20 RLE / 0611210561 / DK 220 Volt Spare Parts

Home Details Reviews Delivery

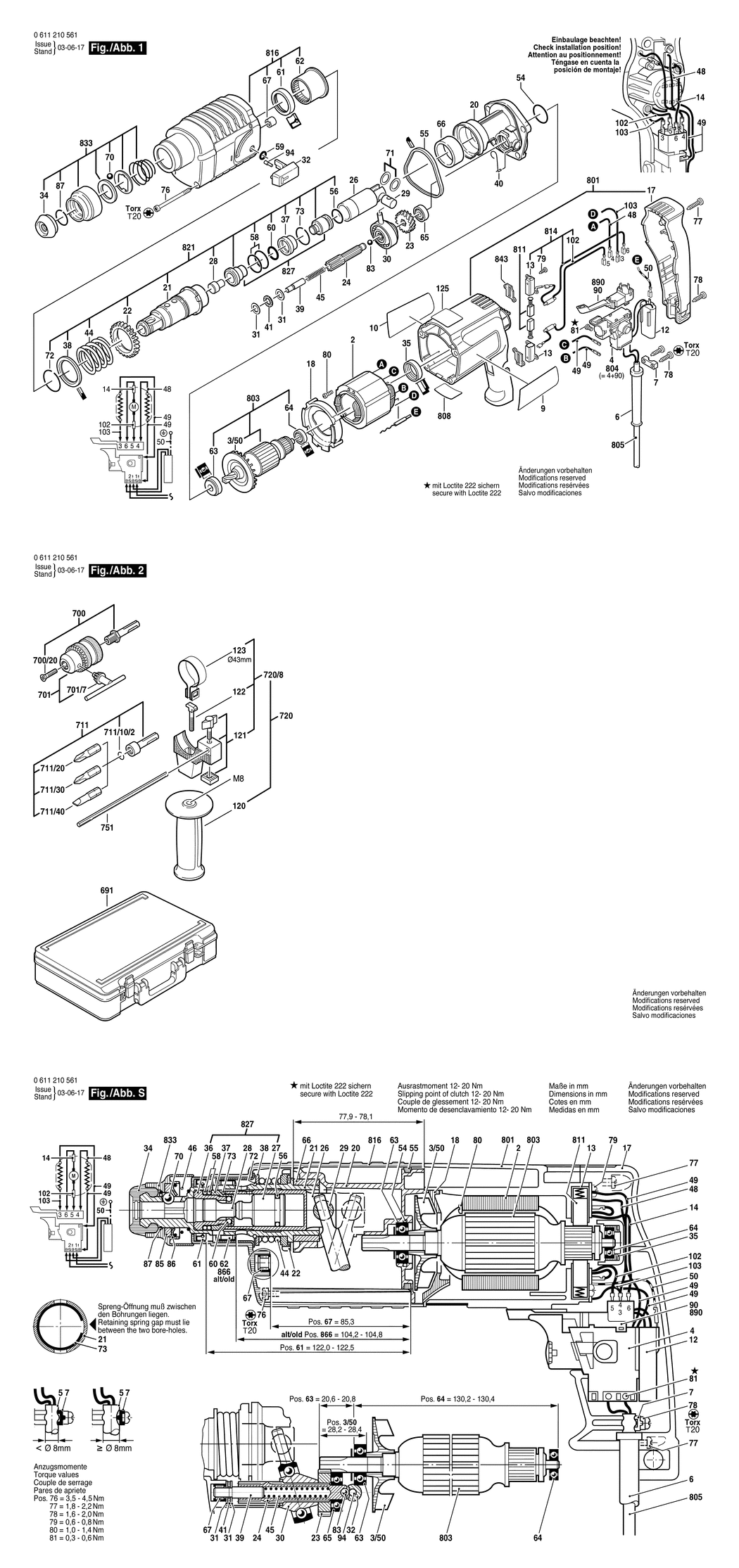

An exploded drawing and listing for the Bosch BBH 2/20 RLE / 0611210561 / DK 220 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-2604220429.A85 2604220429	£23.86	£28.63
3/50 - FAN BSD-1616610072.A88 1616610072	£2.16	£2.59
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A639 2600703011	£2.80	£3.36
7 - CABLE CLIP BSD-1611035005.A3 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110503.A0 1611110503	-
10 - REFERENCE PLATE BSD-1611110504.A0 1611110504	-
12 - SUPPRESSION FILTER BSD-2607329096.A211 2607329096	£7.36	£8.83
17 - HOUSING COVER BSD-1615132042.A0 1615132042	-
18 - AIR-DEFLECTOR RING BSD-1610522008.A37 1610522008	£1.75	£2.10
20 - INTERMEDIATE FLANGE BSD-1615700037.A116 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A101 1616490058	£218.41	£262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A43 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A102 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A9 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A105 1618700052	£13.12	£15.75
28 - STRIKER PIN BSD-1613124026.A105 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A214 1613105012	£3.72	£4.47
30 - DRIVE BEARING BSD-1615819005.A19 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A34 1610100003	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026023.A113 1612026023	£2.61	£3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A53 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A112 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390011.A10 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A23 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A137 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A119 1614690001	£1.75	£2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A100 1610920003	£4.26	£5.11
44 - COMPRESSION SPRING BSD-1614633001.A44 1614633001	£2.52	£3.02
45 - COMPRESSION SPRING BSD-1614614001.A41 1614614001	£1.75	£2.10
48 - CONNECTING CABLE L=90 MM BSD-1614431023.A29 1614431023	-
49 - CABLE L=130 MM BSD-2604448005.A238 2604448005	£1.75	£2.10
50 - CABLE BSD-2604448003.A129 2604448003	-
54 - O-RING 24.0x2.5 MM BSD-1610210068.A87 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A60 1610206023	£2.80	£3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A72 1610210070	£2.61	£3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A42 1610210058	£2.61	£3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A101 1610210069	£1.75	£2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A76 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A25 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A185 1610202026	£5.30	£6.36
63 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A402 1610905048	£8.67	£10.41
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A122 1900900228	£6.61	£7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A47 1610301000	£3.34	£4.01
67 - NEEDLE BEARING BSD-1610910064.A322 1610910064	£2.52	£3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A377 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A19 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A29 2916540018	£3.72	£4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A181 1614601009	£1.95	£2.34
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A117 1613435009	£1.75	£2.10
77 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A319 2910211021	£1.75	£2.10
78 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A87 1603435050	£2.33	£2.80
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A376 2910211005	£1.75	£2.10
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A317 2603435015	£2.16	£2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2624 2603410001	£1.75	£2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A48 1903230309	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A426 2916540012	-
90 - SWITCH BSD-1617200042.A33 1617200042	£16.41	£19.69
94 - DETENT PIN BSD-1613120017.A43 1613120017	£1.75	£2.10
102 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A1 2604465097	£5.58	£6.70
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A23 1614448017	£2.16	£2.59
120 - AUXILIARY HANDLE M8 BSD-1612025019.A443 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A68 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A551 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A329 1611316006	£2.61	£3.13
125 - MANUFACTURER'S NAMEPLATE BSD-1611110505.A0 1611110505	-
691 - CARRYING CASE BSD-1615438366.A6 1615438366	-
700 - DRILL CHUCK SHANK BSD-1617000132.A121 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A180 2603421226	£1.75	£2.10
701 - CHUCK BSD-1608571088.A118 1608571088	£27.23	£32.68
701/7 - CHUCK WRENCH SG2 BSD-2607950007.A436 2607950007	£6.52	£7.83
711 - PARTS SET BSD-1617000133.A78 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A111 2604601004	£1.75	£2.10
711/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A100 1608521004	-
711/30 - SCREWDRIVER BIT BSD-2607000248.A22 2607000248	-
711/40 - SCREWDRIVER BLADE GR.1.0x6.0.1/4 BSD-1608521020.A0 1608521020	-
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A82 2602025070	£14.91	£17.89
720/8 - PARTS SET BSD-1617000925.A10 1617000925	£16.41	£19.69
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A241 1613001009	£3.72	£4.47
801 - PARTS SET BSD-1617000162.A0 1617000162	-
803 - ARMATURE WITH FAN 220-230V BSD-1614010039.A8 1614010039	-
804 - SWITCH KIT BSD-1617000915.A12 1617000915	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A603 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3HC.A119 160111A3HC	£2.61	£3.13
811 - CARBON BRUSH BSD-1617014114.A8 1617014114	£10.10	£12.12
814 - PARTS SET BSD-1617000136.A19 1617000136	£18.96	£22.75
816 - GEAR HOUSING BSD-1615806085.A0 1615806085	-
821 - RATCHET SLEEVE BSD-1617000931.A78 1617000931	£283.50	£340.20
827 - STRIKER BSD-1617000338.A145 1617000338	£27.23	£32.68
833 - PROTECTION SLEEVE BSD-1617000163.A3 1617000163	£7.36	£8.83
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A220 1610905025	£6.52	£7.83
890 - MODIFICATION SET 110-240V BSD-1617000134.A20 1617000134	£80.61	£96.73

Attribute Name	Value
Brand	Bosch
