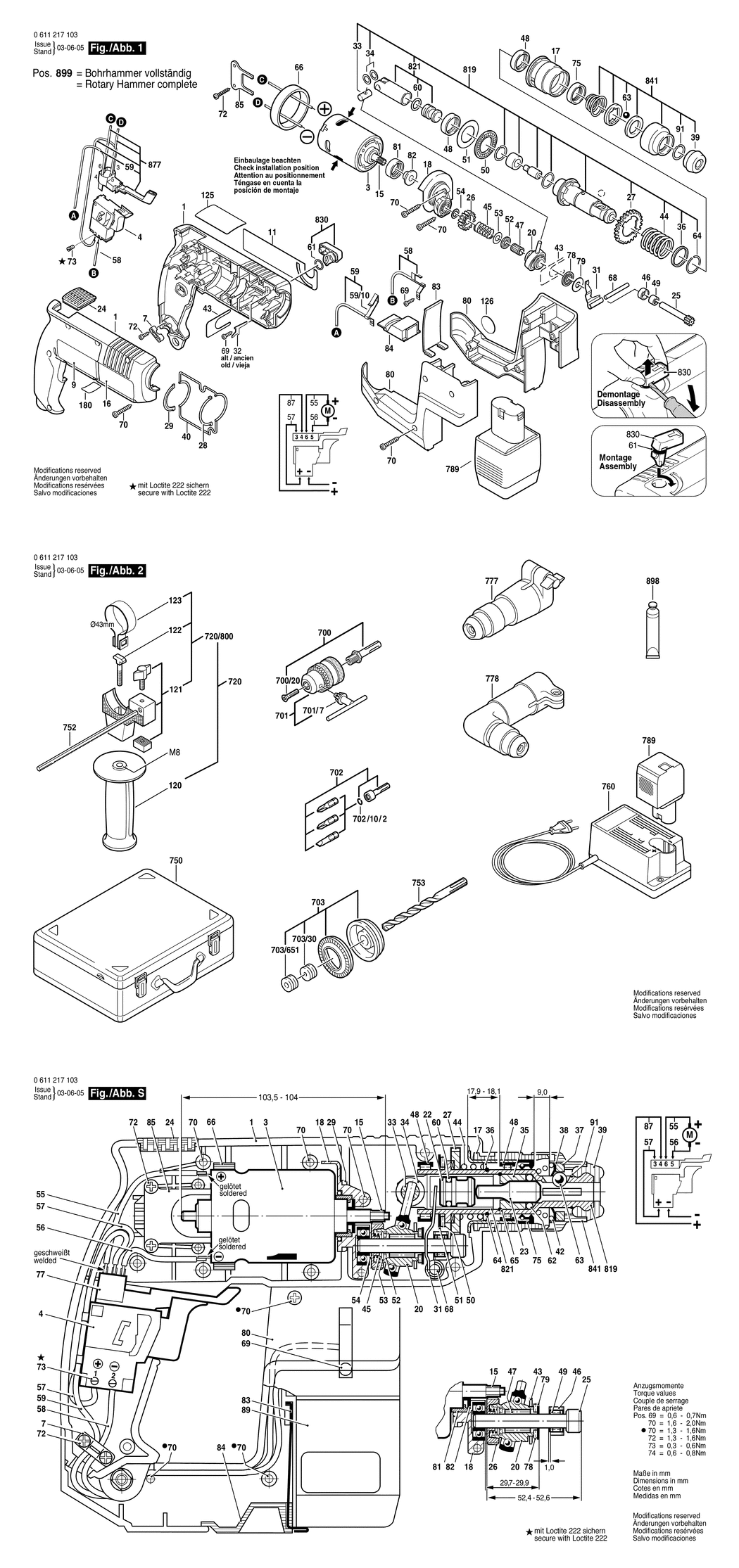

An exploded drawing and listing for the Bosch GBH 12 VR / 0611217142 / GB 12 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1615104005.A0 1615104005 -
3 - DC MOTOR 230V BSD-1617220011.A4 1617220011 -
4 - ON-OFF SWITCH BSD-2607200268.A2 2607200268 -
7 - CABLE CLIP BSD-1611035005.A124 1611035005 £2.16 £2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110540.A2 1611110540 -
11 - MANUFACTURER'S NAMEPLATE BSD-1611110541.A2 1611110541 -
15 - DRIVE PINION Z=8 BSD-1616333024.A2 1616333024 -
16 - REFERENCE PLATE BSD-1611110537.A4 1611110537 -
17 - GUIDE SLEEVE BSD-1615819013.A46 1615819013 £6.61 £7.93
18 - FLANGED BEARING BSD-1615700027.A31 1615700027 -
20 - DRIVE BEARING BSD-1615819012.A2 1615819012 -
24 - PROTECTIVE GRILLE BSD-1612388019.A27 1612388019 -
25 - TOOTHED SHAFT Z=9 BSD-1613160008.A4 1613160008 -
26 - CYLINDRICAL GEAR Z=31 BSD-1616317600.A31 1616317600 £2.52 £3.02
27 - CYLINDRICAL GEAR Z=48 BSD-1616317034.A2 1616317034 -
28 - SEAL RING BSD-1611015034.A47 1611015034 -
29 - SEAL RING BSD-1611015035.A6 1611015035 -
31 - PRESSURE LEVER BSD-1611329009.A2 1611329009 -
33 - PISTON PIN BSD-1613103006.A39 1613103006 -
34 - SHIM WASHER 1.2 MM BSD-1610100608.A28 1610100608 £1.75 £2.10
36 - SUPPORTING DISC BSD-1610102024.A33 1610102024 -
39 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A143 1610508008 £2.16 £2.59
40 - SEALING FRAME BSD-1611015033.A5 1611015033 -
43 - HOLDING PLATE BSD-1611031005.A27 1611031005 -
44 - COMPRESSION SPRING BSD-1614634002.A16 1614634002 -
45 - COMPRESSION SPRING BSD-1614610005.A46 1614610005 -
46 - RETAINING SNAP RING BSD-1610200014.A27 1610200014 -
47 - NEEDLE-ROLLER ASSEMBLY BSD-1610913008.A0 1610913008 -
48 - NEEDLE BEARING BSD-1610910071.A28 1610910071 £6.52 £7.83
49 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A128 2600917003 £2.80 £3.36
50 - ROLLER-CAGE ASSEMBLY BSD-1610920002.A14 1610920002 £3.72 £4.47
51 - SUPPORT DISC 1.0 MM BSD-1610102617.A16 1610102617 £2.16 £2.59
52 - THRUST NEEDLE RIM BSD-1610920005.A44 1610920005 -
53 - SUPPORT DISC BSD-1610100602.A26 1610100602 -
54 - SHIM 0.6 MM BSD-1610100604.A27 1610100604 -
54 - SHIM 0.8 MM BSD-1610100605.A32 1610100605 -
54 - SHIM 1.0 MM BSD-1610100606.A27 1610100606 -
54 - SHIM 1.2 MM BSD-1610100607.A26 1610100607 -
58 - CONTACT SPRING 2.5 MM BSD-1614449007.A7 1614449007 -
59 - CONTACT SPRING BSD-1614449008.A0 1614449008 -
59/10 - CONTACT SPRING BSD-1611290002.A12 1611290002 -
60 - O-RING 13.0x2.5 MM BSD-1610210086.A47 1610210086 -
61 - O-RING 10.5x2.7 MM BSD-1610210046.A50 1610210046 £2.16 £2.59
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A759 1903230013 £2.16 £2.59
64 - RETAINING RING BSD-1614601007.A7 1614601007 -
66 - RUBBER RING BSD-1610206025.A0 1610206025 -
68 - STRAIGHT PIN DIN 6325-5M6x45 BSD-2917550133.A6 2917550133 £2.33 £2.80
69 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A211 2912401005 £1.75 £2.10
70 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A5 2912401022 £1.75 £2.10
72 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A262 2912401019 £1.75 £2.10
73 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2803 2603410001 £1.75 £2.10
75 - ROTARY SHAFT LIP SEAL BSD-1610283021.A2 1610283021 -
78 - ROLLER-CAGE ASSEMBLY BSD-1610920006.A9 1610920006 £2.52 £3.02
79 - SUPPORT DISC BSD-1610100609.A25 1610100609 -
80 - ADDITIONAL HOUSING BSD-1615190031.A1 1615190031 -
81 - LOCATING RING BSD-1610290017.A0 1610290017 -
82 - COVER DISC BSD-1610516011.A3 1610516011 -
83 - HOLDING SPRING BSD-1611290003.A2 1611290003 -
84 - PUSH-BUTTON BSD-1612026034.A2 1612026034 -
85 - GUIDING PLATE BSD-1611098003.A4 1611098003 -
91 - RETAINING RING DIN 7993-A22 BSD-2916540012.A183 2916540012 -
120 - AUXILIARY HANDLE M8 BSD-1612025019.A261 1612025019 £6.52 £7.83
120 - AUXILIARY HANDLE BSD-160202507H.A192 160202507H £11.30 £13.56
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A143 1618040048 £8.67 £10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A414 1613490002 £4.26 £5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A117 1611316006 £2.61 £3.13
125 - MANUFACTURER'S NAMEPLATE BSD-1611110437.A2 1611110437 -
126 - STICKER BSD-2601110461.A61 2601110461 -
700 - DRILL CHUCK SHANK BSD-1617000132.A8 1617000132 £16.84 £20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A318 2603421226 £1.75 £2.10
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF BSD-1608571062.A38 1608571062 £17.49 £20.99
701/7 - CHUCK WRENCH SG2 BSD-2607950007.A570 2607950007 £6.52 £7.83
702 - PARTS SET BSD-1617000133.A273 1617000133 -
702/10/2 - RETAINING RING BSD-2604601004.A252 2604601004 £1.75 £2.10
703 - DUST TRAY BSD-1615439003.A62 1615439003 -
703/30 - RUBBER BUSHING dia5-7 MM BSD-1610312001.A4 1610312001 -
703/651 - RUBBER BUSHING dia8-10 MM BSD-1610312002.A135 1610312002 -
720 - AUXILIARY HANDLE dia43 MM BSD-1612025032.A3 1612025032 £10.18 £12.22
720/800 - PARTS SET BSD-1617000925.A108 1617000925 £16.41 £19.69
750 - CARRYING CASE BSD-1615438188.A3 1615438188 -
752 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A209 1613001009 £3.72 £4.47
753 - ROTARY HAMMER BIT dia6x50 MM BSD-1618596166.A0 1618596166 -
760 - FAST CHARGER J 100/7.2-14.4V. 30 MIN. BSD-2607224711.A12 2607224711 -
760 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A118 2607224435 £120.11 £144.13
760 - FAST CHARGER USA 120/7.2-14.4V. 30 MIN. BSD-2607224708.A1 2607224708 -
760 - FAST CHARGER USA 120/7.2-24V. 1h BSD-2607224431.A61 2607224431 £135.25 £162.30
760 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A177 2607224701 £88.07 £105.68
760 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A4 2607224425 £88.07 £105.68
760 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A117 2607224703 £116.15 £139.38
760 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A257 2607224427 £103.14 £123.77
760 - FAST CHARGER AUS 240/7.2-14.4V. 30 MIN. BSD-2607224705.A23 2607224705 £135.25 £162.30
760 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224443.A61 2607224443 -
777 - CHISEL ATTACHMENT BSD-2607018296.A20 2607018296 £52.49 £62.99
778 - ANGLE DRILL HEAD BSD-1618580000.A69 1618580000 £239.08 £286.90
789 - ACCUMULATOR BATTERY 12V. 1.2Ah. NiCd BSD-2607335010.A4 2607335010 -
789 - SLIDE-IN ACCU PACKAGE 12V. 1.4Ah. NiCd BSD-2607335021.A33 2607335021 -
819 - RATCHET SLEEVE BSD-1617000940.A1 1617000940 -
821 - PARTS SET BSD-1617000230.A3 1617000230 -
830 - CLAMP HANDLE BSD-1617000177.A4 1617000177 -
841 - PROTECTION SLEEVE BSD-1617000163.A110 1617000163 £7.36 £8.83
877 - CHANGE-OVER SWITCH BSD-2607200231.A154 2607200231 £16.41 £19.69
898 - GREASE TUBE 225 ML BSD-3605430009.A56 3605430009 £45.67 £54.80
899 - CORDLESS ROTARY HAMMER BSD-0611217120.A2 0611217120 -
