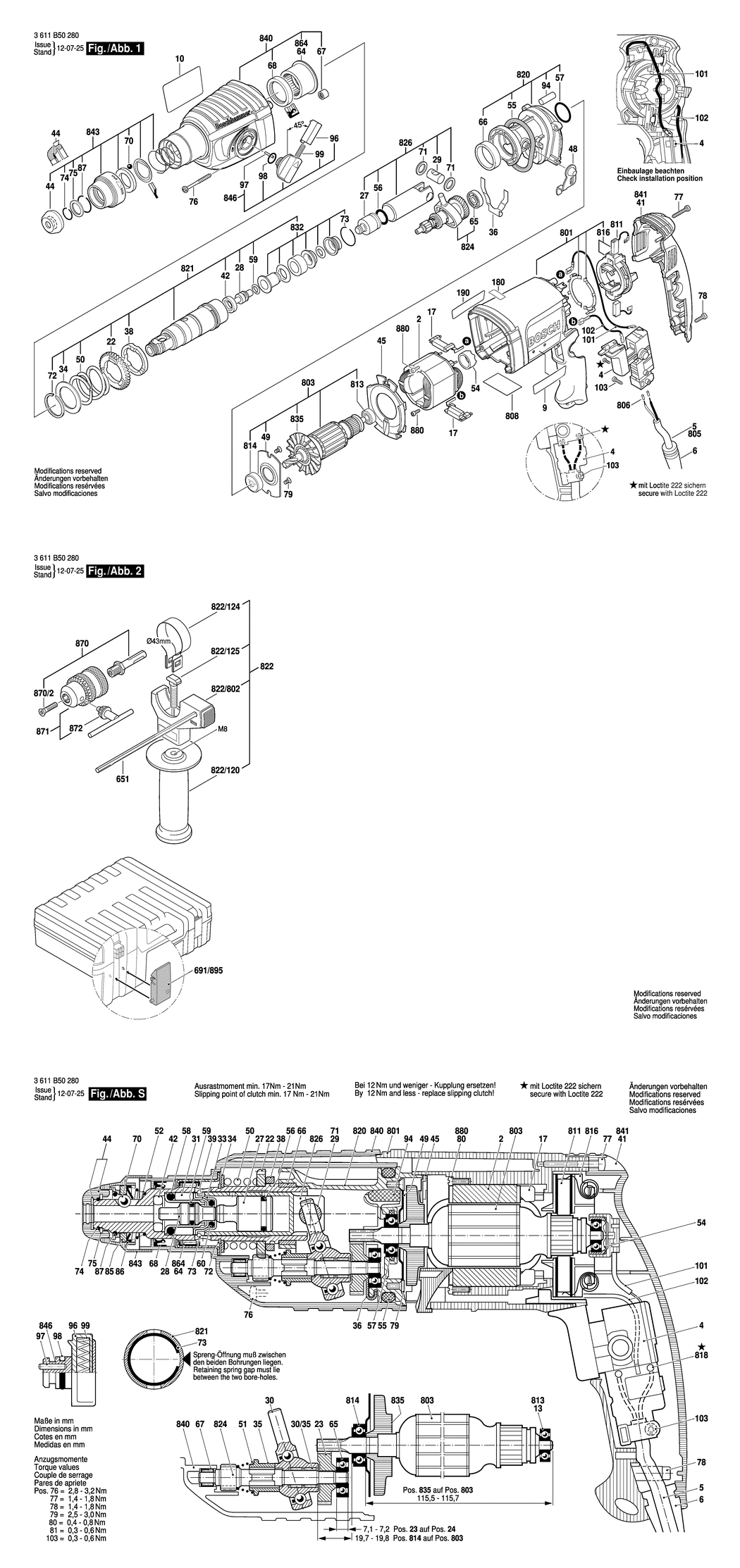

An exploded drawing and listing for the Bosch GBH 2-23 E / 3611B508K0 / --- 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-230V BSD-2604220683.A11 2604220683 £23.86 £28.63
4 - SWITCH BSD-160720032D.A0 160720032D £13.12 £15.75
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A85 2600703018 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE GBH 2-23 E BSD-1619P07939.A0 1619P07939 -
10 - REFERENCE PLATE BSD-1619P07944.A0 1619P07944 £2.61 £3.13
17 - ADAPTER MODULE BSD-1600A0032J.A26 1600A0032J £1.75 £2.10
22 - CYLINDRICAL GEAR BSD-1616312003.A17 1616312003 £7.36 £8.83
27 - STRIKER BSD-1618710080.A21 1618710080 £7.36 £8.83
28 - STRIKER PIN dia7.5 MM BSD-1613124077.A25 1613124077 £7.36 £8.83
29 - PISTON PIN BSD-1613105012.A82 1613105012 £3.72 £4.47
34 - SUPPORTING DISC BSD-1610190067.A63 1610190067 £2.16 £2.59
36 - TENSIONING BRACKET BSD-1601329040.A12 1601329040 £1.75 £2.10
38 - CATCH DISK BSD-1610190045.A26 1610190045 £5.30 £6.36
42 - BACKUP RING BSD-1610422017.A11 1610422017 £4.26 £5.11
44 - PROTECTIVE CAP BSD-1610508047.A137 1610508047 £2.29 £2.75
45 - AIR-DEFLECTOR RING BSD-1610522012.A19 1610522012 £1.75 £2.10
48 - SHIFT PLATE BSD-1601021005.A17 1601021005 £2.16 £2.59
49 - END SHIELD BSD-1615700044.A132 1615700044 £2.16 £2.59
50 - COMPRESSION SPRING BSD-1604611037.A3 1604611037 £2.80 £3.36
54 - RUBBER BUSHING BSD-1610502012.A25 1610502012 £1.75 £2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A80 1610290226 £3.72 £4.47
56 - O-RING BSD-1616B00086.A5 1616B00086 £2.16 £2.59
57 - O-RING 24.0x2.5 MM BSD-1610210068.A410 1610210068 £1.75 £2.10
59 - O-RING 9.0x2.0 MM BSD-1610210177.A6 1610210177 £2.16 £2.59
65 - GROOVE BALL BEARING BSD-1600900037.A28 1600900037 £7.36 £8.83
66 - PLAIN BEARING BSD-1610202020.A17 1610202020 £2.16 £2.59
67 - NEEDLE BEARING dia7 MM BSD-1610913019.A3 1610913019 £2.80 £3.36
68 - ROTARY SHAFT LIP SEAL BSD-1610283017.A13 1610283017 £7.36 £8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A75 1903230013 £2.16 £2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A396 1610101011 £1.75 £2.10
72 - RETAINING RING BSD-1604601027.A20 1604601027 £1.75 £2.10
73 - RETAINING RING BSD-1614601057.A21 1614601057 £1.75 £2.10
74 - RETAINING RING BSD-1614601027.A40 1614601027 £1.75 £2.10
75 - RETAINING WASHER BSD-1610101629.A82 1610101629 £1.75 £2.10
76 - THREAD-FORMING TAP. SCREW BSD-1613435022.A14 1613435022 £1.75 £2.10
77 - SCREW BSD-1619P00106.A0 1619P00106 £1.75 £2.10
78 - SCREW 4x16 BSD-2603490022.A931 2603490022 £1.75 £2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A0 1613435023 £1.75 £2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A50 2916540012 -
94 - FELT SEAL BSD-1610205010.A16 1610205010 £1.75 £2.10
96 - SWITCH BUTTON BSD-1612026035.A252 1612026035 £1.75 £2.10
97 - NEEDLE ROLLER BSD-1903201118.A4 1903201118 £1.75 £2.10
98 - O-RING 10.5x2.7 MM BSD-1610210046.A379 1610210046 £2.16 £2.59
99 - COMPRESSION SPRING BSD-1614611006.A67 1614611006 £3.72 £4.47
101 - CONNECTING CABLE BSD-1614449014.A150 1614449014 £2.16 £2.59
102 - CONNECTING CABLE BSD-1614449015.A0 1614449015 £1.75 £2.10
103 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A63 1619P00220 £1.75 £2.10
190 - MANUFACTURER'S NAMEPLATE GBH 2-23 E BSD-1619P07942.A0 1619P07942 £2.61 £3.13
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A591 1613001009 £3.72 £4.47
691/895 - LOCK BSD-1615438409.A27 1615438409 £6.52 £7.83
691/895 - LOCK BSD-1615438431.A12 1615438431 £6.52 £7.83
801 - MOTOR HOUSING BSD-1617000536.A7 1617000536 £37.27 £44.72
803 - ARMATURE WITH FAN 220-230V BSD-1617000524.A6 1617000524 £68.42 £82.10
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A106 1614460026 £18.96 £22.75
806 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A491 1900452012 £1.75 £2.10
808 - NAMEPLATE BSD-1619P08968.A0 1619P08968 -
811 - CARBON-BRUSH SET BSD-1617000525.A139 1617000525 £11.30 £13.56
813 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A348 1610905025 £6.52 £7.83
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A44 1610905048 £8.67 £10.41
816 - BRUSH PLATE BSD-1614336058.A13 1614336058 £18.96 £22.75
820 - INTERMEDIATE FLANGE BSD-1617000526.A11 1617000526 £27.23 £32.68
821 - RATCHET SLEEVE BSD-1619P06111.A1 1619P06111 £80.61 £96.73
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A133 2602025118 £14.91 £17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A0 1612025019 £6.52 £7.83
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A407 1611316006 £2.61 £3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A80 1613490002 £4.26 £5.11
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A111 2608040176 £6.52 £7.83
824 - TOOTHED SHAFT BSD-1617000892.A19 1617000892 £58.76 £70.51
826 - HAMMER PISTON BSD-1617000534.A11 1617000534 £21.68 £26.01
832 - GUIDE SLEEVE BSD-1617000529.A19 1617000529 £12.04 £14.45
835 - FAN BSD-1616610093.A20 1616610093 £2.16 £2.59
840 - GEAR HOUSING BSD-1617000V82.A5 1617000V82 £45.67 £54.80
841 - HOUSING COVER BSD-1615500333.A7 1615500333 £7.78 £9.33
843 - PROTECTION SLEEVE BSD-1617000531.A19 1617000531 £11.30 £13.56
864 - PLAIN BEARING BSD-1610202026.A8 1610202026 £5.30 £6.36
870 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A127 1617000154 £31.64 £37.97
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A70 2603421207 £1.75 £2.10
871 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A108 1608571069 £23.86 £28.63
872 - CHUCK WRENCH SG2 BSD-2607950007.A1716 2607950007 £6.52 £7.83
880 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A96 2603435015 £2.16 £2.59
