Bosch GBH 4-top / 0611243742 / GB 230 Volt Spare Parts

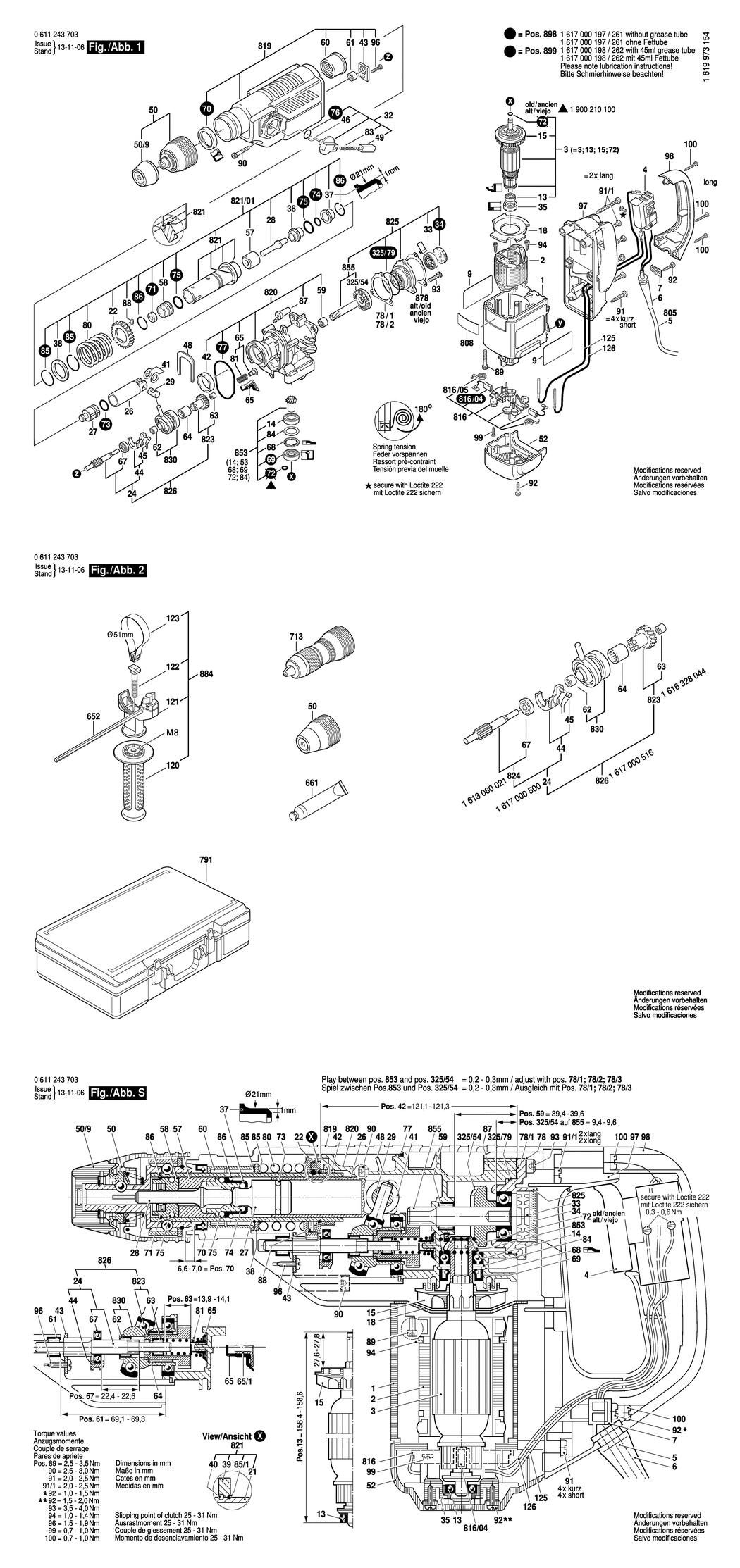

An exploded drawing and listing for the Bosch GBH 4-top / 0611243742 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108059.A4 1615108059	-
2 - FIELD 240V BSD-1614220127.A3 1614220127	£27.23	£32.68
3 - ARMATURE WITH FAN 240V BSD-1614010701.A0 1614010701	£93.88	£112.65
4 - SWITCH BSD-2607200576.A7 2607200576	£27.23	£32.68
5 - POWER SUPPLY CORD GB 240V 4.15m 2 x 1.0mm H07RN-F BSD-1614460058.A0 1614460058	£24.45	£29.34
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A207 2600703018	£2.61	£3.13
6 - GROMMET dia8.7-dia9.6x76 MM BSD-2600703019.A23 2600703019	£2.61	£3.13
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A271 2600703017	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A717 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110885.A2 1611110885	-
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A75 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 12x28x8 BSD-1900900289.A22 1900900289	£11.30	£13.56
15 - FAN BSD-1606610132.A316 1606610132	£2.16	£2.59
18 - AIR-DEFLECTOR RING BSD-1610591011.A27 1610591011	£1.95	£2.34
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A130 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000501.A2 1617000501	-
26 - HAMMER PISTON BSD-1618700063.A20 1618700063	£16.41	£19.69
27 - STRIKER BSD-1618710060.A1 1618710060	£16.41	£19.69
28 - STRIKER PIN BSD-1613124043.A21 1613124043	£8.67	£10.41
29 - PISTON PIN BSD-1613105012.A370 1613105012	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026037.A114 1612026037	£10.82	£12.99
33 - PERFORATED DISK BSD-1610190016.A8 1610190016	-
34 - FELT DISC BSD-1610005000.A15 1610005000	£1.75	£2.10
35 - RUBBER RING BSD-1610206021.A124 1610206021	£1.75	£2.10
36 - GUIDE BUSHING BSD-1610390016.A15 1610390016	£9.49	£11.39
37 - DAMPING BUSHING dia21 MM BSD-1610390032.A28 1610390032	£5.58	£6.70
38 - SUPPORTING DISC BSD-1610102026.A17 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A275 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A33 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A103 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A103 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A2 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A144 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A133 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A110 1612026035	£1.75	£2.10
50 - QUICK-CHANGE COLLET CHUCK L=70 MM BSD-1618598175.A11 1618598175	£68.42	£82.10
50/9 - PROTECTIVE CAP L=21.0 MM. SDS-TOP BSD-1610508037.A13 1610508037	-
50/9 - PROTECTIVE CAP L=21.5 MM. SDS-PLUS BSD-1610508026.A6 1610508026	£4.26	£5.11
52 - COVER BSD-1615500298.A3 1615500298	£6.61	£7.93
57 - STOP BUSHING BSD-1610390025.A27 1610390025	£11.30	£13.56
58 - GUIDE RING BSD-1610390026.A7 1610390026	£13.12	£15.75
59 - NEEDLE BEARING BSD-1610910080.A0 1610910080	£3.34	£4.01
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A128 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A36 1610910098	£3.72	£4.47
62 - PLAIN BEARING BSD-1610200020.A14 1610200020	£1.75	£2.10
63 - NEEDLE BEARING BSD-1610910064.A63 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A1 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A96 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A96 1610905016	£10.10	£12.12
68 - RETAINING RING BSD-1610119009.A15 1610119009	£1.75	£2.10
69 - ROTARY SHAFT LIP SEAL BSD-1610283041.A6 1610283041	£6.52	£7.83
70 - ROTARY SHAFT LIP SEAL BSD-1610283023.A2 1610283023	£6.52	£7.83
71 - SCRAPER BSD-1610290029.A33 1610290029	£3.72	£4.47
73 - O-RING 17.0x3.0 MM BSD-1610210121.A15 1610210121	£2.61	£3.13
74 - O-RING 11.0x3.5 MM BSD-1610210104.A42 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210159.A2 1610210159	£2.80	£3.36
76 - O-RING 10.5x2.7 MM BSD-1610210046.A114 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A49 1610210106	£2.61	£3.13
78/1 - SHIM 0.1 MM BSD-1610134005.A27 1610134005	£1.75	£2.10
78/2 - SHIM 0.2 MM BSD-1610134006.A7 1610134006	£1.75	£2.10
80 - COMPRESSION SPRING BSD-1614634006.A1 1614634006	£5.87	£7.04
81 - COMPRESSION SPRING BSD-1614611009.A99 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A286 1614611006	£3.72	£4.47
84 - SUPPORTING DISC 1.2 MM BSD-1610101627.A16 1610101627	£1.75	£2.10
85 - RETAINING RING BSD-1614601011.A50 1614601011	£1.75	£2.10
86 - RETAINING RING BSD-1614601024.A143 1614601024	£1.75	£2.10
87 - SCREW BUSHING BSD-1610390027.A27 1610390027	£1.75	£2.10
88 - ROLLER BSD-1613200007.A18 1613200007	£1.75	£2.10
89 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A124 2910141168	£3.80	£4.56
90 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A125 2910141168	£3.80	£4.56
91 - TAPPING SCREW DIN 7971-ST4.8x25-F BSD-2910211036.A59 2910211036	£1.75	£2.10
91/1 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A54 2910211038	£1.75	£2.10
92 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A315 2912401019	£1.75	£2.10
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A104 2910141162	£2.16	£2.59
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A455 2603435015	£2.16	£2.59
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A12 2912401018	£1.75	£2.10
97 - HANDLE COVER BSD-1615133031.A1 1615133031	£13.41	£16.09
98 - COVER BSD-1615133030.A15 1615133030	£9.49	£11.39
99 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A591 2910211005	£1.75	£2.10
100 - OVAL-HEAD SCREW 40 x 35MM BSD-2914211311.A1 2914211311	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202507H.A118 160202507H	£11.30	£13.56
121 - SUPPORT CLAMP dia51x110 MM BSD-1618040054.A13 1618040054	£5.87	£7.04
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A261 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia51 MM BSD-1611316009.A12 1611316009	£5.58	£6.70
125 - CONNECTING CABLE L=330 MM BSD-1614448035.A3 1614448035	£1.75	£2.10
126 - CONNECTING CABLE L=215 MM BSD-1614448036.A18 1614448036	-
325/54 - CROWN GEAR Z=32 BSD-1616333029.A1 1616333029	£13.12	£15.75
325/79 - O-RING 40.0x1.5 MM BSD-2600210003.A15 2600210003	£2.61	£3.13
652 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A175 1613001008	£8.67	£10.41
661 - GREASE TUBE 30 ML BSD-1615430010.A62 1615430010	£6.52	£7.83
713 - KEYLESS CHUCK dia1-dia13 MM. 1/2 BSD-2607001316.A16 2607001316	-
791 - CARRYING CASE BSD-2605438423.A1 2605438423	-
808 - NAMEPLATE BSD-160111A3H3.A3261 160111A3H3	£2.61	£3.13
816 - BRUSH HOLDER BSD-1617000357.A10 1617000357	-
816/04 - CARBON-BRUSH SET BSD-1617014124.A10 1617014124	£14.91	£17.89
816/05 - SPIRAL SPRING BSD-1614652002.A18 1614652002	£1.75	£2.10
819 - IMPACT MECHANISM HOUSING BSD-1617000345.A12 1617000345	-
820 - GEAR HOUSING BSD-1617000315.A1 1617000315	£59.53	£71.44
821 - RATCHET SLEEVE BSD-1617000978.A14 1617000978	-
821/01 - RATCHET SLEEVE BSD-1617000979.A20 1617000979	£80.61	£96.73
823 - GEAR SLEEVE Z=25 BSD-1616328044.A5 1616328044	£27.31	£32.77
825 - BEARING FLANGE BSD-1615805064.A13 1615805064	-
826 - TOOTHED SHAFT Z=3/9 BSD-1617000522.A0 1617000522	-
830 - DRIVE BEARING BSD-1615819022.A6 1615819022	£63.50	£76.20
853 - PINION Z=15 BSD-1617000196.A31 1617000196	£45.67	£54.80
855 - JACK SHAFT Z=9 BSD-1617000982.A19 1617000982	-
878 - PLAIN WASHER 0.5 MM BSD-1610134008.A29 1610134008	£2.33	£2.80
884 - AUXILIARY HANDLE BSD-1612025038.A11 1612025038	-
898 - WEAR AND TEAR PART SET BSD-1617000197.A3 1617000197	£31.64	£37.97
899 - WEAR AND TEAR PART SET BSD-1617000198.A18 1617000198	£31.64	£37.97
