Bosch GCM 12 SD / 0601B23508 / --- 230 Volt Spare Parts

Home Details Reviews Delivery

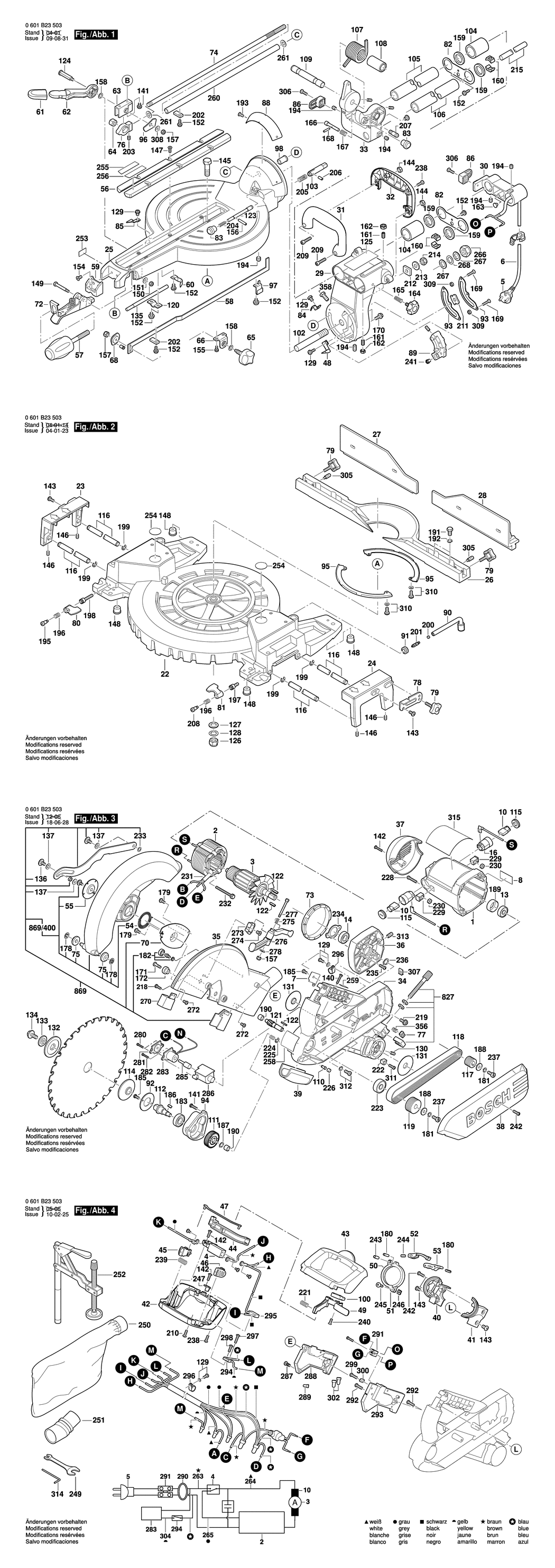

An exploded drawing and listing for the Bosch GCM 12 SD / 0601B23508 / --- 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610915750.A1 2610915750	£45.67	£54.80
2 - FIELD 230V BSD-1609902201.A2 1609902201	£59.53	£71.44
3 - ARMATURE 240V BSD-1619P03780.A5 1619P03780	£120.11	£144.13
4 - SWITCH BSD-2610950336.A22 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD BSD-1609902207.A1 1609902207	£31.64	£37.97
6 - CORD GUARD BSD-2610915755.A8 2610915755	£1.75	£2.10
7 - FASTENING CLAMP BSD-1609902306.A3 1609902306	£2.52	£3.02
8 - NAMEPLATE BSD-1609902212.A0 1609902212	£3.72	£4.47
10 - CARBON-BRUSH SET BSD-1609203L02.A3 1609203L02	£14.91	£17.89
13 - BALL BEARING BSD-2610911928.A7 2610911928	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A17 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610915761.A7 2610915761	-
22 - BASE BSD-2610915763.A2 2610915763	£195.26	£234.31
23 - EXTENSION STAND BSD-1609902215.A0 1609902215	£40.80	£48.96
24 - EXTENSION STAND BSD-1609902216.A4 1609902216	£40.80	£48.96
25 - SAW TABLE BSD-2610915766.A2 2610915766	£179.37	£215.24
26 - MITRE FENCE BSD-2610022500.A4 2610022500	-
27 - PARALLEL-GUIDE BSD-2610022501.A0 2610022501	£30.28	£36.33
28 - PARALLEL-GUIDE BSD-2610022502.A4 2610022502	£33.74	£40.49
29 - BEARING PEDESTAL BSD-1609902220.A0 1609902220	£89.79	£107.75
30 - SUPPORT BSD-1609902221.A4 1609902221	£14.72	£17.67
31 - HANDLE BSD-2610915772.A3 2610915772	£13.12	£15.75
32 - HANDLE BSD-2610915727.A5 2610915727	£13.12	£15.75
33 - BEARING PEDESTAL BSD-1609902222.A0 1609902222	£45.67	£54.80
34 - GEAR HOUSING BSD-1609902223.A4 1609902223	£88.07	£105.68
35 - SAFETY COVER BSD-1609902224.A0 1609902224	£68.42	£82.10
36 - INTERMEDIATE LAYER BSD-2610915731.A2 2610915731	£33.74	£40.49
37 - HOUSING COVER BSD-2610915732.A7 2610915732	£10.10	£12.12
38 - HOUSING COVER BSD-2610915733.A2 2610915733	£11.30	£13.56
39 - HANDLE COVER BSD-2610915734.A7 2610915734	£14.91	£17.89
40 - BEARING PEDESTAL BSD-2610915735.A2 2610915735	£12.04	£14.45
41 - BEARING PEDESTAL BSD-2610915736.A7 2610915736	£13.12	£15.75
42 - BEARING PEDESTAL BSD-2610915737.A2 2610915737	£18.96	£22.75
43 - BEARING PEDESTAL BSD-2610915738.A7 2610915738	£18.96	£22.75
44 - TRIGGER BSD-2610915739.A2 2610915739	£5.58	£6.70
45 - BUTTON BSD-1609902227.A4 1609902227	-
46 - BUTTON BSD-1609902228.A0 1609902228	£4.75	£5.70
47 - LINKAGE PART BSD-1609902229.A4 1609902229	£4.26	£5.11
48 - POINTER BSD-2610915743.A2 2610915743	£2.16	£2.59
49 - RELEASE LEVER BSD-2610915744.A7 2610915744	£9.49	£11.39
50 - COLLAR BSD-2610915745.A2 2610915745	£10.10	£12.12
51 - COLLAR BSD-2610915746.A7 2610915746	£10.10	£12.12
52 - LATCH BSD-2610915747.A2 2610915747	£5.58	£6.70
53 - LATCH BSD-2610915748.A3 2610915748	£5.30	£6.36
54 - TORSION SPRING BSD-2610911853.A3 2610911853	£4.26	£5.11
55 - PLATE BSD-2610915704.A6 2610915704	£4.26	£5.11
56 - SUPPORT PLATE BSD-1609902230.A0 1609902230	-
57 - KNOB BSD-2610915706.A3 2610915706	-
58 - LINKAGE BSD-2610915707.A2 2610915707	£7.36	£8.83
59 - HOLDING FIXTURE BSD-2610915708.A3 2610915708	£6.52	£7.83
60 - LEAF SPRING BSD-2610915709.A2 2610915709	£1.75	£2.10
61 - COVER BSD-1609902231.A8 1609902231	£4.26	£5.11
62 - LEVER BSD-2610915711.A3 2610915711	£11.30	£13.56
63 - BRACKET BSD-2610915712.A2 2610915712	£2.80	£3.36
64 - CAM BSD-2610915713.A3 2610915713	£1.75	£2.10
65 - KNOB BSD-1609902232.A0 1609902232	£5.58	£6.70
66 - BRACKET BSD-2610915715.A4 2610915715	£1.75	£2.10
68 - BRACKET BSD-2610915717.A3 2610915717	£1.75	£2.10
70 - PLATE NUT BSD-2610022558.A0 2610022558	£3.72	£4.47
72 - LOCKING LEVER BSD-2610911936.A1 2610911936	£13.12	£15.75
73 - BAFFLE BSD-2610915722.A4 2610915722	£2.80	£3.36
74 - TENSION ROD BSD-2610915723.A1 2610915723	£10.10	£12.12
75 - ROLLER BSD-2610915724.A4 2610915724	£2.16	£2.59
76 - CAM RING BSD-2610915725.A1 2610915725	£12.04	£14.45
77 - PUSH-BUTTON BSD-2610915726.A4 2610915726	£6.52	£7.83
78 - STOP PLATE BSD-2610915686.A2 2610915686	£2.80	£3.36
79 - KNOB BSD-2610915687.A3 2610915687	£6.52	£7.83
80 - LOCKING LEVER BSD-2610915688.A2 2610915688	£7.36	£8.83
81 - LOCKING LEVER BSD-2610915689.A3 2610915689	£7.36	£8.83
82 - RETAINING PLATE BSD-2610915690.A6 2610915690	£1.95	£2.34
83 - COVER BSD-2610915691.A3 2610915691	£1.75	£2.10
84 - POINTER BSD-2610915692.A2 2610915692	£2.16	£2.59
85 - POINTER BSD-2610915693.A3 2610915693	£2.16	£2.59
86 - CABLE CLEAT BSD-2610915694.A6 2610915694	£10.10	£12.12
88 - SCALE BSD-2610915696.A3 2610915696	£1.75	£2.10
89 - STOP BLOCK BSD-2610915697.A2 2610915697	£16.41	£19.69
90 - WRENCH SOCKET BSD-2610915698.A3 2610915698	£7.36	£8.83
91 - RUBBER BUSHING BSD-2610915699.A6 2610915699	£7.36	£8.83
92 - BEARING COVER PLATE BSD-2610915700.A3 2610915700	£1.75	£2.10
93 - RETAINING PLATE BSD-2610915701.A2 2610915701	£5.01	£6.01
94 - GEAR COVER BSD-2610915702.A3 2610915702	£21.52	£25.83
95 - SLIDING PLATE BSD-2610911863.A12 2610911863	£7.36	£8.83
96 - STOP PLATE BSD-2610916458.A3 2610916458	£1.66	£1.99
97 - GUIDE BRACKET BSD-2610916459.A6 2610916459	£1.66	£1.99
98 - BUSHING BSD-2610916460.A3 2610916460	£1.75	£2.10
100 - DETENT PIN BSD-2610916462.A6 2610916462	£2.80	£3.36
101 - BLOCK BSD-1619P03307.A0 1619P03307	£2.16	£2.59
102 - SHAFT L=105mm BSD-2610915756.A1 2610915756	£6.52	£7.83
103 - DETENT PIN BSD-2610915759.A8 2610915759	£4.26	£5.11
104 - SLIDING BEARING BSD-2610915760.A1 2610915760	£81.81	£98.17
105 - SLIDING RAIL BSD-2610916792.A8 2610916792	£54.42	£65.30
106 - SLIDING RAIL BSD-2610916793.A1 2610916793	£63.50	£76.20
107 - TORSION SPRING BSD-2610916794.A4 2610916794	£12.04	£14.45
108 - SLEEVE BSD-2610916795.A1 2610916795	£2.61	£3.13
109 - SHAFT BSD-2610916796.A8 2610916796	£6.52	£7.83
110 - LOCKING PIN BSD-2610916797.A1 2610916797	£2.16	£2.59
111 - TOOTHED GEAR BSD-2610916798.A8 2610916798	£23.86	£28.63
112 - SPINDLE BSD-1609902520.A3 1609902520	£21.52	£25.83
114 - FLANGE BSD-1609902234.A4 1609902234	£11.30	£13.56
115 - BRUSH-COVER dia 22mm BSD-2610916802.A4 2610916802	-
116 - EXTENSION SHAFT BSD-2610916803.A5 2610916803	£8.67	£10.41
117 - DRIVE DISK BSD-2610916804.A4 2610916804	£2.80	£3.36
118 - WIDE V-BELT BSD-2610916805.A1 2610916805	£37.27	£44.72
119 - PULLEY BSD-2610916806.A4 2610916806	£11.30	£13.56
120 - GUIDE PLATE BSD-2610916807.A1 2610916807	£2.80	£3.36
121 - COUNTER SHAFT BSD-2610916808.A4 2610916808	£23.86	£28.63
122 - WEDGE BSD-2610916809.A5 2610916809	£1.75	£2.10
123 - DETENT PIN BSD-2610916810.A4 2610916810	£4.26	£5.11
124 - LEVER SHAFT BSD-2610916811.A1 2610916811	£7.78	£9.33
125 - LABEL BSD-1609902486.A3 1609902486	£3.72	£4.47
126 - SELF-LOCKING NUT BSD-2610911886.A12 2610911886	£1.75	£2.10
127 - PLAIN WASHER BSD-2610911887.A2 2610911887	£1.75	£2.10
128 - SPRING WASHER BSD-2610911868.A7 2610911868	£1.75	£2.10
129 - SCREW AND WASHER ASSEMBLY BSD-2610911907.A2 2610911907	£1.75	£2.10
130 - SET SCREW BSD-2610911908.A12 2610911908	£1.75	£2.10
131 - SHIM BSD-2610911937.A3 2610911937	£3.72	£4.47
132 - FLANGE BSD-1609902236.A1 1609902236	£6.52	£7.83
133 - PLAIN WASHER BSD-2610911870.A12 2610911870	£2.61	£3.13
134 - SCREW BSD-2610911871.A2 2610911871	£2.16	£2.59
135 - TENSION ROD BSD-2610917669.A1 2610917669	£3.72	£4.47
136 - SHOULDER SCREW BSD-2610911598.A7 2610911598	£1.75	£2.10
137 - PLAIN WASHER BSD-2610911599.A2 2610911599	£1.75	£2.10
140 - SCREW BSD-2610911458.A4 2610911458	£1.97	£2.36
141 - SCREW BSD-1619PA6363.A0 1619PA6363	£1.75	£2.10
142 - SCREW BSD-2610318846.A7 2610318846	£1.75	£2.10
143 - SCREW BSD-1609902524.A3 1609902524	£1.75	£2.10
144 - NUT BSD-1609902689.A14 1609902689	£1.75	£2.10
145 - HEX SCREW BSD-2610911861.A12 2610911861	£3.72	£4.47
146 - SET SCREW BSD-2610356437.A8 2610356437	£1.75	£2.10
147 - SCREW BSD-2610911899.A6 2610911899	£1.75	£2.10
148 - RUBBER BUSHING BSD-2610358846.A21 2610358846	£1.75	£2.10
149 - SCREW BSD-2610911918.A12 2610911918	£2.61	£3.13
150 - SELF-LOCKING NUT BSD-2610911901.A10 2610911901	£1.75	£2.10
151 - PLAIN WASHER BSD-2610347092.A16 2610347092	£1.75	£2.10
152 - SCREW BSD-2610911897.A3 2610911897	-
154 - SCREW BSD-2610911900.A3 2610911900	£1.75	£2.10
155 - SCREW BSD-2610910784.A11 2610910784	-
156 - PIN BSD-2610997274.A8 2610997274	£1.75	£2.10
157 - SQUARE NUT BSD-2610355332.A9 2610355332	-
158 - WASHER BSD-2610358801.A2 2610358801	£1.66	£1.99
159 - FELT WASHER BSD-2610911589.A12 2610911589	£8.67	£10.41
160 - CLAMPING BLOCK BSD-2610919102.A7 2610919102	£5.58	£6.70
161 - SET SCREW BSD-1609902416.A9 1609902416	£1.75	£2.10
162 - NUT BSD-2610328618.A3 2610328618	£1.75	£2.10
163 - RUBBER PAD BSD-2610911584.A12 2610911584	£1.75	£2.10
164 - KNOB BSD-2610911583.A2 2610911583	£7.36	£8.83
165 - SPRING BSD-2610911582.A12 2610911582	£1.75	£2.10
166 - DETENT PIN BSD-2610911575.A7 2610911575	£2.16	£2.59
167 - COMPRESSION SPRING BSD-2610911576.A2 2610911576	£2.16	£2.59
168 - RETAINING PIN BSD-2610911577.A12 2610911577	£1.75	£2.10
169 - SCREW BSD-2610358848.A3 2610358848	£1.75	£2.10
170 - SCREW 18.9 MM BSD-2610327859.A2 2610327859	£1.75	£2.10
171 - SHOULDER SCREW BSD-2610911911.A11 2610911911	£1.75	£2.10
172 - ROUND RUBBER BSD-2610911921.A3 2610911921	£1.75	£2.10
178 - SPRING RETAINING RING BSD-2610990521.A19 2610990521	£1.75	£2.10
179 - SCREW BSD-2610004925.A4 2610004925	-
180 - BOLT BSD-2610358812.A3 2610358812	£1.95	£2.34
181 - SPRING WASHER BSD-2610355325.A26 2610355325	£1.75	£2.10
182 - SHOULDER SCREW BSD-2610018984.A1 2610018984	£2.80	£3.36
183 - BALL BEARING BSD-2610327846.A7 2610327846	£16.41	£19.69
185 - SCREW BSD-1609902307.A0 1609902307	£1.75	£2.10
186 - WOODRUFF KEY BSD-2610993102.A7 2610993102	£2.16	£2.59
187 - SPRING RETAINING RING BSD-2610997281.A5 2610997281	£1.75	£2.10
188 - WASHER BSD-2610029674.A17 2610029674	£1.75	£2.10
189 - RUBBER RING BSD-2610996948.A31 2610996948	£1.75	£2.10
190 - NEEDLE-ROLLER BEARING BSD-2610358922.A7 2610358922	£12.04	£14.45
191 - BOLT BSD-2610906037.A3 2610906037	£1.75	£2.10
192 - SPRING WASHER BSD-2610906041.A6 2610906041	£1.75	£2.10
193 - SCREW BSD-2610913862.A7 2610913862	£1.75	£2.10
194 - SET SCREW BSD-2610910786.A11 2610910786	-
195 - SHOULDER SCREW BSD-2610919060.A2 2610919060	£1.75	£2.10
196 - COMPRESSION SPRING BSD-2610919061.A7 2610919061	£1.75	£2.10
197 - SCREW BSD-2610919062.A2 2610919062	£4.26	£5.11
198 - SCREW BSD-2610919063.A3 2610919063	£3.72	£4.47
199 - RETAINING SNAP RING BSD-2610912556.A4 2610912556	£1.75	£2.10
201 - SCREWDRIVER BIT BSD-2610919065.A2 2610919065	£2.80	£3.36
202 - PLATE BSD-2610919066.A3 2610919066	£2.16	£2.59
203 - SCREW BSD-2610355295.A11 2610355295	£2.16	£2.59
204 - COMPRESSION SPRING BSD-2610919067.A2 2610919067	£1.75	£2.10
205 - COMPRESSION SPRING BSD-2610919068.A7 2610919068	£1.75	£2.10
206 - SPRING PIN BSD-2610919069.A2 2610919069	£1.75	£2.10
207 - STOP SCREW BSD-2610911873.A2 2610911873	£2.61	£3.13
208 - SHOULDER SCREW BSD-2610919070.A7 2610919070	£1.75	£2.10
209 - STOP SCREW BSD-2610919071.A2 2610919071	£2.16	£2.59
210 - SCREW BSD-2610320304.A6 2610320304	£1.75	£2.10
211 - BRAKE PLATE BSD-2610919072.A7 2610919072	£2.61	£3.13
212 - BRAKE PLATE BSD-2610919073.A2 2610919073	£8.67	£10.41
213 - PLAIN WASHER BSD-2610912587.A3 2610912587	£1.75	£2.10
214 - NUT BSD-2615297331.A1 2615297331	£1.75	£2.10
215 - PVC TUBE BSD-2610919074.A3 2610919074	£2.61	£3.13
216 - SHOULDER SCREW BSD-1609902706.A7 1609902706	£1.75	£2.10
218 - SCREW BSD-2610327867.A7 2610327867	£1.75	£2.10
219 - SCREW BSD-2610998575.A22 2610998575	£1.75	£2.10
221 - COMPRESSION SPRING BSD-2610919077.A6 2610919077	£1.75	£2.10
222 - PAD BSD-2610919078.A3 2610919078	£1.75	£2.10
223 - BALL BEARING BSD-2610919079.A6 2610919079	£18.96	£22.75
224 - COMPRESSION SPRING BSD-2610919080.A3 2610919080	£1.75	£2.10
225 - RETAINING SNAP RING BSD-2610358869.A12 2610358869	£1.75	£2.10
226 - DEVICE CAP BSD-1609902487.A1 1609902487	£1.75	£2.10
228 - SCREW BSD-2610358928.A2 2610358928	£1.66	£1.99
229 - INSERT BSD-2610911569.A11 2610911569	£2.61	£3.13
230 - NUT BSD-2610327868.A2 2610327868	£1.75	£2.10
231 - PVC TUBE BSD-1609902277.A3 1609902277	£1.75	£2.10
232 - SCREW BSD-2610911929.A9 2610911929	£1.75	£2.10
233 - WASHER BSD-2610911450.A12 2610911450	£1.75	£2.10
234 - BEARING COVER BSD-2610911566.A29 2610911566	£2.80	£3.36
235 - SCREW BSD-2610318812.A6 2610318812	£2.80	£3.36
236 - RETAINING SNAP RING BSD-2610919083.A6 2610919083	£1.75	£2.10
237 - SCREW BSD-2610919084.A3 2610919084	£2.61	£3.13
238 - SCREW BSD-2610320330.A7 2610320330	£1.75	£2.10
239 - COMPRESSION SPRING BSD-2610919085.A6 2610919085	£1.75	£2.10
240 - SCREW BSD-2610915162.A8 2610915162	£1.75	£2.10
241 - HEX SCREW BSD-2610351178.A2 2610351178	£1.75	£2.10
242 - SCREW BSD-2610914401.A9 2610914401	£1.75	£2.10
243 - PIN BSD-2610919086.A3 2610919086	£2.16	£2.59
244 - SET SCREW BSD-2610919087.A6 2610919087	£2.16	£2.59
245 - SCREW BSD-2610358519.A2 2610358519	£1.75	£2.10
246 - HEX NUT BSD-2610358521.A3 2610358521	£1.75	£2.10
247 - STOP PLATE BSD-2610916061.A1 2610916061	£5.30	£6.36
249 - ADJUSTING WRENCH BSD-2610917658.A7 2610917658	£10.10	£12.12
250 - DUST CONTAINER BSD-2610917670.A3 2610917670	£27.23	£32.68
251 - SUCTION TUBE BSD-2610919088.A3 2610919088	£8.67	£10.41
252 - QUICK-CLAMPING DEVICE BSD-2610919089.A2 2610919089	£40.80	£48.96
253 - LABEL BSD-1609902276.A1 1609902276	£3.72	£4.47
254 - WARNING PLATE BSD-2610911658.A2 2610911658	£2.33	£2.80
255 - LABEL BSD-1609902490.A3 1609902490	£3.72	£4.47
256 - LABEL BSD-1609902491.A1 1609902491	£3.72	£4.47
258 - LABEL BSD-1609902280.A0 1609902280	£2.16	£2.59
259 - LABEL BSD-1609902492.A3 1609902492	£4.26	£5.11
260 - TUBE BSD-2610919090.A3 2610919090	£19.45	£23.34
261 - PLAIN WASHER BSD-2610308959.A4 2610308959	£5.87	£7.04
262 - CONNECTOR BSD-2610911933.A23 2610911933	£1.75	£2.10
263 - CABLE BSD-1609902283.A1 1609902283	£12.04	£14.45
264 - CABLE BSD-1609902284.A2 1609902284	£12.04	£14.45
265 - CABLE BSD-1609902285.A2 1609902285	£7.36	£8.83
266 - NUT BSD-2610910791.A4 2610910791	£3.72	£4.47
267 - WASHER BSD-2610910792.A7 2610910792	£1.75	£2.10
268 - PLAIN WASHER BSD-2610068894.A7 2610068894	£1.75	£2.10
270 - SAFETY COVER BSD-1609902238.A2 1609902238	£5.58	£6.70
272 - SCREW BSD-1609902493.A1 1609902493	£1.75	£2.10
273 - BRACKET BSD-1609902241.A2 1609902241	£1.75	£2.10
274 - SCREW BSD-1619P03785.A2 1619P03785	£1.75	£2.10
275 - SPRING BSD-1609902243.A2 1609902243	£11.30	£13.56
276 - LEVER BSD-1609902244.A2 1609902244	-
277 - SHAFT BSD-1609902245.A2 1609902245	£2.61	£3.13
278 - PLAIN WASHER BSD-1609902246.A2 1609902246	£1.75	£2.10
279 - CABLE BSD-1609902286.A2 1609902286	£1.32	£1.58
280 - SCREW M 4 length - 20 mm BSD-1609902494.A3 1609902494	£1.75	£2.10
281 - COVER BSD-1609902248.A2 1609902248	£2.16	£2.59
282 - SCREW M 4 length - 8 mm BSD-1609902495.A1 1609902495	£1.75	£2.10
283 - TRACTIVE ELECTROMAGNET BSD-1609902251.A0 1609902251	£31.64	£37.97
285 - PLUNGER BAR BSD-1609902256.A3 1609902256	£11.30	£13.56
286 - HOUSING BSD-1609902257.A1 1609902257	£4.26	£5.11
287 - SCREW BSD-1609902258.A3 1609902258	£1.75	£2.10
288 - UPPER HOUSING BSD-1609902259.A1 1609902259	£3.34	£4.01
289 - SCREW BSD-1609902260.A3 1609902260	£1.75	£2.10
290 - CONDENSER BSD-1609902262.A1 1609902262	£11.30	£13.56
291 - CONNECTION BLOCK BSD-1609902263.A3 1609902263	£1.32	£1.58
292 - SCREW M4 x 10 BSD-1609902496.A2 1609902496	£1.75	£2.10
293 - HOUSING BASE BSD-1609902265.A1 1609902265	£4.75	£5.70
294 - ON-OFF SWITCH BSD-1609902266.A3 1609902266	£48.38	£58.06
295 - CONDENSER BSD-1609902268.A0 1609902268	£13.41	£16.09
296 - CLAMP BSD-1609902269.A3 1609902269	£4.26	£5.11
297 - PIN BSD-1609902270.A1 1609902270	£1.75	£2.10
298 - PIN BSD-1609902271.A3 1609902271	£1.75	£2.10
299 - SCREW BSD-1609902273.A1 1609902273	£1.75	£2.10
300 - FASTENING CLAMP BSD-2610911878.A4 2610911878	£1.75	£2.10
302 - FASTENING CLAMP BSD-1609902275.A3 1609902275	£1.75	£2.10
304 - CABLE BSD-1609902287.A2 1609902287	£1.75	£2.10
305 - SCREW BSD-1609902288.A2 1609902288	£1.75	£2.10
306 - SCREW BSD-1609902289.A2 1609902289	£1.75	£2.10
307 - WIRE RETAINER BSD-1609902296.A2 1609902296	£1.75	£2.10
308 - PLAIN WASHER BSD-1609902308.A4 1609902308	£1.75	£2.10
309 - SPACER BSD-1609902309.A0 1609902309	£2.16	£2.59
310 - SCREW BSD-1609902310.A4 1609902310	£1.75	£2.10
311 - SCREW BSD-1609902311.A0 1609902311	£1.75	£2.10
312 - SCREW BSD-1609902312.A4 1609902312	£1.75	£2.10
313 - SET SCREW BSD-1609902313.A0 1609902313	£1.75	£2.10
314 - DOUBLE HEAD ENGIN WRENCH BSD-2610921512.A7 2610921512	£4.26	£5.11
315 - MANUFACTURER'S NAMEPLATE BSD-1609902497.A1 1609902497	£3.72	£4.47
317 - PLAIN WASHER BSD-1609902378.A5 1609902378	-
318 - SCREW BSD-1609902399.A0 1609902399	£1.32	£1.58
356 - SPRING BSD-1609902420.A2 1609902420	£1.75	£2.10
358 - SCREW BSD-1609902575.A6 1609902575	£1.75	£2.10
670 - FITTING BSD-2610919256.A12 2610919256	-
827 - ASSEMBLY OF SERVICE PARTS BSD-1619P03312.A8 1619P03312	£7.36	£8.83
869 - SERVICE KIT BSD-2610022556.A1 2610022556	£63.50	£76.20
869/400 - WHEEL GUARD BSD-2610022557.A3 2610022557	-

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 12 SD / 0601B23508 / --- 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GCM 12 SD / 0601B23508 / --- 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GCM 12 SD / 0601B23508 / --- 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
