Bosch GCM 12 SDE / 3601M23161 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

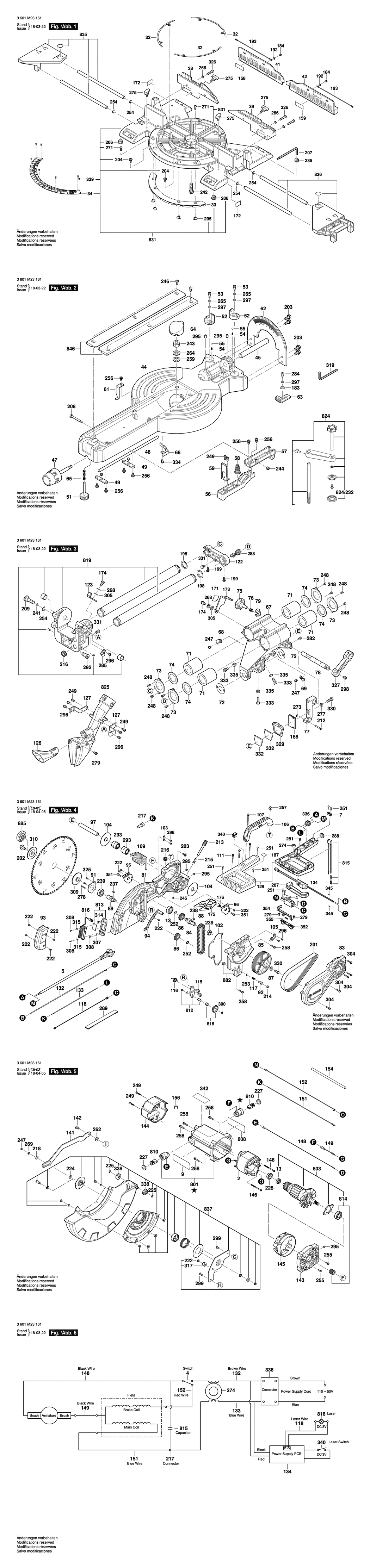

An exploded drawing and listing for the Bosch GCM 12 SDE / 3601M23161 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-1609B04897.A2 1609B04897	£63.50	£76.20
4 - SWITCH BSD-2610950336.A4 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD GB 3.5 2x1.5mm H05 RR-F BSD-1609B00379.A3 1609B00379	£59.53	£71.44
7 - CABLE CLIP BSD-1619P03808.A17 1619P03808	£1.75	£2.10
9 - LABEL BSD-1609B00695.A2 1609B00695	£2.61	£3.13
13 - BEARING BSD-1609B00597.A10 1609B00597	£10.10	£12.12
32 - SLIDING PLATE BSD-1609B04702.A1 1609B04702	£6.52	£7.83
33 - DETENT PLATE BSD-1609B04703.A6 1609B04703	£7.36	£8.83
34 - SCALE BSD-1609B04704.A1 1609B04704	£5.58	£6.70
38 - MITRE FENCE BSD-1609B04991.A2 1609B04991	£27.68	£33.21
39 - MITRE FENCE BSD-1609b04992.A4 1609b04992	£24.45	£29.34
41 - MITRE FENCE BSD-1609B04993.A5 1609B04993	£27.23	£32.68
42 - MITRE FENCE BSD-1609B04994.A2 1609B04994	£27.23	£32.68
44 - TABLE BSD-1609B04721.A7 1609B04721	£195.26	£234.31
45 - SHAFT BSD-1609B04722.A0 1609B04722	£4.26	£5.11
47 - KNOB BSD-1609B04725.A11 1609B04725	£5.30	£6.36
48 - ROD BSD-1609B04726.A0 1609B04726	£2.80	£3.36
49 - COVER BSD-1609B04727.A11 1609B04727	£2.80	£3.36
51 - SUPPORTING FOOT BSD-1609B04728.A0 1609B04728	£2.80	£3.36
52 - DETENT BSD-1609B04743.A7 1609B04743	£13.12	£15.75
53 - SHOULDER SCREW BSD-1609B04744.A0 1609B04744	£1.75	£2.10
54 - CONTACT STRAP BSD-1609B04745.A11 1609B04745	£1.75	£2.10
55 - BALL BSD-1609B04746.A0 1609B04746	£1.75	£2.10
56 - DETENT BSD-1609B04747.A7 1609B04747	£2.80	£3.36
57 - DETENT BSD-1609B04748.A0 1609B04748	£10.10	£12.12
58 - CONTACT STRAP BSD-1609B04749.A11 1609B04749	£1.75	£2.10
59 - LEAF SPRING BSD-1609B04750.A0 1609B04750	£1.75	£2.10
61 - POINTER BSD-1609B04751.A7 1609B04751	£1.75	£2.10
62 - SCALE BSD-1609B04752.A0 1609B04752	£21.52	£25.83
63 - SLIDING PLATE BSD-1609B04754.A7 1609B04754	£2.16	£2.59
64 - COVER BSD-1609B04755.A0 1609B04755	£1.75	£2.10
65 - CONTACT STRAP BSD-1609B04756.A11 1609B04756	£1.75	£2.10
66 - LEAF SPRING BSD-1609B04758.A7 1609B04758	£1.75	£2.10
67 - POST BSD-1609B04761.A0 1609B04761	£68.42	£82.10
68 - POINTER BSD-1609B04773.A0 1609B04773	£1.75	£2.10
69 - POINTER BSD-1609B04774.A11 1609B04774	£1.75	£2.10
71 - BEARING BSD-1609B04775.A0 1609B04775	£40.80	£48.96
72 - WEAR PLATE BSD-1609B04776.A11 1609B04776	£2.16	£2.59
73 - PLATE BSD-1609B04778.A0 1609B04778	£3.72	£4.47
74 - FELT BSD-1609B04780.A11 1609B04780	£2.80	£3.36
75 - KNOB BSD-1609B04781.A0 1609B04781	£4.26	£5.11
76 - CONTACT STRAP BSD-1609B04791.A7 1609B04791	£1.32	£1.58
77 - LOCKING LEVER BSD-1609B04794.A0 1609B04794	£16.41	£19.69
78 - LEVER SHAFT BSD-1609B04795.A7 1609B04795	£16.41	£19.69
79 - COVER BSD-1609B04798.A0 1609B04798	£2.16	£2.59
81 - ARM BSD-1609B04995.A2 1609B04995	£93.88	£112.65
83 - BELT COVER BSD-1609B04803.A7 1609B04803	£10.10	£12.12
84 - TRANSMISSION SHAFT BSD-1609B04804.A0 1609B04804	£10.10	£12.12
85 - PULLEY BSD-1609B04805.A7 1609B04805	£14.91	£17.89
86 - SPROCKET BSD-1609B04806.A0 1609B04806	£13.12	£15.75
87 - WASHER BSD-1609B04807.A11 1609B04807	£1.75	£2.10
88 - CHAIN BSD-1609B04808.A0 1609B04808	£16.41	£19.69
89 - OUTPUT SHAFT BSD-1609B04809.A11 1609B04809	£10.10	£12.12
91 - PLATE BSD-1609B04810.A0 1609B04810	£1.75	£2.10
92 - SPINDLE BSD-1609B04811.A11 1609B04811	£1.75	£2.10
93 - COVER BSD-1609B04812.A0 1609B04812	£1.75	£2.10
94 - CHANNEL BSD-1609B04813.A7 1609B04813	£1.75	£2.10
95 - CHIP DEFLECTOR BSD-1609B04815.A4 1609B04815	£2.61	£3.13
96 - CHIP DEFLECTOR BSD-1609B04814.A0 1609B04814	£2.61	£3.13
97 - PIVOT PIN BSD-1609B04816.A0 1609B04816	£3.72	£4.47
102 - GASKET BSD-1609B04822.A2 1609B04822	£2.80	£3.36
103 - CLIP BSD-1609B05177.A7 1609B05177	£2.16	£2.59
104 - WEAR PLATE BSD-1609B04826.A2 1609B04826	£1.75	£2.10
105 - CABLE CLIP BSD-1609B04827.A5 1609B04827	£1.75	£2.10
106 - CARRYING HANDLE BSD-1609B04828.A2 1609B04828	£3.72	£4.47
107 - SCREW BSD-1609B04829.A9 1609B04829	£1.75	£2.10
109 - TORSION SPRING BSD-1609B04831.A2 1609B04831	£12.04	£14.45
111 - SCREW BSD-1609B04832.A9 1609B04832	£13.12	£15.75
115 - SCREW BSD-1609B04836.A2 1609B04836	£1.75	£2.10
116 - TORSION SPRING BSD-1609B04837.A9 1609B04837	£3.72	£4.47
117 - COMPRESSION SPRING BSD-1609B04838.A2 1609B04838	£2.16	£2.59
118 - WIRE BSD-1609B04839.A9 1609B04839	£3.72	£4.47
122 - END CAP BSD-1609B04843.A2 1609B04843	£10.10	£12.12
123 - PLATE BSD-1609B04844.A5 1609B04844	£1.95	£2.34
126 - DUST EXTRACTION BSD-1609B04847.A2 1609B04847	£4.26	£5.11
127 - SUPPORT BRACKET BSD-1609B04848.A9 1609B04848	£2.16	£2.59
129 - SWITCH HANDLE BSD-1609B05031.A0 1609B05031	£16.41	£19.69
132 - WIRE BSD-1609B04879.A1 1609B04879	£2.16	£2.59
133 - WIRE BSD-1609B04880.A0 1609B04880	£1.75	£2.10
134 - POWER SUPPLY BOARD BSD-1609B05145.A0 1609B05145	£14.91	£17.89
141 - LINKAGE BSD-1609B04875.A7 1609B04875	£10.10	£12.12
142 - SHOULDER SCREW BSD-1609B04876.A0 1609B04876	£1.75	£2.10
143 - INTERMEDIATE FLANGE BSD-1609B04891.A3 1609B04891	£12.04	£14.45
144 - END CAP BSD-1609B04901.A1 1609B04901	£3.72	£4.47
145 - BAFFLE BSD-1609B04904.A11 1609B04904	£2.80	£3.36
146 - SCREW BSD-1609B04911.A0 1609B04911	£3.72	£4.47
148 - WIRE BSD-1609B04915.A3 1609B04915	£2.80	£3.36
149 - WIRE BSD-1609B04916.A8 1609B04916	£1.75	£2.10
151 - WIRE BSD-1609B04924.A0 1609B04924	£2.16	£2.59
152 - WIRE BSD-1609B04918.A11 1609B04918	£2.61	£3.13
154 - SLEEVE BSD-1609B04921.A10 1609B04921	£1.75	£2.10
156 - CLIP BSD-1609B04923.A11 1609B04923	£1.75	£2.10
158 - LABEL BSD-1609B04949.A10 1609B04949	£2.61	£3.13
159 - LABEL BSD-1609B04950.A1 1609B04950	£2.61	£3.13
171 - LABEL BSD-1609B04937.A0 1609B04937	£2.61	£3.13
172 - LABEL BSD-1609B04960.A9 1609B04960	£2.61	£3.13
173 - PLATE BSD-1609B04782.A3 1609B04782	£2.16	£2.59
174 - SHOULDER SCREW BSD-1609B04783.A0 1609B04783	£1.75	£2.10
175 - SAFETY GUARD BSD-1609B04823.A2 1609B04823	£3.72	£4.47
176 - TORSION SPRING BSD-1609B04824.A1 1609B04824	£1.75	£2.10
183 - WASHER BSD-1609B04757.A1 1609B04757	£1.75	£2.10
184 - SCREW BSD-1609B00780.A8 1609B00780	£1.75	£2.10
186 - LEAF SPRING BSD-1609B04762.A10 1609B04762	£1.75	£2.10
187 - LABEL BSD-1609B04959.A3 1609B04959	£2.61	£3.13
192 - PLAIN WASHER BSD-1609B04225.A28 1609B04225	£1.75	£2.10
193 - CABLE BSD-1609B05115.A7 1609B05115	£2.16	£2.59
198 - WASHER BSD-1609B05158.A6 1609B05158	£4.26	£5.11
199 - SCREW BSD-1609BP7139.A1 1609BP7139	£1.75	£2.10
201 - BELT BSD-1609B00207.A7 1609B00207	£27.23	£32.68
202 - FLANGE BOLT BSD-1609B00211.A2 1609B00211	£4.26	£5.11
203 - FLANGE BOLT BSD-1609B00213.A8 1609B00213	£1.75	£2.10
204 - SCREW BSD-1609B00223.A9 1609B00223	£1.75	£2.10
205 - NUT BSD-1609B00225.A9 1609B00225	£3.72	£4.47
206 - SUPPORTING FOOT BSD-1609B01431.A12 1609B01431	£2.16	£2.59
207 - WRENCH SOCKET BSD-1609B00256.A9 1609B00256	£2.16	£2.59
208 - BOLT BSD-1609B00305.A8 1609B00305	£2.61	£3.13
209 - KNOB BSD-1609B00350.A4 1609B00350	£1.75	£2.10
212 - SHAFT BSD-1609B00370.A7 1609B00370	£1.75	£2.10
213 - KNOB BSD-1609B00382.A10 1609B00382	£5.30	£6.36
214 - BUTTON BSD-1609B00390.A9 1609B00390	£1.75	£2.10
215 - COMPRESSION SPRING BSD-1609B00417.A3 1609B00417	£1.75	£2.10
216 - SLEEVE BSD-1609B00418.A15 1609B00418	£1.75	£2.10
217 - CONNECTOR BSD-1609B00430.A1 1609B00430	£1.75	£2.10
218 - BUSHING BSD-1609B00449.A4 1609B00449	£1.75	£2.10
222 - SCREW BSD-1609B00454.A8 1609B00454	£1.75	£2.10
224 - WASHER BSD-1609B00457.A8 1609B00457	£1.75	£2.10
225 - QUICK-LOCK BSD-1609B00458.A11 1609B00458	£1.75	£2.10
227 - BRUSH-COVER BSD-1609B00478.A4 1609B00478	£1.75	£2.10
228 - RUBBER BUSHING BSD-1609B01670.A1 1609B01670	£1.75	£2.10
235 - RUBBER BUSHING BSD-1609B00533.A16 1609B00533	£1.75	£2.10
237 - KEY BSD-1609B00592.A13 1609B00592	£1.75	£2.10
238 - KEY BSD-1609B00593.A5 1609B00593	£1.75	£2.10
239 - BEARING BSD-1609B00596.A6 1609B00596	£13.12	£15.75
241 - O-RING BSD-1609B00601.A15 1609B00601	£1.75	£2.10
242 - BOLT BSD-1609B00602.A5 1609B00602	£1.75	£2.10
243 - LOCK NUT BSD-1609B00603.A15 1609B00603	£1.75	£2.10
244 - LOCK NUT BSD-1609B00605.A3 1609B00605	£1.75	£2.10
245 - SET SCREW BSD-1609B00617.A3 1609B00617	£1.75	£2.10
246 - SCREW BSD-1609B00627.A5 1609B00627	£2.16	£2.59
247 - SCREW BSD-1609B00630.A4 1609B00630	£1.75	£2.10
248 - SCREW BSD-1609B00633.A8 1609B00633	£1.75	£2.10
249 - TAPPING SCREW BSD-1609B00636.A7 1609B00636	£2.61	£3.13
251 - TAPPING SCREW BSD-1609B00637.A18 1609B00637	£1.75	£2.10
252 - RETAINING RING BSD-1609B00641.A4 1609B00641	£1.75	£2.10
253 - RETAINING RING BSD-1609B00643.A5 1609B00643	£1.75	£2.10
254 - RETAINING RING BSD-1609B00644.A15 1609B00644	£2.16	£2.59
255 - SCREW BSD-1609B00649.A12 1609B00649	£1.75	£2.10
256 - SCREW BSD-1609B00650.A4 1609B00650	£1.75	£2.10
257 - SCREW BSD-1609B00652.A14 1609B00652	£1.75	£2.10
258 - SCREW BSD-1609B00654.A16 1609B00654	£1.75	£2.10
259 - SPRING WASHER BSD-1609B00658.A7 1609B00658	£1.75	£2.10
262 - WASHER BSD-1609B00662.A5 1609B00662	£1.75	£2.10
264 - WASHER BSD-1609B00665.A4 1609B00665	£1.75	£2.10
265 - WASHER BSD-1609B00667.A16 1609B00667	£1.75	£2.10
266 - WASHER BSD-1609B00669.A4 1609B00669	£1.75	£2.10
268 - WASHER BSD-1609B00674.A10 1609B00674	£1.75	£2.10
269 - WASHER BSD-1609B00675.A1 1609B00675	£1.75	£2.10
271 - SCREW BSD-1609B00678.A9 1609B00678	£1.75	£2.10
273 - RETAINING RING BSD-1609B00690.A8 1609B00690	£1.75	£2.10
274 - RING BSD-1609B05354.A5 1609B05354	£1.75	£2.10
275 - KNOB BSD-1609B00861.A10 1609B00861	£1.32	£1.58
277 - HEX NUT BSD-1609B01041.A6 1609B01041	£1.75	£2.10
278 - SCREW BSD-1609B04799.A10 1609B04799	£1.75	£2.10
279 - TAPPING SCREW BSD-1609B01194.A1 1609B01194	£1.75	£2.10
281 - CYL HEAD TAPPING SCREW BSD-1609B01356.A12 1609B01356	£1.75	£2.10
282 - SCREW BSD-1609B01388.A9 1609B01388	£1.75	£2.10
283 - CABLE HOLDER BSD-1609B04869.A1 1609B04869	£1.75	£2.10
284 - SHOULDER SCREW BSD-1609B01462.A8 1609B01462	£1.75	£2.10
285 - CABLE CLIP BSD-1609B01512.A11 1609B01512	£1.75	£2.10
287 - TRIGGER BSD-1609B01531.A10 1609B01531	£2.16	£2.59
288 - CORD GUARD BSD-1609B01533.A1 1609B01533	£1.75	£2.10
289 - CABLE TAPE BSD-1609B01538.A31 1609B01538	£1.75	£2.10
292 - CONTROL SCREW BSD-1609B01599.A13 1609B01599	£1.75	£2.10
293 - BUSHING BSD-1609B01605.A6 1609B01605	£1.75	£2.10
295 - SCREW BSD-1609B01660.A13 1609B01660	£1.75	£2.10
296 - SCREW BSD-1609B01664.A10 1609B01664	£1.75	£2.10
297 - WASHER BSD-1609B01668.A31 1609B01668	£1.75	£2.10
298 - SCREW BSD-1609B01665.A13 1609B01665	£1.75	£2.10
299 - SCREW BSD-1609B01693.A8 1609B01693	£1.75	£2.10
300 - END CLIP BSD-1609B01992.A20 1609B01992	£1.75	£2.10
304 - SCREW BSD-1609B00653.A4 1609B00653	£1.75	£2.10
305 - WASHER BSD-1609BP7042.A5 1609BP7042	£1.75	£2.10
307 - WASHER BSD-1609B02191.A6 1609B02191	£2.61	£3.13
308 - SCREW BSD-1609B05179.A6 1609B05179	£2.61	£3.13
309 - FLANGE BSD-1609B02350.A10 1609B02350	£12.04	£14.45
310 - FLANGE BSD-1609B02352.A4 1609B02352	£11.30	£13.56
314 - SCREW BSD-1609B00414.A2 1609B00414	£5.30	£6.36
315 - GROOVED WASHER BSD-1609B02438.A9 1609B02438	£1.75	£2.10
317 - BUMPER BSD-1609B02467.A3 1609B02467	£1.75	£2.10
319 - WRENCH SOCKET BSD-1609B00415.A8 1609B00415	£2.61	£3.13
325 - SCREW BSD-1609B03179.A1 1609B03179	£1.75	£2.10
326 - SCREW BSD-1609B03722.A31 1609B03722	£1.75	£2.10
327 - CONTROL LEVER BSD-1609B03733.A11 1609B03733	£4.26	£5.11
329 - LOCK PLATE BSD-1609B03741.A20 1609B03741	£2.61	£3.13
330 - ADJUSTING BOLT BSD-1609B03742.A1 1609B03742	£1.75	£2.10
331 - SLIDE STOP BSD-1609B03753.A31 1609B03753	£1.75	£2.10
332 - FRICTION PLATE BSD-1609B03770.A11 1609B03770	£7.36	£8.83
333 - STOP BOLT BSD-1609B03776.A31 1609B03776	£1.75	£2.10
334 - SCREW BSD-1609B04086.A22 1609B04086	£2.16	£2.59
335 - ADJUSTING NUT BSD-1609B04227.A4 1609B04227	£1.75	£2.10
336 - CONNECTION BLOCK BSD-1609BP7059.A36 1609BP7059	£1.75	£2.10
338 - ROLLER BSD-1609BP7124.A11 1609BP7124	£1.75	£2.10
339 - RIVET BSD-1609B00622.A4 1609B00622	£1.75	£2.10
340 - SWITCH BSD-1609B05392.A10 1609B05392	£4.26	£5.11
342 - WARNING PLATE BSD-1609B04936.A2 1609B04936	£2.61	£3.13
345 - CONNECTING TERMINAL BSD-1609B01397.A12 1609B01397	£1.75	£2.10
351 - SHOULDER SCREW BSD-1609B01463.A10 1609B01463	£1.75	£2.10
352 - BUTTON BSD-1609B04865.A2 1609B04865	£1.75	£2.10
354 - LINKAGE BSD-1609B01529.A2 1609B01529	£1.75	£2.10
355 - COMPRESSION SPRING BSD-1609B01530.A2 1609B01530	£1.75	£2.10
801 - HOUSING ASSEMBLY BSD-1609B05013.A9 1609B05013	£21.52	£25.83
803 - ARMATURE ASSEMBLY 110V BSD-1609B05027.A1 1609B05027	£120.11	£144.13
808 - NAMEPLATE BSD-1609BN0208.A0 1609BN0208	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1609B02314.A0 1609B02314	£7.36	£8.83
812 - MOUNTING PLATE BSD-1609B05189.A0 1609B05189	£2.80	£3.36
813 - SUPPORT PLATE BSD-1609B02434.A10 1609B02434	£16.41	£19.69
814 - BEARING BSD-1609B02316.A8 1609B02316	£16.41	£19.69
815 - CONDENSER BSD-1609B05030.A10 1609B05030	£1.75	£2.10
816 - LASER BSD-1609B05188.A7 1609B05188	£63.50	£76.20
818 - SPROCKET BSD-1609B05020.A2 1609B05020	£13.12	£15.75
819 - CARRIER BSD-1609B05035.A2 1609B05035	£63.50	£76.20
824 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A18 1609B06203	£14.99	£17.99
824/232 - RUBBER PAD BSD-1609B00523.A4 1609B00523	£2.61	£3.13
825 - DUST EXTRACTION BSD-1609B05018.A3 1609B05018	£12.04	£14.45
831 - BASE UNIT BSD-1609B05022.A2 1609B05022	£195.26	£234.31
835 - EXTENSION STAND BSD-1609B05023.A5 1609B05023	£40.80	£48.96
836 - EXTENSION STAND BSD-1609B05024.A2 1609B05024	£40.80	£48.96
837 - LOWER GUARD BSD-1609B05025.A5 1609B05025	£45.67	£54.80
846 - PLATE BSD-1609B05028.A1 1609B05028	£10.10	£12.12
882 - CHAIN COVER BSD-1609B05026.A2 1609B05026	£31.64	£37.97
885 - BOLT BSD-1609B05017.A10 1609B05017	£18.96	£22.75

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 12 SDE / 3601M23161 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Bosch GCM 12 SDE / 3601M23161 / GB 110 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Bosch GCM 12 SDE / 3601M23170 / GB 230 Volt Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GCM 12 SDE / 3601M23161 / GB 110 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Bosch GCM 12 SDE / 3601M23170 / GB 230 Volt Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
