Bosch GCM 8 SJL / 3601M19170 / GB 230 Volt Spare Parts

Home Details Reviews Delivery

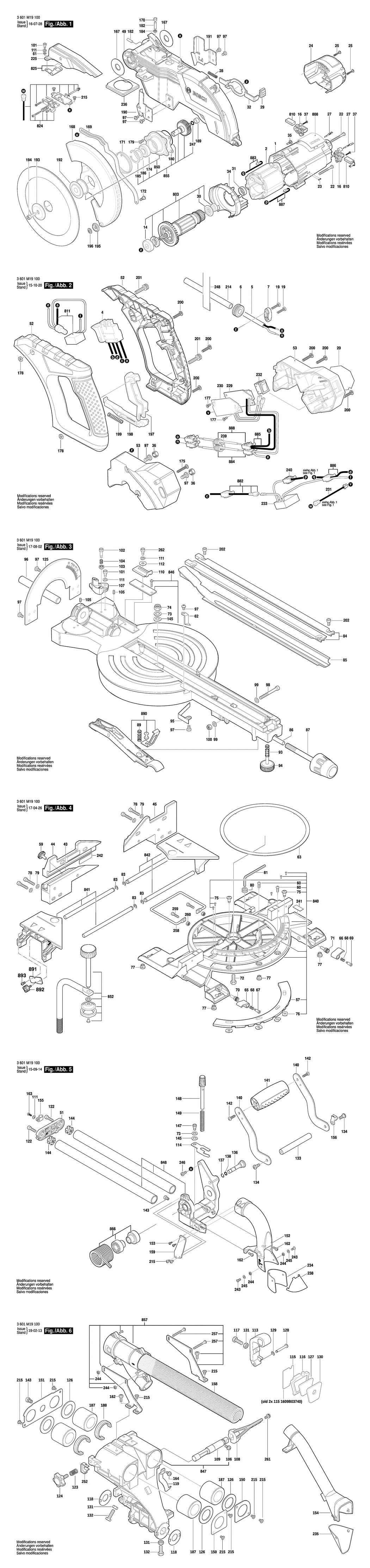

An exploded drawing and listing for the Bosch GCM 8 SJL / 3601M19170 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P06205.A2 1619P06205	£21.42	£25.71
2 - FIELD 230V BSD-1619P04474.A14 1619P04474	£33.74	£40.49
4 - ON-OFF SWITCH BSD-1609B04211.A12 1609B04211	£12.04	£14.45
5 - POWER SUPPLY CORD GB 3m 2x1mm H05 RN-F BSD-1609B00378.A0 1609B00378	£16.41	£19.69
6 - CORD GUARD BSD-1609B01533.A18 1609B01533	£1.75	£2.10
7 - CABLE CLIP BSD-1609B00821.A6 1609B00821	£1.75	£2.10
14 - BEARING COVER PLATE BSD-1619P06374.A19 1619P06374	£8.67	£10.41
16 - BRUSH HOLDER BSD-1619P06212.A19 1619P06212	£8.67	£10.41
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A14 1619P03833	£1.75	£2.10
20 - WARNING LABEL BSD-1609B02127.A1 1609B02127	£2.61	£3.13
22 - SCREW BSD-1609B04117.A1 1609B04117	£1.75	£2.10
23 - BALL BSD-1619P00291.A2 1619P00291	-
24 - END CAP BSD-1609B04008.A17 1609B04008	£6.52	£7.83
25 - SPECIAL SCREW BSD-1609B00921.A9 1609B00921	£1.75	£2.10
27 - RIGHT ANGLE PLUG BSD-1619P06213.A5 1619P06213	£2.40	£2.88
28 - COMPRESSION SPRING BSD-1619P01642.A53 1619P01642	£1.75	£2.10
29 - CAP BSD-1609B04070.A1 1609B04070	£1.75	£2.10
30 - SEALING WASHER BSD-1609B04071.A17 1609B04071	£1.75	£2.10
31 - RUBBER RING BSD-1609B04072.A3 1609B04072	£1.75	£2.10
32 - GUIDE BRACKET BSD-1609B04073.A17 1609B04073	£5.58	£6.70
34 - BAFFLE BSD-1609B04075.A14 1609B04075	£1.75	£2.10
35 - COVER BSD-1609B04200.A0 1609B04200	£1.75	£2.10
36 - COVER BSD-1609B04202.A7 1609B04202	£1.75	£2.10
37 - SCREW BSD-1609B04208.A13 1609B04208	£1.75	£2.10
43 - MITRE FENCE BSD-1609B04183.A1 1609B04183	-
44 - MITRE FENCE BSD-1609B04182.A7 1609B04182	£21.52	£25.83
45 - MITRE FENCE BSD-1609b06954.A0 1609b06954	£33.73	£40.48
49 - ARM BSD-1609B04015.A7 1609B04015	£59.53	£71.44
51 - END CAP BSD-1609B03746.A4 1609B03746	£6.52	£7.83
52 - SWITCH HANDLE BSD-1609B04009.A0 1609B04009	£21.52	£25.83
53 - JUNCTION BOX BSD-1609B04023.A0 1609B04023	£14.91	£17.89
57 - DETENT PLATE BSD-1609B03704.A8 1609B03704	£7.36	£8.83
59 - KNURLED THUMBSCREW BSD-1609B05382.A6 1609B05382	£1.75	£2.10
60 - SCREW BSD-1609B03711.A5 1609B03711	£1.75	£2.10
61 - PLAIN WASHER BSD-1609B00863.A6 1609B00863	£1.75	£2.10
62 - POINTER BSD-1609B00717.A11 1609B00717	£1.75	£2.10
63 - WEAR PLATE BSD-1609B03714.A4 1609B03714	£4.26	£5.11
65 - LOCKING LEVER BSD-1609B00232.A12 1609B00232	£1.75	£2.10
66 - LOCKING LEVER BSD-1609B00233.A6 1609B00233	£1.75	£2.10
67 - SHOULDER SCREW BSD-1609B00236.A12 1609B00236	£1.75	£2.10
68 - COMPRESSION SPRING BSD-1609B00237.A10 1609B00237	£1.75	£2.10
69 - SHOULDER SCREW BSD-1609B00238.A12 1609B00238	£1.75	£2.10
70 - LOCK SCREW BSD-1609B01435.A5 1609B01435	£1.75	£2.10
71 - LOCK SCREW BSD-1609B01436.A6 1609B01436	£1.75	£2.10
72 - BOLT BSD-1609B05203.A20 1609B05203	£1.75	£2.10
73 - WASHER BSD-1609B00670.A0 1609B00670	£1.75	£2.10
74 - LOCK NUT BSD-1609B00704.A24 1609B00704	£1.75	£2.10
75 - SPECIAL SCREW BSD-1609B04067.A7 1609B04067	£1.75	£2.10
76 - NUT BSD-1609B01654.A5 1609B01654	£1.75	£2.10
77 - RUBBER BUSHING BSD-1609B00705.A1 1609B00705	£1.75	£2.10
78 - SCREW BSD-1609B03722.A5 1609B03722	£1.75	£2.10
79 - WASHER BSD-1609B00669.A30 1609B00669	£1.75	£2.10
80 - RUBBER RING BSD-1609BP7098.A7 1609BP7098	£1.75	£2.10
81 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A19 1609BP7026	£2.80	£3.36
83 - END CLIP BSD-1609B01992.A10 1609B01992	£1.75	£2.10
84 - SUPPORT PLATE BSD-1609B03717.A4 1609B03717	£6.52	£7.83
85 - DUST TRAY BSD-1609B03718.A5 1609B03718	£2.61	£3.13
86 - ROD BSD-1609B04080.A4 1609B04080	£5.58	£6.70
87 - KNOB BSD-1609B04079.A16 1609B04079	£7.36	£8.83
89 - COMPRESSION SPRING BSD-1609B03721.A4 1609B03721	£1.75	£2.10
93 - CONTACT STRAP BSD-1609BP7341.A20 1609BP7341	£1.75	£2.10
94 - SUPPORTING FOOT BSD-1609B03727.A15 1609B03727	£2.16	£2.59
95 - WEAR PLATE BSD-1609B03729.A5 1609B03729	£1.75	£2.10
96 - PIVOT SHAFT BSD-1609B04108.A17 1609B04108	£4.26	£5.11
97 - SCREW BSD-1609B04086.A3 1609B04086	£2.16	£2.59
98 - SCREW BSD-1609B03723.A15 1609B03723	£1.75	£2.10
99 - PLAIN WASHER BSD-1609B01324.A15 1609B01324	£1.75	£2.10
100 - NUT BSD-1609B01949.A1 1609B01949	£1.75	£2.10
101 - SHOULDER SCREW BSD-1609B01462.A15 1609B01462	£1.75	£2.10
102 - SHOULDER SCREW BSD-1609B01463.A4 1609B01463	£1.75	£2.10
103 - SLIDING BLOCK BSD-1609B01464.A7 1609B01464	£1.75	£2.10
104 - COMPRESSION SPRING BSD-1609B01479.A6 1609B01479	£1.75	£2.10
105 - SET SCREW BSD-1609BP7143.A7 1609BP7143	£1.75	£2.10
106 - SCREW BSD-1609B01388.A15 1609B01388	£1.75	£2.10
107 - DETENT BSD-1609B03760.A5 1609B03760	£11.30	£13.56
108 - CONTROL LEVER BSD-1609B03733.A4 1609B03733	£4.26	£5.11
109 - SHAFT BSD-1609B03734.A5 1609B03734	£14.91	£17.89
110 - DETENT BSD-1609B03737.A3 1609B03737	£1.75	£2.10
111 - WASHER BSD-1609B01668.A5 1609B01668	£1.75	£2.10
112 - WASHER BSD-1609B00675.A23 1609B00675	£1.75	£2.10
113 - LOCKING ELEMENT BSD-1609B03738.A4 1609B03738	£12.04	£14.45
114 - STOP PLATE BSD-1609B03739.A5 1609B03739	£1.75	£2.10
115 - LEAF SPRING BSD-1609B05370.A3 1609B05370	-
116 - LOCK PLATE BSD-1609B03741.A4 1609B03741	£2.61	£3.13
117 - ADJUSTING BOLT BSD-1609B03742.A17 1609B03742	£1.75	£2.10
118 - WEAR PLATE BSD-1609B01457.A15 1609B01457	£1.75	£2.10
119 - POINTER BSD-1609B03758.A15 1609B03758	£1.75	£2.10
122 - HEX SOCKET HEAD CAP SCREW BSD-1609B03749.A5 1609B03749	£1.75	£2.10
123 - CONTACT STRAP BSD-1609BP7343.A0 1609BP7343	£1.75	£2.10
124 - KNOB BSD-1609B03755.A15 1609B03755	£1.75	£2.10
125 - SCALE PLATE BSD-1609B03772.A4 1609B03772	£12.04	£14.45
126 - FELT WASHER BSD-1609B03763.A18 1609B03763	£1.75	£2.10
127 - FRICTION PLATE BSD-1609B03770.A4 1609B03770	£7.36	£8.83
128 - SHAFT BSD-1609B00370.A20 1609B00370	£1.75	£2.10
129 - RETAINING RING BSD-1609B00690.A30 1609B00690	£1.75	£2.10
130 - FRICTION PLATE BSD-1609B03773.A5 1609B03773	£7.36	£8.83
131 - HEX NUT BSD-1609B01041.A13 1609B01041	£1.75	£2.10
132 - STOP BOLT BSD-1609B03776.A18 1609B03776	£1.75	£2.10
133 - PIVOT PIN BSD-1609B03771.A5 1609B03771	£6.52	£7.83
134 - SHOULDER SCREW BSD-1609B03779.A22 1609B03779	£1.75	£2.10
136 - DETENT PIN BSD-1609B03767.A2 1609B03767	£2.80	£3.36
137 - CLIP BSD-1609B03757.A5 1609B03757	£1.75	£2.10
138 - O-RING BSD-1609B00601.A27 1609B00601	£1.75	£2.10
140 - HANDLE PLATE BSD-1609B03745.A4 1609B03745	£2.80	£3.36
141 - CARRYING HANDLE BSD-1609B03747.A4 1609B03747	£11.30	£13.56
142 - TAPPING SCREW BSD-1609B03768.A7 1609B03768	£1.75	£2.10
143 - SLIDE STOP BSD-1609B03753.A5 1609B03753	£1.75	£2.10
144 - SPECIAL NUT BSD-1609B03752.A15 1609B03752	£3.72	£4.47
145 - SPRING WASHER BSD-1609B00660.A16 1609B00660	£1.75	£2.10
147 - SHOULDER SCREW BSD-1609B00351.A10 1609B00351	£1.75	£2.10
148 - KNOB BSD-1609B00382.A4 1609B00382	£5.30	£6.36
149 - COMPRESSION SPRING BSD-1609B00417.A24 1609B00417	£1.75	£2.10
150 - RETAINING PLATE BSD-1609B03765.A2 1609B03765	£1.75	£2.10
151 - RETAINING PLATE BSD-1609B03766.A18 1609B03766	£1.75	£2.10
152 - DUST EXTRACTION BSD-1609B03750.A4 1609B03750	£8.67	£10.41
153 - SET SCREW BSD-1609B03777.A3 1609B03777	£1.75	£2.10
154 - DUST EXTRACTION BSD-1609B03751.A5 1609B03751	£8.67	£10.41
155 - CABLE CLIP BSD-1609B01512.A20 1609B01512	£1.75	£2.10
156 - CABLE CLIP BSD-1609B00339.A10 1609B00339	£2.16	£2.59
158 - VACUUM HOSE BSD-1609B03782.A8 1609B03782	£11.02	£13.23
159 - SUPPORT BRACKET BSD-1609B03783.A1 1609B03783	£1.75	£2.10
162 - SCREW BSD-1609B00623.A18 1609B00623	£1.75	£2.10
163 - THREAD-FORMING SCREW BSD-1609B01168.A13 1609B01168	£1.75	£2.10
164 - SCREW BSD-1609B01690.A17 1609B01690	£1.75	£2.10
167 - WEAR PLATE BSD-1609B01602.A9 1609B01602	£1.75	£2.10
168 - LOWER GUARD BSD-1609B04188.A9 1609B04188	£14.91	£17.89
169 - LINKAGE BSD-1609B04001.A1 1609B04001	£12.04	£14.45
170 - COVER BSD-1609B04002.A19 1609B04002	£1.75	£2.10
171 - SPRING BSD-1609B04004.A1 1609B04004	£1.75	£2.10
172 - SCREW BSD-1609BP7145.A12 1609BP7145	£1.75	£2.10
174 - BALL BEARING BSD-1609B01255.A7 1609B01255	£5.58	£6.70
175 - TAPPING SCREW BSD-1609B04010.A6 1609B04010	£1.75	£2.10
177 - TAPPING SCREW BSD-1609B05231.A0 1609B05231	£1.75	£2.10
178 - LOCK NUT BSD-1609B00974.A13 1609B00974	£1.75	£2.10
179 - TAPPING SCREW BSD-1609BP7134.A12 1609BP7134	£1.75	£2.10
180 - SEAL BSD-1609B04248.A17 1609B04248	£1.75	£2.10
182 - SET SCREW BSD-1609B04205.A13 1609B04205	£1.75	£2.10
184 - NUT BSD-1609B04207.A5 1609B04207	£1.75	£2.10
185 - SPRING RETAINING RING BSD-1609BP7068.A12 1609BP7068	£1.75	£2.10
186 - WASHER BSD-1609BP7050.A16 1609BP7050	£2.61	£3.13
187 - BALL BEARING BSD-1609B03774.A13 1609B03774	£12.04	£14.45
188 - SPACER BSD-1609B03780.A1 1609B03780	£1.75	£2.10
189 - PLAIN BEARING BSD-1600200029.A154 1600200029	£4.26	£5.11
190 - DEFLECTOR BSD-1609B04017.A1 1609B04017	£4.26	£5.11
191 - DEFLECTOR BSD-1609B04028.A20 1609B04028	£6.52	£7.83
192 - CLAMPING FLANGE BSD-1609B04018.A19 1609B04018	£7.36	£8.83
193 - CLAMPING FLANGE BSD-1609B06289.A1 1609B06289	£8.49	£10.19
194 - FLANGE BOLT BSD-1609BP7061.A2 1609BP7061	£2.16	£2.59
195 - WHEEL BSD-1609B04020.A19 1609B04020	£1.75	£2.10
196 - QUICK-LOCK BSD-1609B00458.A24 1609B00458	£1.75	£2.10
197 - TRIGGER BSD-1609B04029.A0 1609B04029	£1.75	£2.10
198 - LOCKING BAR BSD-1609B04021.A0 1609B04021	£1.75	£2.10
199 - COMPRESSION SPRING BSD-1609B04022.A16 1609B04022	£1.75	£2.10
200 - TAPPING SCREW BSD-1609B00637.A40 1609B00637	£1.75	£2.10
201 - SCREW BSD-1609B00973.A7 1609B00973	£1.75	£2.10
202 - SCREW BSD-1609B00627.A29 1609B00627	£2.16	£2.59
214 - SHRINKABLE TUBE BSD-1609B00583.A24 1609B00583	£1.75	£2.10
215 - SCREW BSD-1609B01561.A15 1609B01561	£1.75	£2.10
225 - COVER BSD-1609B04077.A5 1609B04077	£1.75	£2.10
229 - PRINTED CIRCUIT BOARD BSD-1609B04114.A0 1609B04114	£21.52	£25.83
230 - COVER PLATE BSD-1609B04219.A5 1609B04219	£1.75	£2.10
231 - WIRE BSD-1609B04210.A6 1609B04210	£2.61	£3.13
232 - ON-OFF SWITCH BSD-1619P03669.A18 1619P03669	£21.52	£25.83
233 - SOFT START-UP MODULE BSD-1609B03797.A0 1609B03797	£40.80	£48.96
234 - RUBBER LIP BSD-1609B03791.A0 1609B03791	£2.38	£2.85
235 - RUBBER LIP BSD-1609B03792.A9 1609B03792	£2.38	£2.85
236 - RUBBER STRIP BSD-1609B04220.A13 1609B04220	£2.02	£2.42
238 - RUBBER STRIP BSD-1609B04222.A7 1609B04222	£2.38	£2.85
239 - RING BSD-1609B00813.A8 1609B00813	£1.75	£2.10
240 - CONNECTION BLOCK BSD-1609BP7059.A19 1609BP7059	£1.75	£2.10
241 - WARNING LABEL BSD-1609B04111.A3 1609B04111	£2.61	£3.13
242 - WARNING LABEL BSD-1609B04112.A6 1609B04112	£2.61	£3.13
243 - SCREW BSD-1609B00633.A30 1609B00633	£1.75	£2.10
244 - NUT BSD-1609B00691.A0 1609B00691	£2.16	£2.59
245 - PLAIN WASHER BSD-1609B04225.A7 1609B04225	£1.75	£2.10
246 - SHOULDER SCREW BSD-1609B05201.A1 1609B05201	£1.75	£2.10
247 - O-RING BSD-1609B04228.A5 1609B04228	£4.26	£5.11
248 - CABLE TAPE BSD-1609B01538.A7 1609B01538	£1.75	£2.10
252 - COVER BSD-1609B05298.A16 1609B05298	£1.75	£2.10
257 - SCREW BSD-1609B05270.A5 1609B05270	£1.75	£2.10
258 - CLAMPING BAR BSD-1609B05236.A9 1609B05236	£2.80	£3.36
259 - SCREW BSD-1609B05268.A0 1609B05268	£1.75	£2.10
260 - NUT BSD-1609B01949.A0 1609B01949	£1.75	£2.10
261 - SCREW BSD-1609B01665.A6 1609B01665	£1.75	£2.10
262 - SHOULDER SCREW BSD-1609B04744.A9 1609B04744	£1.75	£2.10
652 - CLAMP BSD-1609B04224.A13 1609B04224	£18.96	£22.75
808 - NAMEPLATE BSD-1609BN0137.A0 1609BN0137	£2.61	£3.13
803 - ARMATURE ASSEMBLY 230V BSD-1609B03793.A0 1609B03793	£103.14	£123.77
810 - CARBON-BRUSH SET BSD-1609B06661.A20 1609B06661	£16.41	£19.69
811 - CAPACITOR BSD-1609B04141.A7 1609B04141	£1.75	£2.10
824 - LASER BSD-1609B01726.A5 1609B01726	£21.52	£25.83
825 - DUST-PROTECTION COVER BSD-1609B04127.A6 1609B04127	£10.10	£12.12
840 - ASSEMBLY BASE BSD-1609B03744.A0 1609B03744	£195.26	£234.31
841 - FEED TABLE BSD-1609B03786.A1 1609B03786	£33.45	£40.14
842 - FEED TABLE BSD-1609B05388.A9 1609B05388	£37.73	£45.28
846 - TABLE BSD-1609B05339.A2 1609B05339	£120.11	£144.13
847 - PIVOT BSD-1609B04123.A1 1609B04123	£59.53	£71.44
848 - YOKE BSD-1609B03788.A1 1609B03788	£81.81	£98.17
850 - GEAR COVER BSD-1609B05349.A18 1609B05349	£12.04	£14.45
855 - OUTPUT SHAFT BSD-1609B03789.A6 1609B03789	£41.62	£49.95
857 - DUST EXTRACTION BSD-1609B04125.A1 1609B04125	£14.91	£17.89
866 - TORSION SPRING BSD-1609B04124.A6 1609B04124	£13.12	£15.75
882 - CONNECTING WIRE BSD-1609B04026.A1 1609B04026	-
883 - CONNECTING WIRE BSD-1609B04027.A6 1609B04027	-
884 - CONNECTING WIRE BSD-1609B04087.A3 1609B04087	-
885 - CONNECTING WIRE BSD-1609B04088.A0 1609B04088	-
886 - CONNECTING WIRE BSD-1609B04089.A6 1609B04089	-
887 - CONNECTING WIRE BSD-1609B04100.A6 1609B04100	-
888 - CONNECTING WIRE BSD-1609B04101.A0 1609B04101	-
890 - LEVER BSD-1609B05340.A5 1609B05340	£4.26	£5.11
891 - STOP PLATE BSD-1609B02365.A6 1609B02365	£2.29	£2.75
892 - SCREW BSD-1609B00263.A15 1609B00263	£2.16	£2.59
893 - SCREW BSD-1609B00678.A27 1609B00678	£1.75	£2.10

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 8 SJL / 3601M19170 / GB 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here

Shopping Basket (0) £0.00

Bosch GCM 8 SJL / 3601M19170 / GB 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Festool CLEANTEC CTL MIDI I Mobile Dust Extractor

Hitachi / Hikoki NT65GB Gas Finish Nailer Spare Parts

Makita DPT353Z Cordless Pin Nailer Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GCM 8 SJL / 3601M19170 / GB 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

People who bought this product also bought

Festool CLEANTEC CTL MIDI I Mobile Dust Extractor

Hitachi / Hikoki NT65GB Gas Finish Nailer Spare Parts

Makita DPT353Z Cordless Pin Nailer Spare Parts

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
