Bosch GDS 24 / 0601434132 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

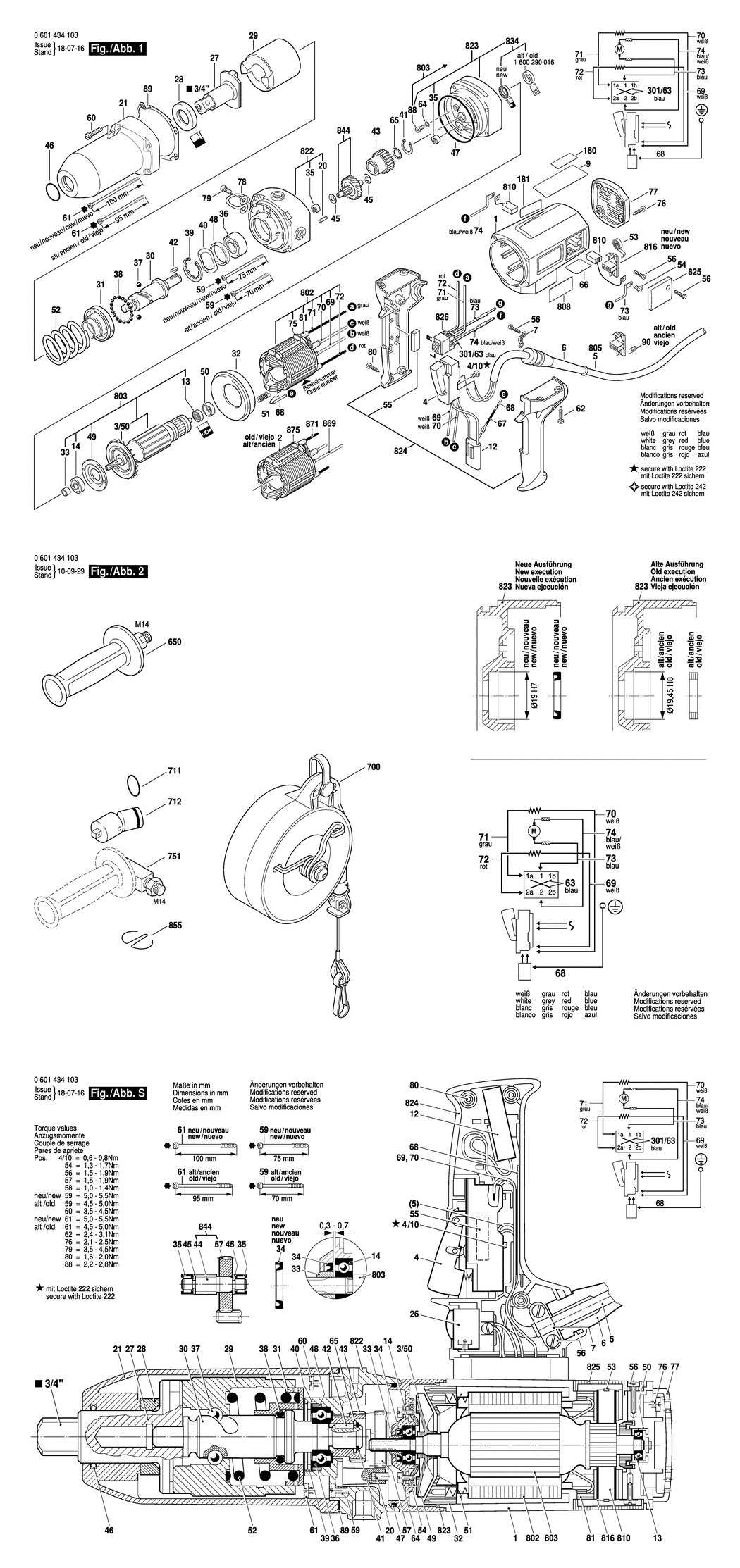

An exploded drawing and listing for the Bosch GDS 24 / 0601434132 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108091.A30 3605108091	£33.74	£40.49
3/50 - FAN BSD-1606610122.A140 1606610122	£2.80	£3.36
4 - SWITCH BSD-1607200079.A3 1607200079	£33.74	£40.49
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A9 2910011082	£1.75	£2.10
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07RN-F BSD-1604460447.A63 1604460447	£21.68	£26.01
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A474 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302014.A245 1601302014	£2.61	£3.13
9 - STICKER BSD-3601110611.A1 3601110611	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2607329096.A175 2607329096	£7.36	£8.83
13 - BALL BEARING 7x19x6 BSD-2600905032.A1418 2600905032	£5.30	£6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A60 3600905131	£11.30	£13.56
20 - STRAIGHT PIN DIN 7-5H8x14 BSD-2917500119.A1 2917500119	£1.75	£2.10
21 - SPINDLE BEARING BSD-3605806220.A1 3605806220	£48.38	£58.06
27 - COUPLING HALF 3/4 BSD-1606455031.A0 1606455031	£156.22	£187.46
28 - SHIM WASHER BSD-3600114013.A0 3600114013	£21.68	£26.01
29 - STRIKER BSD-1608710018.A5 1608710018	£251.67	£302.00
30 - DRIVE SHAFT BSD-1603124077.A1 1603124077	£156.22	£187.46
31 - BACKUP RING BSD-1600220015.A5 1600220015	£102.57	£123.08
32 - AIR-DEFLECTOR RING BSD-1600502019.A0 1600502019	£3.72	£4.47
33 - INTERMEDIATE RING BSD-3600300042.A3 3600300042	£10.10	£12.12
35 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A13 1600910018	£5.30	£6.36
36 - GROOVE BALL BEARING 15x35x11 BSD-1900905279.A15 1900905279	£11.30	£13.56
37 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A0 1903230014	£1.75	£2.10
38 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A539 1903230007	£1.75	£2.10
39 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A4 2916660017	£4.26	£5.11
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A4 1600150007	£1.75	£2.10
41 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A95 2916650006	£1.75	£2.10
42 - PARALLEL KEY DIN 6885-A6X4X14 BSD-1902300083.A3 1902300083	£1.75	£2.10
43 - CYLINDRICAL GEAR Z=25 BSD-3606301006.A11 3606301006	£63.50	£76.20
45 - SHIM 0.5 MM BSD-1600100617.A18 1600100617	£1.75	£2.10
46 - O-RING 28x3 MM BSD-1900210129.A92 1900210129	£2.61	£3.13
47 - O-RING 66.0x3.0 MM BSD-1600210005.A12 1600210005	£2.80	£3.36
48 - RUBBER RING 7 MM BSD-1600206020.A710 1600206020	£1.75	£2.10
49 - BEARING COVER BSD-3605500043.A10 3605500043	£4.26	£5.11
50 - INTERMEDIATE RING BSD-1600502011.A567 1600502011	£2.61	£3.13
51 - COMPRESSION SPRING BSD-1604613006.A8 1604613006	£1.75	£2.10
52 - COMPRESSION SPRING BSD-3604610034.A1 3604610034	£14.91	£17.89
53 - SPIRAL SPRING BSD-160465202C.A2 160465202C	-
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A194 2910021118	£1.75	£2.10
55 - INSULATING STRIP BSD-3602317025.A1 3602317025	£2.61	£3.13
56 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A318 2910211019	£1.75	£2.10
59 - LENS HEAD SCREW BSD-3603435040.A17 3603435040	£1.75	£2.10
60 - HEX SOCKET HEAD CAP SCREW DIN 912-BM 5x40-10.9 BSD-2910151170.A6 2910151170	£1.75	£2.10
61 - LENS HEAD SCREW BSD-3603435041.A3 3603435041	£1.75	£2.10
62 - TAPPING SCREW 5x30 BSD-3603435027.A36 3603435027	£1.75	£2.10
64 - PLAIN WASHER DIN 7603-A4x8 BSD-3600120013.A12 3600120013	£1.75	£2.10
65 - SHIM WASHER 0.4 MM BSD-1600101600.A47 1600101600	£1.75	£2.10
66 - STICKER BSD-3601110369.A4 3601110369	£3.72	£4.47
67 - SHRINKABLE TUBE BSD-1600712027.A3 1600712027	£1.75	£2.10
68 - ELEC. CABLE W/CONNECTION L=250 MM BSD-3604448044.A11 3604448044	£3.72	£4.47
69 - CONNECTING CABLE L=470 MM BSD-3604438025.A27 3604438025	£7.36	£8.83
70 - CONNECTING CABLE L=330 MM BSD-1604438012.A58 1604438012	£7.36	£8.83
71 - CONNECTING CABLE L=330 MM BSD-3604460135.A10 3604460135	£8.67	£10.41
72 - CONNECTING CABLE L=160 MM BSD-3604438008.A14 3604438008	£8.67	£10.41
73 - SUPPRESSION FILTER L=300 MM BSD-3604503036.A5 3604503036	£5.30	£6.36
74 - SUPPRESSION FILTER L=150 MM BSD-3604503037.A8 3604503037	£5.30	£6.36
75 - WIRE GUIDE BSD-3601025003.A60 3601025003	£1.75	£2.10
76 - TORX OVAL-HEAD SCREW BSD-2914201527.A74 2914201527	£2.16	£2.59
77 - SEALING CAP BSD-3605500062.A12 3605500062	£13.12	£15.75
78 - SUSPENSION LOOP BSD-3601310013.A10 3601310013	£21.68	£26.01
79 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A3 2910131193	£1.75	£2.10
80 - TORX OVAL-HEAD SCREW BSD-2914201508.A40 2914201508	£1.75	£2.10
81 - SHRINKABLE TUBE BSD-3600707022.A113 3600707022	£3.72	£4.47
88 - SOCKET HEAD CAP SCREW BSD-3603435045.A13 3603435045	£1.75	£2.10
89 - SEAL BSD-3601023009.A3 3601023009	£6.52	£7.83
90 - TAB WASHER BSD-1601030022.A372 1601030022	£1.75	£2.10
301/63 - CONNECTING CABLE L=60 MM BSD-3604412002.A7 3604412002	£7.36	£8.83
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1445 1602025022	£13.41	£16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1336 1602025030	£18.96	£22.75
700 - SPRING PULL 6-8 KG BSD-0607950925.A1 0607950925	-
711 - O-RING 26.0x16.0 MM BSD-1600210018.A2 1600210018	-
711 - SEAL RING dia 8x14 MM BSD-1600280000.A3 1600280000	-
712 - BALL JOINT 3/4. 90 MM BSD-1608500008.A5 1608500008	-
751 - THREADED FITTING M14. L=70 MM BSD-1603527017.A11 1603527017	-
802 - FIELD 220-230V BSD-3604220138.A5 3604220138	£72.18	£86.62
803 - ARMATURE 220-230V BSD-3604010071.A1 3604010071	£156.22	£187.46
808 - NAMEPLATE BSD-160111A3H3.A4020 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-3607014012.A77 3607014012	£23.86	£28.63
816 - BRUSH HOLDER BSD-3604336012.A111 3604336012	£5.58	£6.70
822 - GEAR HOUSING BSD-3605806167.A3 3605806167	£120.11	£144.13
823 - INTERMEDIATE FLANGE BSD-3605806168.A8 3605806168	£72.18	£86.62
824 - HANDLE BSD-3605132064.A9 3605132064	£23.86	£28.63
825 - SEALING CAP BSD-3605500063.A170 3605500063	£4.26	£5.11
826 - SWITCH BSD-3607200000.A9 3607200000	£21.52	£25.83
834 - ROTARY SHAFT LIP SEAL BSD-3600290070.A42 3600290070	£12.04	£14.45
844 - GEAR SHAFT BSD-1607000C6N.A11 1607000C6N	£81.81	£98.17
855 - RETAINING SPRING BSD-3607000094.A3 3607000094	£14.91	£17.89
869 - CONNECTING CABLE L=450 MM BSD-3604460009.A28 3604460009	£6.52	£7.83
871 - CONNECTING CABLE L=345 MM BSD-1604438013.A15 1604438013	£7.36	£8.83
875 - WIRE GUIDE BSD-1601025001.A103 1601025001	£1.75	£2.10
